Step-by-Step Guide to Connecting Your Vehicle and Trailer Wiring Correctly

Begin by matching the connector type on your towing setup with the corresponding socket. A 7-pin round configuration handles basic lighting and braking functions, while a 13-pin flat includes additional circuits for reverse lights, charging, and stability controls. Identify the pinout for your vehicle–most European models follow ISO 11446 for 13-pin, whereas North American setups often use SAE J2863 for 7-pin. Cross-reference these standards with your owner’s manual before proceeding.

Use a multimeter set to continuity mode to verify each circuit. Probe the pins on the towing plug while activating the corresponding function–brake lights, turn signals, or marker lamps. A reading of 12V confirms the circuit is live; zero volts indicates a fault. Check for voltage drops across connections, as corroded terminals or thin cables (below 1.5 mm²) can cause intermittent failures. Replace damaged wiring with tinned copper conductors rated for at least 15A.

Ground connections demand particular attention. Attach the negative lead to a bare metal chassis point, avoiding painted or coated surfaces. Use a star washer to ensure a secure bond. For trailers with electric brakes, connect the brake controller’s output to a dedicated circuit capable of 30A–most factory systems support only 10-15A, requiring a relay for heavier loads. Test the brake function by applying 12V directly to the brake magnet; the resistance should measure 3.0-4.5 ohms.

Fit a surge protector between the sockets to prevent voltage spikes from frying LED modules. Install a fused junction box near the rear lighting cluster for easier troubleshooting. Route wires through a split loom tubing to shield them from road debris. Label each conductor at both ends for future maintenance. Recheck all connections after 50 miles–vibration loosens terminals over time.

How to Connect Your Vehicle’s Electrical System to an Attached Load

Begin by matching the connector types on both ends–common standards include 4-pin flat, 5-pin round, 6-pin round, and 7-pin round (RV-style). The 4-pin setup covers basic functions: running lights, turn signals, and brake lights. Use a voltage tester to confirm each wire’s purpose before attaching; green typically controls the right turn/brake, yellow the left, brown the tail/marker lights, and white the ground. For heavier loads like hydraulic brakes or auxiliary power, upgrade to a 7-pin connector–blue carries reverse lights or brake control, black often supplies 12V power, and red may handle charging for onboard batteries.

Strip no more than 6mm of insulation from each conductor, crimp with tinned copper ring terminals, and secure with heat-shrink tubing to prevent corrosion. Route cables away from moving parts, exhaust, and sharp edges–use split-loom tubing where exposure is unavoidable. Ground the white wire directly to the tow vehicle’s chassis using a dedicated star washer; inadequate grounding causes intermittent failures, especially in wet conditions. Avoid daisy-chaining grounds, as this introduces resistance and potential voltage drop.

Test each circuit under load before final assembly. Activate turn signals, brake lights, and running lights simultaneously–LED-equipped trailers draw minimal current, but incandescent bulbs (especially on older models) may overload thin-gauge wires. If flickering occurs, replace the wire with 14-gauge minimum; 12-gauge is recommended for runs exceeding 5 meters. For electric brakes, install a time-delay brake controller inside the cab, adjusting gain to match the load’s weight–aim for a 0.5–0.7-second activation lag to prevent jackknifing.

Polarity-sensitive components, such as surge protectors or reverse-polarity diodes, must align with the tow vehicle’s output. Use a multimeter in DC voltage mode to confirm the red (or black, depending on the standard) wire delivers 12V+ when the ignition is on. For trailers with onboard batteries, fuse the power wire close to the source–typically a 20–30A blade fuse. Avoid taping splices; solder and adhesive-lined heat-shrink tubing provide superior longevity, resisting vibration and moisture ingress.

Seasonal checks prevent failures mid-journey. Inspect connectors for green oxidation every 3 months–clean with electrical contact cleaner and dielectric grease. Retighten terminal screws annually; torque to 6–8 Nm for secure clamping. Replace corroded wires rather than patching; copper oxide degrades conductivity, leading to overheating. For heavy-duty applications (e.g., livestock trailers), add a relay-based isolator to separate the battery charging circuit, preventing parasitic drain when the vehicle is off.

Label every wire at both ends with heat-shrink labels or colored sleeves–brown/white for tail lights, blue/white for auxiliary functions–to simplify future troubleshooting. Keep spare fuses, lengths of wire, and a spare connector of the same type in the glove box. For vehicles with European or OEM-specific connectors (e.g., VW’s “Jaeger” plug), procure the correct adapter rather than cutting the original wiring; mismatched connections risk damaging the onboard computer or triggering error codes.

Selecting the Optimal Electrical Connector for Your Towing Setup

Begin by matching the harness amp rating to your load demands. Most light-duty hauling rigs require 10-15A circuits, while heavier rigs often need 20-30A configurations. Check the manufacturer’s specs against your towed equipment’s peak power draw–exceeding limits risks circuit failure. If your setup includes auxiliary lighting or electric brakes, opt for a harness with integrated surge protection to prevent voltage spikes from damaging components.

Verify connector compatibility with your vehicle’s existing electrical system. Common 4-pin connectors handle basic lighting, but 7-pin variants support electric brakes and reverse lights. For specialized equipment like winches or refrigeration units, consider custom adapters. Always inspect the pin layout against your rig’s manual–misaligned connections cause intermittent failures.

• Flat connectors suit minimalist setups but lack durability under vibration.
• Round connectors resist moisture and corrosion, ideal for off-road use.
• Heavy-duty harnesses feature braided shielding to reduce signal interference.

Prioritize corrosion-resistant materials for long-term reliability. Copper-core wiring degrades faster in humid climates, while tin-plated or nylon-coated wiring lasts longer. Test harness continuity with a multimeter before installation–resistance above 1 ohm indicates potential issues. Replace any harness with brittle insulation, as it fractures under stress.

Installation Considerations

Route harnesses away from heat sources and moving parts. Secure them with adhesive-lined clamps every 12-18 inches to prevent chafing. Avoid tight bends (minimum 2-inch radius) to prevent wire fatigue. Ground connections must attach to bare metal surfaces, free of paint or rust. For electric brake systems, use a dedicated power source with a relay to avoid voltage drop.

1. Disconnect the vehicle’s battery before handling any electrical components.
2. Use dielectric grease on connections to prevent oxidation.
3. Test all functions–lights, brakes, and signals–after installation.

For aftermarket upgrades, select harnesses with color-coded wiring to simplify troubleshooting. Avoid universal kits if your vehicle has factory-integrated towing features–these often require OEM-specific connectors. Keep spare fuse links for critical circuits, as overloaded wires melt without warning.

Step-by-Step Installation of a 4-Pin Towing Harness

Begin by locating the vehicle’s factory harness behind the rear bumper or tail light assembly. Most modern autos include a pre-wired socket; if absent, splice into the existing light circuit using a 14-gauge automotive-grade cable. Match each wire by function: yellow for left turn/brake, green for right turn/brake, brown for tail lamps, and white for ground. Secure connections with heat-shrink tubing to prevent corrosion.

Preparing the Connector and Mounting

Insert the stripped wires into the 4-pin plug’s terminals, ensuring a firm grip–loose connections cause intermittent faults. Route the cable along the underbody, avoiding sharp edges or moving parts. Use zip ties spaced every 12 inches to prevent sagging. Mount the plug at a height accessible to the towed unit, typically 16–24 inches from the ground, and secure it with stainless steel screws.

Test each circuit with a multimeter set to continuity mode. Activate the brake pedal, turn signals, and running lights to verify voltage–12V DC should register on the corresponding pins. If readings fluctuate, recheck crimps and splice points. Apply dielectric grease to the plug’s contacts to repel moisture.

Finalize the setup by covering the harness with a protective loom if exposed to road debris. For vehicles with reverse sensing, an optional blue wire (auxiliary function) can be added, though standard 4-pin systems omit this. Double-check tightness of all fasteners before towing; vibration loosens connections over time.

Understanding Vehicle-Attachment Harness Color Standards

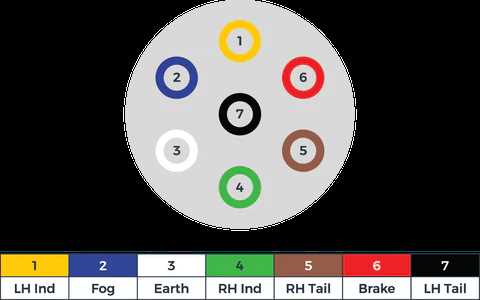

Always verify the harness connector pinout using a multimeter before connecting any auxiliary equipment. Most modern passenger transports and towable units follow a standardized seven-way plug configuration, though regional variations exist–North American systems differ from European layouts. Brown typically denotes the tail lamps, while white serves as the ground return path for all circuits. Yellow and green handle left and right turn signals, respectively, with amber being an alternative in certain aftermarket kits.

Larger commercial rigs or specialized trailers may include additional circuits beyond the basic seven-way setup. Auxiliary power (often blue) supplies 12V to charge batteries or run internal equipment, but its presence isn’t universal–some OEM setups omit it entirely. Purple or pink wires, when present, usually feed reverse lights or auxiliary brake controllers. Conflicting color schemes between tow vehicle and attachment often stem from mismatched manufacturers or modified wiring harnesses; resolve these by cross-referencing the plug’s physical pin layout rather than relying on color alone.

Key Circuits and Their Purposes

Color (Standard)	Primary Function	Voltage (Loaded)	Common Issues
White	Ground reference	0V (ideal)	Corrosion at terminal; high resistance causing dim lights
Brown	Marker/running lights	12V-14V	Short to ground if insulation chafes; bulbs burning out prematurely
Yellow	Left turn/stop signal	Pulsing 12V	Phantom flashing if load exceeds relay capacity
Green	Right turn/stop signal	Pulsing 12V	Mismatched brake controller output causing erratic operation
Blue	Electric brake output	12V-16V (momentary)	Splice failures from vibration; inadequate gauge wire

Avoid tap-splicing wires to extend circuits–use butt connectors with heat-shrink tubing or crimp terminals rated for automotive current. Loose connections generate resistance, leading to voltage drop that impairs lighting or brake functions. For dual-filament bulbs (combining stop/turn signals), ensure the harness supports separate feeds; spliced circuits often cause “bulb-out” warnings on dash displays. Always route wires through grommets when passing through chassis holes to prevent chafing against sharp metal edges.

Factory tow packages frequently include relays to handle current draw from additional lighting arrays. Bypass these only if upgrading to heavier-gauge cabling; otherwise, risk overheating the original wiring loom. Check local regulations–some jurisdictions mandate reflective conspicuity tape on attachment edges, powered by the same brown circuit feeding marker lights. Aftermarket converters may transpose functions, e.g., swapping yellow and green for left/right signals to match imported equipment.

High-amperage accessories like electric winches or refrigeration units should never share a circuit with lighting or braking systems. Dedicate a separate fused line (minimum 10AWG) directly to the battery, protecting it with a relay to isolate parasitic drain when the ignition is off. For older setups lacking a blue wire, retrofitting an electric brake controller requires tapping into the stop lamp circuit while ensuring the chosen fuse rating accommodates both functions without overloading.
