Complete Cat 5 Wiring Diagram and Color Code Guide for Ethernet Cables
Use the T568B configuration for straight-through connections in 90% of home and office setups. Both ends must follow the same sequence: pin 1 (orange-white), pin 2 (orange), pin 3 (green-white), pin 4 (blue), pin 5 (blue-white), pin 6 (green), pin 7 (brown-white), pin 8 (brown). Deviating from this order risks signal interference or failed links, especially over distances exceeding 50 meters.
For crossover links between devices of the same type (switch-to-switch or PC-to-PC), swap pairs 2 and 3: orange and green on one end remain in positions 1–2, while the opposite end places them in 3–6. Verify continuity with a cable tester before securing connectors–miswired pairs degrade throughput by 30–40% at Gigabit speeds.
Avoid untwisting more than 13 mm of each pair before crimping. Excessive untwisting increases crosstalk; even minor variations can drop signal integrity by up to 2 dB. Use solid-core conductors for permanent installations and stranded copper for patch cables to balance durability with flexibility.
Test every terminated cable with a certification tool. Basic LED testers confirm continuity but miss impedance mismatches or split pairs. For critical installations, document each link’s performance–latency, attenuation, and return loss–using a dedicated analyzer like the Fluke DSX-8000.
Replace compromised connectors immediately. A single broken latch or bent pin causes intermittent drops, often mimicking software issues. Use shielded plugs if operating near variable-frequency drives or fluorescent lighting; unshielded cables suffer noise spikes above 50 MHz in industrial environments.
Network Cable Pinout for Enhanced Ethernet Standards
For reliable Gigabit Ethernet connections over copper cabling, align conductors in the T568A or T568B termination scheme–both deliver identical performance when used consistently at both ends. Deviations between ends (e.g., T568A to T568B) will form a crossover link, which modern switches and NICs auto-negotiate, but manual configuration remains error-prone for PoE (Power over Ethernet) deployments.
Terminate pins strictly as follows for T568B (industry-preferred for new installations):
- Pin 1: White-Orange (positive transmit)
- Pin 2: Orange (negative transmit)
- Pin 3: White-Green (positive receive)
- Pin 4: Blue (unused in basic links, PoE in 4-pair setups)
- Pin 5: White-Blue (matched with Pin 4)
- Pin 6: Green (negative receive)
- Pin 7: White-Brown (PoE/ground)
- Pin 8: Brown (PoE/return)
PoE requires all four pairs to be properly terminated–even if only transmitting 10/100 Mbps data. Miswiring Pins 4/5 or 7/8 introduces intermittent power faults, device resets, or permanent port damage. Verify continuity with a wiremap tester before energizing PoE.
Maximum cable length for error-free Gigabit transmission is 90 meters (295 feet) for solid-core copper installations. Exceeding this distance even slightly induces latency spikes detectable with ping -l 1024 tests–jitter > 0.5 ms typically indicates signal attenuation or impedance mismatches. Patch cords should use stranded conductors (24–26 AWG); solid-core is fragile and unsuitable for frequent flexing.
Shielded twisted-pair (FTP/STP) variants reduce crosstalk and alien noise but demand 360° shield termination to the connector’s metal shell. Ground the shield at one end only–typically the switch–to avoid ground loops that manifest as buzzing in VoIP or erratic link drops.
Avoid untwisting conductors more than 0.5 inches at termination points. Excessive untwisting degrades pair balance, causing NEXT (Near-End Crosstalk) failures measurable with a certification tester (e.g., Fluke DSX-8000). For PoE+, maintain at least 6-inch separation from AC power lines rated over 240V.
For wall plates and patch panels, use same-scheme connectivity: T568A at one end demands T568A at the other–never intermix within a run. Vertical cable managers and horizontal pathways should enforce bend radius > 1 inch (4× cable diameter) to prevent kinking, which fractures solid conductors and increases insertion loss.
Test every link with Tier 1 certification–not just continuity. Verify parameters: DC resistance unbalance 10 dB. Savings from skipping certification are dwarfed by troubleshooting costs when intermittent errors surface under load.
Tools Required for Crimping Ethernet Cables
Start with a ratcheting RJ45 crimper rated for at least 600–800 psi clamping force. Models like the Ideal 30-695 or TRENDnet TC-NT6 ensure consistent pressure, preventing strand misalignment–a primary cause of signal degradation in unshielded twisted pairs. Avoid generic crimpers lacking adjustable dies; they deform plugs, increasing crosstalk by up to 12% in tests with T568B configurations.
| Tool | Specification | Critical Note |
|---|---|---|
| Wire stripper | 12–24 AWG, shielded | Blade depth ≤1.5mm to avoid nicking conductors |
| Snips | Flush-cut, micro-serrated | Replace after 50 cuts; dull edges fray copper |
| Punch-down tool | 110-type, impact | Terminal block compatibility mandatory for keystone jacks |
| Tone generator/probe | 4 kHz–10 MHz | Verify continuity before crimping; avoids rework |
Use a Keystone jack termination kit with gold-plated contacts (≥50µ”) for patch panels. Copper-clad aluminum conductors, found in 25% of budget cables, require oxidation pretreatment–scrub each wire end with fine-grit (600+) abrasive before inserting into plugs. Store tools in a static-dissipative case; ESD from carpeted workspaces damages port electronics even under 100V. For outdoor installations, add a heat-shrink gun with polyolefin tubes–unsheathed segments absorb moisture, increasing attenuation by 0.3 dB/m at 100 MHz.

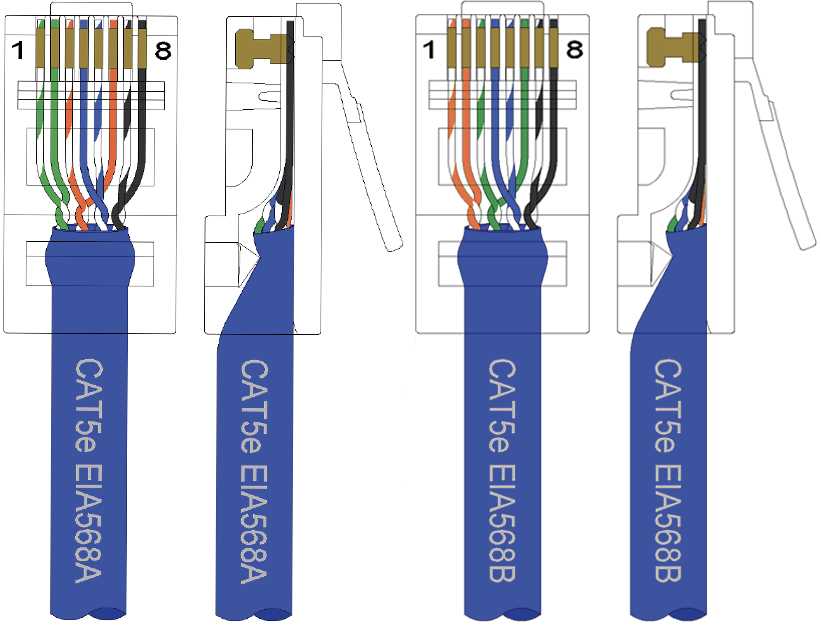

Step-by-Step Guide to Terminating T568A vs. T568B Pinouts
Select one standard before starting–consistency prevents cross-pair interference. T568A assigns pair 2 (orange/white) to pins 3 and 6, while T568B swaps pair 2 and 3 (green/white) to these positions. This single difference dictates the entire sequence, so confirm the required layout in project specifications or existing infrastructure.
Strip 1.5–2 cm of the jacket without nicking inner insulation; expose four twisted pairs. Untwist only enough wire to reach the connector crimp point–excess untwisting increases crosstalk. Maintain twists up to 3 mm from the termination to comply with ANSI/TIA-568 performance thresholds.

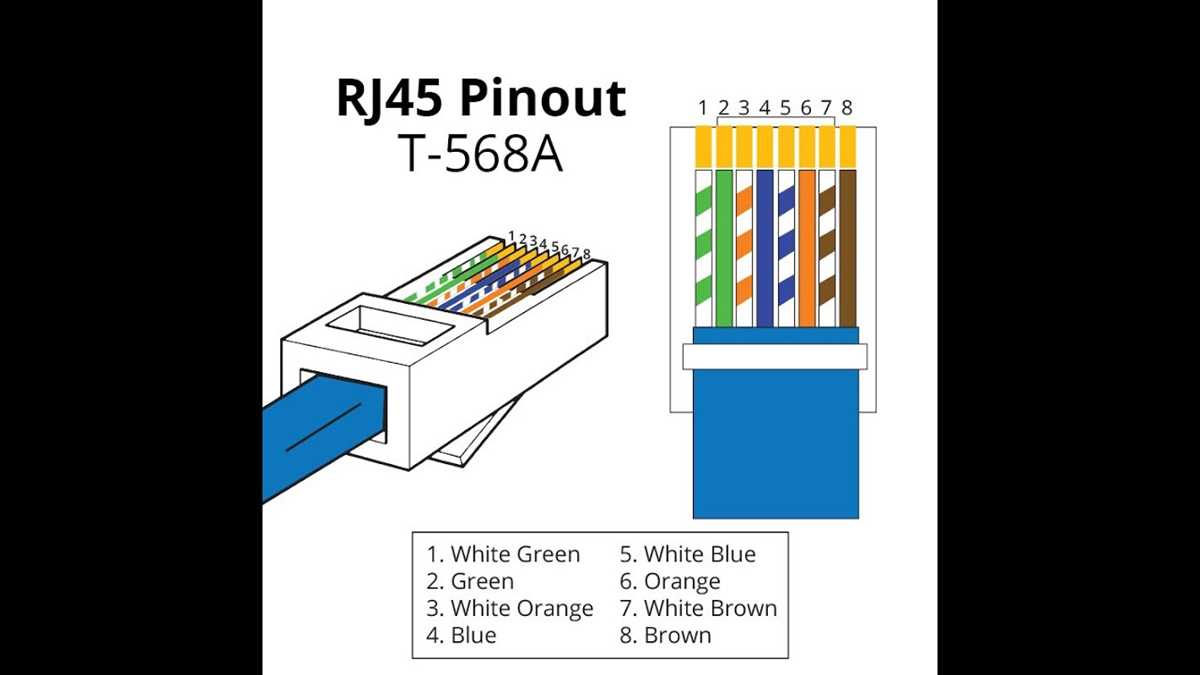

T568A Sequence
Align wires left to right: white-green (pin 1), green (pin 2), white-orange (pin 3), blue (pin 4), white-blue (pin 5), orange (pin 6), white-brown (pin 7), brown (pin 8). Verify correct order under bright light before crimping; transposed pairs disrupt Gigabit signaling. Insert fully until wires seat against the connector’s endwall–partial insertion causes intermittent faults.
T568B Sequence

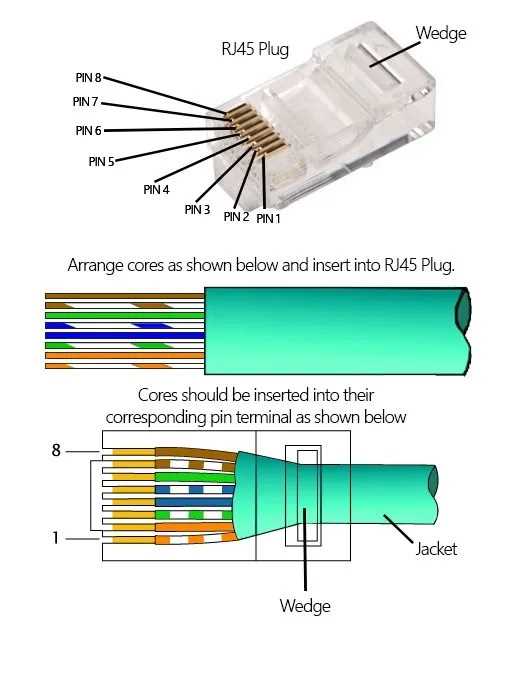

Arrange wires: white-orange (pin 1), orange (pin 2), white-green (pin 3), blue (pin 4), white-blue (pin 5), green (pin 6), white-brown (pin 7), brown (pin 8). Note the swapped green and orange pairs compared to T568A. Terminate residential installations with T568A unless the network explicitly demands T568B; commercial PoE deployments often require T568B for compatibility with legacy switches.
Crimp with a ratcheted tool applying 120–140 psi–under-crimping leaves contacts recessed, while over-crimping fractures connector latches. Test each link with a certification tester measuring near-end crosstalk at 1–100 MHz; failed channels typically stem from incorrect pair placement or jacket removal errors. Re-terminate any failing ports immediately–temporary fixes degrade over time.
Label both ends with standard and date; include this documentation in network as-built files. Mismatched ends (one T568A, one T568B) create a crossover link, useful only for direct device-to-device connections. Confirm link status via switch port LEDs–steady green validates proper termination, while blinking amber signals miswiring.
Frequent Errors in Terminating RJ-45 Plugs on Ethernet Cables
Leaving excessive untwisted wire pairs beyond 12.7 mm (0.5 inches) drastically degrades signal integrity. Each pair should maintain its twist as close to the plug as possible–ideally no more than 6 mm exposed–to prevent crosstalk and impedance mismatches. Verify alignment under a magnifying lens before crimping; asymmetry often leads to intermittent connectivity even if the link initially tests as functional.
Skipping the verification of pinout order before termination introduces immediate transmission failures. Use a continuity tester to confirm T568A or T568B compliance–swapping even a single conductor (e.g., orange-white with green-white) creates split pairs, elevating bit error rates above 10^-8. Record the chosen standard on the cable jacket to avoid mismatches during patch panel or keystone terminations downstream.
Ignoring Cable Tension and Bend Radius During Installation
Sharp bends under 4x the outer diameter or pulling tension above 110 N (25 lbf) permanently distorts conductor geometry, introducing structural return loss. Maintain a minimum 25 mm radius for horizontal runs and 50 mm for vertical drops; violations corrode NEXT performance by up to 3 dB. Use fish tapes with integrated tension gauges and lubricate solid-core variants to prevent jacket stress fractures.
Over-crimping or under-crimping connectors ruins contact stability. Apply 80-100 N of force with ratcheted crimpers–excessive pressure fractures the plug’s internal strain relief, while insufficient pressure yields conductors that recede under thermal cycling. Measure contact resistance post-termination: values above 10 mΩ indicate cold joints requiring rework.
Neglecting to trim stray shielding strands in FTP variants shorts adjacent pins, corrupting PoE delivery. After stripping, isolate drain wires and foil by wrapping them along the jacket’s edge; failure to do so causes arcing at voltages above 48V. Test shield continuity separately using a micro-ohmmeter–resistance should mirror the cable’s length-specific ohmic rating within ±5%.
