Step-by-Step Guide to Cat5 Cable Wiring with Color Codes and Pinout
Use the T568B configuration for all terminated connections in a modern network. This pattern ensures compatibility with most switches and routers, eliminating ghost issues caused by incorrect polarity. The sequence for each conductor is: white/orange, orange, white/green, blue, white/blue, green, white/brown, brown. Always verify color coding before crimping; even a single misplaced wire can degrade signal integrity.
For cross-over implementations (device-to-device without a switch), swap pins 1 with 3 and 2 with 6 on one end only. This setup compensates for transmit/receive inversion, though modern auto-MDI/MDIX ports often negate the need. Still, manual crossover remains critical when working with legacy hardware orPoE injectors. Check device specifications–some older IP cameras or network printers still require this configuration.
Strip only 12–15 mm of outer jacket; exposing longer runs of inner wires risks crosstalk. Maintain twists in each pair right up to the point of termination–maximum allowable untwist is 13 mm. After crimping, test each connection with a cable certifier for pair skew and impedance consistency. A basic continuity tester won’t catch signal degradation; invest in a Fluke DTX-1800 or equivalent if throughput matters.
Shielded twisted pair (STP) should be grounded at both ends when installed in environments with high electromagnetic interference, such as near industrial motors or fluorescent lighting. Bond the drain wire to a dedicated ground busbar; floating grounds can introduce noise that mimics packet loss. Unshielded installations (UTP) suffice for most office settings, but maintain minimum bend radius–no tighter than 4× the outer diameter–to prevent alien crosstalk.
Standard Ethernet Cable Pinout Guide
Use the T568B standard for terminating both ends of a patch cord to ensure compatibility with most modern networks. This arrangement–white-orange, orange, white-green, blue, white-blue, green, white-brown, brown–prevents crossed pairs and matches switch port expectations. Verify continuity with a cable tester before deployment, especially for runs exceeding 50 meters where signal degradation becomes noticeable.

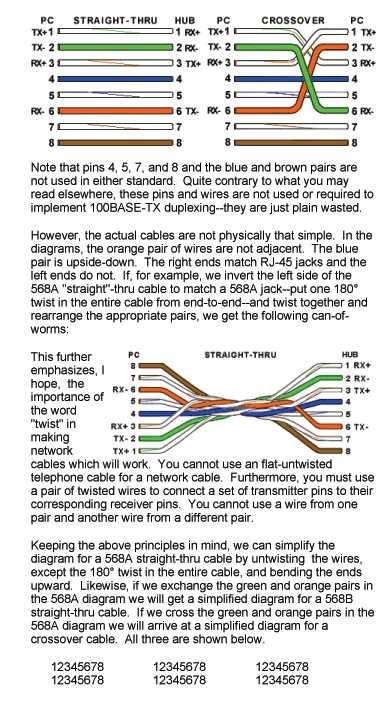

For crossover connections between two devices of the same type (such as switch-to-switch or PC-to-PC), flip pins 1 with 3 and 2 with 6 at one end. This direct transmit-to-receive pairing eliminates the need for a dedicated uplink port. Avoid relying on auto-MDI/MDIX in environments using PoE; manual termination ensures reliable power delivery without negotiation delays.
Strip precisely 2.5 cm of outer jacket to prevent nicking conductor insulation while leaving enough length for strain relief inside the RJ45 connector. Twist individual pairs only to the point where the wires naturally separate–over-twisting increases crosstalk. Trim conductors to a uniform 1.3 cm from the jacket edge for consistent crimping depth and proper contact seating.
Use solid copper conductors for permanent in-wall runs, reserving stranded wire for patch cables where flexibility outweighs signal attenuation. Solid core tolerates PoE loads up to 30W per pair, while stranded shows higher voltage drop over distance. Follow ANSI/TIA-568-C.2 for maximum bend radius (4× cable diameter) to prevent impedance mismatches.
Label both ends immediately after termination with the destination (e.g., “IDF-A-12”) and cable length measured to the nearest meter. Store spare cable in a temperature-controlled environment (10-27°C) to prevent insulation brittleness. For outdoor runs, use CMX-rated cable with UV-resistant jacket and waterproof gel-filled connectors, grounding the shield at both ends to the building’s bonding system.
Replace any connectors showing corrosion or bent contacts–latent failures often precede intermittent faults. For high-density patch panels, stagger port termination vertically to maintain pair separation; avoid running parallel cables closer than 30 cm for lengths over 10 meters to reduce alien crosstalk in gigabit deployments.
Step-by-Step Guide to Creating Reliable Twisted-Pair Network Connections
Begin by selecting stranded copper conductors rated for 100 MHz bandwidth to handle Gigabit Ethernet speeds reliably. Purchase pre-terminated plugs with gold-plated contacts or acquire bulk cable with 24 AWG solid cores for permanent installations. Use a stripping tool calibrated for 3/8-inch jacket removal–excessive force frays internal pairs.

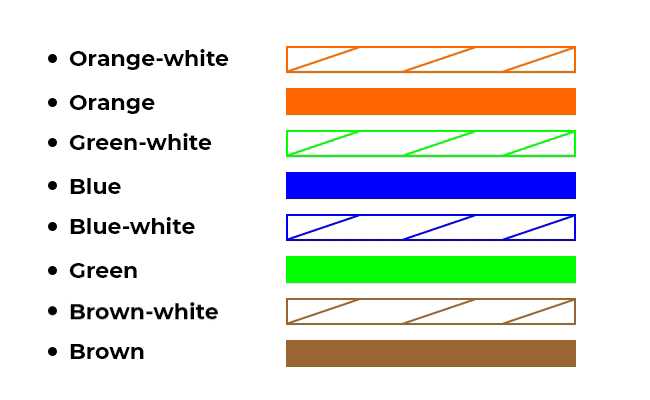

Arrange pairs in the following sequence for T568B standard (pin numbers correspond to RJ-45 connector contacts):
- Pin 1: White/Orange
- Pin 2: Orange
- Pin 3: White/Green
- Pin 4: Blue
- Pin 5: White/Blue
- Pin 6: Green
- Pin 7: White/Brown
- Pin 8: Brown
Hold the untwisted conductors between thumb and forefinger, maintaining pair separation to minimize crosstalk. Trim all eight wires to 1/2-inch length–uneven leads cause Poor Electrical Contact (PEC) failures. Insert the prepared ends into the plug, ensuring each conductor reaches the front edge of the connector. Verify alignment under bright light before crimping.
Apply a ratcheting crimping tool with 8P8C dies, squeezing until the handle releases–insufficient pressure results in loose terminations that degrade signal integrity over time. Test each connection with a validated network tester set to “wire map” mode: miswired pairs exhibit open circuits or reversed polarity. For shielded installations, terminate the foil drain wire to the plug’s metal shell using a 1-inch pigtail.
Secure completed cables with Velcro ties at 18-inch intervals–plastic zip ties constrict under thermal expansion, degrading performance. For runs exceeding 90 meters, insert a Gigabit Ethernet repeater or switch to regenerate signal strength. Label both ends with permanent ink: include origin, destination, and installation date for future diagnostics.
Troubleshooting Common Termination Errors
- Intermittent packet loss: Re-crimp with 5-7 lbs pressure–verified with a spring scale.
- No connectivity: Check for swapped pairs (e.g., White/Orange vs White/Green).
- Slow link speeds: Measure cable length with a Time Domain Reflectometer (TDR); replace runs exceeding 100 meters.
- EMI interference: Replace unshielded cables with STP variants near fluorescent lighting or motors.

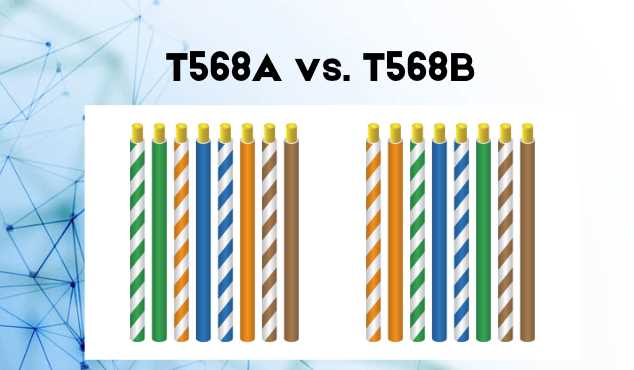

Color Coding Standards for T568A and T568B Termination
Follow T568B as the default standard for new installations–it reduces crosstalk in high-speed transmission by keeping orange and green pairs adjacent, minimizing interference between critical signal paths. Use T568A only when compatibility with legacy systems or specific regional regulations requires it, as mixing standards within a single link creates impedance mismatches and data errors.
Terminate all eight conductors in consistent order: four pairs map to specific pinouts on the modular jack. Swapping positions–even within the same color group–disrupts signal integrity and violates IEEE 802.3 gigabit Ethernet specifications. Verify termination with a cable tester measuring wiremap, length, and continuity before sealing panels.
Strip jacket precisely: 1–1.5 inches exposes conductors, avoiding nicked insulation that increases attenuation. Twist pairs only up to the last quarter-inch before insertion; untwisting beyond creates excessive impedance variation at frequencies above 100 MHz. Maintain uniform twist rates–factory specifications keep signal reflection coefficients below -15 dB per pair.
Pin-to-Pair Assignments
| Pin | T568A Pair | T568A Color | T568B Pair | T568B Color | Function |
|---|---|---|---|---|---|
| 1 | 3 | White/Green | 2 | White/Orange | Tx+ |
| 2 | 3 | Green | 2 | Orange | Tx- |
| 3 | 2 | White/Orange | 3 | White/Green | Rx+ |
| 4 | 1 | Blue | 1 | Blue | Unused (10/100) |
| 5 | 1 | White/Blue | 1 | White/Blue | Unused (10/100) |
| 6 | 2 | Orange | 3 | Green | Rx- |
| 7 | 4 | White/Brown | 4 | White/Brown | Unused (10/100) |
| 8 | 4 | Brown | 4 | Brown | Unused (10/100) |
Label cables at both ends: use T568A/B stickers showing pairing scheme, reducing troubleshooting time when verifying patch cords. Mark permanent links compliant with ANSI/TIA-606-B for asset tracking–include jack number, panel location, and termination date.
Common Termination Errors
Avoid splitting pairs across non-adjacent pins (e.g., pairing white/green with brown)–this violates gigabit Ethernet pair balancing and increases bit error rates. Check for reversed pairs (Tx+/Tx-) causing link failure; modular jacks from different manufacturers sometimes map internal contacts inconsistently, requiring visual confirmation. Swap faulty cords, not configuration–re-wiring introduces errors without eliminating root causes like damaged conductors or poor crimps.
Apply these standards by maintaining clear documentation: create spreadsheets recording each link’s pinout, test results, and service history. Updated records prevent configuration drift during network expansions or equipment upgrades.
Essential Equipment for Terminating and Validating Network Links
Begin with a crimping tool rated for 8P8C connectors–preferably one with ratcheting action to ensure full engagement of pins without cutting conductors. Models with interchangeable dies prevent damage to adjacent pairs during compression. Avoid budget options without built-in strain relief; these often fail after 20–30 terminations, leaving contacts improperly seated.
A dedicated wire stripper with a 24–26 AWG gauge setting prevents nicking the solid copper core, which degrades signal transmission by up to 12%. Cheaper multi-tools may strip insulation unevenly, causing shorts between pairs. Pair it with a precision cutter–flush-cut blades reduce stub length and minimize NEXT (near-end crosstalk) interference.
Diagnostic Instruments
Use a certified tester compliant with TIA/EIA-568 standards to verify pair continuity, polarity, and impedance (100±15 Ohms). Basic continuity testers detect miswires but fail to measure attenuation or crosstalk. For gigabit applications, invest in a time-domain reflectometer (TDR) to pinpoint impedance mismatches within 0.3 meters. Avoid “cable finders” marketed as testers; these lack frequency analysis capabilities.
For field repairs, a portable loopback adapter isolates faults by confirming link-level connectivity without requiring a second device. When testing multiple runs, a termination panel with keystone jacks ensures consistent T568A/B adherence. Store tools in a static-dissipative pouch–even brief ESD exposure can corrupt PHY chips in end-devices, requiring costly replacement.
