Complete Wiring Guide for Catnapper Chair Electrical Schematic

Begin by identifying the power input on the motor assembly–typically labeled AC 24V or 120V, depending on the model. Locate the transformer output wires (usually red and black for low-voltage variants) and confirm continuity with a multimeter before proceeding. If absent, check for a blown fuse inside the control box, often a 3A component in older units.

Trace the wiring harness from the hand controller to the actuator. The standard color coding follows: green/white for ground, yellow for power lift, blue for recline, and brown for swivel or tilt functions. Cross-reference this with the internal circuit board–most boards use 6-pin connectors, but some aftermarket recliners may substitute 8-pin for additional memory presets. Disconnect the battery backup (if present) before testing for shorts.

For models with heated elements, isolate the orange and purple wires leading to the pad resistors–these draw 6-8A and require 18-gauge or thicker wiring. If the heating function fails, bypass the thermostat by temporarily connecting the wires directly; if the pad warms, replace the faulty thermostat (NC 30°C type). For wireless remotes, verify the 2.4GHz transmitter module’s antenna connection–poor signal often stems from a detached coax cable inside the armrest.

Replace damaged wires with UL-rated 14AWG silicone-coated copper for high-current paths (recline/footrest) and 16AWG for low-draw circuits. Use soldered joints, not crimp connectors, for motor leads–vibration loosens crimps over time. Label each connection with heat-shrink tubing before reassembly to avoid miswiring during future repairs.

Understanding Recliner Electrical Blueprint Details

Locate the motor harness connector under the seat base–it typically contains six color-coded wires: red (power), black (ground), blue, green, yellow, and white. Use a multimeter to verify continuity between the red and black wires at 12V DC; any reading outside 11.8-12.2V indicates a faulty transformer or loose connection in the power cord. For models with heat/massage functions, the blue and green wires carry the massage circuit, while yellow and white manage the heating element. Interrupting these lines during disassembly may trigger a reset sequence requiring a 30-second power cycle to restore default settings.

• Trace all wires from the motor housing to the control box, noting any splits leading to secondary features like USB ports or reading lights–these often share a common power bus but have separate fuses (typically 2A for auxiliary circuits).
• For dual-motor models, identify the left/right recliner actuators by resistance testing: the footrest motor should show ~2.5Ω, while the backrest actuator registers ~3.2Ω.
• Replace any damaged wires with 18-gauge silicone-coated copper strands; standard PVC insulation may overheat under prolonged activation.
• Document each wire’s path before disconnection–use arrows marked with colored tape matching the schematic to prevent miswiring during reassembly.

If the recliner fails to respond after reconnection, check the 3-prong rocker switch for corrosion–clean contacts with 1000-grit sandpaper and apply dielectric grease. For units with wireless remotes, ensure the receiver module (usually behind the back panel) maintains a clear line of sight to the handheld device; obstruction from thick fabrics or wire bundles can disrupt the 433MHz signal.

Locating Critical Circuit Elements in Powered Loungers

Focus first on the transformer–typically a small, rectangular block with two or three soldered leads. Check for AC input labels (120V or 240V, depending on the model variant) and DC output markings (often 24V or 12V). Use a multimeter in continuity mode to verify secondary coils aren’t shorted; resistance should read between 5-15 ohms. If readings exceed 50 ohms, replace the unit–degraded transformers cause intermittent motor stalls.

Component	Typical Location	Voltage/Test Method	Failure Symptoms
Thermal fuse	Inline near motor housing, wrapped in insulation	Check continuity; no voltage drop when operational	Complete power loss to actuators
Switch cluster	Mounted on side arm, behind fabric panel	Probe terminals; 24V across common and NO contacts	Uneven recline speeds, single-function failure
Actuator relay	Control board beneath seat, adjacent to battery backup	Listen for click; 0.2Ω coil resistance	Motor runs only in one direction

Inspect the potentiometer last–it’s prone to carbon track wear. Remove the back panel to access the unit; turn the shaft slowly while measuring resistance between the wiper and outer terminals. Fluctuations beyond ±5% indicate impending failure. Always compare against factory specs–some models use logarithmic taper, not linear.

Step-by-Step Guide to Interpreting Recliner Electrical Blueprints

Locate the power source symbol–a battery icon or AC input mark–along the left edge of the layout. Trace its path through the fuse (typically labeled “F” or “FUSE”) before branching into any relays or switches. Use a multimeter to verify continuity at these checkpoints: set to ohms (Ω) and probe both terminal ends of each component. Expect a reading near 0Ω for intact connections; infinite resistance signals a fault requiring replacement.

Decoding Motor and Control Symbols

Identify motor actuators by their distinct oval icons, usually labeled M1, M2, or M3. Cross-reference these with the remote’s button labels–”recline,” “lift,” or “footrest”–to confirm function. Check the wiring color codes against the legend (e.g., black = ground, red = 12V+). For dual-motor systems, note the parallel paths: each motor shares a common ground but splits into separate positive feeds controlled by rocker switches or circuit boards.

Diagnosing Frequent Electrical Problems in Reclining Furniture

Check for loose connectors at the motor terminals before inspecting the power supply. Detach the back panel to access the actuator–locate the two-prong plug linking the motor to the harness. Tug gently on both wires; if either pulls free, crimp a new terminal or solder the joint with 60/40 rosin-core solder. Verify voltage at the motor leads while activating the rocker switch: 24V AC indicates proper transformer output, while 0V suggests a blown fuse or broken trace on the circuit board. Replace the fuse with an identical 3A slow-blow type if continuity tests confirm failure.

Resolving Intermittent Operation

Inspect the hand control cable for fraying where it exits the plug housing. Strip back the outer sheath 1.5 inches and scan for broken copper strands; repair with heat-shrink tubing and conductive grease if fewer than three strands remain intact. Test switch functionality by probing both terminals with a multimeter in continuity mode–depress the button: audible beep confirms contact, silence signals replacement. For stubborn motor hum without movement, lubricate gear teeth with PTFE spray, ensuring full articulation after reassembly.

Essential Instruments for Diagnosing and Fixing Recliner Electrical Systems

Start with a digital multimeter calibrated for 20V DC and 600V AC ranges to verify power delivery across circuit pathways. A Fluke 17B or comparable model ensures accuracy when probing terminals–look for steady voltage between 24V–29V at transformer outputs and consistent 5V–12V signals at microcontroller pins. Probe polarity-sensitive components like diodes and capacitors with the diode-test setting to detect reverse leakage or open circuits.

• Precision screwdriver set (4mm hex, T10/T15 Torx, 2.0mm Phillips) to access control modules without stripping screws.
• Wire stripper/crimper with 18–22 AWG notches for clean insulation removal and secure terminations–avoid nicked conductors when splicing leads.
• Heat-shrink tubing assortment (3mm–8mm diameters) paired with a variable-temperature heat gun (120°C–200°C) for durable, moisture-resistant splices.
• ESD-safe tweezers (anti-magnetic, fine-point) for handling micro-switches and ribbon cables without static discharge.

Advanced Diagnostics

Deploy an oscilloscope with ≥50MHz bandwidth (e.g., Rigol DS1054Z) to capture transient voltage spikes or PWM signals in actuator drive circuits. Probe the motor driver IC’s enable pin (typically marked EN or PWM) to confirm a 1 kHz–20 kHz square wave with ≥90% duty cycle during reclining cycles–flattened or erratic waveforms indicate driver failure. For CAN bus systems, use a protocol analyzer (e.g., Total Phase Beagle) to decode messages between the control board and motor encoders; look for error flags in the 0x200–0x2FF address range.

1. Inspect fuse holders with a continuity tester–blown 3A–5A ATO fuses often signal shorted motor windings or bridged relay contacts.
2. Check thermal overload protectors (NTC/PTC types) with a bench power supply set to 0.5A–1A current limit while monitoring temperature rise–failure to trip at 85°C suggests replacement.

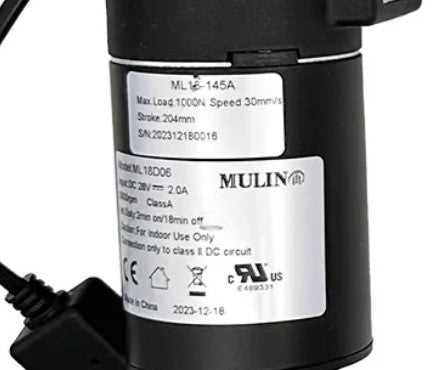

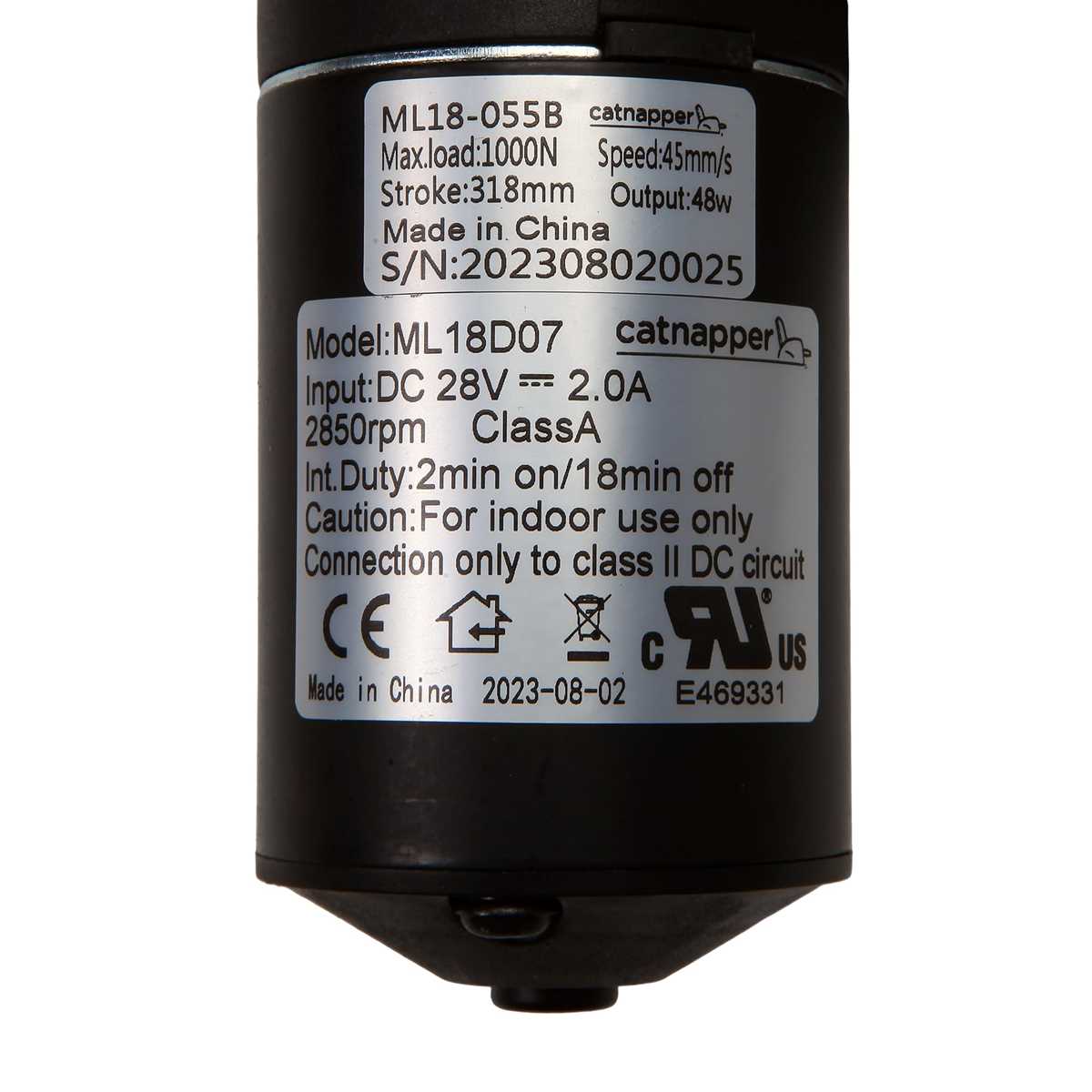

3. Test linear actuators by applying direct 24V DC across terminals and measuring current draw (normal: 1.2A–2.5A)–excessive (>3A) or absent current indicates internal gear binding or open windings.
