How to Wire a Ceiling Fan with Light Step-by-Step Guide
Begin by switching off the circuit breaker controlling the installation point. Verify power absence using a non-contact voltage tester or multimeter set to AC voltage–probe all wires individually, including neutrals and ground. A false-positive reading risks severe injury or equipment damage.
Identify the main components: the overhead rotor assembly (typically a 4- or 5-wire harness), the pendant light kit (often 3 wires–hot, neutral, ground), and the wall control (single-pole, dual-pole, or variable-speed switch). Label each wire with masking tape or markers–use standard NEC color codes: black (hot), white (neutral), green/bare (ground), plus blue or red for secondary hot leads if present.
Match terminal screws on the rotor bracket to the labeled wires. Twist corresponding wires together tightly–use lineman’s pliers for a secure mechanical connection before applying wire nuts. For copper-to-aluminum junctions, employ anti-oxidant compound and torque-rated connectors to prevent corrosion. If the assembly includes a remote receiver, route its antenna wire away from metal ductwork or electrical conduits to avoid signal interference.
Secure the rotor bracket to the electrical box with mounting screws–ensure the box is rated for the combined weight (minimum 50 lbs capacity). For boxes not rated for rotating devices, reinforce with a brace bar spanning ceiling joists. Thread excess wire through the downrod, keeping it slack to avoid strain on connectors.
Attach the light kit to the rotor base following the manufacturer’s torque specifications–over-tightening can strip threads or crack plastic housings. Align the fixture shroud so it sits flush against the ceiling; misalignment causes vibration and noise during operation. If the kit includes LED modules, avoid touching the bulb surface–skin oils reduce lumen output and lifespan.
Reconnect the circuit breaker and test motor rotation in both directions. If the rotor hums but doesn’t turn, check capacitor connections–a defective capacitor often requires replacement with an identical microfarad (µF) rating. For dimmable systems, ensure the control switch is compatible with both motor load and illumination type–incandescent, LED, or CFL. Mixed loads can cause flickering or premature failure.
Finalize by tucking all connections into the electrical box and fastening the fixture cover. Use a junction box extender if the original box depth is insufficient–exposed conductors violate safety codes. Perform a final voltage check: between hot and neutral (120V nominal), hot and ground (120V), neutral and ground (0V). Any deviation indicates a wiring fault requiring immediate correction.
Connecting a Rotary Fixture with Illumination: Step-by-Step Guide
Begin by identifying the switch box terminals–neutral (white), live (black or red), and ground (green or bare copper). Verify the circuit is dead using a non-contact voltage tester before proceeding. If the fixture includes both rotation and illumination, the live wire may split into two: one for the motor (typically black) and another for the LEDs or bulbs (often blue or red).

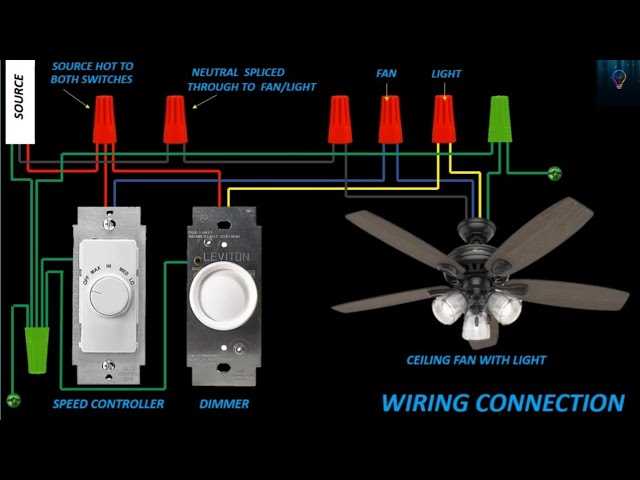

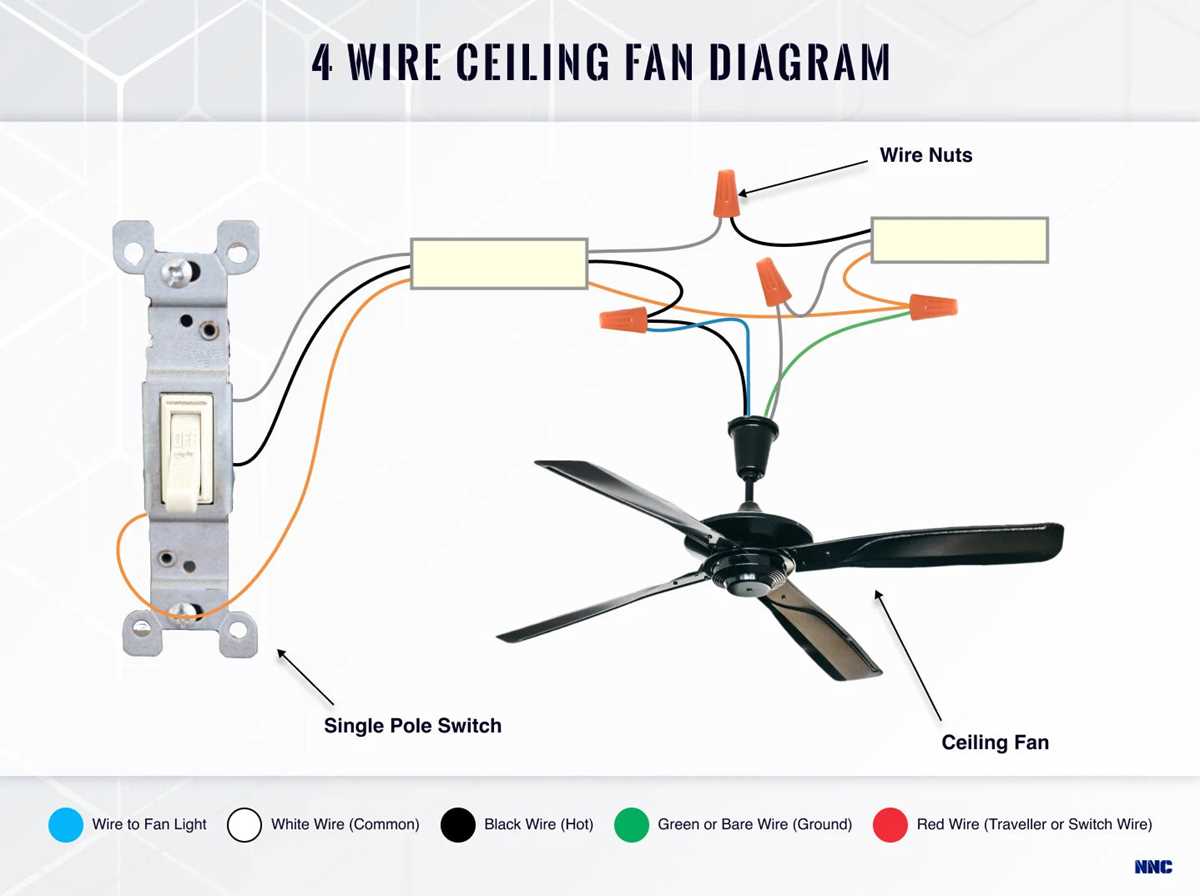

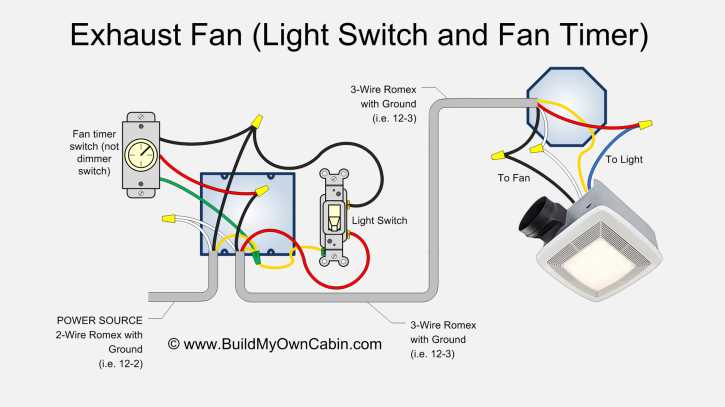

For single-switch installations, connect the live wire from the wall to both the motor and illumination wires. Use a wire nut to secure the joint, ensuring no exposed copper remains. If separate switches control the rotation and illumination, route the live wire to a dual-switch setup, splitting it into two distinct circuits. Ground wires must always bond to the fixture’s metal housing or green terminal screw.
| Wire Color | Function | Connection Point |
|---|---|---|
| White | Neutral | Fixture’s neutral terminal |
| Black/Red | Live (motor or illumination) | Switch or designated fixture terminal |
| Green/Bare | Ground | Fixture housing or green screw |
For dimmable bulbs, confirm the fixture’s compatibility with the dimmer switch. Standard rotary switches may not support dimming, while dedicated dimmers require specific LED drivers. If the installation involves a capacitor-based motor, ensure the live wire connects to the correct input–reversing it may cause the blades to spin backward.
When retrofitting an older unit with pull chains, bypass the chains if integrating wall switches. Disconnect the chain wires and cap them individually to avoid short circuits. For smart fixtures, follow the manufacturer’s instructions for Wi-Fi modules or remote receivers, as these often require additional power lines or neutral connections.
After securing all connections, tuck wires neatly into the electrical box, avoiding pinches or tension. Mount the fixture’s canopy, ensuring it sits flush against the ceiling. Restore power and test both the rotation and illumination separately. If the blades rotate opposite the intended direction, reverse the polarity of the motor wires at the switch.
Matching Conductors in Your Rotary Fixture and Illuminator Assembly
Begin by locating the labeled output terminals on your fixture’s mounting bracket–these will typically display standardized color codes. In North American installations, expect:
- Black or red: Live conductor for the rotary blades.
- Blue: Hot lead for the illuminator module.
- White: Neutral return path.
- Green or bare copper: Ground safety conductor.
International configurations may substitute brown for live, blue for neutral, and green/yellow for ground while retaining the same functional roles. Verify local electrical codes to confirm deviations–some European models bundle additional conductors for speed control circuits.
Decoding Household Circuit Conductors
House wiring follows a parallel but distinct convention. Examine the junction box where:
- The switched conductor (often black or red with a sleeve) delivers power from the wall control–the sole wire that changes state when toggling the switch.
- The constant hot (black or red without markings) supplies uninterrupted current if dimming or remote features are enabled.
- The white return routes neutral to the panel.
- The ground bonds to the box if metal, otherwise terminates on the bracket’s green screw.
Use a non-contact voltage tester to confirm which house conductor energizes when flipping the switch–this isolates the switched feed critical for safe pairing.
Common Pitfalls in Conductor Pairing
Avoid assuming identical colors connect across both assemblies. Manufacturers frequently:
- Bundle a secondary blue or striped conductor for reversible blade rotation–ignore unless configured for multi-directional airflow.
- Include a purple or gray lead reserved for optional accessories like heat sensors; cap these individually with wire nuts.
- Attached labels may fade; cross-reference with installation manual diagrams rather than relying solely on printed tags.
If rewiring an existing setup, photograph connections before disconnecting to prevent misalignment when reinstalling.
Grounding deserves separate mention: ensure all green or bare strands twist together tightly and secure under the bracket’s hex screw. Loose grounds risk intermittent flicker or hum.
When illuminators include integrated LED modules, bulb drivers may demand dedicated conductors. Look for miniature harnesses branching from the main harness–these should attach nowhere else except the designated illuminator terminals.

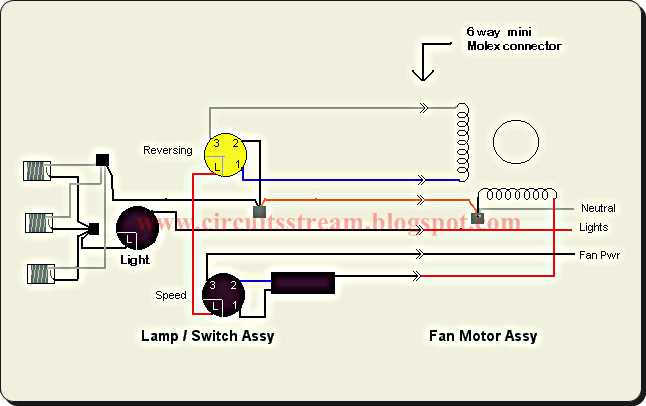

For pull-chain variants, the chain switch introduces an extra conductor pair (often yellow or orange). Attach these only to the corresponding terminals on the assembly housing, never to house wiring.
After securing everything, restore power and verify both rotation and illumination functions independently before finalizing housing covers. Persistent issues typically trace to a single mispaired conductor–systematically recheck each connection starting with the switched feed.
Precise Installation: Joining Rotary Fixture and Illumination Cables
Switch off the circuit breaker supplying power to the junction box before touching any leads. Verify deactivation using a non-contact voltage detector by holding it near each cable–no audible or visual alert confirms safety.
Identify the color-coded conductors: black (primary hot), white (neutral return), blue or striped (secondary hot, often for bulbs), green or bare copper (earth). Match these to their counterparts–house mains, rotary device, and lamp kit–without deviation. Incorrect pairings risk immediate failure or latent fire hazards.
Secure the downrod’s suspension housing to the electrical junction box first. Align the mounting bracket’s screw holes with the box’s threaded inserts, ensuring a flush fit. Loose attachments stress connections under operational torque, leading to premature wear.
Strip 3/8 inch of insulation from each conductor using wire strippers, exposing clean, untarnished metal. Twist exposed strands clockwise gently–no sharp bends–to prevent breakage under terminal pressure. Avoid excessive force; copper fractures reduce current capacity.
Connect lead pairs using twist-on wire connectors (orange for solid 12-14 AWG, yellow for 10 AWG). Screw clockwise until resistance increases sharply–imperfect seating loosens under vibrational stress. Tug each joint firmly (not violently) to confirm mechanical stability before proceeding.
Route connected leads into the junction box systematically. Organize hot conductors along one side, neutrals opposite, earth centrally–this spatial separation minimizes accidental shorts during future servicing. Bind excess length with 1/4-inch nylon ties, cutting tails flush to reduce sharp snags that could pierce insulation.
Attach the rotary device’s canopy cover, ensuring it overlaps the bracket edge by at least 1/2 inch. Misalignment compromises dust ingress protection, accelerating corrosion on terminal points. Re-energize the circuit only after verifying all fasteners, including light kit mounting screws, are fully tightened.
Test operation in stages: activate only the rotary motion first, checking for smooth acceleration without wobble. Introduce illumination last–flickering typically indicates a loose neutral connection, while dimming suggests an overloaded secondary hot lead. Immediately re-inspect any anomalies before extended use.
