Complete Chevy Truck Starter Wiring Schematic and Troubleshooting Guide
For models produced between 1999 and 2006, locate the ignition switch harness connector–typically a 12-terminal plug labeled “C1” on factory schematics. Pin assignments follow: terminal 3 (pink wire) delivers 12V in “Start” position, while terminal 8 (purple/white stripe) carries the cranking signal to the solenoid relay. Use a multimeter set to 20V DC to verify voltage drop across these circuits; readings below 9.5V at pin 3 indicate corroded contacts or undersized wire gauge (minimum 14 AWG required).
Trace the battery cable from the positive terminal to the magnetic switch–expect a 4-gauge cable terminating at the “B” post. Intermediate connections should include an 80-amp fuse or fusible link (yellow casing, 7.5mm width) mounted within 12 inches of the battery. If voltage at the “S” terminal drops below 10V during cranking, bypass the ignition cylinder testing procedure by jumping terminals 3 and 5 of the harness connector with a 16-gauge jumper–this isolates issues to either the switch assembly or neutral safety interrupt.
Solenoid activation requires transient current spikes peaking at 250A–ensure all ground straps between engine block, chassis, and frame show resistance below 0.2 ohms. For 2007 and newer configurations, note the addition of a dedicated control module interfacing with the powertrain computer via CAN bus; bypassing this system via manual relay bridging violates OBD-II readiness and triggers persistent “Reduced Engine Power” advisory. Always consult manufacturer bulletin 07-06-01-027 for updated torque specifications (22 ft-lbs) on solenoid mounting bolts when servicing heavy-duty variants.
Color-coding adheres to SAE J1128 standards: red conductors denote constant battery voltage, yellow indicates switched ignition input, while dark blue wires carry cranking signals. For diesel applications, expect an auxiliary relay network (part #12570012) managing glow-plug sequences–this component shares ground with the starter relay and should not be substituted with universal aftermarket equivalents without verifying coil resistance minimum 60 ohms.
GM Pickup Ignition Circuit Layout Guide

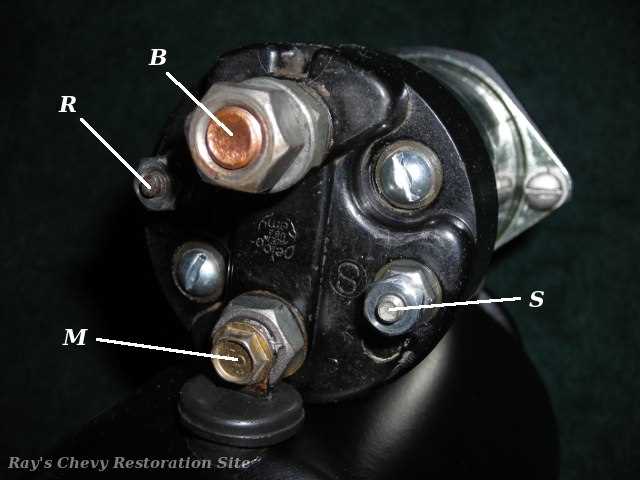

Locate the solenoid’s S-terminal first–it’s the smaller post, usually marked with a red or purple wire. Verify voltage at this point with a multimeter before proceeding: 10-12 volts should register when the key is turned to “start.” If readings drop below 9 volts, test the battery’s health and clean the ground strap linking the engine block to the chassis.
Trace the ignition feed cable from the steering column to its junction with the neutral safety relay. On 1999-2006 GMT800 platforms, this relay sits behind the instrument panel near the brake pedal, shielded by a black plastic cover. Remove the cover, unplug the relay, and probe terminals 85 and 86–both should show continuity with the key in “run” position.
| Component | Wire Color | Expected Voltage (KOEO) | Test Point |
|---|---|---|---|
| Battery positive | Red (thick) | 12.6 V | Solenoid B+ post |
| Ignition switch feed | Purple (thin) | 10-12 V | Solenoid S post |
| Starter motor lead | Red/black (thick) | N/A | Solenoid M post |
Examine the fusible link located under the hood, left of the battery tray. It’s a 4-gauge red segment encased in a translucent sleeve; corrosion here mimics a faulty battery. Clip the suspect link, then solder and heat-shrink a new section of 4-gauge cable–never substitute smaller wire. Replace any melted terminals at the starter motor mounting bolts with copper ring connectors.
On 2007+ models featuring the FlexFuel V8, the powertrain control module governs cranking signals through the body control module. Access the BCM under the dash, driver’s side, and inspect the pink/orange wire at pin C2-18 for 5-volt reference pulses during key rotation. Absence of pulses indicates a corrupted BCM; reprogramming via GM’s TIS2Web is required before hardware replacement.
Common Failure Points by Model Year
1994-1998 C/K: Check the ignition cylinder’s tumblers–worn wafers misalign the key, causing intermittent cranks. Swap the entire cylinder assembly if worn grooves exceed 0.2 mm depth.
2014-2019 Silverado: The theft deterrent resistor bypass relay, mounted near the fuse box, corrodes internally. Substitute with Delphi part #DLN2418 for a drop-in fix; avoid cheap aftermarket units that burn within weeks.
Always disconnect the negative battery clamp before handling high-current paths. Use a torque wrench to tighten solenoid posts to 18 ft-lbs–over-tightening strips threads; under-tightening invites voltage drops.
Matching Color Codes to the Ignition System’s Power Path
Locate the purple (VIO) wire on the solenoid; this delivers the trigger signal from the ignition switch. Pair it with the yellow (YEL) lead–this heavier gauge cable carries the full current from the battery terminal to engage the motor. Verify these two connections first before probing further, as they form the core activation loop in most General Motors platforms from 1999 onward.
Secondary Circuit Markers
Check for a black with white stripe (BLK/WHT) wire–this is the ground return for the solenoid coil. If present, it should bolt directly to the engine block or frame rail. On earlier models (pre-2007), a light blue (LT BLU) wire may run parallel to the purple trigger, serving as an auxiliary control line for anti-theft or manual transmission safety switches. Disconnect the battery before testing continuity between these leads and chassis earth to prevent accidental arcing.
For heavy-duty variants, expect a red (RED) or orange (ORG) fusible link–this replaces the standard inline fuse and handles surges up to 300 amps. Trace it back to the positive terminal; corrosion here mimics failed engagement. Always confirm voltage (12.4V minimum) across the solenoid’s large posts while cranking–any drop below 9.6V indicates resistance in either the red or yellow cables, requiring replacement rather than splicing.
Step-by-Step Guide to Locating the Solenoid Terminals on Your Vehicle
Begin by positioning yourself near the engine’s electrical entry point–typically a cylindrical or rectangular component bolted to the transmission housing. Identify the thick, heavy-gauge cables leading to it: one from the battery’s positive terminal and another branching to the motor’s core. The smaller wires, often 14 or 16 AWG, will be connected to two distinct posts or spade terminals on the solenoid’s housing. The first is the “S” (switch) terminal, receiving power from the ignition circuit when the key is turned. The second is the “I” (ignition) or “R” (relay) terminal, which may link to an external relay or directly to the vehicle’s harness. Trace these wires back to their source–ignition switch or fuse box–to confirm function.
For models produced before 2007, the solenoid is often integrated into the main assembly, requiring the removal of the protective heat shield or plastic cover. Use a 10mm socket to unbolt any grounding straps or mounting brackets obstructing access. On newer configurations, the solenoid may be mounted separately, near the front of the motor or on the firewall, with two thin control wires (labeled “S” and “I”) and one thick output cable. Label each terminal with masking tape and a marker to avoid confusion during reassembly.
How to Verify Relay Voltage Before Swapping It Out
Locate the solenoid control module near the battery or fuse panel–use a multimeter set to DC voltage (20V scale). Probe the relay’s 85 terminal (smaller wire) while an assistant turns the ignition key to the “start” position. Voltage should read 10-12V; less indicates a faulty ignition circuit, blown fuse, or corroded connections. The 86 terminal (ground side) must show near 0V–any reading above 0.5V suggests poor grounding, typically near the firewall or chassis mount.
Testing Output Power
Switch the multimeter to continuity mode. Place probes on terminals 30 (constant power) and 87 (output to the motor). With the relay removed, no continuity should exist–if it does, the relay contacts are welded shut. Reinstall the relay, then measure voltage at terminal 87 while cranking; it should match battery voltage (12.6V resting, 9-11V under load). A drop below 8V confirms internal resistance or failing contacts.
Check the input side: Terminal 30 should always read 12.6V–anything lower points to a dying battery or corroded cable terminals (clean with a wire brush). If voltage is stable but the motor still won’t engage, inspect the flywheel ring gear for missing teeth or the solenoid plunger for sticking. Replace only after confirming all upstream signals.
For GM vehicles with this configuration, wiring harness colors follow a standard: purple (ignition feed), yellow (battery positive), black (ground), and dark blue (output). Trace these with a test light if the multimeter isn’t available–bright light at 85 during cranking verifies the signal path; dim or flickering light indicates high resistance.
Frequent Electrical Problems in General Motors Light-Duty Vehicles and Solutions
Begin by disconnecting the battery’s negative terminal before inspecting any electrical system on a 1999-2006 GMT800 platform-based model. Corrosion at the solenoid-to-motor connection leads to intermittent engagement; clean both copper terminals with a wire brush and apply dielectric grease. If voltage drops below 10.5 volts at the solenoid S-terminal during cranking, test the battery first–replace if internal resistance exceeds 20 milliohms. For 2007-2013 Silverado/Sierra hybrid models, check the underhood fuse block for a 30A “ECM B” fuse; a blown fuse often mimics failed ignition issues.
- 2014+ models with EcoTec3 engines: Inspect the ground strap (G101) behind the driver’s side cylinder head–loose connections here trigger false “no-start” codes.
- Early 2000s C/K series: The yellow/black wire from the ignition switch to the transmission range sensor frays near the steering column; splice with heat-shrink butt connectors if frayed.
- Duramax diesel variants: Test the glow plug relay (fuse #32, 10A) if the engine cranks but won’t fire–resistance should not exceed 0.5 ohms.
For vehicles with keyless ignition, probe the security module’s pink/white wire (C1 pin 9) with a multimeter–if voltage isn’t stable at 5V ±0.2V, replace the body control module. On 4WD models, the transfer case motor’s red/black wire often shorts to the frame; reroute it away from sharp edges and secure with zip ties every 6 inches. Always recheck terminal tightness at the starter motor B+ post–torque to 12 N·m (9 ft-lb) to prevent voltage drop under load.
