Understanding Basic Electrical Circuits for Class 6 Students Step by Step

Begin with a simple power source–a 1.5V AA battery–and a minimum three-component arrangement: resistor, LED, and switch. Use a 220-ohm resistor to limit current; exceeding 20mA risks burning the LED. Position components on a breadboard’s vertical rails (red for positive, blue/black for ground) to avoid confusion. Verify connections before closing the circuit–reverse polarity will destroy sensitive parts instantly.

Avoid jumper wires longer than 15cm; inductance introduces voltage drops at this level. For accurate readings, connect a multimeter in parallel to measure voltage across the LED (forward voltage typically 1.8–3.3V) or in series to check current flow. Document each step: label wires, note resistor color bands (red-red-brown-gold = 220Ω ±5%), and sketch the layout on graph paper scaled 1:1 with breadboard holes.

Test configurations start with serial connections (one path for current), then advance to parallel branches (multiple paths). Calculate total resistance in parallel using 1/R_total = 1/R₁ + 1/R₂; mistakes here create dangerous overcurrent scenarios. Always include a fuse or PTC resettable fuse rated 0.5A to prevent overheating. Validate each revision with an online circuit simulator before assembling hardware.

For hands-on builds, use 3mm pre-wired LEDs (not surface-mount) to simplify prototyping. Record observations: measure voltage drops under load, compare against Ohm’s Law (V = I × R), and confirm LED brightness correlates with current (not voltage alone). When scaling, isolate sections–modify one variable at a time, such as swapping a 330Ω resistor for 470Ω, and log changes in milliamperes. Safety: wear anti-static wrist straps when handling ICs and never exceed 9V for beginner projects.

Mastering Electrical Schematics for Grade 6 Students

Begin by sketching components with standardized symbols–batteries as parallel lines (longer for positive), resistors as zigzags, and lamps as circles with an “X”. Use graph paper with 5mm grids to maintain proportional spacing, ensuring wires connect at right angles without overlaps.

Label every part with its value and function: “3V battery,” “10Ω resistor,” or “LED (red)”. Mark series connections with sequential IDs (e.g., “R1,” “R2”) and parallel branches with descriptive tags (e.g., “Branch A”). This clarifies troubleshooting paths.

Component	Symbol	Typical Value	Notes
Power source	|| (unequal lines)	1.5V–9V	Avoid exceeding voltage for LEDs
Switch	–/ /–	N/A	Label open/closed states
Load	⏧ or ⊗	100mA–500mA	Specify bulb wattage if known

Build prototypes on solderless breadboards before committing to permanent layouts. Insert wires vertically into terminal strips, using the top/bottom rows for power rails. Test continuity with a multimeter set to ohms (Ω)–readings near 0Ω confirm valid paths.

Simplify complex builds by isolating subsystems. For a two-bulb setup, draw the battery and first bulb, then duplicate the second bulb branch below it. Add switches in-line to break current flow without redrawing the entire path. Color-code wires: red for positive, black for negative, and green for signals.

Debugging Common Errors

Check for reversed polarity–LEDs only illuminate with anode (+) to cathode (–). Look for floating wires, where a component lacks a complete path to ground. Measure voltage drops: 0V across a bulb suggests an open circuit, while full supply voltage indicates a short.

Document modifications directly on the schematic. Circle corrections and note changes in the margin, e.g., “Replaced 47Ω with 220Ω–brightness improved.” Store final versions in folders categorized by voltage (low-power vs. high-current). Update older versions with revision dates to track iterations.

Key Parts and Signs in Grade 6 Electrical Schematics

Begin by learning these five fundamental elements–each has a distinct shape and function:

• Cell: Two parallel lines, one longer (positive terminal). Always arrange multiple cells in a series with the shorter line (negative) facing the next longer line to maintain correct polarity.
• Battery: A pair or stack of cells. Draw three parallel lines for two cells, adding more lines for additional cells. Label voltage (e.g., 1.5V, 3V) near the symbol to avoid misconnections.
• Wire: A straight horizontal or vertical line. Use 90-degree bends at intersections–never diagonal lines–to prevent confusion.
• Lamp: A circle with an “X” inside. Position the symbol directly between wire ends for clarity; add wattage values (e.g., 0.5W) if needed.
• Switch: A break in the wire with a diagonal line. Label open (OFF) or closed (ON) states; use a dashed line for a push-button variant.

For resistors and buzzers, adopt these practices:

• Use a zigzag line for fixed resistors–label resistance in ohms (e.g., 220Ω). For variable resistors, add an arrow cutting across the zigzag.
• Draw a half-circle with two short leads for a buzzer. Place it last in the flow to avoid masking other elements.
• Join wires only at right angles–dots at intersections confirm connections, while crossings without dots indicate no contact.

Measure twice before sketching: check polarity for cells, label all values, and keep symbols aligned–misplaced lines lead to errors in hands-on builds.

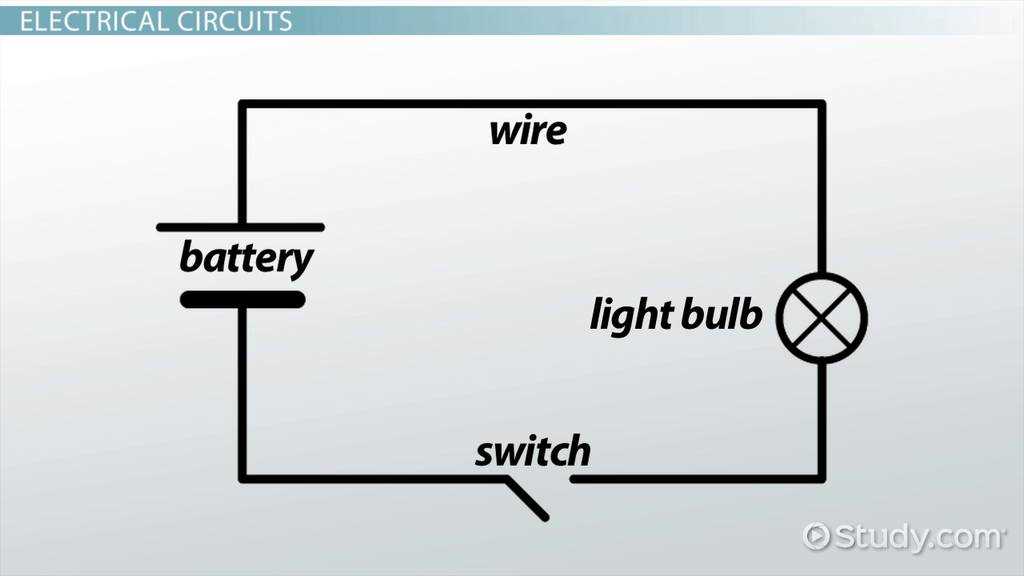

How to Sketch a Basic Electrical Blueprint for Young Learners

Gather the right tools first: a ruler, pencil, eraser, and blank paper. Avoid grid paper if lines distract from clarity. Keep symbols neat–each must fit within a 1 cm × 1 cm square for consistency. Start with a straight horizontal line at the top of the page; this represents the power source’s positive terminal.

Place a short vertical line midway down from the horizontal one, then add a matching line 1.5 cm to its right. Connect their bottoms with another horizontal line–this forms a battery symbol. Label the left side “+” and the right side “–” to avoid confusion later. Double-check spacing; uneven gaps make later steps harder.

Draw a small circle 3 cm below the battery, aligned vertically with its center. Inside, add a cross–two intersecting lines at 45-degree angles–to create a bulb symbol. Extend a straight line upward from the bulb’s top until it meets the battery’s positive terminal line. This completes half of the loop.

Now sketch a switch symbol 2 cm left of the bulb. Use a diagonal break in the line (like an open door) with two dots where the line resumes above and below. Connect the lower dot to the bulb’s bottom with another straight line. Finally, link the upper dot back to the battery’s negative terminal to finish the closed path.

Trace the entire loop with your pencil to confirm no gaps exist. Erase any overlapping lines from earlier steps–clean connections prevent errors. Add arrows along the lines to show current direction, always starting at “+” and ending at “–”. Use a colored pencil for these arrows to stand out.

Test your sketch by following each segment aloud: “Power flows from the battery’s top, through the switch, lights the bulb, returns to the battery’s base.” If the explanation matches the drawing, label all components–battery, bulb, switch–with one-word descriptions in lowercase letters near each symbol.

Avoid These Frequent Errors in Beginner Electrical Schematics

Mixing battery symbols with opposite polarities leads to confusion and potential short-circuits. Always align the longer line (+) at the top and the shorter line (−) at the bottom. Verify connections twice before finalizing any layout, as reversed power sources can damage components or misrepresent intended behavior.

Overcrowding connections creates spaghetti-like tangles that obscure functionality. Limit each intersection to three lines maximum. Use grid-based drawing tools to maintain uniform spacing, ensuring every symbol remains distinguishable without magnification.

Ignoring standardized symbols wastes time during troubleshooting. Adopt IEC 60617 or ANSI Y32.2 icons exclusively–custom shapes require extra explanation and complicate peer reviews. Label alternative symbols (e.g., resistors as zigzag vs. rectangle) consistently across all documentation.

Skipping labels forces others to trace every line manually. Name every power rail, ground, and node even in simple designs. Use legible, 10-point minimum fonts with clear hierarchies (V_CC, GND₁, SIG_A) to aid quick identification.

Misaligning switches or relays gives false impressions of open/closed states. Draw switches vertically with contacts clearly separated in the “off” position. For momentary pushbuttons, indicate the default state distinctly–solid vs. dashed lines prevent misinterpretation.

Using straight lines for buses when curves are needed misrepresents signal flow. Route data or power buses with gentle 45° bends to suggest directionality. Color-code buses (red=power, blue=data) if permissible, but ensure printed clarity in grayscale.

Forgetting to cross-check component values against datasheets risks non-functional designs. A 1kΩ resistor drawn correctly but mislabeled as 10kΩ on a parts list causes silent failures. Include marginalia with footnotes linking critical values to manufacturer references.

Drawing ground symbols at different potentials violates basic safety assumptions. Merge all ground symbols to a single triangle unless multiple reference planes exist (e.g., analog vs. digital). Explicitly isolate noisy or isolated grounds (AGND, DGND) with separate symbols and notes.

Hands-On Ways to Teach Series and Combined Electrical Setups for Grade 6

Start with two identical bulbs and a single battery. Connect them in a straight line so the current flows through one bulb before reaching the next. Students will notice both bulbs glow dimmer than if only one were lit–this shows how energy splits equally when components share the same path. Use flashlight bulbs rated 3V each and a 6V power source to avoid burning them out. Keep wires short to prevent unnecessary resistance. Have learners measure brightness with a light meter or simply rank them on a scale from 1 to 5.

Key Observations for Series Arrangements

• Total voltage divides across every element–two bulbs split 6V evenly (3V each).
• Current stays constant; break one link, everything turns off.
• Add a third bulb: all three dim further (2V each with a 6V source).
• Use different resistor values (e.g., 100Ω and 220Ω) to show uneven voltage drops.

Switch to a parallel layout using the same bulbs. Attach each bulb directly to the battery terminals so current splits into separate branches. Both bulbs will shine as brightly as a single light alone because each receives full voltage. Use this setup to explain household wiring: sockets, fridges, and lamps operate independently on parallel branches. Demonstrate failure simulation by unscrewing one bulb–others stay lit. Provide spare bulbs and wires so students can rebuild configurations without guidance, reinforcing how branches function autonomously.

Blend both types in a single build: one loop feeding two side-by-side branches. First construct three bulbs in series, then split the middle bulb into two parallel bulbs. Label each segment: “supply line,” “series segment,” “parallel branches.” Measure voltage at four points–across the battery, the series pair, and each parallel bulb. Record data in a table:

1. Total battery voltage: 6V
2. Voltage across series pair: 4V
3. Voltage across each parallel bulb: 2V

This mixed setup mirrors real-world devices like string lights with multiple sections.

Troubleshooting Tips for Young Builders

• Dim or dead bulbs often stem from loose clips–ensure tight connections.
• Short circuits drain the battery fast; show how to trace wires visually.
• Use insulated alligator clips to prevent accidental touches.
• Label wires with masking tape to avoid confusion when dismantling.
