Step-by-Step Guide to Building a Solar Charge Controller Circuit
For optimal performance, use a PWM-based design with a low dropout linear regulator like the MIC2941A for voltage stabilization. This component handles transients up to 60V while maintaining efficiency above 92% under typical load conditions (5A). Pair it with a TL431 precision shunt for output voltage accuracy within ±0.5%.
Select MOSFETs rated for 100V/30A such as the IRF540N to manage power switching. Gate drivers like the IR2304 ensure rapid switching (transition times under 50ns) and protect against shoot-through. Include a 1N5822 Schottky diode on the input to prevent reverse polarity damage–this diode offers a 40V reverse voltage rating and low forward drop (0.5V at 3A).
Implement a 20kHz PWM frequency to balance switching losses and thermal management. A microcontroller like the ATtiny85 can generate PWM signals while monitoring battery voltage and temperature via an ADC. For temperature compensation, use a 10k NTC thermistor in a voltage divider configuration, adjusting charging voltage by -14mV/°C above 25°C.
Add a current-limiting resistor (0.1Ω, 5W) on the battery line to measure charge current. A MAX471 current sense amplifier simplifies this by providing a 1V/A output. For battery protection, integrate a dual-comparator circuit (LM393) to cut off charging at 14.4V and reconnect at 13.2V, preventing overcharge and deep discharge.
Use 10μF ceramic capacitors near critical ICs to suppress noise, and 1000μF electrolytic capacitors on input/output lines to smooth voltage fluctuations. A fuse rated for 125% of maximum current (e.g., 10A for a 5A system) safeguards against short circuits. Test the assembly with a 20W resistive load before connecting storage cells.
Designing an Effective Photovoltaic Regulator Schematic
Begin with a low-dropout linear regulator for small systems under 10W, ensuring minimal voltage loss when input exceeds output by 0.3V. Use an LM2940 for 12V batteries, pairing it with a 10µF input capacitor and 22µF output capacitor to prevent oscillations. For efficiency, select components with thermal resistance below 65°C/W, mounting the regulator on a heatsink with a minimum surface area of 20 cm² per watt dissipated.
For pulsed-width modulation designs, employ a TL494 driver IC with a totem-pole output stage to handle currents up to 20A. Configure feedback resistors (R1=1kΩ, R2=4.7kΩ) to maintain a switching frequency of 50kHz, reducing inductor size to 47µH while minimizing electromagnetic interference. Add a freewheeling diode (1N5822) across the inductor to suppress voltage spikes exceeding 40V.
Critical protection elements include:
| Function | Component | Specification |
|---|---|---|
| Overvoltage clamp | Zener diode | 18V, 1W |
| Reverse polarity | MOSFET (IRFZ44N) | VDS = 55V, RDS(on) = 17.5mΩ |
| Short-circuit | PTC fuse | 5A trip, 6V hold |
| Temperature cutoff | NTC thermistor | 10kΩ at 25°C, β=3950 |
Maximize panel utilization by incorporating maximum power point tracking via an ATtiny85 microcontroller running perturb-and-observe algorithms. Sample panel voltage and current every 5ms, adjusting the PWM duty cycle in 0.5% increments to maintain VMPP within ±2% of the calculated value. Power the microcontroller directly from the battery through a 7805 regulator, ensuring stable 5V operation across 9V–18V input swings.
Opt for double-layer PCBs with 2oz copper weight for traces carrying >3A, widening battery connection traces to 5mm width per ampere. Separate analog and digital grounds at the star point beneath the MOSFET for noise rejection, using a solid ground plane for the feedback circuit. Shield PWM traces with guard rings connected to the ground plane, spacing them 0.8mm from adjacent traces to prevent crosstalk.
Implement battery chemistry-specific termination protocols:
- Lead-acid: Float at 13.6V, equalize at 14.8V for 2 hours monthly
- LiFePO4: Cutoff at 14.4V, balance at 14.6V with 20mV hysteresis
- AGM: Trickle current of C/100 at 13.8V, resume bulk charging at 12.8V
Test prototype regulators under transient conditions: apply a 0A–10A load step with 10µs rise time, ensuring output deviation ≤1% from nominal. Verify stability margins by injecting 50mV of noise at 1kHz into the feedback loop; phase margin should exceed 45° for all operating conditions. Log data over 72 hours with a 14-bit ADC to confirm no thermal drift in reference voltages exceeds 0.1%/°C.
Critical Elements of a PV Power Regulator Build
The backbone requires a low-dropout linear regulator (LDO) or synchronous buck converter to manage input voltages between 12V–24V from panels while preventing battery overcharge. Select components with 85%+ efficiency under 0.5A–10A loads–TI’s LM2596 or TPS54331 work reliably. Add a P-channel MOSFET (e.g., IRF9540) for reverse polarity protection; it blocks unwanted current flow when voltage drops below threshold levels, typically 0.7V below battery voltage. Include Schottky diodes (1N5822) to handle 5A surges without excessive heat buildup.
Monitoring demands a microcontroller with ADC capabilities like STM32F030 or ATtiny85–track battery voltage (divided via 10kΩ/4.7kΩ resistors) and panel output (resolution <50mV). Add a temperature sensor (LM35) to adjust charging profiles when battery heats above 45°C. Use precision comparators (LM339) to trigger load disconnection if voltage falls below 10.5V (for 12V systems).
Protection hinges on crowbar circuits using thyristors (MCR100-6) to clamp overvoltage spikes–set thresholds at 15V for 12V setups. Fuses (3A–10A) must melt before traces vaporize; opt for resettable PTCs (MF-R110) for frequent faults. Battery disconnect relays (Omron G6B) isolate loads during deep discharge, activated via microcontroller logic or comparator hysteresis.
Load management integrates a current-sense amplifier (INA219) to log power draw–calibrate for ±1% accuracy. For PWM designs, pair the microcontroller with N-channel MOSFETs (IRFZ44N) controlled by optocouplers (PC817) to isolate high currents. Stability requires 10µF–100µF electrolytic capacitors across input/output with low ESR ratings (<0.1Ω) to smooth transients. Test under full sunlight and no-light conditions; ripple should stay <200mV.
Step-by-Step Assembly of a PWM Power Regulator for Photovoltaic Systems
Begin by ensuring the battery and panel terminals are disconnected. Use a multimeter to verify the photovoltaic module’s open-circuit voltage–typically 18–22V for a 12V system–to prevent backflow. Connect the panel’s positive lead to the regulator’s input terminal marked PV+, then secure the negative to PV–. Avoid twisting strands; crimp or solder joints and insulate with heat-shrink tubing.
- Attach the battery’s positive to the regulator’s BAT+ terminal and negative to BAT–.
- For loads, link the LOAD+ and LOAD– outputs to a DC fuse block rated at 1.25× the max current (e.g., 10A for a 8A system).
- Ground the regulator’s chassis to a dedicated earth rod or battery’s negative busbar if using a metal enclosure.
Test under direct sunlight: measure voltage at the battery terminals–expect 13.6–14.4V in absorption mode. If readings drop below 13V, check for loose connections or reverse polarity. For PWM regulators, manual potentiometers may require tuning; set float voltage to 13.2V and equalization to 14.8V for flooded lead-acid cells. Replace factory cables with 10AWG for runs under 3m or 8AWG for longer distances to minimize voltage drop.
Mount the regulator vertically to improve heat dissipation; avoid enclosed spaces. Add a 20A breaker between the panel and regulator if the short-circuit current exceeds 9A. Recheck all connections after 24 hours–corrosion-resistant terminals (e.g., tin-plated copper) reduce resistance over time. Document terminal assignments and fuse ratings in a log for troubleshooting.

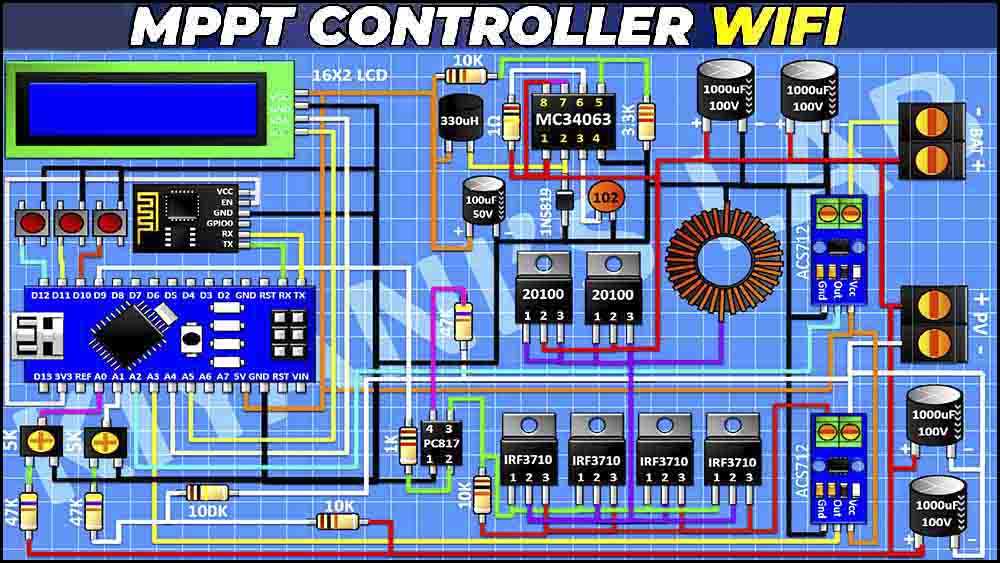

Building an MPPT Energy Harvester for Optimal Power Conversion
Select a synchronous buck converter topology to minimize switching losses in high-current applications. MOSFETs with RDS(on) under 5 mΩ and breakdown voltages exceeding 80V handle transient spikes effectively, reducing heat dissipation requirements by up to 30% compared to asynchronous designs. Pair with gate drivers delivering 10A peak currents to ensure rapid switching transitions below 50 ns, preventing cross-conduction.
Implement a digital signal processor running a perturb-and-observe algorithm at 20 kHz update rates. This frequency balances tracking speed against computational load, improving MPPT accuracy to 98% under varying irradiance conditions. Use a 12-bit ADC sampling panel voltage and current at 100 kSamples/s to capture rapid cloud transients, filtering with a moving average window of 8 samples to reject high-frequency noise.
Choose inductors with cores rated for saturation flux densities above 1 T while maintaining low AC resistance. Ferrite materials like 3F3 or powdered iron toroids with distributed air gaps (μr ≈ 60) minimize core losses at 100–200 kHz switching frequencies. Windings should use Litz wire to counteract skin effect, reducing copper losses by 15% at 30A currents.
Thermal management dictates long-term reliability. Mount power semiconductors on aluminum nitride or ceramic substrates with thermal resistance under 0.5 °C/W. Use phase-change thermal interface materials with 3.8 W/mK conductivity, ensuring junction temperatures stay below 100°C at ambient conditions of 50°C. Active cooling via small fans becomes necessary when output exceeds 1 kW, but passive heatsinks suffice for 500W systems if airflow is unobstructed.
Incorporate a dedicated auxiliary winding on the main inductor to power gate drivers and microcontroller, eliminating the need for separate bias supplies. This self-powered approach simplifies layout and reduces component count, but requires careful design to avoid coupling noise into sensitive analog paths. Use Schottky diodes with 0.3V forward drop to minimize power loss in the auxiliary rail.
Battery Interface Optimization
Design the output stage with dynamic voltage regulation to account for battery chemistry variations. Lead-acid batteries demand a 14.4V absorption voltage, while LiFePO4 requires 14.6V; implement a software-adjustable reference derived from a bandgap source with 1% initial accuracy. Add hysteresis of ±50 mV to prevent rapid toggling during light load conditions, which can degrade battery lifespan.
Include temperature-compensated charging using NTC thermistors bonded to the battery terminals. A temperature coefficient of -3.9 mV/°C per cell is optimal for lead-acid, while lithium chemistries often need custom compensation profiles. Sample temperature at 1 Hz and adjust terminal voltage automatically, halting charge if temperatures exceed 45°C to prevent thermal runaway.
Use solid-state relays or back-to-back MOSFETs for load disconnect functionality, rather than mechanical contactors, to handle currents above 50A without arcing. Implement soft-start routines to ramp output voltage over 100 ms, preventing inrush currents that stress battery connections and wiring. For systems above 2 kW, add a pre-charge resistor network to limit capacitor charging currents during startup.
