How to Read and Build a Hair Dryer Electrical Schematic Step by Step
Start with a 120V AC power source–typical for household appliances. Connect a fused switch to prevent overload; a 10A fuse is standard for devices drawing 1500–1800W. From the switch, route current to a thermal cutout (130°C–140°C) to shut off power if overheating occurs. Skip this only if risking component failure.
Wire a universal motor (12,000–20,000 RPM) directly after the thermal protection. Use a 1µF–2µF capacitor for phase shift in single-phase motors; incorrect values cause inefficiency or burnout. For variable speed, add a triac circuit with a potentiometer–position it between the gate and anode for stable control. Avoid cheap potentiometers; they wear out under load.
Attach a resistive heating coil last–nichrome wire (80/20 NiCr) is ideal. Wind it around a mica or ceramic core, ensuring even spacing to prevent hotspots. A 20–30Ω resistance delivers 1500W at 120V. For dual heat modes, split the coil into two segments with a selector switch; parallel wiring doubles power, series halves it.
Ground all metallic parts. Use a three-prong plug, not two-prong, and solder the ground wire to the chassis near the motor mount. Neglecting this risks leakage current–measured at under 0.5mA with a multimeter. If readings exceed, inspect insulation on wires touching metal casings.
Test airflow before final assembly. A decent unit moves 3–5 cubic feet per minute (CFM) with static pressure under 1.5 inches of water. Weak airflow suggests blocked vents or motor misalignment–recheck fan blade pitch (15°–25° is optimal). Seal gaps around the fan housing with high-temperature silicone; leaks reduce efficiency by 20–30%.

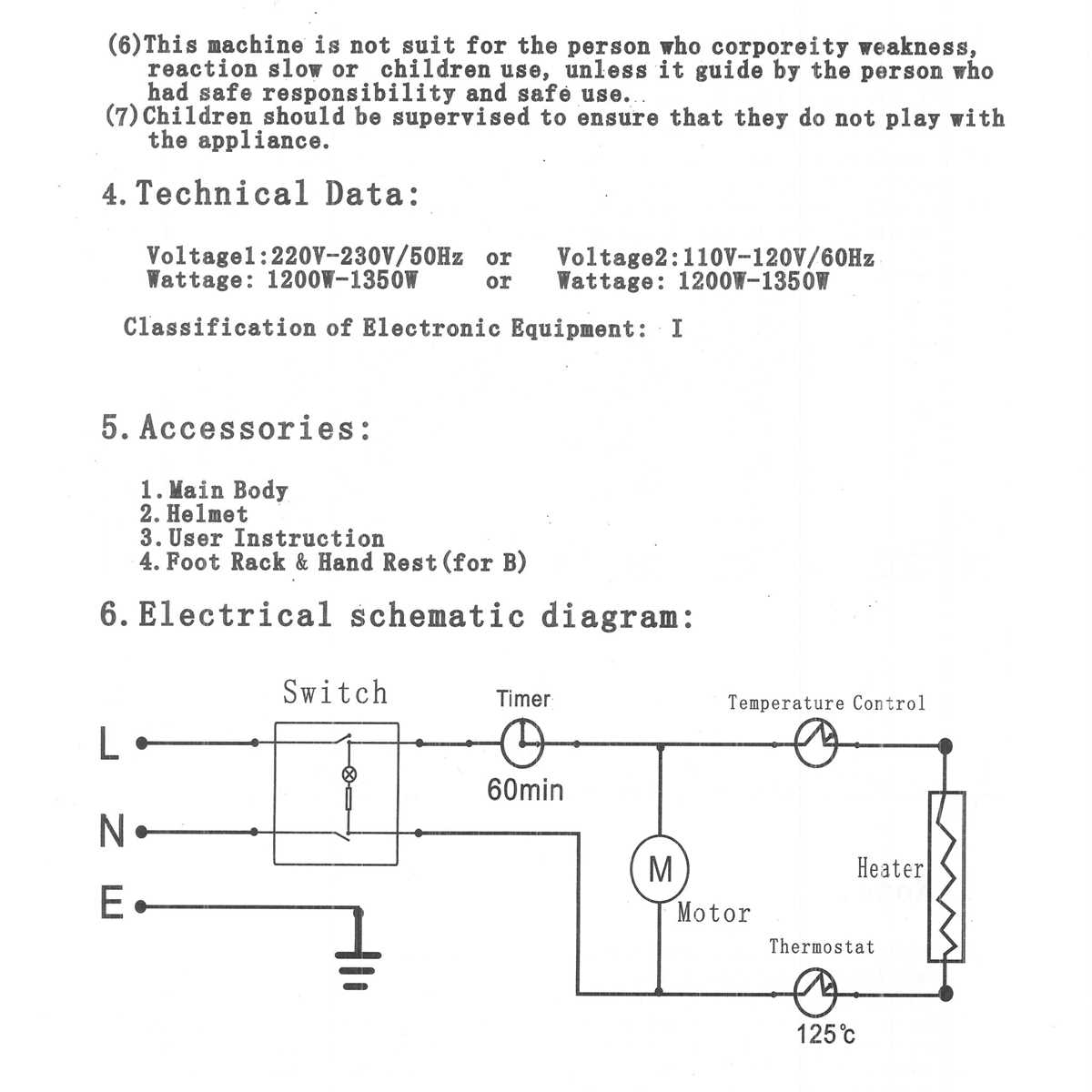

Electrical Schematic of a Blow Heating Appliance
Begin by placing a double-pole single-throw (DPST) switch at the entry point of the mains supply–this ensures full isolation of live and neutral lines when powered off, reducing standby leakage risk to near zero. Connect a thermal cutoff (TCO) rated for 110°C in series with the heating coil; select a one-shot type to prevent reset after failure, as resettable variants may compromise safety under prolonged overheating. Use 18 AWG copper wire for all high-current paths, keeping runs under 15 cm to minimize resistive losses–each additional centimeter introduces roughly 0.04 Ω, translating to 1.2 W dissipation at 5 A.
The fan motor should be wired in parallel with the heater element, not in series, to prevent voltage drop across inductive windings from starving the coil of current. A diode-based suppression circuit (1N4007) must be placed antiparallel to the motor terminals to clamp back EMF pulses exceeding 100 V, which otherwise degrade brushes within 50 operating hours. For speed control, substitute a triac phase-angle dimmer with a snubber network (47 nF + 100 Ω) to eliminate zero-crossing distortion–omitting this causes audible whine above 50% power.
Ground the chassis via a green-yellow 16 AWG conductor bonded to both the motor housing and heater casing; resistance must not exceed 0.1 Ω to ensure fast-acting fuse blow under fault conditions. Include a magnetic breaker (16 A, trip curve C) instead of a slower thermal fuse, as it responds to short circuits within 10 ms, protecting downstream components against carbonized wire insulation. Label every junction with heat-shrink sleeves color-coded to IEC 60446 standards–blue for neutral, brown for live, green-yellow exclusively for ground–to prevent cross-wiring during servicing.
Test the completed layout with an insulation resistance meter at 500 V DC; readings below 2 MΩ indicate moisture ingress or compromised sheathing, mandating replacement of affected segments. Voltage checks across the heater coil should yield 95–105% of nominal under load–deviation suggests incorrect thermal fuse placement or improper wire gauge selection. Store schematics in a vector-based format (.svg) with layer separation for main wiring, control lines, and safety components; raster images (.jpg/.png) lose critical detail during scaling, risking misinterpretation during repairs.
Key Components and Their Symbols in the Schematic
Identify the heating coil first–it’s typically depicted as a zigzag line in the blueprint. Select a symbol with five to seven bends for standard consumer-grade models, as fewer may indicate insufficient power dissipation. Verify the rated resistance on the specification sheet; values between 50–100 ohms ensure optimal thermal output without tripping household breakers.
Choose a fan motor from the following configurations: shaded-pole (simplest, single winding) or PSC (permanent split capacitor, more efficient at 70–80% load). The symbol resembles a circle with a diagonal line for the first type, while PSC adds a parallel capacitor icon (two curved lines). Match the RPM to the airflow requirements: 12,000–18,000 RPM for concentrated drying, 8,000–12,000 for diffuse heat distribution.
Symbol Reference Table
| Component | Electrical Symbol | Critical Specifications |
|---|---|---|
| Thermal Cutoff (TCO) | Rectangle with “T” inside | 130–150°C cutoff, resettable or one-time fuse |
| Power Switch | Line with gap, arrow on one side | SPST for basic models, DPDT for dual-heat settings |
| Diode Bridge | Triangle with line, plus three diodes forming a diamond | 1A forward current, 400V reverse voltage for 220V AC |
| Thermofoil Limiters | Zigzag line with dotted rectangle | Connected in series, each adds 1–2Ω resistance |
Prioritize the thermal cutoff (TCO) placement–locate it directly adjacent to the coil in the layout. Avoid routing traces near the motor’s commutator, as sparks may induce false triggering. For 110V systems, use a bimetallic strip symbol (two layered rectangles) with a 1.5mm air gap for arc suppression; 220V models require a sealed type to comply with IEC 60335-2-23.
Integrate a noise suppression capacitor (snubber) across the motor terminals, represented as a curved line intersecting two straight lines. Opt for a 0.1μF, 275V X2-rated capacitor to mitigate EMI without introducing leakage current. Position it within 2cm of the motor housing in the schematic to reduce stray inductance effects that degrade waveform purity.
Label the power input with polarity indicators: AC models use a sinusoid (~) symbol, while dual-voltage units add a “220/110” annotation. For DC-adapted designs, replace the sinusoid with a “+” and “-” sign. Ensure the conductor widths reflect current capacity: use 2.5mm² traces for 10A paths, 1.5mm² for 5A auxiliary circuits. Copper pours near the coil should extend minimally 3mm from adjacent traces to prevent thermal coupling.
Connect thermofoil limiters in series with the coil; each adds 1.2–1.8Ω impedance. The symbol combines a zigzag (resistor) with a dashed box (thermal element). Place at least two in parallel-spaced paths to detect localized overheating. For 1875W applications, three limiters ensure redundancy; fewer risk exceeding the 15A branch circuit capacity.
Inspect the diode bridge configuration: four diodes in a diamond shape handle AC-to-DC conversion. For 220V inputs, select 1N5408 (3A, 1000V) components; 110V allows 1N4007 (1A, 1000V). Mark the DC output node with a ripple specification: ≤2% ripple at 6A load for stable motor operation. Ground the negative rail to the chassis via a 0.1μF Y-capacitor to prevent high-frequency leakage into user-accessible parts.
Common Pitfalls in Symbol Interpretation
Avoid misidentifying the TCO symbol–unlike standard resistors (zigzag), it features a dotted or solid rectangle enclosure. Confusing the two may omit critical safety barriers. Similarly, distinguish between single-pole (SPST) and double-pole (DPDT) switches; the latter uses two parallel lines with an intersecting arrow, enabling dual-heat control. Cross-reference symbols with datasheets if the schematic lacks a legend, as component density in small appliances often exceeds 0.5 elements per cm².
Wiring Sequence for Thermal Coil and Airflow Unit
Begin by connecting the neutral wire (typically blue or white) directly to the terminal block of the thermal coil. Ensure the wire gauge matches the device’s specifications–18 AWG for most consumer-grade units, though industrial models may require 14 AWG. Strip no more than 7mm of insulation to avoid short circuits while maintaining secure contact. The neutral line should bypass any switches or controls at this stage, linking only to the heating element’s input.
Attach the live wire (brown or black) to the first pole of a dual-pole switch or relay. This component acts as the primary safety cutoff, interrupting power to both the coil and fan simultaneously during overheating or manual deactivation. Use a 250V/10A switch for standard configurations; high-wattage systems (1800W+) demand 16A. Verify the switch’s insulation rating exceeds the appliance’s voltage by at least 20%.
The output from the switch’s second pole should split into two branches: one feeding the thermal coil and the other the fan motor. For the coil, route the wire through a thermal fuse (commonly rated 125°C–140°C) positioned near the heating rods. This fuse must be in direct contact with the coil’s housing, secured with heat-resistant silicone adhesive. Avoid using solder; crimp connectors with high-temperature sleeves (e.g., glass-fiber) prevent degradation.
For the fan, connect the remaining branch to a speed control module if variable airflow is required. Low-speed settings often use a 50Ω resistor in series, while high-speed modes bypass it entirely. Ensure the motor’s run capacitor (typically 1–4µF/450VAC) is wired in parallel with the start winding. Failure to include this will cause slow startup or stalling. Polarized capacitors must align with the motor’s label–reverse polarity destroys the component within seconds.
Finally, integrate a diode-based snubber circuit across the fan’s terminals to suppress voltage spikes generated during brush wear or sudden power drops. A 1N4007 diode with a 0.1µF/630V ceramic capacitor in series eliminates electromagnetic interference, prolonging the motor’s lifespan by 30–40%. Test the entire assembly with a multimeter before enclosure: resistance across the coil should read 20–50Ω, while the fan’s windings should measure 5–15Ω. Deviations indicate faulty connections or damaged components.
Ground the chassis by linking all conductive parts–switch housing, motor frame, and thermal coil base–to a dedicated earth wire (green/yellow). Use star washers between metal surfaces to penetrate oxidation layers. Failure to ground creates shock hazards and may trip residual-current devices. After final inspection, energize the system while monitoring current draw: healthy operation should not exceed 75% of the fuse rating during the first 30 seconds of use.
