Car Air Conditioning Circuit Diagram How It Works and Key Components
To diagnose or modify a vehicle’s cooling system wiring, begin by tracing the power source from the compressor clutch relay. Identify the fused ignition feed (typically 10–30A) running to the relay coil–this ensures the system activates only when the engine is running. Locate the pressure switch wires (low-pressure cutoff at ~20 psi, high-pressure cutoff at ~400 psi) in series with the relay coil; bypassing these improperly risks damage to the refrigerant loop.
Check the thermal fuse or bimetal switch–usually inline with the blower motor’s positive lead–designed to melt at ~110°C, isolating the circuit in case of overheating. For dual-zone systems, split the evaporator thermistor wires: one branch regulates the expansion valve, the other feeds the cabin sensor. Use a multimeter to verify resistance: 2–5 kΩ at 25°C, dropping below 1 kΩ as temperature rises.
Ground paths demand attention: corroded chassis points near the firewall disrupt signal integrity, causing intermittent fan speeds or compressor cycling. Clean contact surfaces with a wire brush, then apply dielectric grease. For aftermarket upgrades, divide the 12V accessory feed post-ignition switch, not directly from the battery, to prevent parasitic drain.
Label all connectors–OEM schematics often color-code purple for data lines (CAN bus), yellow for HVAC actuators. Cross-reference with your vehicle’s service manual; Mitsubishi reverses compressor clutch polarity after 2015 models, requiring a relay with NC/NO pin assignments swapped. When soldering splices, use heat-shrink tubing rated for 125°C–vinyl tape fails under hood temperatures.
Electrical Flow in Automotive Climate Control Systems
Begin by locating the compressor clutch relay–typically found in the vehicle’s fuse box under the dashboard or near the engine bay. Use a multimeter to verify the relay’s coil resistance (should read 50–120 ohms) before testing continuity across contacts during activation. A failed relay often mimics a faulty clutch, wasting diagnostic time.
Trace the power feed from the relay to the pressure switch assembly mounted on the accumulator or receiver-drier. Two sensors monitor refrigerant levels: a low-pressure cutout (below 25 psi) and a high-pressure cutout (above 400 psi). Bypass tests should only be performed temporarily–prolonged operation without these safeguards risks catastrophic compressor damage.
Inspect the condenser fan motor wiring harness for chafing near the radiator support. Corrosion at the connector pins (common in vehicles older than eight years) causes intermittent fan failure, leading to evaporator icing. Clean contacts with a wire brush, then apply dielectric grease to prevent future oxidation. Replacement fans should match the original’s CFM rating–aftermarket units often undershoot requirements.
The blower motor resistor block, usually near the HVAC housing, regulates fan speeds via a series of increasing resistance values. Measure voltage at each speed setting while the system is active: deviations greater than 0.5V between steps indicate a failing resistor. Replace the entire block even if only one speed fails–partial repairs rarely last beyond 12 months.
Check the thermal limiter fuse embedded in the evaporator housing. This one-time device (trips at ~110°C) severs power to prevent fires if evaporator coils overheat. Testing requires a thermocouple probe–never assume a blown fuse is the sole issue, as underlying causes (clogged cabin filter, stalled blower) must be addressed first.
Examine the ECU-controlled idle-up solenoid valve when A/C engages. This device (connected to the throttle body or IAC valve) increases engine RPM to compensate for added compressor load. Use a scan tool to monitor live data: a delta of less than 150 RPM upon activation suggests a faulty solenoid or vacuum leak in the associated lines.
Verify the integrity of the magnetic clutch’s air gap with a feeler gauge set to 0.3–0.6mm. Excessive clearance reduces clutch engagement force, while too little causes premature bearing wear. Adjust with selective shims–universal clutch kits rarely include proper spacers, so retain the original components when possible.

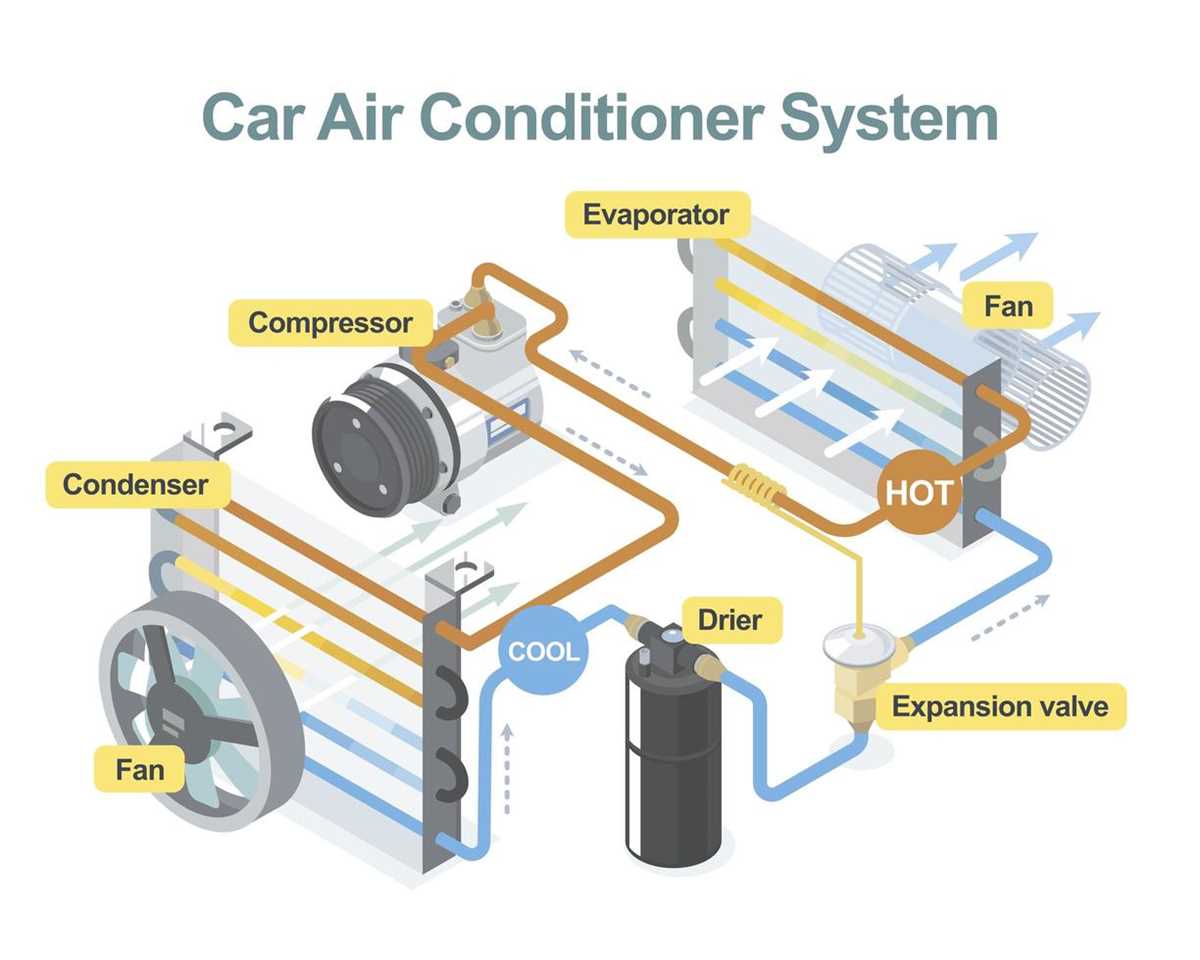

Key Components in a Vehicle Climate Control Electrical System
Begin troubleshooting by verifying the compressor electromagnetic clutch receives 12V from the pressure switch when engaged. Measure voltage at the wire harness connection–absence indicates a faulty relay, damaged fuse (typically 10A), or corroded connectors. Replace relays only after confirming the control module isn’t sending erroneous signals; scan for error codes P0530-P0533 (pressure sensor malfunctions) before physical inspections. Clutch coil resistance should read 3.5–4.5 ohms; deviations suggest internal shorting requiring clutch assembly replacement.
Condenser fan operation hinges on dual-speed control–low speed (800 RPM) activates via a 30Ω resistor, while high speed (1,500 RPM) bypasses it completely. Test by forcing high-speed mode through the HVAC control unit: if the fan fails to spin, probe the motor windings (resistance: 0.2–0.5Ω per phase) and inspect the thermal fuse (rated 120°C). Note that PWM-controlled systems (common in models post-2015) require oscilloscope verification of signal shape–irregular waveforms indicate a failing ECU or corroded ground point near the condenser assembly.
Critical Sensor Specifications
| Sensor | Voltage Range (V) | Resistance (kΩ) | Failure Symptoms |
|---|---|---|---|
| Ambient Temperature | 0.5–4.5 | 0.3–2.0 | Erratic cabin temp regulation; compressor cycling |
| Evaporator Thermistor | 0.3–4.8 | 0.1–1.2 | Frozen coils; ice buildup on fins |
| Refrigerant Pressure Switch | N/A (binary) | Infinite (open) / 0 (closed) | Compressor inoperative; evaporator frosting |
Expansion valve diagnostics demand refrigerant recovery–never test with the system charged. Attach manifold gauges to measure superheat (ideal: 8–12°F) and subcooling (10–15°F for R134a). Deviations exceeding ±3°F point to orifice blockage or valve stuck open; resolve by flushing the tube or replacing the valve assembly. Electrical checks involve verifying the heater resistor (if integrated) receives 12V during defrost cycles–voltage drops below 10V suggest a failing blower motor relay or HVAC control unit corruption.
Blower motor resistors often fail under 5A current loads. Bench-test by applying 12V directly to each speed tap: consistent RPM confirms resistor integrity, while erratic operation indicates carbon track degradation. For brushless motors (common in hybrid vehicles), probe the three-phase connector with a multimeter–each pair should read identical resistance (±0.1Ω). Replace the motor if readings exceed 1.0Ω or vary between phases; pair replacement with a blower control module upgrade (part #10003-12560) to prevent premature failure recurrence.
Electrical Linkages in Automotive Climate Control Systems
Begin by connecting the compressor clutch directly to the system’s 12V power source via a 10-amp fuse. Use 12-gauge wiring for the primary feed to handle inrush currents up to 30A during engagement without voltage drop. Secure the ground connection at a bare metal chassis point within 30cm of the compressor to prevent corrosion-induced resistance.
Route the condenser fan motor through a relay controlled by the climate control module. The relay coil should draw no more than 200mA to avoid overloading the module’s output. Pair the relay with a suppression diode (1N4007) across its coil to protect against inductive voltage spikes when the fan deactivates.
Ensure the evaporator’s thermal expansion valve sensor retains a resistance of 2.2kΩ at 0°C, adjust calibration if readings deviate by ±5%. Connect the sensor to the control unit using shielded twisted pair (18-gauge) to minimize EMI from adjacent ignition wiring, terminating the shield at a single chassis ground near the module.
Avoid running power cables parallel to low-voltage signal wires; maintain a minimum separation of 15cm or use orthogonal routing. Cross potential interference paths at 90° angles if unavoidable, particularly near the alternator’s output lead where AC ripple exceeds 200mV.
Install a dedicated circuit breaker (25A) for the blower motor to prevent cascading failures if the motor locks. The breaker should trip within 5 seconds at 150% of rated current. For dual-speed motors, use a rheostat or PWM controller with a 470μF capacitor to smooth voltage transitions and reduce brush arcing.
Verify the clutch cycling switch opens at 180 psi and closes at 40 psi; replace if differential exceeds 10 psi. Wire the switch in series with the pressure transducer feedback loop to ensure fail-safe operation. Bypass the switch temporarily for diagnostics, but never operate the system with it disconnected.
Use crimp connectors (not solder) for high-vibration joints like the compressor clutch terminal, applying heat-shrink tubing with adhesive lining to prevent moisture ingress. For connectors exposed to engine bay temperatures above 120°C, specify silicone-grease-filled terminals to inhibit oxidation.
Label all wires with alphanumeric identifiers corresponding to a schematic, not color codes alone. Colors fade or vary between manufacturers; supplementary labeling reduces troubleshooting time by 40%. Store a backup wiring layout in a sealed plastic sleeve under the vehicle’s floorboard for reference during repairs.
How to Read Fuses and Relays in the Vehicle Climate Control System
Locate the fuse box first–typically under the dashboard, near the steering column, or in the engine bay. Check the lid for a reference chart or consult the owner’s manual to identify the climate system’s protective elements. Fuses for the compressor, blower motor, and control module are often grouped together but may share a row with other high-current devices.
Use a multimeter to verify fuse integrity. Set the device to continuity mode or 200Ω resistance setting. A blown fuse will show infinite resistance, while an intact one reads near zero. If testing voltage, probe both metal caps with the system powered–active fuses should display battery voltage (12V–14V).
Relays handle high-current switching and are usually labeled on the box cover. Remove the relay and inspect the pins for corrosion or burning. A healthy relay emits a quiet click when shaken. Swap it with an identical spare (e.g., horn or headlight relay) to confirm function without specialized tools. If unavailable, perform a bench test:
- Connect 12V to terminal 85 and ground to 86–listen for a click.
- Touch probes from 30 to 87–resistance should drop to near zero.
- Remove voltage–resistance should return to infinite.

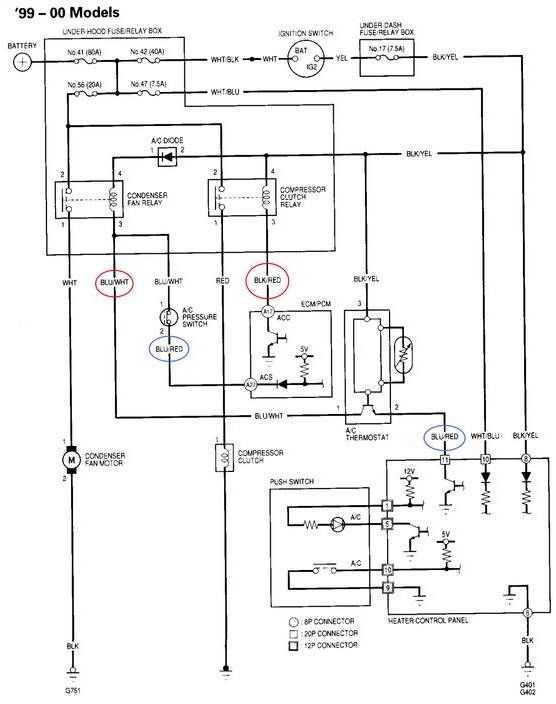

Trace relay wiring if the compressor fails to engage. Relay terminal 30 connects to the battery via a fuse, while 87 routes power to the compressor clutch. Terminal 86 receives ground through the climate control switch, and 85 activates via the pressure sensor. Probe these paths with the ignition on and AC set to max to isolate breaks.
Replace fuses only with matching amperage–color coding helps, but never exceed the rating. Mini-blade fuses (ATC/ATO) are common: blue (15A), yellow (20A), red (10A), etc. Glass tube fuses use a wire gauge system–thinner means higher amperage. For relays, match the pin layout (4-pin or 5-pin) and coil voltage (always 12V in passenger vehicles).
Critical Troubleshooting Checks
- After replacing a fuse, monitor for repeated blowing–indicates a short in the compressor clutch, condenser fan, or wiring harness.
- Relay sockets can melt from overheating. Clean contacts with electrical cleaner and lightly sand pitted connectors.
- Low refrigerant (below 50 psi) triggers the pressure switch, cutting relay activation. Recharge the system before electrical diagnostics.
- Blower motor relays may fail silently–test by bridging terminals 30 and 87 with a jumper wire to bypass.
