Practical Guide to Constructing and Analyzing a Meter Bridge Circuit

Begin by arranging a length of uniform resistance wire–ideally 100 cm–mounted on a straight insulating board with millimeter-scale markings. Connect a sliding contact (typically a jockey or knife-edge probe) to divide the wire into two adjustable segments. Ensure the wire’s material, such as manganin or constantan, has a low temperature coefficient to minimize thermal drift during measurements.

Power the setup with a stable DC source, preferably a 2V dry cell, wired in series with a known resistance standard (e.g., a 1Ω to 10Ω resistor box) and the sliding contact. Position the standard resistor at one end of the wire, leaving the other end open for the unknown resistor. For accuracy, use a galvanometer with a sensitivity of at least 10^-6 A/division to detect null points precisely.

To balance the system, adjust the sliding contact until the galvanometer shows zero deflection. The ratio of the resistances will equal the ratio of the wire segments: R_unknown/R_standard = L₁/L₂, where L₁ and L₂ are the lengths from the ends to the null point. For repeatability, average three readings, reversing the resistor connections to cancel thermoelectric effects.

Shield the apparatus from drafts and temperature gradients–fluctuations as small as 0.1°C can skew results. If the wire’s uniformity is uncertain, calibrate it first against a set of precision resistors spanning the expected measurement range. For low-resistance samples, reduce lead wire resistance by using thick copper strips or Kelvin bridges for four-terminal measurements.

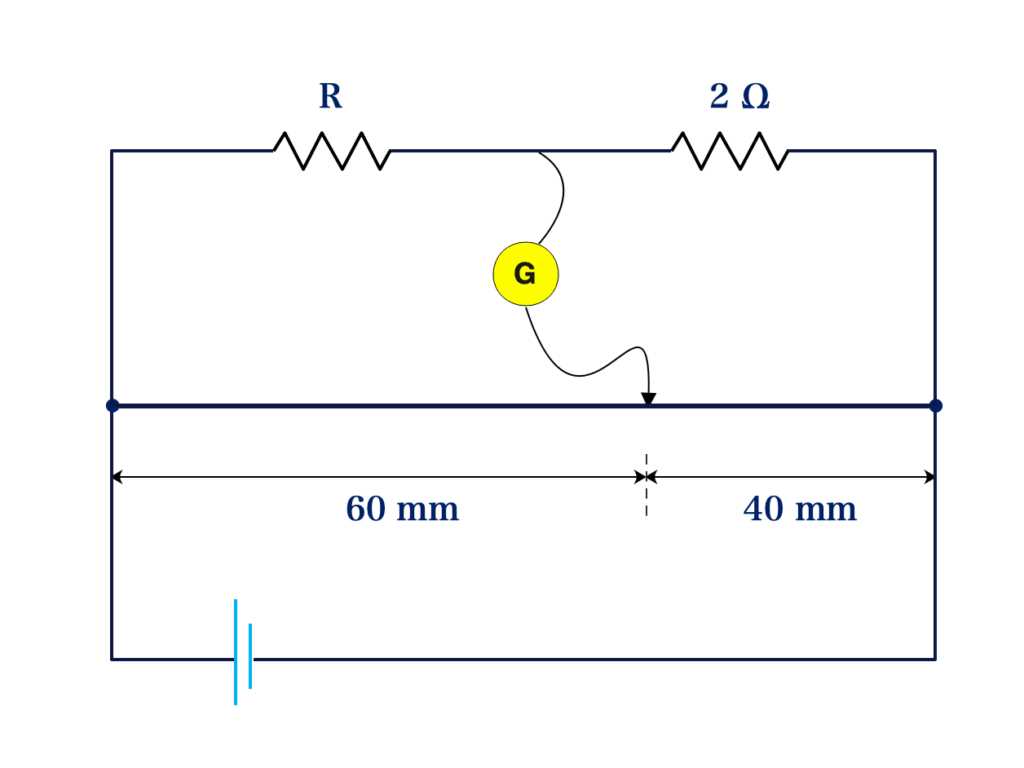

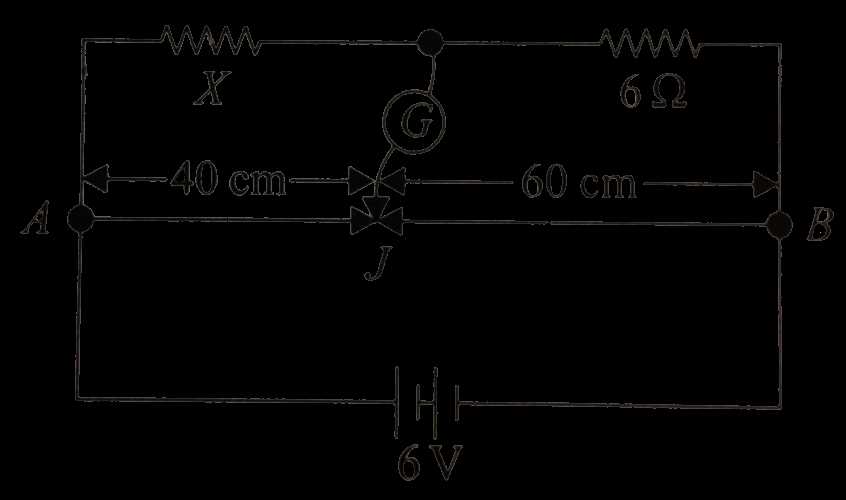

Schematic Layout of a Wheatstone-Type Measurement Setup

Start by positioning a uniform resistance wire, precisely one meter in length, along a straight edge or insulated board. Ensure the wire has consistent cross-sectional area and resistivity to guarantee linear voltage distribution during measurements. Connect a low-resistance slider or galvanometer at the midpoint (50 cm mark) for initial balancing–this point minimizes error due to thermal effects or non-uniformities.

Attach a known resistance (R₁) and an unknown resistance (R₂) at opposite ends of the wire using thick copper leads to reduce parasitic resistances. The known resistance should be a high-precision standard resistor, preferably a decade box with 0.1% tolerance or better. For accurate readings, the power source should deliver a stable DC voltage between 1.5V and 3V; avoid excessive current to prevent heating of the wire, which distorts results.

Optimizing Connections for Minimal Error

Solder all wire-to-terminal joints to eliminate contact resistance, which can introduce errors up to 0.5% in low-resistance measurements. Use a four-terminal configuration for both R₁ and R₂: two leads for current injection and two for voltage sensing. This eliminates lead resistance contributions, critical when measuring resistances below 1Ω. Ground the slider and galvanometer to a common point to reduce noise from electrical interference.

To balance the setup, adjust the slider position until the galvanometer shows null deflection. The ratio of the wire lengths (l₁/l₂) at balance equals R₁/R₂, derived from the Wheatstone principle: R₂ = R₁ × (l₂/l₁). For instance, if R₁ is 100Ω and the null point is at 40 cm, R₂ = 100 × (60/40) = 150Ω. Repeat measurements three times, reversing the known and unknown resistances between trials to cancel out systematic errors like thermoelectric effects.

For resistances above 10kΩ, increase the supply voltage to 5V and use a more sensitive galvanometer or digital voltmeter at the null point. Ensure the wire’s resistance per unit length is accounted for–calibrate by replacing R₂ with a second known resistor and solving for the wire’s resistance gradient. This step is mandatory if the wire’s resistivity varies by more than 0.2% along its length.

Key Parts for Sliding Contact Resistance Measurement Setup

Begin with a precision-engineered one-meter graduated wire of uniform cross-section, ideally 28-30 SWG (0.35-0.25 mm diameter) nichrome or constantan. The wire must maintain ≤0.5% resistance variation along its length; verify uniformity with a four-terminal ohmmeter before fixing it to an insulating base. Avoid copper–its low resistivity demands impractical lengths for accurate null detection.

• Galvanometer: Choose a low-resistance (≤50 Ω) pointer-type with 0.1 μA/div sensitivity. For enhanced stability, connect a shunt resistance in parallel (value: 10× galvanometer resistance) during initial coarse balancing, switching to direct connection for fine adjustments.
• Slide contact: Use a hardened brass or phosphor bronze knife-edge, spring-loaded to ensure consistent pressure (8-12 g/mm²) across the wire. Surface oxidation degrades precision–clean daily with 1000-grit abrasive and apply a thin graphite layer via #2B pencil.
• Reference resistors: Select two 0.1% tolerance metal film resistors (values between 1 Ω and 10 kΩ), avoiding carbon composition types due to thermal drift. For unknown resistance measurement, a third adjustable decade box (0.1 Ω resolution) is mandatory.
• Connector posts: Install brass binding posts with gold-plated contact surfaces, spaced ≥30 mm apart to minimize thermal EMF (

Power the assembly with a 1.5 V dry cell regulated via a 100 Ω wire-wound potentiometer; never exceed 20 mA current to prevent heating errors (≥0.5°C rise alters nichrome resistivity by 0.2%/°C). For AC applications, substitute with a 50 Hz, 1 V RMS signal generator and shield all leads in braided copper sleeves (

Constructing the Precision Balance Wiring Setup

Begin by securing a 1-meter uniform resistance wire along a wooden or non-conductive board, ensuring it remains taut without bends. Fasten both ends with low-resistance clamps–copper or brass–to minimize contact errors. Connect the wire’s left terminal to a DC power source (1.5V–3V) via a sliding jockey, and ground the right terminal through a galvanometer or null detector with sensitivity below 1μV/division. Use shielded cables for all connections to reduce stray electromagnetic interference, particularly near AC lines or motors.

• Position the unknown resistor (R_x) and known resistor (R_k) on opposite sides of the wire, each in series with a high-quality switch to eliminate thermal EMF effects during measurements.
• Attach R_x to the left clamp, R_k to the right clamp, and insert a protective resistor (1kΩ) in series with the power source to prevent wire overheating at null point.
• Slide the jockey along the wire while monitoring the detector–balance is achieved when deflection drops to zero. Note the wire lengths (L₁, L₂) from each end to this point.

For optimal accuracy, repeat measurements at least three times, reversing the power source polarity each time to cancel thermoelectric errors. Calculate R_x using the ratio R_x/R_k = L₁/L₂, where L₁ + L₂ = 100 cm. If wire uniformity is suspect, calibrate using a standard resistor (e.g., 1Ω) before testing unknowns. Store components in a dry, temperature-stable environment between uses to prevent oxidation.

Determining Unknown Resistance with the Slide Wire Balance Principle

Measure the lengths L₁ and L₂ from the null point to each end of the wire with a calibrated steel scale. Record values in centimeters to two decimal places. If L₁ equals 42.65 cm and L₂ equals 57.35 cm, the resistance ratio obeys the linear relationship R_x/R = L₁/L₂. Use a known resistor R of 5 Ω for standard precision experiments.

Verify zero deflection on the galvanometer before accepting readings. Any residual current indicates misalignment; adjust the slider until the dial rests at center scale. Confirm ambient temperature matches room conditions (20 °C) to eliminate thermal drift, which shifts resistivity by ±0.4% per degree for constantan wire.

Apply the balance equation R_x = R × (L₁/L₂) substituting measured lengths. For L₁ = 42.65 cm and L₂ = 57.35 cm, calculate R_x = 5 × (42.65/57.35) ≈ 3.72 Ω. Round to three significant digits.

Perform three trials; discard outliers exceeding ±0.5% deviation. Average the remaining values. Sample data: 3.72 Ω, 3.74 Ω, 3.69 Ω yields a mean R_x = 3.72 Ω. Cross-check with a digital multimeter reading the same sample; discrepancies above 1% necessitate re-measuring segment lengths.

To reduce error, ensure the potentiometer wire has uniform cross-section and zero thermal gradients. Avoid touching the wire during measurement–body heat changes local resistivity. If null point falls near the ends (90 cm), swap R_x and R positions to improve precision.

Record temperature coefficients for different wire alloys; manganin (α = ±0.00001/°C) drifts less than copper (α = 0.0039/°C). Always document environmental conditions for replicable results.

Common Errors in Resistance Measurement Setups and Solutions

Check wire connections at the jockey slider first–loose or oxidized terminals create false null points, shifting readings by up to 15%. Use fine-grit sandpaper to clean terminal surfaces every 5-7 measurements, then tighten screws to 0.8 Nm torque. Replace wires exhibiting visible fraying or stiffness; stranded copper (22 AWG) lasts 3x longer than solid core under repeated flexing.

Misaligned sensitivity adjustments cause inconsistent balance detection. Set the galvanometer to its highest sensitivity only after coarse balancing to avoid damaging the needle. If oscillations persist beyond 3-4 seconds, reduce sensitivity in 20% increments until the needle stabilizes. Calibrate the instrument using a 10 Ω standard resistor monthly–deviations above 0.5% indicate progressive coil wear or adhesive degradation in the contact pads.

Error Sources and Immediate Corrections

Error Type	Symptoms	Correction	Verification Method
Thermal EMF	Reading drifts ±0.3% per °C above 25°C	Use manganin wire (temp coefficient 0.00001/°C) and avoid handling resistor sections	Switch current polarity; drift should reverse direction if thermal
Parasitic Resistances	Null point shifts when switching between known resistors	Isolate setup with Teflon spacers (insulation >1012 Ω)	Measure resistance with all adjacent wires disconnected
Galvanometer Damping	Needle fails to settle within 10 seconds	Parallel the galvanometer with a 1 kΩ resistor during coarse balancing	Balance time should halve with optimal damping

End resistance inaccuracies stem from uneven wire cross-section. Measure wire diameter at 5 cm intervals using a micrometer–variations above 2% require replacement. For precision work, map resistivity along the slidewire using a 4-wire Kelvin setup and interpolate for each 1 cm segment. Mark segments deviating more than 0.2% from the mean with color dots to exclude during critical measurements.

Environmental interference distorts readings. Shield the apparatus with mu-metal sheets (thickness 0.1 mm) when working near transformers or AC lines. Ground the shield to the chassis via a 10 nF capacitor to filter 50/60 Hz noise. Humidity above 60% RH introduces surface leakage–use silica gel packs inside enclosures and replace every 48 hours in tropical environments. For outdoor use, apply conformal coating (e.g., Parylene C) to exposed copper traces.
