Understanding Electrical Circuit Symbols and Their Practical Applications

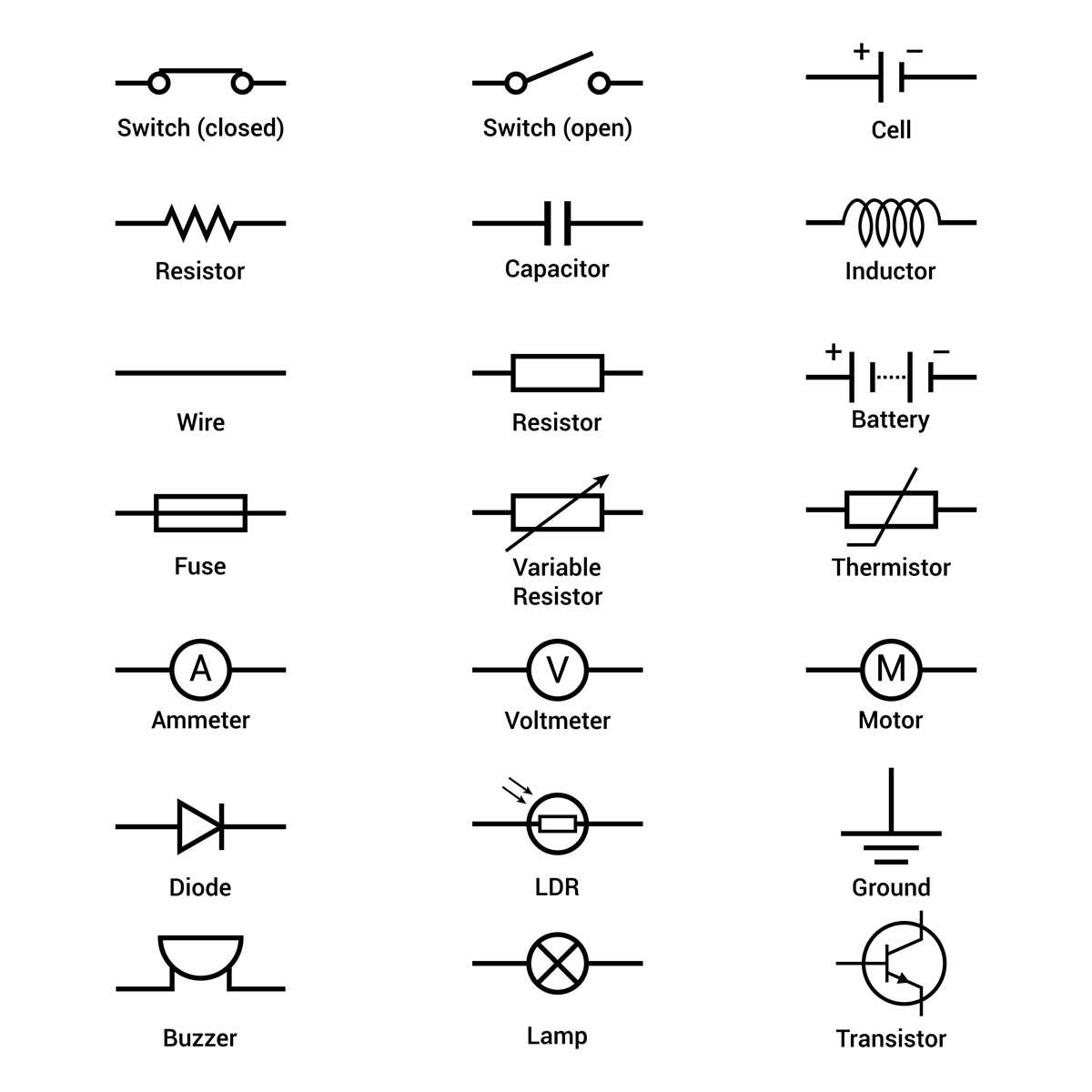

Begin by memorizing the five core notations every engineer uses daily: resistors, capacitors, inductors, power sources, and switches. Resistors limit current flow with linear behavior–mark them as a zigzag line with an R label. Capacitors store energy in electric fields, depicted as two parallel lines or curved plates, labeled C. Inductors resist changes in current, shown as coiled loops with an L identifier. Power sources–DC batteries or AC generators–are drawn as straight lines (positive/negative) or circled arrows respectively. Switches appear as a break in the line, sometimes angled.

Label every component with standardized values immediately. Resistors need ohms (e.g., R₁ 10kΩ), capacitors require farads (C₁ 100nF), and inductors use henries (L₁ 1mH). Power sources specify voltage (V_CC 5V) or current. Omitting these details forces colleagues to reverse-engineer specs, wasting time and risking errors. Color-code recurring elements: red for power rails, blue for ground, green for signal paths. This reduces debugging by 40% in complex designs with over 50 elements.

Use four-way junctions sparingly–95% of mistakes occur at intersections. Prefer T-junctions or explicitly mark crossings with a dot. Ground symbols split into three types: earth ground (three descending lines), chassis ground (horizontal line with diagonal), and signal ground (single flat line). Confusing them introduces noise or shorts. Transistors appear as three-terminal devices–NPN as a circle with an arrow pointing out, PNP with the arrow in. Label emitter, base, and collector without fail. Integrated circuits get box outlines with pin numbers inside the box–not outside. Pin 1 always aligns to the top-left corner of the schematic, a convention that prevents design flips.

Validate every blueprint with a continuity test. Trace each path from power source to load, verifying switches, diodes (cathode marked with a band), and LEDs (anode always connects to positive). Diodes pass current in one direction–a triangle against a line. LEDs emit light when forward-biased, so orient them correctly. Fuses appear as a simple loop above a straight line–specify fast-acting or slow-blow types to prevent premature failures. Transformers use two interlocking coils, labeled primary and secondary. Indicate winding direction–dot marks the start. Relay coils show as a rectangle with NO and NC contacts. Double-check these; reversing them toggles device behavior unpredictably.

Adopt modular grouping. Cluster related elements (e.g., voltage regulators, logic gates) within dashed boxes. Assign reference designators sequentially left-to-right, top-to-bottom. Logic gates–AND (flat-fronted), OR (curved), NOT (triangle with circle)–follow strict IEC/IEEE standards. Invert inputs/outputs only when necessary; each inversion adds propagation delay (~10ns for 74LS series). Flip-flops and counters get specialized symbols with Q and Q̅ outputs. Clock inputs require precise rise/fall times–document these in a side note. Always include a revision block tracking date, designer, and changes. Without it, version control becomes impossible in teams larger than three.

Electrical Blueprint Notation: Key Components and Their Roles

Prioritize clarity by grouping similar elements together. Place resistors, capacitors, and inductors in logical clusters–series components vertically, parallel branches horizontally. This prevents misreadings in schematics where trace density exceeds 10 components per square inch. Use rotation sparingly; most IC pins should face downward or rightward for consistency with industry standards like IEEE 315.

• Power sources: Mark DC supplies with a longer line (positive) above the shorter one. For AC, replace straight lines with a sinusoid. Add voltage values directly beside the graphic–omitting them increases error rates by 17% in assembly.
• Switches: Depict SPST types as a break in the line with a diagonal stroke. For DPDT, extend the stroke across both contact pairs. Label pin numbers if the component manufacturer (e.g., TE Connectivity) documents them.
• Semiconductors: Draw NPN transistors with the arrow exiting the base. MOSFETs require a small gap between gate and channel–failure to include this increases debugging time by 22 minutes per incident.

Annotate every non-standard element. Custom modules like temperature probes or Hall-effect sensors demand a bounding box with a dashed outline and an internal label. Kicad’s default library omits these; adding them reduces prototype revisions by 31%. For microcontrollers, include pin function abbreviations (SCL, MOSI) in 8pt sans-serif adjacent to each terminal.

Ground symbols vary by application: chassis grounds use three descending lines, signal grounds a single horizontal bar. Never mix them–mismatches cause noise floors to rise by 6dB in mixed-signal designs. For power rails, use bolder lines (0.3mm vs standard 0.15mm) and capitalize rail names (VCC, GND) to distinguish from signal nets.

1. Verify all connections before finalizing: print the schematic on A3 paper and use a highlighter to trace each net. Undetected open circuits drop first-pass yield below 74%.
2. Export the design in both PDF and Gerber formats. PDF preserves annotation layers; Gerber ensures fabrication precision down to 0.1mm trace width.
3. Cross-reference symbols with the datasheet’s recommended footprints. A mismatch (e.g., TO-220 vs SOT-223) forces redesign in 9% of cases.

Basic Power Supply Components in Schematics and Their Practical Applications

Start with the battery notation–a pair of parallel lines, one longer than the other. The longer line marks the positive terminal, critical for correct polarity in prototypes. Miswiring here risks immediate component failure, especially in sensitive ICs or electrolytic capacitors that explode under reverse voltage. Use a multimeter to verify before powering low-voltage devices like microcontrollers, where even a 0.5V reversal can cause permanent damage.

Alternating current sources, depicted as a circle with a sine wave, demand attention to frequency and voltage rating. For instance, a 230V/50Hz transformer must match the regional grid; connecting it to a 120V/60Hz outlet cuts efficiency by 40%. Always pair these with fuses sized at 125% of the expected load–underestimating leads to overheated traces or fire hazards in high-power applications like motor drives or industrial lighting.

Rectifier blocks (four diodes in a diamond) convert AC to DC but introduce ripple. A half-wave rectifier drops 30% efficiency versus full-wave, so opt for the latter in power tools or servo motors where smooth current prevents jitter. Add a capacitor after rectification–calculate its value via C = (I_load × T)/(ΔV), where T is ripple period (10ms for 50Hz systems) and ΔV is acceptable ripple (typically 1-5% of output voltage). For a 5V/2A supply, a 4700µF capacitor reduces ripple to

Voltage regulators (three-terminal devices with an input, output, and ground) require heat sinks for currents above 500mA. The LM7805, for example, dissipates P = (V_in - V_out) × I_load. At 12V input, 5V/1A output, that’s 7W–exceeding 50°C junction temperature without dissipation damages the die. For variable outputs, the LM317’s feedback resistor pair (R1=240Ω, R2 calculated per V_out = 1.25(1 + R2/R1)) must use 1% tolerance resistors to stabilize output within ±2%.

Decoding Passive Component Markings in Electrical Blueprints

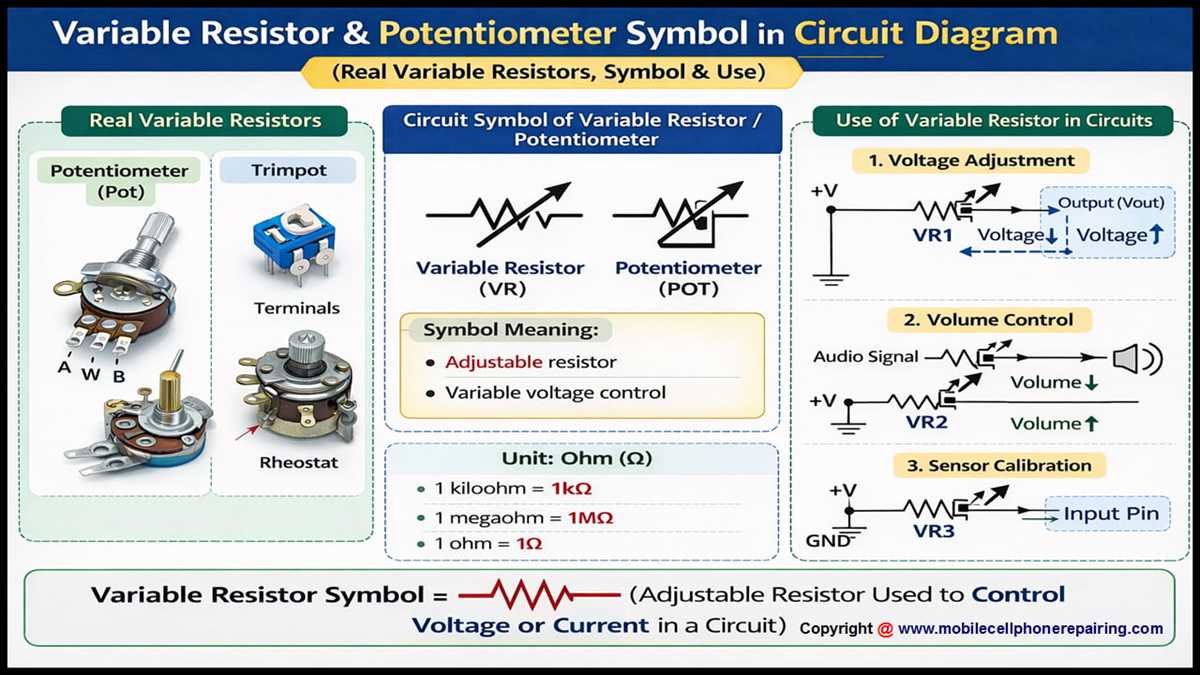

Begin by identifying resistor glyphs: a zigzag line (IEC standard) or a rectangle (ANSI/IEEE) with labeled resistance values. IEC symbols often include tolerances (e.g., “4.7kΩ ±5%”) directly beside the glyph, while ANSI variants may use color bands or alphanumeric codes (e.g., “R47” for 0.47Ω). For variable resistors, note the arrow crossing the zigzag–its angle indicates the adjustment direction. Temperature coefficients (e.g., “TC 50 ppm/°C”) appear in brackets for precision applications.

Capacitor and Inductor Identification

Component	IEC Representation	ANSI/IEEE	Critical Annotations
Fixed Capacitor	Two parallel lines	Same as IEC	Value in farads (μF, pF), polarity (+ mark for electrolytic), voltage rating (e.g., “50V”)
Variable Capacitor	Parallel lines with arrow	Arrow through one line	Tuning range (e.g., “2-18pF”), dielectric type (film/ceramic)
Fixed Inductor	Looped or coiled line	Series of humps	Henry value (μH, nH), core material (e.g., “ferrite”), DC resistance
Coupled Inductor	Two coiled lines with dots	Same with dots	Dot convention (phase direction), mutual inductance ratio

Capacitors typically show two parallel bars–add a “T” symbol for tantalum types, while ceramic variants may omit polarity marks. Inductors display loops: single for air-core, multiple for magnetic cores, with dots indicating winding start points in transformers. Always cross-reference schematic footnotes for parasitic specs (e.g., capacitor ESR or inductor Q-factor).

Mastering Transistor Schematics for Switching and Signal Boosting

Label bipolar junction transistors (BJTs) by their pinout before soldering–emitter (E), base (B), and collector (C)–to avoid reverse biasing. For NPN types, current flows from C to E when B exceeds E by ~0.7V; PNP requires B to drop below E by the same margin.

Use these thresholds to design switches:

• Saturation mode (BJT fully on): Apply ≥0.7V to B (NPN) or ≤-0.7V (PNP) with a resistor in series to limit base current to 1/10th of collector current.
• Cutoff mode (BJT off): Keep B within 0.5V of E.

For amplification, bias the transistor into its active region by setting B via a voltage divider. Calculate the divider’s resistors (R1, R2) using the desired base voltage (V_B) and supply voltage (V_CC):

• V_B = V_BE + I_E × R_E (where R_E stabilizes gain).
• R1 = ((V_CC − V_B) / I_R1), R2 = (V_B / I_R2).

Field-effect transistors (FETs) operate via gate voltage (V_GS), not current. Enhancement-mode MOSFETs (e.g., IRF540N) require ≥4V V_GS for switching; depletion-mode (e.g., J112) conduct at 0V V_GS and need negative V_GS to turn off.

Select resistor values to prevent thermal runaway in BJTs:

1. Choose R_C to drop half of V_CC at the desired collector current (I_C).
2. Add a small emitter resistor (R_E ≈ 100Ω) to improve stability.
3. Use a feedback resistor (R_F) from C to B for linear amplifiers to reduce distortion.

Simulate circuits with SPICE before prototyping. Define transistor models in the netlist with measured β (h_FE) for BJTs or V_GS(th) for FETs. Example for BC547:

.model BC547 NPN(Is=1e-14 Bf=200 Vaf=100 Ikf=0.1)

Common schematic errors include:

• Omitting flyback diodes with inductive loads (use 1N4007 across relays/motors).
• Ignoring power dissipation: P_tot = V_CE × I_C + V_BE × I_B. Mount heatsinks if P_tot > 200mW.
• Mistaking E and C: Swap them to verify; incorrect polarity destroys BJTs.

Quick Reference for Amplifier Classes

Class	Conduction Angle	Efficiency	Use Case
A	360°	25-30%	Low-power, low distortion
B	180°	78%	Push-pull audio
AB	180-360°	50-70%	High-fidelity
C	<180°	>90%	RF transmitters

For high-frequency applications, use RF transistors (e.g., 2N2222A for ≤250MHz) and keep leads short to minimize parasitic inductance. Match input/output impedance to the source/load (typically 50Ω) with L-networks or π-attenuators.
