How to Read and Create Labeled Electrical Circuit Diagrams Step by Step

Begin by grouping functional components into logical zones using dashed or dotted boundaries–this reduces visual clutter while maintaining clarity. For power rails, place high-voltage annotations (>48V) in bold uppercase near the source, while low-voltage designators (<5V) should sit adjacent to connectors. Avoid diagonal text; horizontal orientation accelerates scanning.

TP1, TPA) in 12pt sans-serif font–this eliminates guesswork during debugging. Critical safety labels (fuses, isolation barriers) must use red-filled hexagons with white 14pt text; contrast ratios above 7:1 ensure compliance with IEC 62368.

Assign hierarchical naming: resistors use R prefix followed by ascending numbers (R1, R2), capacitors append C with suffixes denoting polarity if electrolytic (C1+), and ICs combine package type with pin count (U1_DIP16). Keep identifiers under 10 characters to prevent overlap on dense layouts.

Separate signal flows into distinct layers: analog traces in green, digital in blue, power in thick grey strokes (≥0.5mm). Reserve yellow highlights for components requiring manual adjustment (potentiometers, trimpots); this reduces errors in calibration steps.

Include a reference table as a floating sidebar listing all labels with respective values and tolerances (e.g., R3: 4.7kΩ ±1%). For multilayer boards, replicate this table on every sheet–consistency cuts troubleshooting time by 40%.

Creating Clear Electrical Schematics

Begin by defining distinct symbols for each component–resistors (zigzag line), capacitors (parallel lines), transistors (three-line junction), and power sources (short/long parallel lines)–and assign unique alphanumeric identifiers. For resistors, use R1, R2, etc.; for capacitors, C1, C2. Ensure every symbol includes a reference designator near its graphical representation, avoiding overlaps with connecting lines. If a schematic spans multiple pages, maintain consistent labeling across all sheets.

Group related elements logically, such as placing power rails (VCC/GND) at the top and bottom of the layout, respectively. Use hierarchical naming for subcircuits (e.g., U1:OPAMP_1, U1:OPAMP_2 for a dual op-amp IC) to clarify functional blocks. For integrated circuits, label pin numbers adjacent to their connections–1 (VIN), 8 (VOUT)–to match datasheet references.

Add signal names to critical nodes (e.g., CLK, RESET, DATA) using uppercase letters; avoid vague terms like “input” or “output.” For complex designs, use net class identifiers (e.g., [POWER], [SIGNAL]) in brackets next to wire labels to differentiate purposes. Color-code wires if the software supports it: red for power, black for ground, blue for control signals.

Include a title block in the lower-right corner with the project name, version number, author, and date. Add a legend if non-standard symbols are used (e.g., custom sensors or mechanical switches). For microcontroller-based schematics, annotate firmware-specific pins with their programmed functions (e.g., PA3 (LED_CTRL)). Verify all labels match the PCB layout and bill of materials to prevent errors during assembly.

Export the final version in vector format (SVG/PDF) to preserve clarity at any scale. Avoid raster images (PNG/JPG) for professional documentation, as they pixelate when zoomed. Use monospace fonts (e.g., Courier New) for reference designators to ensure uniform spacing. If publishing digitally, hyperlink labels to corresponding datasheets or internal project documentation for quick reference.

Best Practices for Identifying Elements in Electrical Schematics

Assign reference designators to every part following industry standards. Resistors use “R” followed by a number (e.g., R1, R2), capacitors “C,” inductors “L,” transistors “Q,” and integrated chips “U.” Maintain sequential numbering from left to right and top to bottom to eliminate confusion during troubleshooting. For modular designs, prefix sub-assemblies with letters (e.g., “X” for connectors, “JP” for jumpers) to distinguish identical components across sections.

• Use uppercase letters consistently–avoid mixing “r5” and “R5.”
• Group related elements under sub-designators (e.g., “RA1″–”RA4” for resistor arrays).
• Append suffixes for multi-part packages (e.g., “U5A,” “U5B” for dual op-amps).

Include component values directly beside reference markers without crowding. For resistors, specify ohms (Ω), kilohms (kΩ), or megohms (MΩ) with tolerances (e.g., “R3 4.7kΩ 1%”). Capacitors list microfarads (µF), nanofarads (nF), or picofarads (pF) with voltage ratings (e.g., “C8 22µF 25V”). Transistors and ICs require part numbers (e.g., “Q2 2N2222,” “U1 LM358”)–omit generic labels like “NPN” or “Op-Amp” unless space constraints demand brevity.

Highlight critical nodes with net identifiers. Label power rails (“VCC,” “GND,” “+5V,” “-12V”) and signal paths (“CLK,” “DATA,” “RESET”) using distinct, legible fonts or bold formatting. Differentiate analog and digital nets with prefixes (e.g., “A_IN” for analog input, “D_OUT” for digital output). Avoid ambiguous terms like “INPUT” or “OUTPUT”–specify function (e.g., “SPI_MOSI,” “I2C_SDA”).

1. Position identifiers adjacent to pins or paths, avoiding overlaps.
2. Use consistent capitalization (e.g., “Vbat” vs. “VBAT” for battery voltage).
3. Add polarity markers for diodes (e.g., “D1”) and electrolytic capacitors (e.g., “+ C4”).
4. Include test points with “TP” followed by a number (e.g., “TP1”).

Add supplementary notes in a legend or callout box for non-standard parts. Optical sensors might need wavelength (e.g., “U3 TCS34725 550nm”), while transformers require winding ratios (e.g., “T1 10:1 CT”). For microcontrollers, list pin functions beneath the IC outline (e.g., “PB3 (SDA),” “PC0 (INT)”) to streamline debugging. Reserve color-coding for ground/power planes or signal types–ensure the legend explains hues if used.

Best Practices for Arranging Electrical Schematic Symbols

Group components by function to minimize visual clutter. Passive elements like resistors, capacitors, and inductors should cluster together near their associated active parts–transistors, ICs, or switches. Use a 5mm vertical spacing between rows to prevent overlap while maintaining readability. Align similar components along a horizontal axis, ensuring polarity markers or pin numbers face the same direction for quick reference.

Standardize symbol orientation across all schematics. Place inputs on the left, outputs on the right, and ground/bias nodes at the bottom. This convention reduces tracing errors during debugging. For microcontrollers or complex ICs, orient decoupling capacitors within 10mm of power pins to reflect real-world PCB placement. Label power rails with voltage values directly adjacent to symbols, e.g., +5V or VCC, avoiding ambiguous terms like V+.

Symbol Type	Preferred Spacing	Label Position
Resistors	3–5mm between adjacent	Above, centered
IC pins	>2mm from package edge	Inside pin, rotated 90°
Connectors	10mm between rows	Right side, aligned

Use hierarchical layers for multi-board systems. Dedicate separate sheets to power, signal, and control subsystems. Link sheets via off-page connectors with identical net names, using a prefix like JUMP_ for clarity. For dense designs, limit crossings–redraw traces at 45° angles where unavoidable. Color-code nets in software: red for power, blue for signals, and green for grounds, but export final versions in monochrome to ensure print compatibility.

Frequent Errors in Annotating Electrical Schematics

Placing identifiers too close to components forces readers to strain their eyes. Maintain at least 3–5 mm of clear space around each annotation to prevent overlaps and misreads. Use consistent alignment–right or left–for similar elements like resistors or transistors to speed up interpretation.

Overusing abbreviations causes confusion. Avoid “R” for resistor if the document also contains relays or regulators. Instead, adopt standard IEC codes like “R1” for resistors, “C1” for capacitors, or manufacturer-specific prefixes like “IC1” for integrated chips. Never assume familiarity; always include a legend.

Inconsistent font sizes disrupt flow. Headings for power rails should be 14–16 pt, while component IDs work best at 10–12 pt. Bold critical signals like VCC or GND, leaving passive parts in regular weight. Stick to sans-serif fonts such as Arial or Helvetica–serif letters like Times New Roman clog tiny spaces.

Ignoring Net Naming Rules

Leaving nets unlabeled or using generic names like “Wire1” wastes debugging time. Assign explicit names to every connection: “SPI_MOSI,” “USB_D+,” or “5V0_REG.” Keep names short–maximum 15 characters–to avoid clutter. Group related nets with prefixes, e.g., “ADC_CH0,” “ADC_CH1.”

Mixing units within the same annotation creates errors. Decide on either metric (kΩ, pF) or imperial (kOhms, pFarads) and apply uniformly. Add precision only when necessary–”5.1 kΩ” is clearer than “5100 Ω.” Avoid decimal points for round values: write “10 kΩ,” not “10.0 kΩ.”

Skipping reference designators breaks simulation tools and bill-of-materials generation. Every discrete part must carry a unique tag: “Q1” for the first transistor, “U2″ for the second IC. Pad numbers with leading zeros for easier sorting–”R001” to “R099,” not “R1.” If a schematic spans multiple sheets, append sheet numbers: “C5_3” for capacitor 5 on sheet 3.

How to Sketch an Annotated Electrical Schematic from Scratch

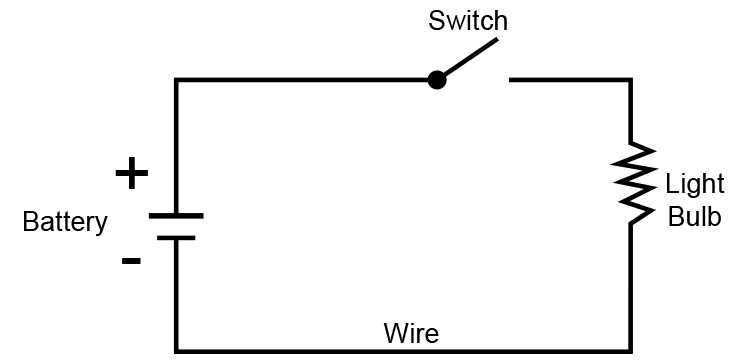

Gather components first: a power source (battery, cell, or supply), conductive paths (wires), load elements (resistors, LEDs, motors), and control devices (switches, transistors). List every piece on paper before touching the drawing tool–omit nothing.

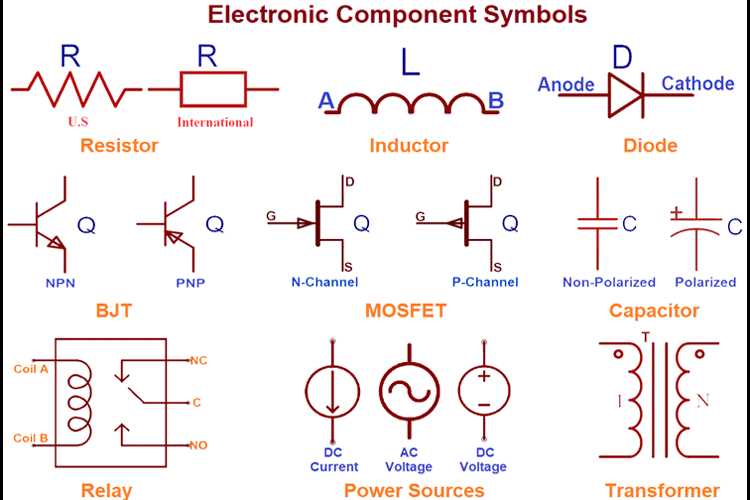

Select symbols matching IEEE or IEC standards. A battery uses two parallel lines (one longer, one shorter), resistors show zigzag segments, capacitors pair curved or straight lines–never improvise. Cross-reference symbols against a trusted reference sheet until memorized.

Organize Layout for Clarity

Position the power source at the top left corner, loads arranged logically downstream. Keep conductive paths horizontal or vertical–diagonal lines confuse readers. Space components far enough apart to insert annotations without crowding.

Draw connections first, then add identifiers next to each element. Power sources deserve voltage values (e.g., “5V”), resistors specify ohms (e.g., “220Ω”), capacitors note microfarads (e.g., “10µF”). Annotate switches with function labels (“ON/OFF”) or pin numbers (“SW1”).

Avoid ambiguous text; “R3” alone tells nothing–use “R3 10kΩ pull-up” instead. Signal flow arrows (→) clarify direction in complex setups. Highlight critical nodes with colored outlines or bold text if color printing is unavailable.

Verify Every Connection Before Finalizing

Trace each path twice: follow current from power source through every branch to ground. Misplaced connections risk short circuits or floating nodes. Check identifiers against the parts list–one discrepancy invalidates the entire schematic.

Scan for duplicate labels or missing values. Save in vector format (SVG, DXF) for scalability, raster formats (PNG) only for documentation. Export final version with embedded fonts–substituted fonts misalign annotations after transfer.
