How to Design and Build a Simple Switch-Controlled Electrical Circuit

Start by sourcing a 2Pole single-throw (SPST) actuator rated for at least 10A at 250VAC if working with household currents. Avoid cheaper alternatives–substandard contacts risk arcing under inductive loads. Position the component between the power source and load, ensuring the neutral line bypasses the control point entirely to prevent unexpected energization.

Leverage multimeter continuity testing before finalizing the layout. Probe both sides of the actuator terminals while toggling its state. A consistent open/close reading confirms proper mechanical operation, while erratic readings suggest alignment flaws requiring adjustment or replacement. Document each measurement for later troubleshooting.

Integrate a flyback diode (1N4007) across inductive loads like relays or motors. Position it cathode-to-positive to shunt voltage spikes exceeding 1kV, which would otherwise degrade the actuator over time. Omit this safeguard only in purely resistive configurations where transient risks are negligible.

Label terminal connections L1 (line input), L2 (load output), and COM (common) clearly using heat-shrink tubing. Miswiring risks short circuits; verify polarity with a non-contact voltage tester before energizing. For dual-voltage applications (120V/240V), use a dual-pole actuator to break both lines simultaneously.

Adhere to IEC 60364 spacing requirements: maintain 3mm clearance between open contacts and adjacent conductive paths on printed boards. For enclosed setups, ensure a minimum 8mm separation to comply with UL840 fire safety standards. Copper traces beneath the actuator must carry at least 30A/mm² current density–upgrade to 2oz copper if exceeding 5A continuous.

Test cycle limits for mechanical actuators: most toggle types endure 20,000 operations at rated load. For high-frequency use (e.g., automation), specify sealed reed actuators rated for 1 million cycles. Lubricate pivot points with PTFE-based grease every 500 cycles to prevent corrosion in humid environments.

For AC/DC hybrid designs, isolate high-voltage lines using optocouplers (PC817) to prevent ground loops. Position the actuator on the low-voltage side to simplify enclosure sealing. Use ferrite cores on incoming wires to suppress EMI above 1MHz, which can cause false triggering during switching events.

Designing Electrical Schematics for Manual Control Elements

Always position toggle elements near the power source entry point to minimize voltage drop. Use thick traces (minimum 2mm width for 5A currents) for connections leading to these controls, reducing resistive losses. For AC systems, ensure the manual breaker is rated at least 120% of the expected load current to prevent overheating.

Label every control symbol with its exact function and electrical ratings directly on the layout. Example: “SW1 – 10A/250V AC, ON-OFF” prevents miswiring during assembly. Include a small rectangular box next to each symbol for handwritten adjustments if the design undergoes iterative testing.

• Single-pole configurations simplify troubleshooting but limit functionality.

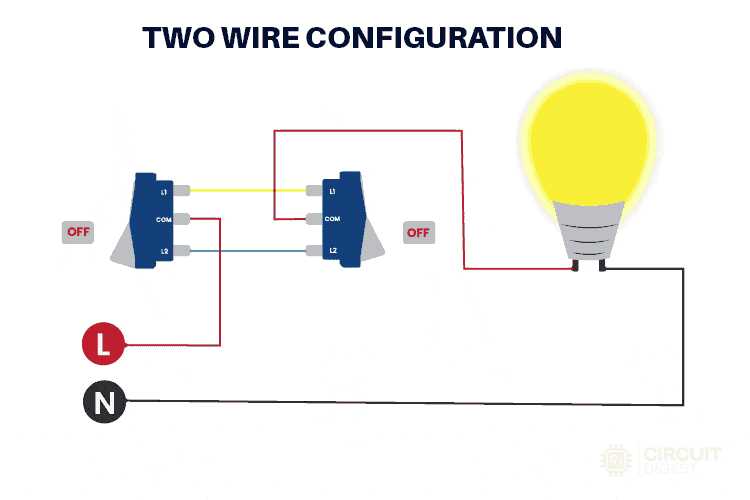

• Double-throw designs enable three-way control scenarios, useful for selector circuits.
• Push-button variants should incorporate spring-loaded return mechanisms for momentary applications.

When integrating manual control in battery-operated devices, place a flyback diode across inductive loads (relays, solenoids) to protect contacts from arcing. The diode must handle at least the same current as the load and should be oriented with the cathode toward the positive terminal.

For enclosed systems, mount the control element on a rear panel with at least 15mm clearance from adjacent metallic surfaces. Use insulating standoffs if the housing is conductive. Verify creepage distances according to IEC 60950-1: 2.5mm for 250VAC lines, 4mm for 400VAC.

Test every control path before finalizing the blueprint–use a multimeter to confirm continuity in the OFF state and isolation between poles. For high-current paths, perform a load test with rated current to check for excessive heating at connection points.

1. Sketch preliminary paths on graph paper for quick adjustments.
2. Transfer final paths to CAD software using precise coordinates.
3. Export Gerber files at 1:1 scale for prototype fabrication.

Include a fuse or circuit protector immediately downstream of the manual control element. Choose the fuse rating based on the lowest-rated component in the path–typically 80% of the weakest link’s current handling capacity. Example: If LEDs tolerate 200mA, use a 160mA fuse.

Core Elements for Building a Toggle-Based Electrical Setup

Select a single-pole single-throw (SPST) mechanical actuator rated for the load–typically 5A for low-power LEDs or up to 15A for incandescent bulbs. Pair it with a 9V alkaline battery or a 12V DC adapter as the energy source; avoid mismatched voltages to prevent component burnout. Use 22-gauge copper wiring for connections, ensuring strands are twisted and tinned before soldering to minimize resistance. For inductive loads like relays or motors, add a flyback diode (1N4007) across the coil terminals to suppress voltage spikes that can damage the actuator.

• Load resistor: Match wattage to expected current draw (e.g., 1/4W for signals, 1W for small lamps).
• Terminal blocks: Use screw-type connectors for secure, tool-free wiring changes.
• Heat shrink tubing: Insulate joints post-soldering to prevent short circuits.
• Optional current limiter: Insert a fuse or PTC resettable fuse inline with the power feed for fault protection.

Connecting a Single-Pole Single-Throw Toggle in a Direct Current Setup

Begin by selecting a 12V DC power source for low-voltage applications to ensure safety and compatibility with most SPST toggles rated for 10A or less. Use 18 AWG stranded copper wire for connections–it provides flexibility and sufficient current handling for typical loads like LEDs, relays, or small motors. Strip 6mm of insulation from each wire end using precision strippers to prevent nicking the conductors, which weakens the connection.

Identify the toggle’s terminals: one labeled “COM” (common) and the other “NO” (normally open). In a live setup, connect the positive lead from the power supply directly to the “COM” terminal. The “NO” terminal serves as the interrupt point–wire it to the load (e.g., a lamp or motor). For polarity-sensitive components, ensure the negative lead bypasses the toggle entirely and links straight to the load’s ground return path.

Component	Wire Gauge	Current Rating	Insulation Color
SPST Toggle	18 AWG	10A max	Red (positive), Black (return)
Power Supply Lead	16 AWG (optional)	15A	Red
Load Wiring	18 AWG	5A typical	Unswitched: Black

Solder connections only if the toggle lacks screw terminals or quick-disconnect terminals. Use a 60/40 rosin-core solder (0.8mm diameter) and a 40W iron to avoid overheating the toggle’s plastic housing. Apply heat for 2-3 seconds max per joint; excess heat can degrade internal contacts. For screw terminals, loop the wire clockwise around the post before tightening–this prevents the wire from being pushed out as the screw drives down.

Test the assembly with a multimeter before applying power. Set the meter to continuity mode and probe the “COM” and “NO” terminals. With the toggle off, no continuity should exist. Flip it on–continuity should register immediately. If readings fluctuate, recheck connections for cold solder joints or loose screws. For 24V+ systems, add a flyback diode (1N4007) across inductive loads (e.g., solenoids) to suppress voltage spikes that can damage the toggle’s contacts.

Secure all wiring with nylon zip ties (3.6mm width) spaced at 10cm intervals to prevent stress on solder joints or screw terminals. Route wires away from sharp edges or moving parts–abrasion can compromise insulation over time. For outdoor use, seal connections with heat-shrink tubing (polyolefin, 3:1 ratio) and a waterproof housing rated IP65 or higher. Label both sides of the toggle with indelible marker (“POWER” and “LOAD”) to simplify future troubleshooting.

Fault Diagnosis Checklist

If the load fails to activate, verify the toggle’s continuity with a multimeter. Check for voltage at the “COM” terminal (should match supply voltage). Inspect the “NO” terminal for voltage when toggled on–absence indicates a faulty device or broken contact. For intermittent operation, clean the terminals with isopropyl alcohol (90%+ concentration) to remove oxidation. Replace toggles showing pitted contacts or excessive resistance (>0.2Ω) after cleaning.

Common Errors in Linking Controls to Energy Supplies

Connecting toggles directly to live terminals without verifying voltage ratings leads to immediate component failure. Most mechanical selectors support 12V–24V DC or 120V–240V AC, yet ignoring these limits causes overheating or arcing. Use a multimeter to confirm the supply matches the device specs before attachment.

Overlooking polarity when wiring pushbuttons to DC sources guarantees reversed current flow. Positive leads must connect to the anode, negatives to the cathode–swapping these introduces short circuits or damages internal relays. Mark wires with tape or labels during assembly to prevent confusion during maintenance.

Neglecting Ground Path Integrity

Floating grounds or loose earth connections create unpredictable behavior–flickering signals, intermittent operation, or safety hazards. Secure grounding cables with crimped lugs and star washers, especially in high-vibration environments. Check continuity with a test probe; resistance above 0.1Ω indicates corrosion or poor contact.

Using undersized conductors for high-current loads melts insulation and increases resistance. Calculate wire gauge with an ampacity chart–for 10A, use 16AWG; for 20A, 12AWG. Avoid daisy-chaining multiple controls on a single conductor; distribute power via terminal blocks or fuse taps for reliable delivery.
