Practical Guide to Designing and Analyzing Clamping Circuits Step by Step
Start with a basic two-diode configuration if your input swing stays within ±0.7 V. Place one diode from the signal node to ground, cathode down; the second diode goes to a reference rail, anode up. The forward drop of silicon (0.6–0.7 V) or Schottky (0.2–0.3 V) sets the absolute peak you allow. Pair each diode with a resistor–typically 1 kΩ to 10 kΩ–between the signal source and the clamping node. This resistor burns excess current, so size it for the maximum input transient your system must survive.
Select the reference rail carefully: a fixed DC rail at the desired ceiling prevents the clamped signal riding up with supply variations. For TTL levels use +5 V, for CMOS logic use +3.3 V, and for low-voltage analog signals use a regulated +1.8 V or +2.5 V rail. Stability matters more than precision; a simple 1 % resistor divider off the main supply can serve if no precision reference IC is available. Keep trace capacitance low–the lower the stray capacitance, the faster the clamp reacts to jumps.
For asymmetrical waveforms, use a single diode to ground and omit the feedback resistor entirely. The diode alone clamps only the negative swing; positive pulses pass unaltered. This trick is common in video line drivers where only sync tips need protection. If both polarities matter, add a zener in parallel to the diode but orient it cathode-to-anode against the rail. Pick a zener slightly above your target clamp voltage (say, 3.9 V instead of 3.3 V) to avoid leakage during quiescent periods.
Transient response hinges on junction capacitance. Schottky diodes switch faster than silicon–choose BAT54 or 1N5819 for slew rates above 10 V/µs. For slower signals, ordinary 1N4148 suffices. Mount the diodes physically close to the signal entry point to minimize loop area; any extra centimeters of trace form antennas that pick up noise before the clamp engages. Test the setup with a 10× step input–rise time on the clamped output should stay under 10 ns to guarantee protection of downstream logic.
Bypass the reference node with a 0.1 µF ceramic capacitor directly at the diode cathode. Without it, fast transients couple through the diode capacitance and defeat the clamp. Place the capacitor a few millimeters away; longer leads add inductance that slows the response. If your signal chain runs on multiple rails, duplicate the resistor-diode pair at each critical node–signal integrity breaks when edge rates exceed clamp bandwidth, so redundancy is simpler than tuning a single complex network.
Voltage Limiting Schematic Guide
To stabilize signal levels, use a configuration with a diode oriented in series with a capacitor. Position the diode’s anode toward the input node and the cathode connected to the reference potential–typically ground. This arrangement ensures the output waveform maintains a fixed baseline equal to the diode’s forward drop (≈0.7V for silicon). For precision, select Schottky diodes when quick response and minimal voltage loss (
- Signal frequency dictates capacitor sizing: 1nF suits 1MHz, 10nF matches 100kHz.
- Bipolar input? Add a second diode in reverse polarity to clamp both positive and negative excursions.
- Reference potentials other than ground need a DC bias source–align the cathode with the desired limit voltage.
For transient protection, pair the diode with a zener across the output. Choose a zener voltage 0.5V above the clamp level to avoid conduction during normal operation. Example: 5.6V zener for a 5V rail prevents spikes beyond 6.1V. Ensure PCB traces between components remain under 15mm to minimize inductive overshoot.
Component Selection Checklist
- Diode type: Silicon (1N4148) for general use, Schottky (BAT54) for low-loss.
- Capacitor: Ceramic X7R (50V rating minimum) for stability.
- Resistor (optional): Add 1kΩ in series if input impedance exceeds 10kΩ to limit diode current.
- Zener: Match clamp voltage +0.5V; 1N5231B for 5V.
Test the assembly with a 1kHz sinewave input. Verify the output baseline locks at the reference voltage while preserving the signal’s peak-to-peak amplitude. If distortion appears near the clamping threshold, reduce the capacitor value by 30% or switch to a faster diode. For high-voltage inputs (>50V), stack two diodes in series to distribute the reverse voltage.
Troubleshooting: drifting clamp levels indicate capacitor leakage–replace with a film type (MKP). Oscillation at high frequencies (>10MHz) suggests parasitic inductance; shorten traces or add a 10Ω resistor in series with the diode. Always probe the circuit with an oscilloscope’s 10x setting to avoid loading effects.
Essential Elements for a Functional Voltage-Limiter Setup
Start with a fast-switching diode–preferably a Schottky type like the 1N5817, which handles reverse recovery times under 10 ns and forward voltage drops as low as 0.2 V. Silicon PN-junction diodes (e.g., 1N4148) work but introduce 0.7 V drops; reserve them for precision applications where leakage currents below 5 µA are critical. Match the diode’s peak reverse voltage to at least 1.5× the expected transient spikes–200 V for 120 VAC lines, 40 V for 24 VDC systems.
A reference voltage source determines the clamping threshold. Use a zener diode (e.g., BZX84C6V2) for fixed levels: 5.1 V, 6.8 V, or 12 V variants cover most needs. For adjustable limits, pair a potentiometer (10 kΩ linear taper) with a precision voltage reference IC like the LM4040-2.5. Ensure the reference’s temperature coefficient stays below 50 ppm/°C to avoid drift. Below is a comparison of common zener families:
| Zener Series | Voltage Range (V) | Tolerance (%) | Max Current (mA) | Temp Coefficient (ppm/°C) |
|---|---|---|---|---|
| BZX84 | 2.4–75 | ±5 | 200 | 30–100 |
| 1N4728A | 3.3–76 | ±10 | 100 | 50–500 |
| MMSZ5225B | 2.4–33 | ±2 | 50 | 10–50 |
Passive Components: Resistors and Capacitors
Select a current-limiting resistor to protect the diode from inrush spikes. Use Ohm’s law: R = (Vin – Vref) / Imax. For a 12 V input clamping at 5 V with a 20 mA max current, aim for 350 Ω (330 Ω standard value). Carbon film resistors suffice for most cases, but metal film (e.g., RN55) offers 50 ppm/°C stability for high-temperature environments.
Decoupling capacitors absorb transients before the diode reacts. Place a 0.1 µF ceramic (X7R dielectric) directly across the input terminals, and a 10 µF electrolytic (low ESR) at the output to handle bulk energy. For high-frequency noise (>1 MHz), add a 1 nF capacitor in parallel. Ensure all capacitors meet the voltage rating: 2× the peak input for ceramics, 1.5× for electrolytics.

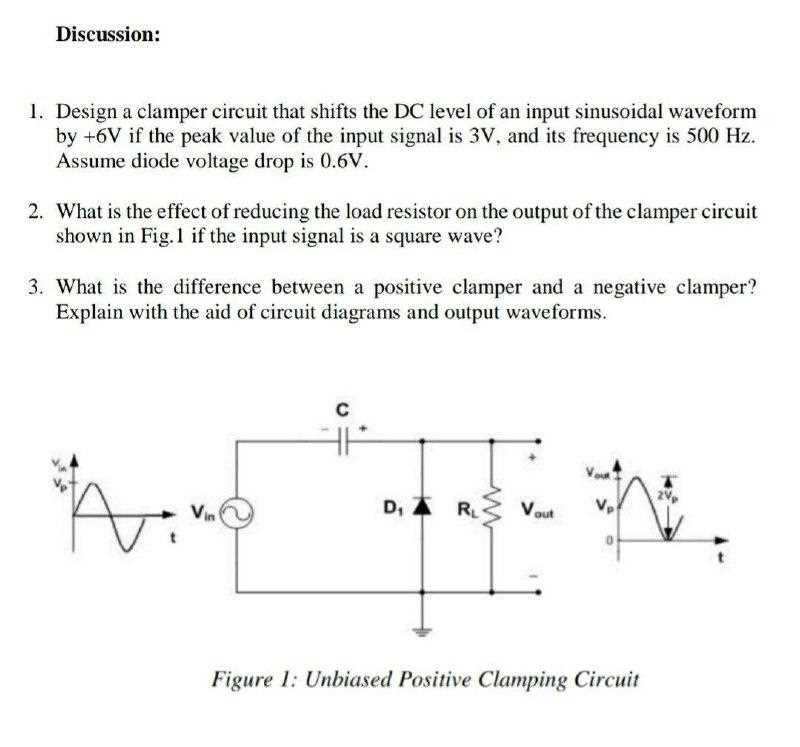

Building a Voltage Shifter: Positive Bias Assembly Guide
Select a signal source with known amplitude–preferably a 5V peak sine wave at 1 kHz–for predictable results. Verify its output impedance doesn’t exceed 50Ω to avoid loading effects during later stages. Use an oscilloscope to confirm the waveform’s symmetry before proceeding.
Attach a 1N4148 diode with the anode to the input node and cathode to the voltage reference point. Ensure the diode’s reverse recovery time (4 ns) suits your application; slower signals tolerate generic switching diodes, while high-frequency signals demand faster variants like BAT54. Apply a 3V DC offset via a bench power supply connected to the diode’s cathode–this sets the baseline shift. A 1 µF coupling capacitor between the signal source and diode blocks any residual DC, preserving waveform integrity.
Add a 100 kΩ resistor in parallel with the diode to discharge the capacitor when the input voltage drops below the offset. Without it, transient distortions appear on the output, especially during low-duty-cycle pulses. For steady-state operation, this resistor isn’t mandatory, but omit it only if the input signal remains continuous.
Terminate the output with a 1 MΩ scope probe or 10 kΩ load resistor to prevent floating nodes. Monitor the shifted waveform: the positive peak should lock at 3V (offset) while the negative peak retains its original magnitude, now riding atop the DC baseline. Adjust the offset voltage in 0.5V increments to fine-tune the shift without distorting the signal’s shape. Replace the diode if clipping occurs at higher frequencies–substitute with a Schottky variant for cleaner transitions.
Constructing a Voltage Limiter for Negative Bias Using a Single Diode and Capacitor
Start by selecting a fast-switching diode like the 1N4148–its low forward voltage drop (≈0.7V) and rapid recovery (≈4ns) prevent signal distortion. Connect the anode to the input source and the cathode to the capacitor’s positive terminal. Ground the capacitor’s negative side while ensuring its capacitance (typically 10nF–1µF) exceeds the signal’s frequency demands: for 1kHz, 100nF works; for 1MHz, drop to 1nF. Lower values risk inadequate charge retention, higher ones slow response time.
Apply a sinusoidal or pulsed input with a peak amplitude matching your target offset–for a –2V shift, feed +2V to –5V swings. The capacitor charges to the waveform’s positive peak (minus diode drop) during the first positive cycle, creating a DC bias. On subsequent negative swings, the output tracks the input but shifts upward by the capacitor’s voltage, effectively clamping the lowest point to ≈–0.7V (diode forward drop). Adjust component values if the shift drifts; temperature changes (±50ppm/°C in ceramic caps) alter the bias by ~±0.1V per 10°C.
Verify performance with an oscilloscope: probe the output node directly to avoid loading effects. A correctly built setup shows the entire waveform lifted by the capacitor’s charge, with no flat-spotting or distortion at transitions. If the negative peak clips instead of lifting, increase capacitor size or switch to a Schottky diode (e.g., BAT54) for lower forward drop (≈0.2V), reducing errors. For precision, add a 1MΩ bleeder resistor across the capacitor to stabilize bias during idle periods, discharging it in ~1s.
To handle larger signals, replace the 1N4148 with a 1N4007–higher current capacity (1A) but slower (30µs reverse recovery). For high-frequency signals (>10MHz), minimize circuit inductance: use surface-mount components (0805 resistors) and keep traces under 10mm; stray inductance (≈1nH/mm) introduces overshoot. If AC coupling is needed, insert a second capacitor (same value) in series before the diode-node, blocking DC but passing the desired offset.
For adjustable bias, substitute a resistor (10kΩ–1MΩ) between the diode’s cathode and a variable DC source (–0.3V to –5V). The resistor forms a voltage divider with the capacitor’s impedance at the signal’s frequency, letting you fine-tune the shift without redesigning. Test over temperature: at –20°C, ceramic capacitors lose ~15% capacitance, altering bias; compensate with a 25% larger value or a temperature-stable film cap (e.g., polyester, ±5% drift from –40°C to +125°C).
