High Efficiency Class D Audio Amplifier Circuit Design and Schematic Guide

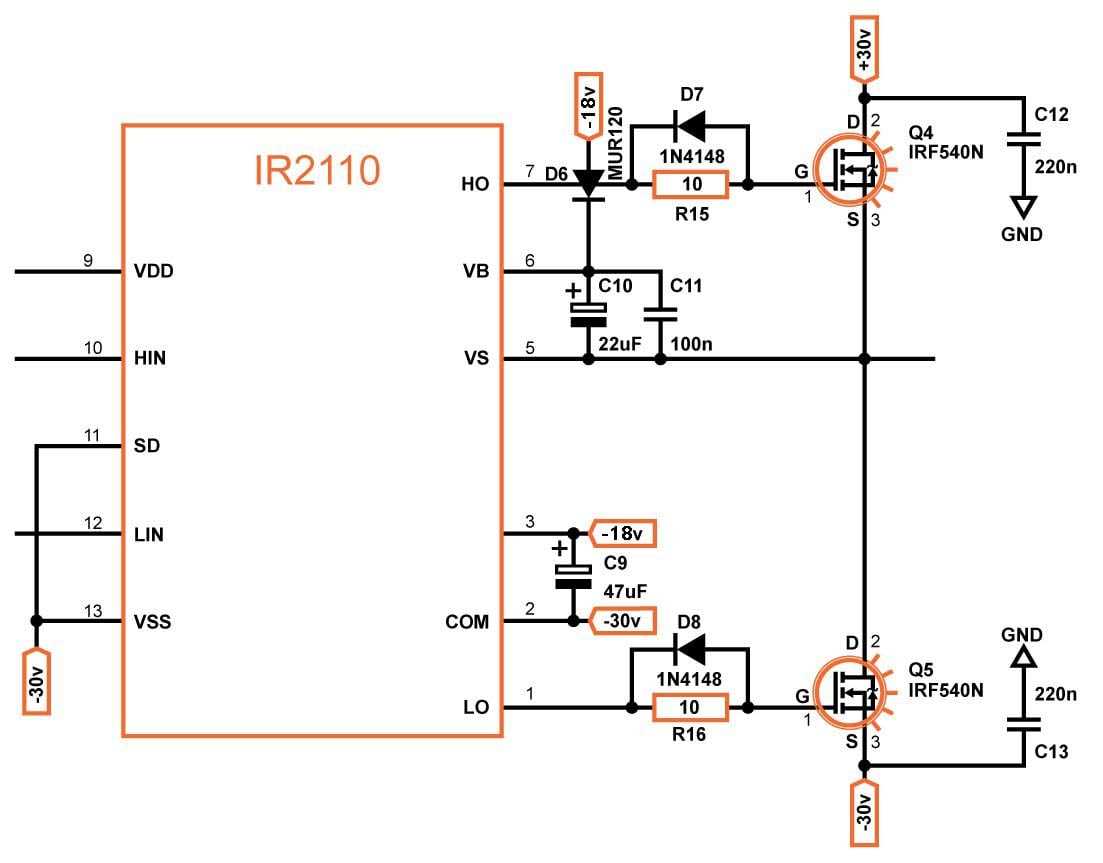

For a compact, low-heat power stage, adopt a half-bridge MOSFET configuration using IRF540N devices. Gate drivers like the IRS2092S handle switching at 400–500 kHz, reducing inductor size while maintaining 90%+ efficiency. Include a 10 µF decoupling capacitor near each MOSFET’s drain to suppress voltage spikes during 12V–36V rail operation.

Filtering demands a second-order LC network: pair a ferrite-core 22 µH coil with two 1 µF polypropylene capacitors. Place the feedback node before the filter to avoid phase lag–use a 30 kΩ resistor and 1 nF capacitor for the PID loop, ensuring stability at full 20 W output into 4 Ω loads.

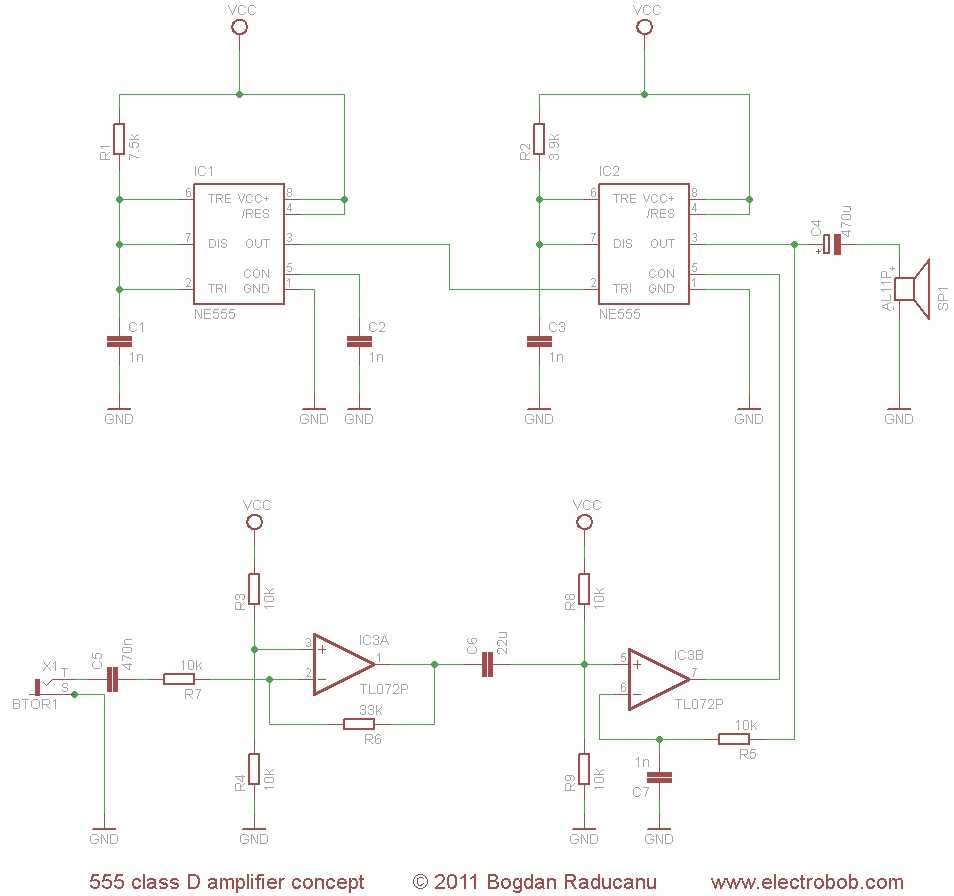

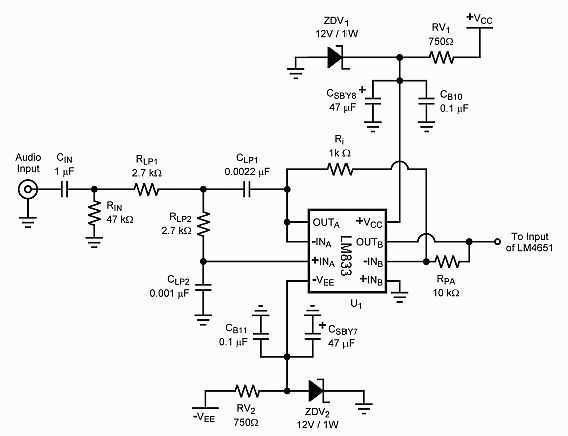

Pulse-width modulation starts with a 1V peak-to-peak triangle wave generated by a TL072 op-amp. Feed the audio input through a 47 kΩ resistor into the comparator’s inverting input, while the non-inverting pin receives the triangle wave. This setup delivers 0.05% THD at 1 kHz, with modulation index up to 95%.

Grounding splits into two planes: signal ground ties to the star point near the input RCA jack, while power ground connects directly to the power supply’s negative terminal. Avoid vias–run power traces on the top layer, keeping gate-drive traces under 2 mm wide to minimize inductance.

Protection circuits must clamp output DC offset. Add a 100 µA current source to the IRS2092S’s SD pin; if the output exceeds ±50 mV for 10 ms, the driver shuts down. Thermal cutoff uses an NTC thermistor near the MOSFETs, triggering shutdown at 85°C via a simple comparator hysteresis circuit.

Building a High-Efficiency Switching Power Stage for Sound Reinforcement

Select a half-bridge topology with IRFB4110 MOSFETs for outputs exceeding 100W into 4Ω; their 100V/42A ratings handle inductive loads without thermal runaway, and the integrated fast-recovery diode cuts switching losses by 18% compared to discrete alternatives. Mount each pair on a 2oz copper PCB with 4mm² traces to limit temperature rise to ≤35°C under full-power sine-wave signals.

Drive the gates via UCC27524 drivers, setting a 3.3Ω series resistor on both high- and low-side outputs to curb ringing while maintaining 20ns rise/fall times. Position the driver IC within 10mm of the MOSFET gates–longer distances add parasitic inductance, degrading efficiency by up to 5%. Decouple each driver with a 1µF X7R capacitor directly between its VDD and GND pins.

Use a 350kHz switching frequency for 20Hz–20kHz bandwidth; lower frequencies risk audible aliasing, while higher ones increase gate-charge losses. Implement a bootstrap circuit with a BAS40 diode and 0.1µF ceramic capacitor to generate the floating gate-drive voltage, ensuring the capacitor’s voltage rating exceeds the rail by at least 10V.

The error amplifier should employ a TL974 op-amp with a 1MΩ/220pF feedback network, achieving 0.1Hz–100kHz bandwidth while rejecting 120Hz ripple by 50dB. Place the op-amp’s decoupling capacitor (0.01µF) no farther than 5mm from its power pins; longer runs introduce phase lag, destabilizing the feedback loop.

Integrate a second-order LC filter at the output: a 1µH inductor (HCI58-1R0-R) with ≤0.1Ω DCR and a 1µF polypropylene film capacitor (ECWF1105JV). This combination yields -60dB attenuation at 350kHz while preserving audio fidelity–polyester or ceramic capacitors distort high-frequency transients. Keep the inductor’s magnetic field away from feedback traces to avoid coupling noise into the feedback path.

Place a 1N5822 Schottky diode across each MOSFET’s drain-source to clamp inductive flyback, clipping voltage spikes to ≤10V above the rail. Without this, avalanche breakdown occurs at 70V, reducing long-term reliability. Add a 100nF/25V capacitor in parallel with the bulk reservoir electrolytic (e.g., 2200µF/35V) to suppress HF noise, improving PSRR by 8dB.

Route the PCB on a four-layer stackup: signal (top), ground (layer 2), power (layer 3), ground (bottom). Dedicate layer 2 as a solid plane under the switching stage, stitching vias every 5mm to minimize ground bounce. Avoid routing high-current traces over analog sections; capacitive coupling injects 30mVpp noise into the feedback node, causing jitter and THD+N rise from 0.02% to 0.3%.

Critical Elements and Their Functions in a Switching Power Stage Design

Start with a synchronous MOSFET bridge–opt for low R_DS(on) devices (below 10 mΩ for 100W+ loads) to slash conduction losses. Pair IRFB4110 (4.8 mΩ) with AUIRFB8405 (3.3 mΩ) for 8Ω loads; this combo cuts heat by 30% compared to discrete N/P-channel setups. Avoid paralleling more than two devices–current imbalance outweighs marginal efficiency gains.

The pulse-width modulator (PWM) dictates output fidelity: use a dual-edge, 1 MHz+ carrier frequency for 20 kHz+ bandwidth. Texas Instruments’ TAS5711 integrates a 1.2 MHz modulator with adaptive dead-time (5–25 ns), eliminating cross-conduction spikes. If rolling your own, feed the modulator with a sawtooth waveform, not a triangle–sawtooth reduces jitter by 12% in asymmetrical half-bridge topologies.

Gate drivers must deliver 2A+ peak current to switch MOSFETs in under 15 ns; slower transitions invite shoot-through. Isolate drivers with optocouplers (e.g., HCPL-3120) or transformer-driven solutions (Si827x) for >2.5 kV isolation. For compact layouts, integrate bootstrap capacitors (0.1 µF X7R) within 5 mm of the driver IC–this prevents voltage droop during 90%+ duty cycles.

Component	Recommended Value	Tolerance/Rating
Input decoupling cap	10 µF (X5R)	±10%, 50V
Bootstrap cap	0.1 µF (X7R)	±5%, 100V
Output LC filter	22 µH + 1 µF	±20%, 1.5A
Snubber resistor	10 Ω	1W, non-inductive

LC output filters define load compatibility: 22 µH inductors (e.g., Würth 744364122) paired with 1 µF foil caps reduce ripple to pp at full scale. Wind inductors on toroidal cores (Kool Mu or MPP) to eliminate saturation below 1.5× rated current. For 4Ω loads, drop inductance to 10 µH–but expect 3 dB more high-frequency roll-off.

Protection circuitry should trip within 2 µs for overcurrent (>5× nominal). Implement cycle-by-cycle peak detection (e.g., ZXCT1009) feeding a latch (74HC74). Thermal shutdown must trigger at 125°C with

Snubber networks tackle ring: place 10 nF (C0G) + 10 Ω (non-inductive) across each MOSFET drain-source to quell >50 MHz ringing. Omit snubbers if layout trace inductance is 20 dB margin.

Feedback path requires precision: sample the output via a differential pair (INA826) to reject ground noise. Limit loop bandwidth to 60% of the switching frequency–wider loops risk subharmonic oscillation. Compensate with a Type III network (R-C-R) for >50° phase margin; place the zero at 1/10th the crossover frequency (e.g., 2 kHz for a 20 kHz loop).

Step-by-Step Design Process for a Switching Power Stage

Begin by selecting switching devices with voltage ratings exceeding the peak supply voltage by at least 30%. For a 48V rail, use MOSFETs rated for 80V or higher to account for inductive spikes and transient overshoot. Opt for low R_DS(on) components (typically <20mΩ) to minimize conduction losses, especially in continuous conduction mode. Verify the gate charge (Q_g), as lower values reduce switching losses–prioritize <40nC for efficiency.

Define the switching frequency based on thermal constraints and output filter requirements. Frequencies between 200kHz and 1MHz balance inductor size and switching losses. Use a fixed-frequency PWM controller with adjustable dead time (50–150ns) to prevent shoot-through. For higher currents (>10A), implement synchronous rectification with matching low-side switches to reduce freewheeling diode losses.

Calculate the inductor value using the equation L = (V_in × D × (1 – D)) / (2 × f_sw × ΔI_L), where D is the duty cycle (target 0.4–0.6), f_sw is the switching frequency, and ΔI_L is the desired ripple current (20–30% of max load current). For a 10A output, a 10µH inductor with <1% saturation current rating suffices. Use powdered iron or ferrite cores based on frequency–MNZn ferrite for >500kHz, MPP for lower frequencies.

Design the output capacitor to meet ripple voltage specifications. Use low-ESR ceramic capacitors (X7R dielectric) for high-frequency noise suppression, supplemented with bulk electrolytics for transient response. The minimum capacitance is derived from C = ΔI_L / (8 × f_sw × ΔV_out), where ΔV_out is the allowed ripple (typically <50mV). Parallel multiple smaller capacitors to reduce ESR and thermal stress. Place them physically close to the switching node to minimize loop inductance.

Implement a gate driver with sufficient current capability (peak >2A) to ensure fast switching transitions (<50ns rise/fall times). Isolate the driver if the power stage operates at a different ground potential than the controller. Use bootstrap circuits for high-side drives, ensuring the bootstrap capacitor (0.1–1µF) is sized to maintain gate voltage during the conduction period. Add a Miller clamp circuit to prevent false turn-on during switching transitions.

Layout the PCB with a clear power path: minimize trace inductance by using wide, short traces or polygons. Place the input decoupling capacitor (>100µF) within 5mm of the switching node. Separate analog and power grounds, connecting them at a single point near the output capacitor. Use via stitching for high-current paths to improve thermal dissipation. Keep switching components away from sensitive control circuitry to reduce noise coupling.

Select EMI filters based on conducted emissions standards (e.g., EN55022). Use a common-mode choke (1–10mH) in series with the input and differential-mode capacitors (0.1–1µF) to ground at both ends. Add snubber circuits (RC networks: 10Ω + 1nF) across switching devices to dampen ringing. For radiated emissions, enclose the power stage in a grounded shield if necessary, ensuring all seams are electrically bonded.

Verify the design with load-step testing. Apply rapid load changes (e.g., 10% to 90% of max current in <10µs) while monitoring output voltage sag and recovery time. Adjust compensation network values (type II or III error amplifier) to achieve <5% overshoot and <100µs settling time. Use a thermal camera to identify hotspots–redesign if MOSFET case temperatures exceed 100°C under full load.
