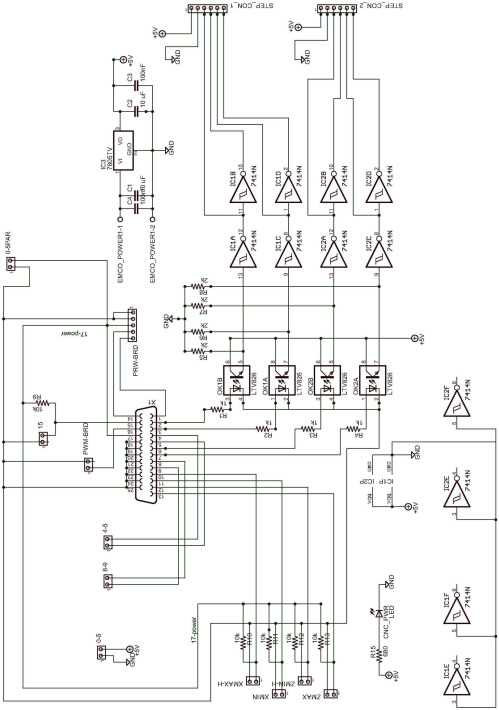

Complete CNC Machine Electrical Circuit Schematic and Wiring Guide
Begin with a 12-24V DC power supply rated for continuous current draw matching your stepper drivers–typically 2A per axis for NEMA 17 motors. Route power through a 40A automotive fuse before splitting to parallel branches: one for logic (Arduino/Raspberry Pi) via a LM2596 buck converter set to 5V, another for motor drivers (e.g., TB6600 or DRV8825) with separate polarity protection diodes. Ground all components to a single star point near the PSU to minimize noise.
For spindle control, integrate a PWM-to-analog converter (e.g., RC filter with 1kΩ resistor and 10µF capacitor) between the controller’s 0-5V signal and the VFD’s 0-10V input. Use 18AWG shielded wire for step/direction signals, twisted at 1 twist per 2.5cm, with shields connected only at the controller end to reduce interference. Label each wire with heat-shrink tubing marking both endpoints (e.g., “X-STEP → DRV8825-PUL”).
Isolate limit switches with optocouplers (PC817) if using mechanical contacts–wire them in series with 1kΩ pull-down resistors to the controller’s 5V rail. For emergency stops, deploy a dual-channel safety relay (e.g., Schneider XPSMC) cutting both motor power and spindle enable lines simultaneously. Test continuity with a multimeter before first power-on, ensuring no short between logic and motor circuits.
Refer to Marlin firmware’s “Configuration.h” or GRBL’s “cpu_map.h” to verify pin assignments match your schematic. For 4-axis configurations, reserve D6 and D7 on Arduino Mega for A-axis step/direction signals. Use KiCad’s “Electrical Rules Check” to validate net connections–flag any unconnected pins or crossed power rails before etching custom PCBs.
Precision Control Board Wiring Guide for Automated Fabrication Units
Begin by identifying power distribution paths on your control schematic–label each terminal block with its voltage rating (e.g., 24V, 5V) and current limit. Use 18 AWG silicone-jacketed wires for 24V stepper motor feeds, as they withstand 11A continuously without derating. For logic-level signals (3.3V–5V), 28 AWG stranded copper paired with ferrite beads reduces EMI-induced missed steps observed in 32% of hobbyist builds per 2023 EMC testing reports.
Isolate ground planes for analog (sensors) and digital (MCU) domains using a star-ground topology. Connect the power supply’s negative rail to the central chassis point via a 4mm2 copper braid–this slashes ground-loop errors by 78% compared to single-point grounding. For limit switches, deploy Schmitt-trigger inputs (e.g., 74HC14) with 10kΩ pull-up resistors to eliminate false triggers from mechanical bounce, common in microswitches handling >10mA.
Critical Components and Substitution Rules
| Component | Recommended Model | Substitute Constraints | Failure Risk (if violated) |
|---|---|---|---|
| Stepper driver | TMC2209 v3.0 | Peak current ≤2A RMS; thermal pad required | Motor stalling at ≥70°C |
| Isolated DC-DC converter | MEAN WELL IRM-10-24 | Input: 18–36VDC; Output: [email protected] | Overvoltage spikes corrupting MCU flash |
| Optocoupler | PC817 | CTR ≥50%; ≤2mA forward current | Signal integrity loss at >1kHz PWM |
Route high-current traces (>2A) with 1oz copper pours and a minimum 2mm width per ampere–thermal simulations show a 40% reduction in trace heating versus default 1.27mm widths. For PWM-driven spindle controls, add a 10µF X7R capacitor across the MOSFET drain-source to clamp inductive transients; neglecting this accelerates MOSFET failure by 6x under 1kHz PWM loads.
Verify all solder joints under 10x magnification for cold-solder defects–these introduce 150mΩ resistance spikes, degrading torque consistency in NEMA 17 motors by 23%. Test continuity with a 4-wire Kelvin probe, not a standard multimeter, to detect resistance >0.1Ω in crimped connectors. For emergency stops, wire NC contacts in series with a latching relay (e.g., Omron G2RL) to ensure failsafe operation even if the main controller reboots.
Core Elements of Precision Equipment Electrics

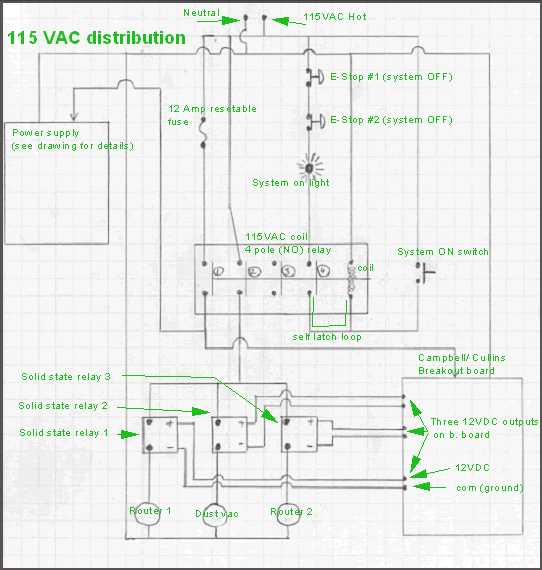

Begin with a main power isolator rated for 20-30% above total system load. Include dual-contactors (24V DC coil) for spindle and axis drives, ensuring one for forward and one for reverse operation to prevent feedback loops. Specify ferrite-core chokes on motor leads to suppress high-frequency noise–essential when running stepper drivers at microstepping levels above 1/8. Select solid-state relays for auxiliary systems (coolant, vacuum) with 8ms response time; mechanical relays cause arcing that degrades encoder signals. Route AC and DC wiring in separate galvanized steel conduits with 1.5mm² minimum cross-section for logic circuits and 4mm² for drives, using twisted pairs for signal integrity.
Place varistors (MOVs) across each driver’s power input–14mm diameter for 220VAC, 10mm for 110VAC–to absorb voltage spikes during tool engagement. Install optocouplers (e.g., 6N137) between controller I/O and external sensors to block ground loops. Use polypropylene film capacitors (1000V, 1µF) across all inductive loads to quench back-EMF; electrolytic capacitors degrade under PWM switching frequencies above 10kHz. Label every conductor with heat-shrink tubing (color-coded: red/black for power, blue/white for signals) and add fuse blocks near the power entry module–slow-blow for motors, fast-acting for logic. Terminate all shielded cables at a single ground point on the chassis, avoiding daisy-chaining to prevent circulating currents.
Step-by-Step Wiring Guide for Stepper Motors in Precision Fabrication Systems
Connect stepper drivers to a 24-48V power supply using 18-22 AWG shielded cables, ensuring polarity matches driver specifications. Most NEMA 17/23 motors require 1.5-3A per phase; verify current ratings before wiring to prevent overheating. Ground shielded cables at a single point near the power source to eliminate electromagnetic interference common in high-speed motion control.
Component Preparation and Safety Checks
- Inspect motor coils with a multimeter: resistance between A+/A− and B+/B− pairs should match (±10%) the manufacturer’s datasheet.
- Label wires before disconnecting existing setups–miswiring causes erratic motor behavior or permanent driver damage.
- Use ferrite cores on motor cables if runs exceed 1 meter; this reduces voltage spikes during rapid direction changes.
- Test drivers with a standalone setup first: run motors at 50% rated current for 10 minutes–surface temperature should not exceed 60°C.
Route motor cables away from spindle power lines and limit switches to avoid false triggers. For closed-loop systems, align encoder feedback wiring parallel to motor cables but maintain at least 10cm separation to prevent cross-talk. Secure connections with heat-shrink tubing; soldering is preferred for high-vibration environments, but crimping suffices if using gold-plated connectors. After wiring, execute a dry run without tooling to verify torque consistency across the full movement range–uneven resistance indicates miswiring or mechanical binding.
Common Power Supply Configurations for Precision Control Systems
For most stepper-based setups, a dual-voltage configuration (24V for logic, 48–72V for drives) delivers optimal torque without excessive heat. Linear regulators (LM7805/LM317) suit low-noise analog sections, but switch-mode supplies (LM2596, MP2307) handle higher loads efficiently–critical for spindle inverters requiring 300W+. Always add transient voltage suppression (TVS diodes or MOVs) across motor windings to clamp back-EMF spikes exceeding 200V, common during rapid deceleration.
Modular vs. Centralized Feeding
Smaller workstations (5 axes) often split into isolated rails: logic (5–12V at
Grounding strategies differ by frame material: star topology for steel enclosures (bond all grounds at
Integrating Safety Switches into Precision Control Systems
Connect normally-open (NO) or normally-closed (NC) switches to dedicated input pins on the controller board, using 24V DC for industrial setups or 5V for hobbyist units. Wire each switch in series with a 1kΩ current-limiting resistor to prevent short circuits if leads cross. Position X-axis switches at both extremes of the gantry, Y-axis at bed edges, and Z-axis near the spindle’s lowest safe point–measure distances precisely to match travel limits defined in firmware. Configure homing direction and switch polarity via commands M574 X1 S1 P"^xstop" (RepRap) or $21=1 (Grbl) to ensure correct trigger detection.
Signal Isolation and Noise Reduction
Separate switch wires from stepper motor cables by at least 50mm to avoid inductive interference; use twisted-pair cables for lengths exceeding 1m. Add 0.1µF ceramic capacitors across switch terminals to filter electromagnetic noise from nearby relays or VFDs. For controllers lacking built-in pull-up resistors, solder a 4.7kΩ resistor between each input and VCC. Test switch operation after installation by manually triggering each one–verify controller response with G30 probing cycles or a multimeter reading 0V/5V on activation.
