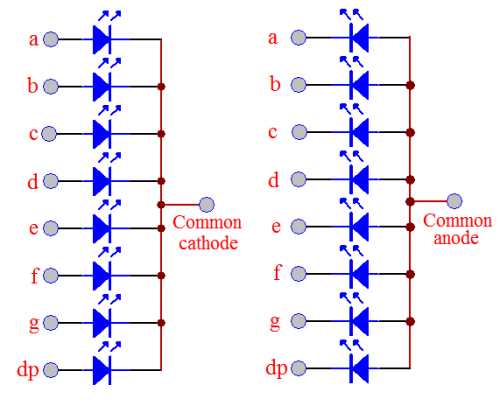

7 Segment Common Cathode Display Wiring Guide and Schematic
Choose an active-low configuration for precise digit control. Connect the shared pin to ground through a 330Ω current-limiting resistor, ensuring consistent brightness across all elements. Apply logic-level signals (3.3V or 5V) to individual pins A-G and DP, treating them as inputs–high voltage illuminates the targeted bar, while low keeps it dark. This arrangement simplifies multiplexing in multi-digit setups by reducing the number of required transistors.
Assign segment pins in this order: A (top horizontal), B (upper right vertical), C (lower right vertical), D (bottom horizontal), E (lower left vertical), F (upper left vertical), G (middle horizontal), DP (decimal point). Use an 8-pin connector for compact prototyping, mapping each pin to a microcontroller port. For Arduino Uno, pins 2-9 work reliably; ESP32 tolerates wider voltage ranges but requires stricter resistor matching to prevent flicker.
Power consumption peaks at ~20mA per bar when all elements are lit. Implement a transistor array (e.g., ULN2003) if driving multiple indicators simultaneously–each Darlington pair handles up to 500mA, eliminating the need for individual resistors. For 12V systems, replace the 330Ω resistor with a 1kΩ version and verify segment visibility at lower currents.
Debugging? Use a multimeter in continuity mode: probe the shared pin and each segment pin–readings should match the expected forward voltage drop (~1.8-2.2V for red, ~3.0-3.4V for blue/green). Reverse polarity will silence the entire indicator; swap connections if only specific bars fail to light. For dynamic applications, refresh rates above 100Hz prevent visible flicker–test with varying delay times in software loops.
Building a Single-Digit LED Numerical Indicator with Grounded Pins
Connect the shared negative terminal to ground through a 220Ω–470Ω resistor to limit current and prevent overheating. Each of the seven positive leads (a–g) should be wired individually to digital output pins on your microcontroller, using inline resistors of the same value if the controller lacks built-in current protection.
Label the positive leads precisely: the top bar is “a,” proceeding clockwise to “g” at the bottom center, with the decimal point typically positioned between “c” and “d.” Verify pin assignments with a multimeter in continuity mode before soldering–miswiring a single lead can render the numeral “8” indistinguishable from “0” or “6.”
For multiplexed designs, tie the grounded terminal directly to a transistor’s collector (2N3904 or equivalent) and use the base to switch the entire unit on/off. Drive the transistor with a PWM-capable output to adjust brightness without affecting signal timing. Keep the transistor’s emitter grounded and add a 1kΩ base resistor to protect the microcontroller.
Power and Signal Considerations
Select resistors based on supply voltage: 330Ω for 5 V, 1 kΩ for 12 V. Exceeding 20 mA per LED will degrade brightness uniformity over time–pulse-width modulation is more reliable for dimming than resistive current division.
Test each segment individually by cycling through a simple “walking one” program before integrating into larger code. A single malfunctioning bar can be caused by a cold solder joint, reversed polarity, or a short elsewhere in the layout–inspect visually and with a logic probe.
Routing Traces for Compact Assemblies
Arrange leads in a straight-line bus to minimize trace crossings on perfboard. If space is constrained, route the decimal point lead beneath the main bars but ensure it doesn’t share a pad with adjacent signals to avoid ghosting. For double-sided boards, assign the grounded terminal to a continuous copper pour on one side to simplify soldering and reduce EMI.
Choosing Optimal Resistors for LED Current Control in Multi-Digit Indicators
For standard 5V logic levels, use 330Ω resistors to limit current through each light-emitting junction to ~10mA. This value balances brightness and longevity for most low-power applications while preventing voltage drop issues in multiplexed setups. Higher precision designs (e.g., battery-operated devices) benefit from 470Ω resistors, reducing current to ~7mA and extending operational life by 30-40% without noticeable brightness loss. For 3.3V systems, substitute with 180Ω resistors to maintain equivalent luminosity.
Resistor Selection Table for Different Supply Voltages
| Supply Voltage (V) | Recommended Resistor (Ω) | Typical Forward Current (mA) | Relative Brightness (%) |
|---|---|---|---|
| 3.3 | 150 | 12.0 | 100 |
| 3.3 | 180 | 9.5 | 95 |
| 5 | 220 | 15.0 | 110 |
| 5 | 330 | 10.0 | 100 |
| 5 | 470 | 7.0 | 85 |
| 12 | 1k | 7.5 | 90 |
Measure actual forward voltage (Vf) of your specific LED elements–typical ranges are 1.8-2.2V for red, 2.0-2.3V for green/yellow, and 3.0-3.5V for blue/white. Apply the formula: R = (Vsupply – Vf) / Idesired. For example, a 12V source driving a blue LED with 3.3V Vf at 8mA requires: (12 – 3.3) / 0.008 = 1,087.5Ω → use standard 1kΩ. Multiplexed designs need lower resistance (e.g., 220Ω for 5V) to compensate for reduced duty cycle, ensuring consistent visibility under rapid scanning.
Connecting a Microcontroller to a Ground-Referenced Numeric Indicator
Begin by assigning each LED bar in the numeric readout to a distinct output pin on your microcontroller. For an 8-pin device like the ATtiny85, use pins 2–7 for segments A–G and DP, leaving VCC and GND for power. Ensure each pin sources no more than 20 mA to prevent overdriving the light-emitting elements; if necessary, add 220 Ω series resistors between the microcontroller outputs and the indicator inputs.
Wire the shared negative terminal of the readout directly to the ground plane of your board. Avoid routing this trace through a via or a narrow path to reduce voltage drop; keep it wide and as short as possible. If the microcontroller operates at 5 V and the readout at 3.3 V, insert a logic-level shifter or use open-drain outputs with pull-up resistors to prevent forward voltage violations.
Map each numeral (0–9) to its corresponding byte pattern in firmware. Use a lookup table stored in flash memory–0x3F for ‘0’, 0x06 for ‘1’, 0x5B for ‘2’, and so on. Transmit the pattern via direct port manipulation for sub-microsecond updates, which keeps multiplexing flicker below perceptible levels. Disable unused outputs during startup to prevent transient displays.

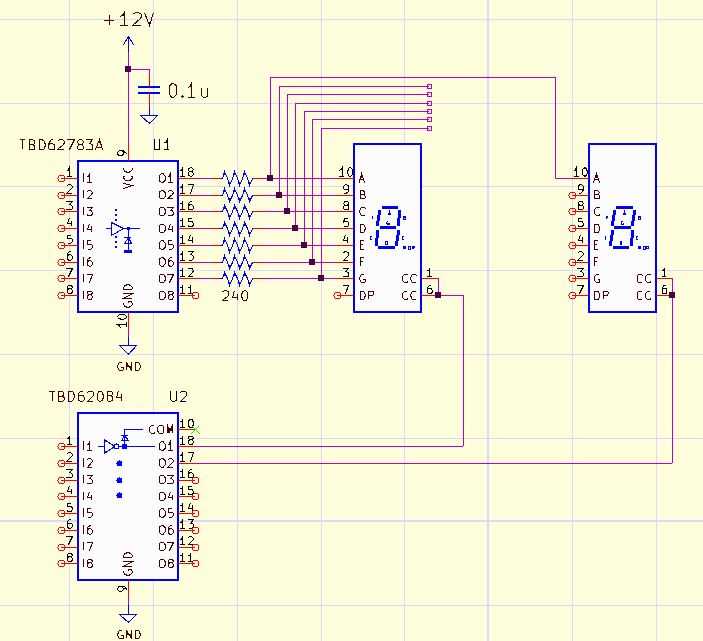

To refresh multiple digits, use a row of PNP transistors or an integrated shift register like the 74HC595 driving the shared ground terminals. Drive each transistor base with a 1 kΩ resistor and a microcontroller pin; calculate base current to ensure saturation at VCE ≤ 0.2 V. Keep refresh rates above 100 Hz to eliminate visible flicker, timing multiplexing cycles during interrupt service routines.
Add a 0.1 µF ceramic bypass capacitor between the shared ground and VCC traces, placed within 5 mm of the indicator’s power pins. This suppresses voltage spikes that can cause random segment illumination or latch-up during rapid pattern changes. If ambient light exceeds 10 000 lux, increase current to 15 mA per bar or use a diffuser to maintain readability.
Validate signal integrity with an oscilloscope: confirm rise and fall times ≤ 50 ns and no overshoot > 50 mV on any segment line. If ringing occurs, reduce trace length or add a 33 Ω series resistor at the microcontroller output. Compile firmware with optimization flags set to −O2 to ensure tight timing loops, and flash the microcontroller while the readout is powered to catch initialization errors immediately.
BCD to 7-Led Indicator Logic Mapping for Negative-Grounded Arrangement
To decode binary-coded decimal inputs into specific light-emitting bars, start by defining a precise activation pattern for each decimal digit (0–9). Assign each bar on the anode-driven module a designator: a (top horizontal), b (upper right vertical), c (lower right vertical), d (bottom horizontal), e (lower left vertical), f (upper left vertical), g (middle horizontal). The decimal point bar dp remains inactive unless required.
For BCD input 0000 (decimal 0), energize bars a, b, c, d, e, f while keeping g off to form a closed loop. Input 0001 (decimal 1) requires only b, c lit–no additional bars. 0010 (decimal 2) activates a, b, g, e, d, excluding c, f.
BCD input 0011 (decimal 3) uses a, b, g, c, d. 0100 (decimal 4) lights f, g, b, c alone. For 0101 (decimal 5), enable a, f, g, c, d. 0110 (decimal 6) differs by adding e to the previous pattern, yielding a, f, g, c, d, e.
Decimal 7 (0111) restricts output to a, b, c. Decimal 8 (1000) illuminates all bars except dp. 1001 (decimal 9) mirrors 0110 but omits e, activating a, b, c, d, f, g.
Derive the logic matrix by mapping each BCD input to its corresponding bar activation vector. Represent active bars as 1 (anode high) and inactive as 0. Store these vectors in a 4×7 lookup table for quick retrieval during real-time decoding. Avoid sequential analysis–pre-computed values reduce propagation delay.
Implement this mapping using combinational logic gates (e.g., 74LS47) or a microcontroller with dedicated decoding firmware. For discrete gate implementations, minimize Boolean expressions via Karnaugh maps to reduce gate count. For microcontrollers, leverage direct port manipulation to drive bar anodes without external logic.
Validate the truth table by verifying bar illumination against expected digit shapes. Test unexpected inputs (1010–1111) by either blanking all bars or displaying an error pattern (e.g., g lit alone). Ensure current-limiting resistors (typically 220Ω–1kΩ) are placed on each anode to prevent LED burnout.
Optimize power consumption by limiting bar activation to essential digits only. Use a clock signal or push-button input to cycle through digits dynamically, confirming the truth table’s accuracy under real-world operating conditions.
