Complete Guide to Condenser Fan Motor Wiring and Connection Schematics

For standard configurations, connect the motor’s L1 terminal to the 240V power line via a dedicated 15A breaker. The L2 terminal pairs with the neutral bus in split-phase setups, while single-speed motors omit this leg entirely. Verify the thermal cutoff–rated for 15A at 40°C–is wired in series with the run capacitor to prevent overheating during prolonged cycling.

Use 14 AWG THHN copper conductors for distances under 20 meters; upgrade to 12 AWG if voltage drop exceeds 3% at startup. Ensure the disconnect switch–fused at the motor’s nameplate FLA plus 25%–is mounted within 1 meter of the unit’s access panel. Label each conductor with heat-shrink sleeves: black for L1, white for L2 (neutral), green for ground.

Dual-speed motors require a selector switch tied to the control board’s COM, HI, and LOW terminals. Jumper COM to HI for full airflow, or COM to LOW for reduced RPM. Capacitors–typically 15µF for ½ HP motors–must match the motor’s microfarad rating within ±10%. Replace start capacitors every 3 years if duty cycle exceeds 60%.

Test continuity between all terminals and chassis ground (closed (1M ohms). Bypass faulty switches temporarily by bridging the start winding for diagnostics only–never operate under load.

Understanding Cooling Unit Motor Electrical Layouts

Begin by identifying the power source and voltage requirements for the outdoor coil motor. Most residential systems operate on a 240V single-phase supply, while commercial units may use 208V or 480V three-phase. Verify the nameplate on the motor housing–critical parameters include full-load amps (FLA), horsepower (HP), and rotation direction. Cross-reference these values with the manufacturer’s specifications to ensure compatibility. Mismatched voltage or amperage will cause premature failure or inefficient operation.

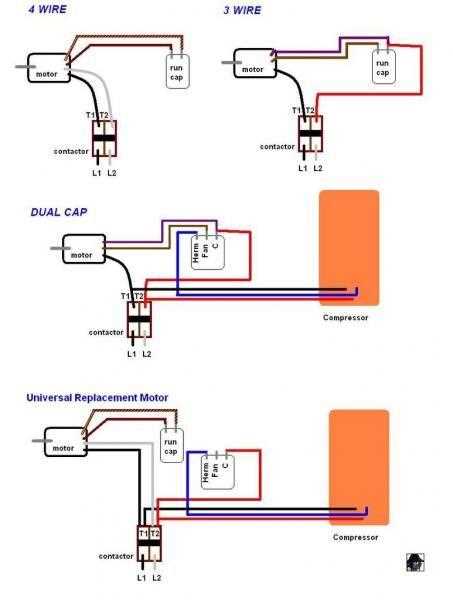

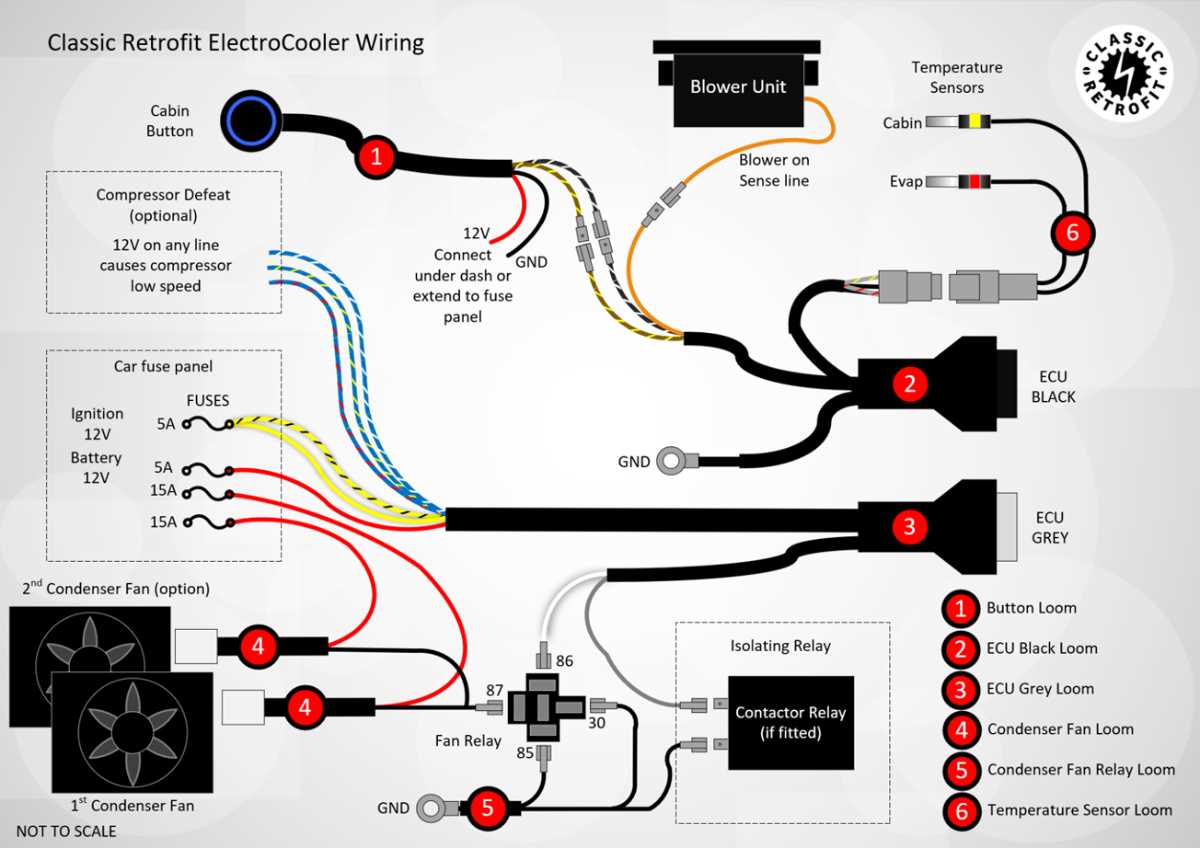

Connect the motor windings following this standard sequence:

Terminal	Color Code (Typical)	Function
L1 (Hot)	Black	Power input; connects to line voltage
L2 (Hot)	Red	Power input; completes circuit
Run Capacitor	Blue/Yellow or Purple	Supports phase shift for torque
Common	White	Neutral return path

For dual-speed motors, add a relay to switch between high and low taps–consult the schematic for the exact tap configuration. Always secure connections with appropriately sized wire nuts or terminal blocks rated for outdoor use. Test continuity across windings with a multimeter before energizing; readings should match within 5% of published resistance values.

Troubleshooting Common Issues

If the motor hums but doesn’t start, check the capacitor–swap with a known-good unit of identical microfarad (µF) and voltage rating. Overheating often stems from undersized conductors; verify wire gauge meets NEC ampacity tables based on distance and load. Noise or vibration may indicate misaligned blades; balance using a dynamic balancer tool or replace damaged blades. For three-phase units, confirm phase rotation with a phase sequence meter–incorrect rotation can damage internal components within seconds.

Locating Outdoor Coil Blower Motor Connection Points

Inspect the motor housing first–most units label terminals with numbers or letters. Common markings include “C” for common, “R” for run, and “S” for start. If labels are worn, trace the thickest wire to the common terminal; it typically connects to the capacitor. Start terminals often use thinner wire, while run connections match the gauge of power feed wires.

Capacitor placement helps verify terminal roles. Dual-run capacitors link to both start and run terminals, while single-run versions connect only to the run terminal. Check for burn marks or corrosion–these indicate failing connections. Use a multimeter in continuity mode to confirm proper pairing between terminals and capacitor leads.

Wires exiting the blower often color-code terminals: brown for start, yellow or orange for run, and purple or black for common. Mixed-color stripes may appear–note these matchups before disconnecting. Clip-on wire markers prevent misidentification during reassembly. Avoid relying solely on color–cross-reference with terminal labels and capacitor connections.

Thermal overload protectors sit near the windings. If present, they act as a safety switch, often bridging common and run circuits. Locate this component–it may resemble a small disk or button. Testing continuity through this protector confirms it’s operational before proceeding.

Voltage checks reveal active terminals. Set the meter to AC voltage (200V scale) and probe the common terminal while touching run and start terminals sequentially. Live terminals show 120V or 240V readings depending on system voltage. If readings differ significantly, the motor may have internal shorts requiring replacement.

Document terminal locations with photos before disassembly. Sketch wire routes if housing complexity obscures visibility. Label replacement wires identically to prevent reversing connections–this causes immediate winding burnout. Secure all nuts firmly but avoid overtightening; stripped threads risk intermittent contact failures.

How to Install a Single-Speed Outdoor Coil Motor

Shut off power at the disconnect switch or circuit breaker before starting. Verify the absence of voltage using a non-contact tester on both the supply and control circuits. Failure to confirm zero voltage risks electric shock or equipment damage.

Locate the outdoor unit’s terminal block–typically a three-terminal strip labeled “C” (common), “R” (power), and “G” (signal). Strip ¼ inch of insulation from the motor leads and secure them to the corresponding terminals: black (hot) to “R,” white (neutral) to “C,” and the optional capacitor lead to the motor’s dedicated terminal if present. Use ring crimps for secure connections; stranded wire should not fray or short.

Route the motor’s thermal cutout wires–usually a matched pair with spade connectors–to the unit’s protection relay or control board. Slip the connectors onto the designated terminals; polarity matters if the relay is polarized (check labels). Secure excess wire with plastic ties, keeping leads away from moving blades and sharp edges. Avoid sharp bends to prevent conductor fatigue.

Attach the blade assembly: align the hub’s key slot with the motor shaft’s flat, slide the assembly onto the shaft, and tighten the set screw with a hex key (typically 5/16 inch). Spin the blade by hand to confirm free rotation; binding indicates misalignment or debris–correct before energizing. If the motor includes a slinger ring, ensure it sits flush against the hub to prevent oil leaks.

Restore power and observe startup: the blade should accelerate smoothly within 3–5 seconds. Use an ammeter to verify current draw matches the motor’s nameplate rating (typically 1.2–2.5 amps for residential units). If current exceeds 115% of rated load, disconnect power immediately–this signals bearing failure or incorrect voltage. Secure the unit’s access panel, ensuring all screws are tightened to torque specifications (usually 8–12 in-lbs).

Standard Dual-Speed Cooling Unit Electrical Layouts

Connect low-speed operation directly to the run capacitor’s primary terminal using 14 AWG wire rated for 105°C. High-speed engagement requires a separate contactor relay triggering at 220V; avoid sharing neutral lines between speeds to prevent voltage drop.

Use a three-pole relay for speed switching–terminals 1-2 for low, 3-4 for high. Wire the control signal through a single-pole double-throw thermostat; set cut-in at 80°F for low, 95°F for high. Verify relay coil compatibility with line voltage (24V, 120V, or 240V) before installation.

Common pitfalls:

• Skipping current measurement across each speed’s start winding–readings below 1.2A indicate insufficient torque.
• Using undersized conductors–minimum 12 AWG for ≤30A circuits, 10 AWG for ≤40A.
• Omitting MOV (Metal Oxide Varistor) across relay contacts to suppress inductive spikes.

For ECM motors, configure the variable-speed module with pulsed-width modulation inputs. Supply 24VDC reference voltage to pin 5, ground to pin 3, and route speed commands via pins 1 (low) and 2 (high). Calibrate PWM duty cycles at 30% for minimum airflow, 100% for maximum.

In retrofit scenarios, replace mechanical relays with solid-state switches rated for 600VAC/40A. Gate drive voltage must exceed 12V; use a 1kΩ resistor in series with the gate to limit current. Confirm switching frequency does not exceed 1kHz to prevent overheating.

Test sequences:

1. Energize low mode; verify voltage at motor windings (208–230V).
2. Transition to high; check for 4–6 second delay between modes to avoid surge currents.
3. Measure phase-to-phase balance; imbalance >5% indicates relay contact degradation.

For three-phase systems, wire dual-stage units in delta configuration. L1/L2 handle low speed, L2/L3 deliver high; L3 common neutral must be isolated. Use a reversing contactor if rotation direction affects airflow dynamics–validate rotation with a tachometer post-installation.

Final validation steps:

• Log startup amperage for 30 minutes; spikes >150% nominal indicate incorrect capacitor sizing.
• Attach an oscilloscope to the relay control line; no signal bounce confirms clean switching.
• Thermal imaging of motor housing should show uniform heat distribution–hotspots suggest bearing failure.

Diagnosing Compromised Outdoor Coil Motor Circuits with a Test Meter

Set the multimeter to the 200-ohm range to measure resistance across the motor windings. Disconnect the power supply and isolate the motor terminals. Probe each pair of terminals: a reading between 5 and 20 ohms indicates intact coils, while infinite resistance means an open circuit. Record values for all combinations–uneven readings suggest partial shorts or degraded insulation.

Switch the meter to AC voltage mode and restore power. Measure between the line voltage terminal and ground–any reading above 0.5V suggests current leakage through damaged insulation. Probe each phase wire to ground: voltages exceeding 1V may indicate moisture intrusion or worn wire shielding near the housing assembly. Repeat for the neutral conductor; imbalance here confirms internal wiring erosion.

Verify start capacitor integrity by discharging it through a 20kΩ resistor, then measure capacitance. Values should match the unit’s rating (±10%). A low reading signals a dried-out or shorted capacitor, forcing the motor to draw excessive amperage. Check for bulging or leaks–physical deformities often precede electrical failure.

Inspect the relay contacts for pitting or carbon buildup. Activate the circuit and listen for a distinct click; absence indicates a seized relay. Use the continuity function to confirm contact closure when energized. Replace relays showing resistance above 0.1 ohms when closed, as this restricts current flow and overheats the assembly.

Examine the control board for scorched traces or swollen components. Test for 24VAC at the relay coil terminals when calling for cooling. Absence of voltage points to a faulty thermostat, open safety switch, or board failure. Probe the board’s fuse: a blown fuse often results from transient spikes caused by intermittent short circuits.

Identifying Intermittent Faults in the Field

Use a clamp meter to monitor current draw while the system cycles. A healthy motor should draw steady current within the nameplate rating. Fluctuations exceeding 20% indicate impending bearing failure, misaligned rotor bars, or loose connections. Log readings over several cycles–sudden drops suggest arcing at terminals or intermittent relay engagement.

Final Checks Before Reassembly

Recheck all wire nuts for proper torque–loose connections cause heat buildup and corrosion. Apply dielectric grease to terminals exposed to outdoor conditions. Verify grounding resistance below 1 ohm; higher values impede fault clearing and risk damaging adjacent components. Reconnect power only after confirming all test points meet specifications.
