Step-by-Step Guide to Creating Functional Control Schematic Diagrams
Begin by sketching each circuit path on graph paper with 5mm grid spacing–this ensures clarity and avoids trace overlaps. Label wires immediately using IEC 60617 or ANSI Y32.2 standards: 24V rails as L+, ground as ⏚, and data lines with prefixes like TX- or RX-. Use distinct line weights: 0.5mm for power, 0.3mm for signals, and 0.2mm for control logic jumps. Avoid diagonal lines; they introduce ambiguity during assembly.
Group related components in functional blocks–motor drivers, sensors, and MCUs–and separate them with dashed boxes (2mm gaps). Include a legend in the bottom-right corner listing symbol meanings: toggle switches as ⏻, resistors as zig-zags, and potentiometers as zig-zags with an arrow. For microcontroller pins, explicitly state port numbers (e.g., PB5) and their roles (input/output/pull-up). Cross-reference each block to a bill of materials with part numbers and tolerances (±5% resistors, ±20% capacitors).
Prioritize left-to-right signal flow. Place power sources (batteries, voltage regulators) at the top, loads at the bottom. For AC circuits, denote live/neutral/earth with L/N/⏚ color codes (red/blue/green-yellow). Include jumpers as circles with X marks; label them if they interconnect multiple sheets. Test points should be round pads (⌀3mm) with labels like TP1. Annotate every unused IC pin with NC (No Connect) to prevent accidental shorting.
Validate the layout by tracing each path backward from load to source. Redundant traces or missing connections signal errors. Export the final version as a vector PDF (300 DPI) layering mechanical outlines on one layer, electrical symbols on another. Archive both editable files (.dwg, .dxf) and print-ready copies–future revisions hinge on this precision.
Mastering Electrical Layouts: A Hands-On Approach
Start by annotating every component in your circuit blueprint with precise voltage, current, and power ratings. Use industry-standard symbols but add custom labels for non-standard parts–example: “Custom PWM Module (24V, 5A max).” This eliminates guesswork during troubleshooting or upgrades.
Group related elements logically: power supplies, sensors, actuators, and logic circuits should occupy distinct zones. For AC and DC sections, maintain a 5cm gap on paper (or 2cm on CAD) between them to prevent interference. Label wires at both ends with alphanumeric codes–e.g., “PS1-R” (Power Supply 1, Red)–and cross-reference these in a separate wire table.
- Always include a “Notes” section with:
- Environmental conditions (temp/humidity range)
- Certification requirements (CE, UL)
- Critical spare parts list (e.g., “Replace Q1-Q3 with BD139 transistors”)
- For multi-board systems, color-code inter-board connectors:
- Red: High-voltage (>50V)
- Yellow: Logic signals (3.3V/5V)
- Blue: Ground
- Green: Analog signals
Use hierarchical sheets for complex designs. Break down subsystems into standalone pages–example: “Motor Driver,” “Microcontroller Interface,” “Power Regulation.” Link them using off-page connectors tagged with unique IDs (e.g., “PWR-A1”). Tools like KiCad or Altium allow automatic netlist consistency checks across sheets.
Add test points at every critical node: power rails, clock signals, and feedback loops. Label them TP1 through TPn and document expected readings in a table. For microcontroller pins, include both the pin name and its alternative function–e.g., “PC3 (ADC3 / UART RX).”
Include a failure mode analysis section with recovery steps:
- Overcurrent events: “Check fuse F1 (5A, fast-acting); verify Q2 (IRF540) Rds(on).”
- Noise interference: “Add 10μF electrolytic + 0.1μF ceramic at VCC pin of U4.”
- Communication errors: “Reset via SW1 or toggle RESET line for 100ms.”
End every layout with a revision log tracking changes by date, author, and impact–example:
| Date | Author | Change | Risk Level |
|---|---|---|---|
| 2024-05-15 | J. Smith | Added RC snubber to K1 relay coil | Low (voltage spike mitigation) |
Attach physical printouts to the final build for field technicians.
How to Interpret an Electrical Blueprint: A Practical Approach

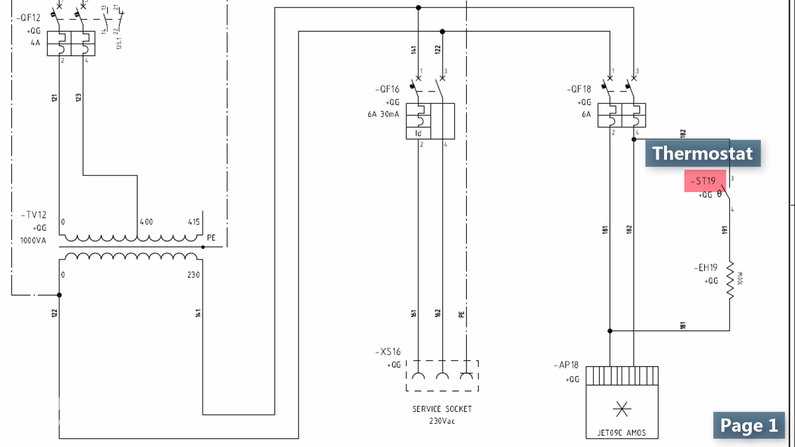

First, isolate the power sources. Trace the thickest lines–usually marked L1, L2, L3 (for three-phase) or L and N (for single-phase)–from the main breaker to motors, relays, and contactors. Check voltage ratings next to each line; mismatched values here cause immediate failures. Label each source with a highlighter or digital note to avoid confusion later.
Break Down Symbol Clusters
- Coils: Look for rectangles or ovals with labels like “M” (motor starter), “CR” (control relay), or “K”. Their activation closes associated contacts elsewhere in the plan.
- Contacts: Normally open (NO) touch during activation; normally closed (NC) break. Mark their pairings with matching numbers (e.g., CR-1 and CR-2).
- Timers: Often shaped like a small clock, annotated “TR” or “TD.” Note preset delay (e.g., “2s”) near the symbol.
- Limit switches: Draw a small flag (NO) or bridge (NC) with plunger direction indicated.

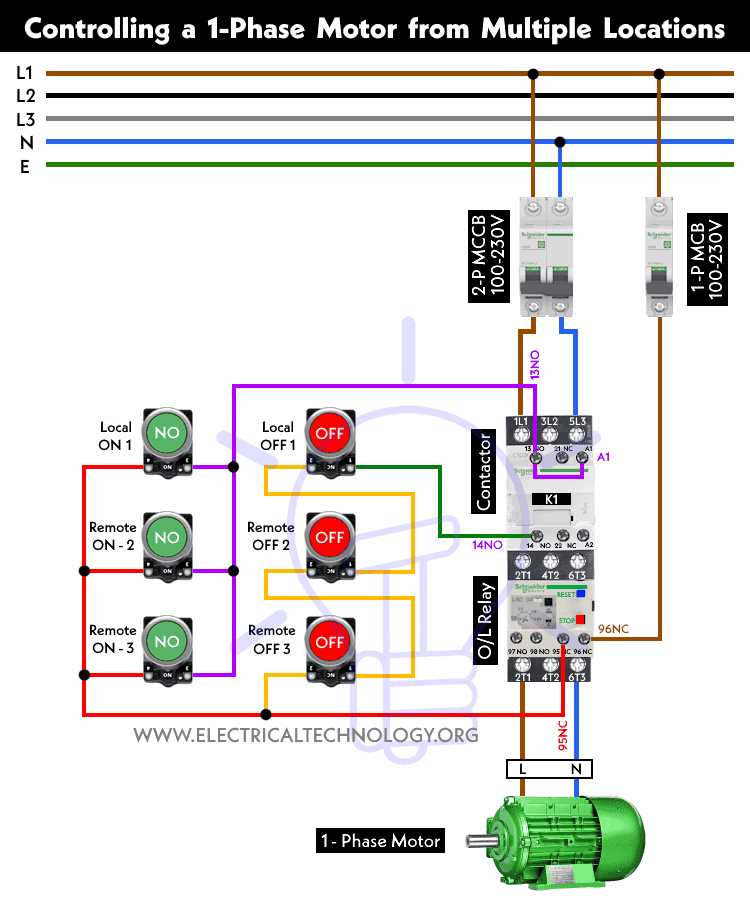

Follow the flow paths. Start at a pushbutton or switch–press “Start,” and track which contacts close (NO) or open (NC). Cross-reference coil labels (e.g., “M1”) to confirm they energize when the path completes. For latching circuits, locate the auxiliary contact feeding back to the coil; break this link to identify the “Stop” function.
Validate every branch by imagining live current. Simulate faults: what happens if relay CR-3 fails open? Does motor M2 still run? Adjust wire numbers (e.g., 101, 102) on your copy as you move through interconnects–consecutive numbering prevents errors during wiring. For PLC-integrated designs, note IO addresses (e.g., “I0.1,” “Q2.0”) next to sensors and actuators.

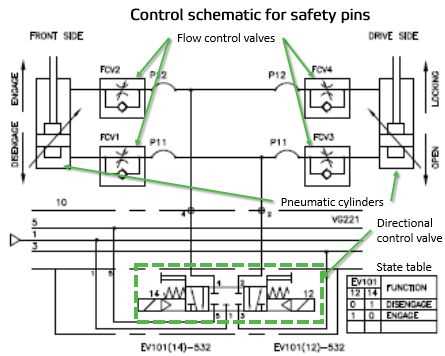

Key Symbols and Notations in Industrial Circuit Blueprints
Begin by adopting the IEC 60617 or ANSI/IEEE 315 standards–avoid mixing conventions unless project requirements explicitly demand hybrid notation. Misaligned symbols result in misinterpretation, costly rework, or safety risks.
Power sources require unambiguous labeling: AC transformers use a sine wave enclosed in a circle, DC batteries a pair of uneven parallel lines, and three-phase supplies three stacked sine waves with a common ground.
Critical Device Symbols and Their Functions
| Symbol | Device Type | Common Variant | Installation Note |
|---|---|---|---|
| ⌒⌒ | Fuse | Glass or cartridge | Replace with circuit breakers for heavy loads; annotate amp rating |
| || | Capacitor | Electrolytic or ceramic | Indicate polarity for electrolytic variants |
| ○−○−○ | Relay coil | SPD/IPT | Specify NO/NC contacts adjacent; label coil voltage |
| ▷∕ | Diode | LED or Zener | Arrows for LEDs; reverse-breakdown voltage for Zener types |
| |◖ | Inductor | Air core or ferrite | Avoid proximity to magnetic-sensitive components |
Contactors must show all poles (typically three for motor starters); auxiliary contacts–NO and NC–should be labeled with reference designators matching their coil.
Motors utilize standard symbols: a circle with an “M” denotes a generic motor; three ticks inside the circle signal three-phase induction, while a single tick marks synchronous types. Annotate horsepower, voltage, and RPM directly on the graph.
Wiring and Signal Annotations
Termination points use slashes: single slash for signal, double slash for power; cross-referencing follows ascending sequence from left to right, top to bottom. Terminal blocks label connections A1, A2…B1, B2 for I/O, avoiding alphanumeric duplicated series.
Ground symbols vary: three descending lines denote chassis ground, triangle a signal reference, inverted T earth ground. Terminal markings must differentiate protective earth (PE), neutral (N), and functional earth (FE).
Pushbuttons default to square NO contacts and square with diagonal NC; emergency stops require a mushroom shape circumscribed in a circle, filled red with contrasting yellow background–never deviate unless local safety code demands alternate aesthetics.
Avoiding Critical Wiring Errors in Electrical Blueprints
Label every wire termination point with its exact function before connecting. Factory-generated labels like “A1” or “T2” save time only if cross-referenced against an unambiguous legend. Create a master list pairing each wire ID with its source, destination, and voltage rating–update this list whenever wiring changes occur. Omitting this step guarantees miswiring when troubleshooting later.
Use different colored sleeves for AC and DC circuits, even if wire insulation appears identical. Standardize: red for 24VDC positive, black for negative, blue for 230VAC neutral, brown for live. Avoid relying solely on wire colors–add heat-shrink labels at both ends. Confusing AC and DC connections often results in component burnout within seconds.
Insert disconnect switches before every motor starter, relay coil, or solid-state device. Position these switches within arm’s reach of the connected load–never chain multiple coils through a single disconnect. Failure to provide individual isolation forces unnecessary shutdowns of entire branches during minor repairs.
Ground bonding points require dedicated terminals. Never splice ground wires mid-run or attach them under mounting screws sharing other conductors. Use star washers for surface-mounted grounds and crimp ring terminals for chassis connections. Improper grounding creates elusive interference patterns and violates IEC 60204 safety requirements.
Separate analog signal pairs (4-20mA, 0-10V) from digital I/O cables by at least 300mm, routing them in grounded steel conduits when parallel lengths exceed 1 meter. Analog signals wired adjacent to 24V power cables pick up noise indistinguishable from valid readings, causing PLC misinterpretations.
Test continuity and insulation resistance before applying power. Verify each path with a multimeter (continuity mode) first–ohmmeter readings should show infinite resistance between non-connected terminals. Skipping this step risks energizing circuits prematurely, especially when modular connectors are mated out of sequence.
Size overload relay heaters based on actual motor nameplate current, not catalog “close enough” selections. Factor in ambient temperature derating: add 10% for every 10°C above 40°C. Under-rated heaters nuisance-trip; over-rated ones fail to protect, creating overheating hazards.
Document wire diameters on the drawing alongside current ratings. Specify stranded vs solid conductor types–solid wires below 1.5mm² break under vibration. Omit diameter details and field personnel will substitute incorrectly, causing voltage drops or mechanical failures after repeated flexing.
