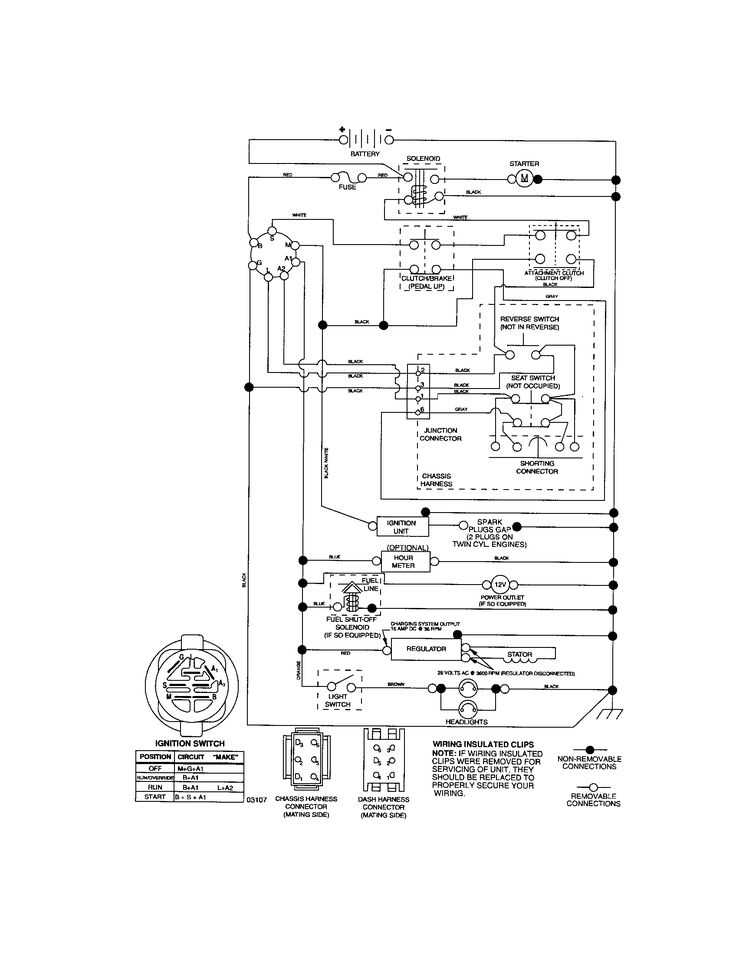

Complete Wiring Schematic for Craftsman Riding Mower Troubleshooting

Start by locating the ignition switch harness–typically behind the dashboard panel on the right side. Disconnect the battery’s negative terminal first to prevent shorts. Use a multimeter set to continuity mode (200Ω range) to verify connections between the switch and the solenoid. If readings exceed 0.5Ω, inspect the wires for corrosion or breaks, especially near the frame mounts where vibration weakens insulation.

Next, examine the 10A fuse in the instrument cluster circuit. A blown fuse often indicates a short in the PTO (power take-off) clutch wiring. Trace the red wire from the fuse to the clutch–intermittent engagement means the harness clips may be pinched under the seat bracket. Replace the entire wire loom if insulation is brittle or cracked.

For the charging system, probe the regulator-rectifier’s output wires (usually yellow and brown) while the engine runs at 2500 RPM. Voltage should stabilize between 13.8V–14.5V. If readings drop below 13V, check the stator’s three white output wires for uniform resistance: 0.2–0.5Ω between any two wires. Uneven resistance confirms stator failure, requiring replacement.

Headlight circuits frequently fail due to poor ground connections. Scrape paint off the mounting point behind the hour meter and re-secure the ground wire with a star washer. Test headlights at full bright–dim or flickering lights signal a weak connection at the light switch or a failing diode in the alternator.

Always label wires with masking tape and a pen before disconnecting. Color-coding varies by model year: pre-2015 units use blue for ignition, while post-2015 switch to purple. Store a digital photo of the original layout to avoid mistakes during reassembly.

Understanding Electrical Schematics for Tractor-Style Grass Cutters

Start diagnostics by locating the ignition switch on the control panel–trace its red wire to the solenoid. A faulty connection here often mimics battery failure, yet requires only tightening or replacing a corroded terminal. Use a multimeter set to 12V DC; voltage should drop from 12.6V to 9-10V when engaging the starter. Readings outside this range indicate a bad solenoid or internal switch resistance.

Examine the PTO clutch circuit next: the purple wire runs from the engagement lever to the clutch coil. Damaged insulation near the deck can cause intermittent power loss. Strip the wire at suspect points, then solder and heat-shrink repaired sections–crimp connectors fail under vibration. Verify clutch coil resistance of 3.5-5 ohms; values below 2.0Ω mean internal shorting.

Fuse block placement varies by model year–check year-specific manual addendums. Early 2000s models house it under the seat; post-2010 versions mount it behind the dashboard. Replace blown fuses only after confirming the root cause: a 20A fuse blowing during blade engagement typically signals a seized spindle bearing, not fuse quality.

Lighting circuits draw power from the charging system, not the battery. Test headlight brightness while alternating engine RPMs–dim or flickering lights indicate stator failure. Measure AC voltage at the stator leads: expect 28-32V AC at 3600 RPM. Readings below 24V require stator replacement; rectifier testing comes next.

Hour meter wiring uses thin yellow/green wires vulnerable to rodent damage. Secure these along the frame with plastic retainers every 4 inches–exposed wires near the muffler melt insulation. Disconnect the battery before servicing the hour meter to avoid resetting calibration.

Grounding issues hide in plain sight. Remove paint at the engine mounting bolts–bare metal ensures reliable ground. A second ground strap connects the engine block to the frame; corrosion here drains battery overnight. Clean both surfaces with a wire brush, then apply dielectric grease before reassembling.

Battery cables must handle 300+ amps during cranking. Upgrade stock cables to 4 AWG welding wire for improved conductivity. Verify connections aren’t merely tight–heat the terminal crimper to 500°F for proper compression. Corrosion inside battery posts requires post cleaning tools, not sandpaper; internal damage shortens battery life.

Deck height switch wiring shorts easily when wet. Seal switch terminals with liquid electrical tape and route wires above the deck’s lowest point. A failed switch keeps blades engaged–test continuity only when disconnected from the safety circuit to avoid false positives.

Key Electrical Connector Elements in Outdoor Power Equipment

Locate the main engine ignition module first–this rectangular plug-in unit, typically black or gray, connects adjacent to the motor’s flywheel housing. Trace its four to six wires: two heavy-gauge leads link to the starter solenoid, while thinner wires route to the ignition coil and safety switches. Label each wire with masking tape before disconnecting; match colors to avoid mismatches during reassembly.

Examine the voltage regulator beneath the seat or near the battery tray. Identify its three-pronged connector: red (12V input), black (ground), and blue or yellow (field/exciter lead). A fourth wire, often white, may connect to the alternator stator. Use a multimeter–set to ohms–to verify stator windings read between 0.2–0.5 ohms across all terminals; deviations signal internal shorts.

• Starter solenoid: Cylindrical relays with dual large terminals (battery in/out) and one smaller trigger wire (activation from ignition). Mounts near the motor or rear fender on select models.
• Hour meter connector: Thin, 3-pin plug (red, white, brown) adjacent to the dash–red carries power, white transmits pulses from ignition, brown grounds the circuit.
• PTO clutch harness: Circular 2–3 wire bundle (black/white stripe typical) linking to the mowing deck engagement switch–resistance should measure ~4–6 ohms when engaged.

Diagnosing Auxiliary Circuit Interruptions

Check the seat safety switch–this push-button mechanism, usually beneath the operator’s pad, interrupts grounding to the ignition if unseated. Remove the seat base to access; test continuity with a probe while pressing the switch. Replace if resistance exceeds 0.1 ohms when released.

1. Inspect blade brake cables–thin wires (often orange) clamped to the underside of the cutting deck. These link to the brake solenoid; corrosion here causes intermittent shutdowns.
2. Verify dashboard indicator lights–panel connectors (6–10 pins) feed bulbs for battery charge (red), PTO status (yellow), and engine oil pressure (white/green). Faulty grounds here create false alarms.
3. Bypass solenoid relays temporarily–jumper wire from battery positive to starter terminal skips faulty solenoid contactors, confirming failure if engine cranks.

Trace the ground straps–bare copper or braided leads bolted to engine blocks or chassis rails. Corrosion at attachment points drops voltage to critical systems; clean with wire brush and re-seat with dielectric grease.

Component-Specific Testing Procedures

For alternator output verification, run engine at 3000 RPM and measure voltage at battery posts–readings should stabilize between 13.8–14.4V. Lower outputs suggest stator failure; probe individual stator wires while hot for AC voltage (45–60V typical).

Isolate fuel shutoff solenoid wires–smaller diameter leads (purple/brown) connect directly to carburetor. Apply 12V directly to test plunger movement; absence of a click indicates coil burnout.

Step-by-Step Tracing of Ignition System Conductors

Locate the battery’s positive terminal first, marked with a red cable or a “+” symbol. Trace this lead to the solenoid, a cylindrical or rectangular component near the starter motor. Use a multimeter set to DC voltage (20V range) to verify a reading of 12.6V or higher–anything below indicates a weak charge or corrosion at the connection points.

Follow the solenoid’s output cable to the ignition switch, typically mounted on the dashboard or steering column. The switch will have three to five spade connectors: “B” (battery), “S” (starter), “I” (ignition), “R” (accessory), and “G” (ground) if applicable. Label each wire with masking tape to avoid misconnection during reassembly. Disconnect the battery before proceeding to prevent short circuits.

Testing Continuity and Resistance

Set the multimeter to continuity mode. Probe the “B” terminal and the solenoid’s input terminal–an audible beep confirms a direct path. Move to the “S” terminal, tracing it to the starter motor’s activation post. If no continuity exists, inspect for frayed insulation or broken strands within the conductor. Replace the entire harness if damage exceeds 10% of the wire’s cross-section.

Examine the ignition coil, positioned near the engine’s flywheel. Two conductors attach here: one from the switch’s “I” terminal and a second ground wire. Check coil resistance with the multimeter (ohm setting); specifications vary by model, but most fall between 2.5–5 ohms for the primary circuit and 6,000–30,000 ohms for the secondary. Deviations suggest internal failure–replace the coil.

Ground circuits demand meticulous inspection. Trace all black or green conductors to their termination points on the engine block or frame. Scrape paint or rust from attachment surfaces to ensure unimpeded current flow. Test continuity from each ground point back to the battery’s negative terminal–resistance should not exceed 0.1 ohms. Apply dielectric grease to connections after cleaning to prevent oxidation.

Reconnect components in reverse order, verifying each link with the multimeter. Start the engine while monitoring voltage drops across critical paths. A drop exceeding 0.5V between the battery and any ignition system component signals excessive resistance–inspect connectors, terminals, and fuse blocks for corrosion or looseness. Tighten screws to 8–12 in-lbs and apply anti-seize compound to threads if removing frequently.
