Complete Crutchfield Subwoofer Wiring Guide with Diagrams
For optimal performance, match the impedance of your amplifier to the voice coil configuration. Single 4-ohm drivers typically pair best with a 2-ohm stable amplifier, while dual 2-ohm coils allow parallel wiring to reduce load resistance. Always verify the amp’s minimum impedance rating before finalizing connections–overloading causes distortion and potential damage.

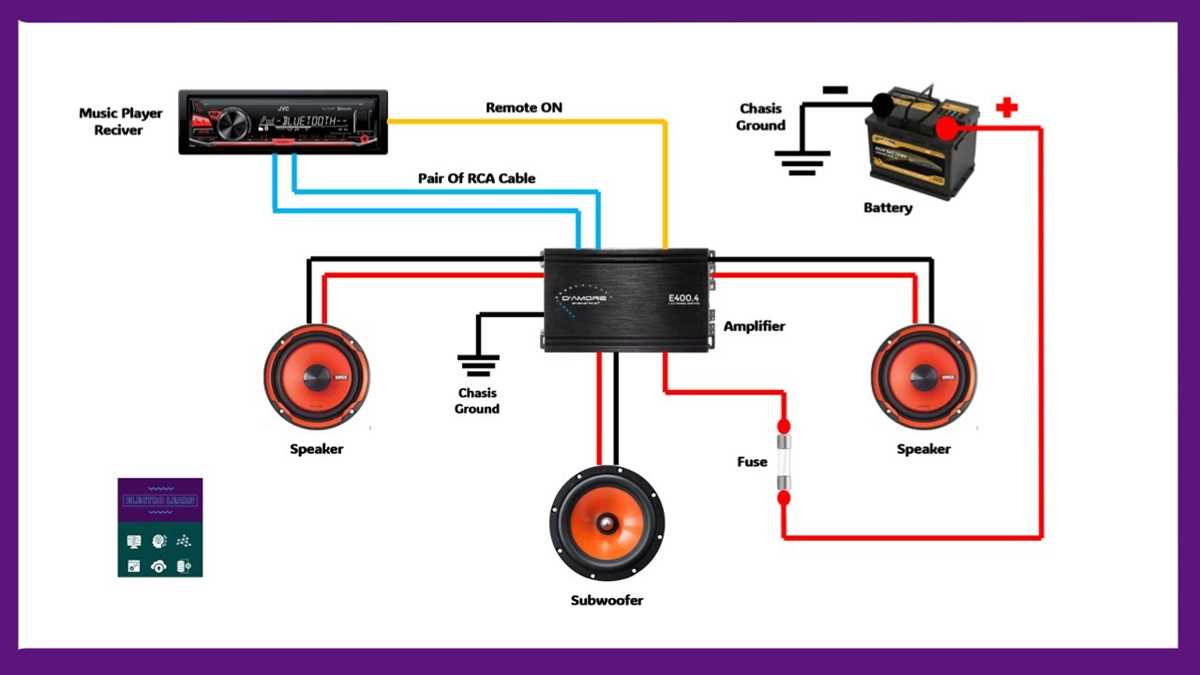

Use 12-14 AWG oxygen-free copper cables for signal transmission; thinner gauges introduce resistance, weakening output. Connect the amplifier’s RCA inputs directly to the head unit’s dedicated output channels, avoiding shared lines that may pick up interference. If utilizing high-level inputs, ensure proper ground isolation to prevent engine noise from propagating through the system.
Bridgeable amplifiers require careful attention to polarity–reverse connections not only mute output but can trigger protection circuits. Test with a multimeter before securing terminals: DC voltage between grounds should not exceed 0.05V. For sealed enclosures, limit gain to 80% of maximum to maintain clarity; ported designs tolerate higher amplification but risk distortion at peak volumes.
Strain-relief grommets prevent wire fatigue at entry points, while soldered joints outlast crimped connections. Secure all connections with heat-shrink tubing, sealing out moisture that causes corrosion. When routing cables, avoid proximity to power wires–separate by at least 20cm to minimize electromagnetic interference.
How to Correctly Connect Your Low-Frequency Speaker System
Start by identifying the impedance rating of your amplifier and the voice coil configuration of your enclosure. Most modern mono amplifiers handle 2-ohm loads stably, but check the manufacturer’s specifications to avoid overheating. If your enclosure has dual 4-ohm coils, parallel wiring drops the impedance to 2 ohms–ideal for maximum output without straining the amplifier. Series wiring, in contrast, raises impedance to 8 ohms, reducing power but increasing longevity for continuous use.
Match the gauge of your cables to the amplifier’s current demands. For runs under 15 feet, 12-gauge oxygen-free copper (OFC) wire suffices for most setups. Longer distances or higher-power systems require 10-gauge or thicker to prevent voltage drops. Avoid CCA (copper-clad aluminum) wire; its higher resistance causes inefficiency and potential safety risks. Terminate connections with gold-plated RCA jacks and high-current speaker terminals to minimize signal loss.
Bridge the amplifier if your unit supports it, but verify compatibility first. Bridging combines two amplifier channels into one, doubling potential wattage into a single load. Ensure the enclosure’s impedance doesn’t fall below the amplifier’s minimum rating–many bridged amplifiers require a minimum 4-ohm load. Use a multimeter to confirm wiring accuracy before powering on; a miswired coil can destroy both enclosure and amplifier in seconds.
Ground the system properly to eliminate noise and interference. Use a dedicated ground wire–at least 8-gauge–connected directly to the vehicle’s chassis, away from factory grounding points. Avoid daisy-chaining grounds; this creates ground loops and introduces hiss. If using a capacitor, install it within 18 inches of the amplifier and wire it in parallel to the power cable. This protects against voltage sag during peak bass demands.
Set the low-pass filter on the amplifier between 80-120 Hz for most installations. This range ensures seamless integration with factory or aftermarket full-range speakers. Adjust the gain control carefully; turning it too high introduces distortion, while setting it too low leaves headroom untapped. Use a sine wave test track (e.g., 50 Hz) and an oscilloscope or smartphone app to fine-tune until the waveform remains clean at maximum volume.
Test the system under real-world conditions with varying music genres. A properly configured setup should deliver tight, accurate bass without boominess or muddiness. If the enclosure distorts at high volumes, reduce gain or check for enclosure air leaks. For bandpass enclosures, ensure port tuning matches the recommended frequency for optimal output. Regularly inspect connections for corrosion, especially in humid environments.
Selecting the Optimal Bass Speaker Connection Layout for Your Car
Begin by assessing the impedance ratings of your amplifier and low-frequency driver. Matching these values prevents overheating and ensures maximum power transfer. For instance, a 2-ohm mono amplifier pairs effectively with dual 4-ohm woofers wired in parallel, resulting in a 2-ohm load. Single 4-ohm drivers typically require series connections to reach 8 ohms when using a stereo amp.
Account for the physical constraints of your vehicle’s audio system installation. Larger enclosures demand thicker gauge cables–12 AWG for runs under 10 feet, dropping to 10 AWG for longer distances or high-current setups. Measure the exact routing path to avoid signal loss through unnecessary bends or sharp corners, which degrade performance.
Evaluate the power handling capabilities of your equipment. A 500-watt RMS amplifier should never drive woofers rated for 300 watts RMS continuously, as clipping occurs, producing distortion and potential damage. Verify the thermal limits of the voice coil; many modern drivers handle 1,000 watts peak but sustain only 400 watts RMS safely.
Consider the enclosure type when finalizing the connection method. Sealed boxes benefit from tighter bass reproduction, often requiring lower impedance configurations, while ported designs demand precise tuning to avoid overexcursion. Bandpass enclosures split the frequency response into two chambers, necessitating dual-connection layouts for each sub-section.
Test different configurations using a multimeter before permanent installation. Connect the positive terminal of the amplifier to the positive lead of the woofer, then measure resistance across the terminals. A reading of 2 ohms confirms parallel wiring; 8 ohms indicates series. Repeat for all channels to ensure consistency.
Factor in the vehicle’s electrical system capabilities. Upgrading the alternator may be necessary if adding multiple high-power components. Stock 70-amp alternators strain under sustained bass loads, leading to voltage drops below 12.6V. Aftermarket 120-amp units maintain stable power delivery, critical for avoiding brownout conditions.
Document every connection detail–cable length, gauge, impedance, and power ratings–in a reference chart. Include amplifier gain settings and crossover frequencies for future troubleshooting. Label each cable at both ends to simplify maintenance or upgrades later.
Step-by-Step Guide to Connecting a Low-Frequency Speaker to an Audio Power Module
Begin by identifying the output terminals on your amplifier labeled for bass reproduction. These typically include a “+” (positive) and “−” (negative) terminal, often color-coded red and black. Verify the impedance rating of your speaker enclosure–common values are 2Ω, 4Ω, or 8Ω–and match it to the amplifier’s compatible load range to prevent overheating or damage.
Use oxygen-free copper cables with a minimum gauge of 12 AWG for distances under 15 feet; for longer runs, upgrade to 10 AWG to minimize signal loss. Strip ½ inch of insulation from each wire end, twist the strands tightly, and avoid frayed edges that could cause short circuits. Secure the connections by inserting the exposed wire into the amplifier’s terminals and tightening the binding posts or set screws until snug–do not overtighten, as this can strip the threads.
Before powering on the system, set the amplifier’s gain control to its lowest position. This prevents sudden voltage spikes from reaching the speaker and damaging the voice coil. If your amplifier includes a built-in crossover, adjust the low-pass filter to 80Hz for seamless integration with full-range speakers, ensuring no frequency overlap or gaps in output.
Refer to the following settings as a baseline for amplifier configuration based on speaker impedance:
| Speaker Impedance (Ω) | Amplifier Gain | Low-Pass Filter Setting | Phase Setting |
|---|---|---|---|
| 2 | 75% of max | 80Hz | Normal |
| 4 | 50% of max | 80Hz | Normal |
| 8 | 25% of max | 80Hz | Reverse if cancellation occurs |
Test the signal path by playing a sine wave tone at 50Hz and monitoring for distortion with an SPL meter at the listening position. If the enclosure emits a muffled or uneven response, check for reversed polarity–swap the connections at the amplifier’s terminals and retest. Some amplifiers include a phase switch; toggle this if you notice a hollow or thin sound, as this indicates timing misalignment with the main speakers.
Finalize the setup by gradually increasing the gain while playing reference tracks with strong bass content. Listen for clarity, avoiding audible clipping or port noise from the enclosure, which suggests excessive power delivery. If the amplifier lacks thermal protection, install an external fuse (matching the amp’s continuous current rating) in the power cable to safeguard against short circuits.
For enclosures with dual voice coils, wire the coils in series (4Ω total) or parallel (1Ω total) to match the amplifier’s specifications. Never leave a voice coil unconnected, as this can unbalance the magnetic field and reduce performance. Label all connections for future reference, and use ferrule connectors if reconnecting frequently to prevent wire fatigue.
