Begin by locating the aftermarket stereo’s pinout schematic–manufacturers like Sony, Pioneer, and Alpine provide these in the installation manual or on their support sites. Most factory vehicle harness adapters follow a standardized color code: yellow (constant 12V), red (accessory/ignition), black (ground), blue/white (remote turn-on), and paired grey/purple/green/orange for speaker wires. Verify the adapter matches your vehicle’s make and model–Toyota, Ford, and GM systems often include separate plugs for amplified signals, which require direct connection to bypass factory interference.
For vehicles with data-bus networks (e.g., late-model BMWs, Mercedes, or Teslas), use a line output converter (LOC) rated for load resistance–600 ohms minimum–to prevent signal degradation. Splice the LOC between the factory amplifier and new head unit, ensuring the ground wire (black) connects to bare metal, not painted surfaces, to avoid electrical noise. Measure voltage at the ignition wire (red) with a multimeter–if below 11.8V, relocate the connection to the battery’s constant power (yellow) and install a delayed turn-on relay to prevent battery drain.

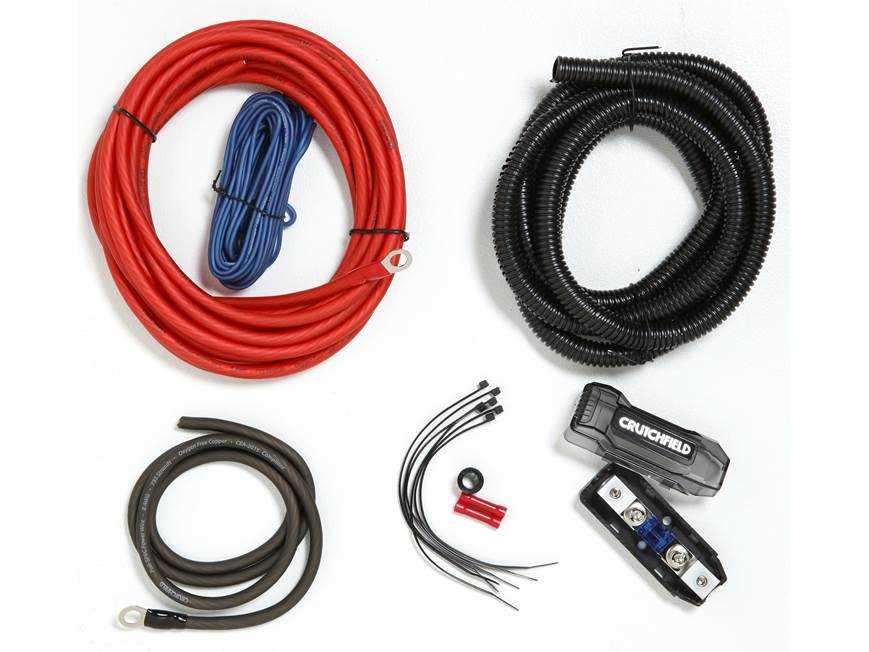

When integrating subwoofers or external amplifiers, confirm the remote turn-on wire (blue/white) triggers at 12V and supports the total current draw–most Class D amplifiers require 18–22 AWG wire for stable power delivery. For bridged connections, connect the subwoofer’s positive terminal to the amplifier’s Channel 1 (+) and negative to Channel 2 (-); never exceed 2 ohms in single-channel mode unless the amplifier explicitly supports it. Use 10-gauge oxygen-free copper for power and ground to handle transient spikes, especially in systems with 1,000W+ RMS.
Test connections in diagnostic mode before securing components: play a 50Hz sine wave through the front speakers to check phase alignment, then a 1kHz tone for midrange clarity. If distortion occurs at low volumes, suspect a ground loop–relocate the ground wire closer to the battery or add a ground loop isolator (GLI) in-line with RCA cables. For navigation or backup camera integration, splice the video signal wire (yellow RCA) directly to the stereo’s video input, ensuring the reverse trigger wire (purple with white stripe) matches the vehicle’s backup light feed.
Mastering Vehicle Audio Integration Schematics
Start by identifying the color codes in your aftermarket head unit’s harness adapter–black/yellow typically denotes constant 12V power, red handles accessory power, and orange (or orange/white) manages illumination. Match these to the vehicle’s OEM connector: Toyota often uses a pink wire for memory keep-alive, while Ford pairs violet with a grey stripe for speaker positives. Use a multimeter set to DC voltage (20V range) to verify connections before securing them–12.6V should register on the constant power lead, dropping to 0V when the ignition is off for accessory circuits. For vehicles with data buses (e.g., CAN or MOST), splice into the infotainment harness instead of the factory radio connector to avoid triggering error codes; pinouts for BMW E60 models (2004–2010) require tapping into pins 7 (CAN-L) and 8 (CAN-H) for seamless integration.
Verify ground connections by measuring resistance between the chassis and the head unit’s ground wire–values above 0.5 ohms indicate corrosion or insufficient contact; sand the mounting point to bare metal and use star washers for a secure bond. For speaker outputs, test impedance with a multimeter: 4-ohm systems (most aftermarket) should read between 3.8–4.2 ohms; lower readings suggest a short, while higher values may indicate an open circuit. For amplified systems, disable factory amplifiers by locating the enable wire (often blue/orange) and cutting it to prevent signal conflicts. Below is a cross-reference for common vehicles and their harness configurations:
| Vehicle | Harness Connector Type | Critical Wires (Color/Function) | Special Notes |
|---|---|---|---|
| Honda Civic (2006–2011) | 20-pin Metra 70-1721 | White/black (front left +), grey/black (front right +), green/white (rear left +), violet/white (rear right +) | Constant power: yellow. Factory amp requires bypass module (Metra ASWC-1 for steering controls). |
| Chevrolet Silverado (2014–2018) | 16-pin Delphi connector | Dark green (front left +), light green (front right +), purple (rear left +), dark blue (rear right +) | Data bus interface needed for OnStar retention; splice blue/white (radio mute) to avoid navigation errors. |
| Volkswagen Jetta (2011–2018) | 40-pin Quadlock | A4 (CAN-H), A5 (CAN-L), C1 (illumination +), D1 (constant 12V) | Factory amplifier (20-pin connector) must be retained; bypass will disable rear speakers. |

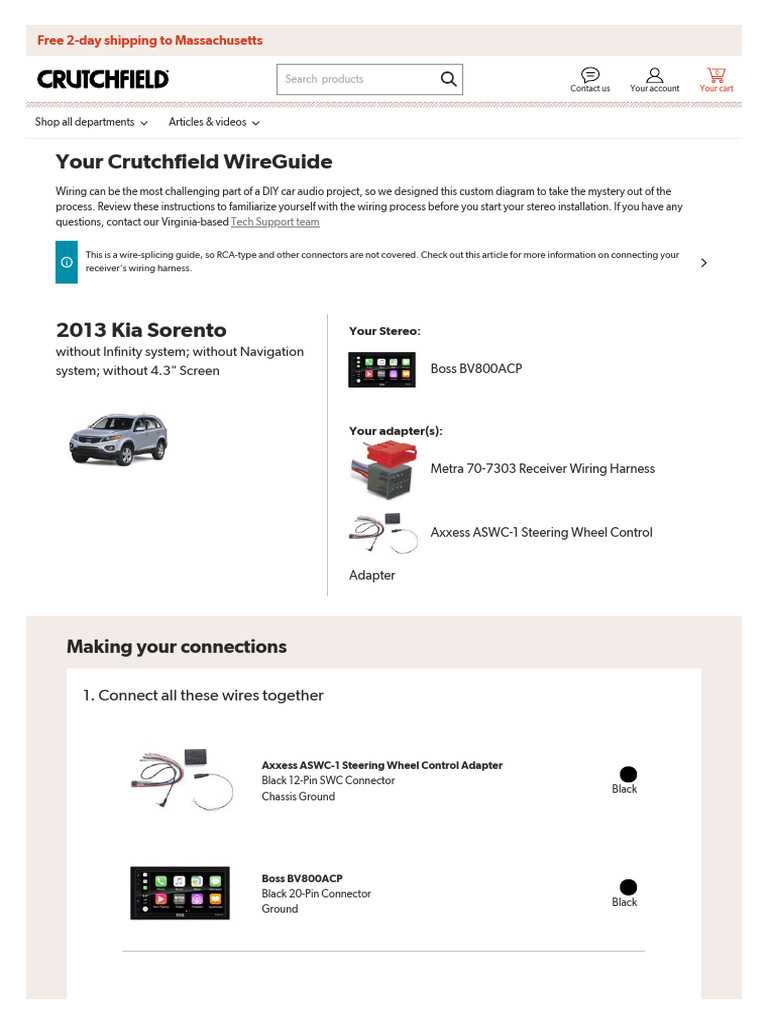

Finding Your Car’s Electrical Blueprint on the Retailer’s Site
Select “Vehicle Selector” in the top navigation bar after logging into your account. Enter your car’s year, make, and model in the search fields–this filters available schematics to match your exact trim. If the dropdown menus don’t display options, refresh the page or clear browser cache; compatibility issues with older browsers can block dynamic content loading.
Access the product page for the stereo or harness adapter you’re installing. Below the main description, locate the tab labeled “Documentation” or “Support Files.” Here, the vendor provides a downloadable PDF detailing pinouts, color codes, and connector layouts specific to your automobile’s factory electrical system. Verify the date on the file–manufacturers occasionally update these guides to reflect revisions.
Alternative Methods for Hard-to-Find Schematics
If the documentation tab is empty, use the site’s search tool with keywords like “[your car model] + harness color chart” or “[your car’s generation] + OEM connector reference.” Forum threads linked in the search results often contain user-uploaded scans of original manuals. For European or JDM models, add regional-specific terms such as “Euro harness” or “JIS pinout” to narrow results. Bookmark the direct PDF link–some files expire after 24 hours.
Step-by-Step Guide to Aligning Harness Connection Shades with Vehicle Connectors
Begin by isolating the aftermarket adapter and the factory plug side by side under bright, direct light–diffuse lighting distorts color perception. Use a magnifying lens if labels are small or worn. Compare each pin’s hue on the harness against the vehicle’s connector, noting variations like faded red (often maroon), off-white (closer to beige), or blue with a green tint. Cross-reference findings with the aftermarket supplier’s pinout reference chart; most manufacturers denote deviations for specific vehicle models (e.g., 2012-2018 Toyota Camry uses a lighter blue for illumination compared to pre-2012 versions).
- Document mismatches immediately–even slight discrepancies can cause short circuits or component failure.
- For ambiguous colors, use a multimeter in continuity mode: probe the factory connector’s pin, then touch the corresponding harness lead to confirm a beep.
- If the harness lacks labels, mark each lead with liquid paper or tape, using the vehicle’s service manual for exact pin functions (e.g., “ILLUM,” “B+,” “LF+”).
- For double-checking, pull the vehicle’s OEM wiring schematics–aftermarket adapters sometimes reverse pink/red or brown/tan for certain trim levels.
Common Installation Errors with Vehicle Electronic Guides
Misidentifying ground cables as power leads remains the most frequent error. Many aftermarket harnesses include multiple black wires with identical gauges, but only one serves as the true chassis connection. Verify continuity with a multimeter–ground wires should register
- Overlooking fused circuits–install a 15A fuse within 7 inches of the battery terminal for any new power feed.
- Combining speaker outputs–twisting positive and negative channels together creates a short, risking amplifier damage.
- Ignoring polarity markers–striped wires indicate negative across 90% of manufacturers, but Sony and Pioneer reverse conventions.
- Skipping the relay for high-current devices–accessories drawing >10A require a Bosch-style 30A relay to prevent wire melting.
Essential Tools for Implementing Car Audio Connection Schematics
Begin with a multimeter (Fluke 17B or equivalent) to verify circuit integrity before making permanent links. Set it to 20V DC range to confirm power outputs and ground paths, avoiding short circuits that could damage components. A 10A fuse in line with the test leads is mandatory when probing high-current circuits like amplifier feeds.
Use staggered gauge wire strippers (Klein Tools 11055 or similar) calibrated for 18-10 AWG conductors to prepare speaker and power cables. Crimp connectors require a ratcheting terminal tool (Ancor 702015) with a 250–500 lb. force setting to ensure gas-tight junctions. For OEM integration, a non-marring trim removal kit (Saehan SH-44) prevents dashboard damage when accessing factory harness points.
Specialized Adapter Checklist
Harness adapters (Metra 70-1761 for Toyota, 70-2003 for Ford) eliminate soldering by providing plug-and-play connections to vehicle-specific looms. A test light with polarity detection (OEM 25218) confirms 12V supply and ground continuity without risking sensitive modules. Include heat-shrink tubing assortment (3/16″ to 1/2″) and a butane-powered heat gun (NWS 1090) for sealing splices exposed to moisture or vibration.
