Understanding CT Scan Schematic Diagrams Principles and Components

The computed tomography reconstruction framework relies on a precise sequence of mechanical and computational stages. Begin by identifying the core elements: an X-ray emitter, a detector array, and a rotational gantry. The emitter projects a fan-shaped beam through the target region, while the detector captures attenuation data from multiple angles. Modern systems use slip-ring technology to enable continuous 360° rotation, eliminating cable limitations found in earlier models.

Prioritize the detector configuration–flat-panel or multi-row–to match clinical needs. Flat-panel detectors, though higher in resolution, sacrifice temporal efficiency for fine detail. Multi-row designs (e.g., 64-slice or 128-slice) optimize speed for dynamic studies like cardiac imaging. Verify detector efficiency: cadmium tungstate or gadolinium oxysulfide scintillators convert X-rays to light more effectively than older materials, reducing noise by up to 30%.

Examine the reconstruction pipeline: raw data undergoes preprocessing (e.g., scatter correction, logarithmic conversion) before Fourier-based algorithms generate cross-sectional slices. Iterative reconstruction (IR) methods, such as model-based IR, outperform filtered back-projection (FBP) by minimizing artifacts in low-dose protocols. For example, IR can reduce radiation exposure by 40-60% while maintaining diagnostic accuracy. Ensure calibration targets match the system’s dynamic range–misalignment degrades image fidelity.

Integrate shielding and collimation into the design to mitigate radiation scatter. Pre-patient collimators shape the beam, while post-patient anti-scatter grids improve contrast. Tungsten septa (0.05 mm thickness) are standard; thinner septa reduce scatter but may introduce ring artifacts. Verify alignment tolerances: even a 0.1° misalignment between the emitter and detector array can create concentric distortion.

For maintenance, simulate common failure modes: tube overheating (monitor anode cooling curves), detector lag (test with uniform phantoms), and gantry wobble (use bubble levels). Replace X-ray tubes every 100,000–150,000 exposures, depending on mA settings. High-frequency generators (40–60 kHz) deliver more stable voltage than older 3-phase units, critical for contrast resolution in vascular studies.

Visual Representation of Computed Tomography Imaging

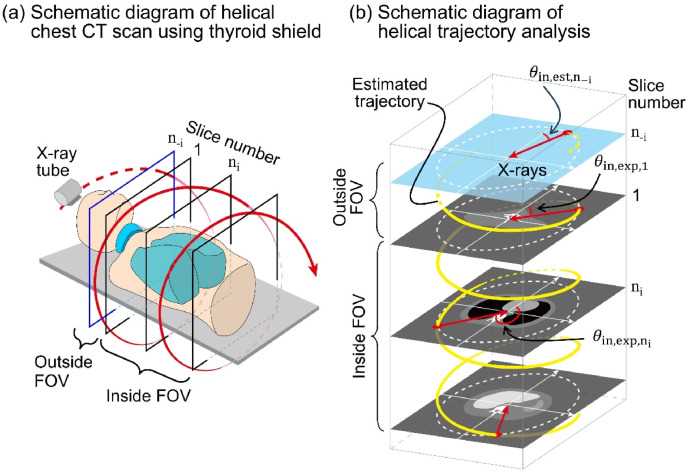

To interpret CT imaging principles accurately, begin by mapping key components in a labeled illustration: an X-ray source rotating around the patient, detector arrays capturing attenuated signals, and a reconstruction algorithm processing raw data. Include precise angular increments (e.g., 0.5°–1° per rotation) to demonstrate how volumetric slices are acquired. Highlight the gantry’s rotational axis with a dashed line and annotate the collimator’s role in shaping the X-ray beam to 0.5–10 mm slice thickness–critical for balancing spatial resolution and radiation dose.

For clinical relevance, overlay a transverse cross-section of phantom anatomy (e.g., thoracic cavity) on the technical layout. Use color coding to differentiate bone (Hounsfield Unit >300), soft tissue (40–80 HU), and air (−1000 HU). Reference the Nyquist theorem by marking detector spacing (typically 0.6–1.2 mm) to explain aliasing artifacts in high-contrast regions. Annotate the reconstruction field of view (FOV), usually 25–50 cm, to clarify how smaller FOVs increase pixel noise but improve spatial resolution.

Key Annotations for Technical Accuracy

Ensure the depiction specifies:

1. Dual-energy configurations (80/140 kVp switching) if illustrating spectral imaging–label the filtration layers for photon starvation correction.

2. Spiral pitch ratio (e.g., 1:1) to describe table movement per gantry rotation (0.5–2 mm/rotation).

3. Iterative reconstruction pathways (e.g., SAFIRE, ASiR) as dashed arrows feeding back into raw data, reducing noise by 30–60% compared to filtered back projection.

Embed a simplified workflow inset: acquisition → projection data → sinogram → filtered reconstruction → image display. Use a 3×3 grid example to show how a single 512×512 matrix voxel (0.5–0.8 mm²) correlates to in-plane resolution. For pediatric protocols, indicate reduced mA (20–50) and shorter rotation times (0.25–0.5 s) to emphasize dose optimization strategies.

Key Components in a CT Imaging System Configuration

Position the X-ray tube opposite the detector array with a focal spot size of 0.6–1.2 mm to balance spatial resolution and heat dissipation. Smaller focal spots improve detail but require cooling systems like liquid metal bearings or oil-based circuits to prevent overheating during high-volume procedures. Ensure the tube’s anode angle (typically 7–12°) aligns with the detector’s coverage to avoid geometric distortions at the image periphery.

Integrate a multi-row detector (64–320 slices) with scintillator materials like gadolinium oxysulfide or cadmium tungstate, as these convert X-rays to light with 95%+ efficiency. Detector element pitch–ranging from 0.5 to 0.625 mm–directly impacts resolution; narrower pitches demand higher sampling rates to prevent aliasing artifacts, particularly in cardiac or pediatric imaging.

Design the gantry aperture at 70–80 cm to accommodate obese patients while maintaining a rotation speed of 0.25–0.5 seconds per revolution. Slower rotations improve signal-to-noise ratio (SNR) but increase motion blur risk; compensate with dual-energy filtration (e.g., tin filters) to reduce low-energy photons and lower radiation dose by 20–40% without sacrificing contrast.

Implement slip rings for continuous power/data transmission, replacing older cable-based systems to eliminate rotational limitations. For 4D imaging, ensure the data acquisition system (DAS) captures up to 1,000 projections per rotation with 16-bit analog-to-digital converters to preserve dynamic range in high-contrast regions like lung parenchyma or bone-metal interfaces.

Select reconstruction algorithms based on clinical needs: filtered back projection (FBP) for speed in trauma cases, iterative methods (e.g., ASiR-V) for dose reduction in pediatric patients, and deep learning-based reconstruction for artifact suppression in dual-source configurations. Configure kernel parameters (e.g., “soft,” “bone,” or “lung”) to optimize edge preservation–softer kernels reduce noise but blur fine structures, while sharper kernels enhance detail at the cost of increased graininess.

Isolate the high-voltage generator (>100 kW) in a shielded enclosure with RF noise suppression to prevent interference with nearby MRI systems or medical electronics. Grounding should follow IEC 60601-1 standards, using copper braid straps connected to a dedicated earth ground with resistance

Include automated tube current modulation (ATCM) to adjust mA dynamically based on patient attenuation data from scout images. Set reference mAs values (e.g., 150–250 mAs for abdominal studies) and enable organ-specific modulation (e.g., lower mA for breasts/eyes) to achieve consistent noise levels across varying body habitus, reducing dose variability by up to 30% compared to fixed protocols.

Step-by-Step Process of Image Acquisition in Computed Tomography Visualization

Begin by ensuring the patient is positioned precisely on the examination table, aligning the region of interest–such as the thorax or abdomen–with the central axis of the imaging system. Misalignment as slight as 2–3 millimeters can introduce artifacts, distorting data fidelity. Use laser guidance markers to verify positioning and secure immobilization devices (e.g., straps or foam wedges) to eliminate voluntary or involuntary motion. For cardiac studies, synchronize acquisition with ECG gating to capture images during diastole, reducing blur from myocardial contraction.

Configure the X-ray source and detector array based on anatomical priorities:

• For high-resolution bone imaging (e.g., temporal bone), set a slice thickness of 0.5–0.625 mm and a small focal spot (
• For soft-tissue evaluation (e.g., liver lesions), use 1–2 mm slices with a larger focal spot (1.2 mm) to balance resolution and noise reduction.
• Adjust kilovoltage (kVp) and milliampere-seconds (mAs) according to patient size: 80–100 kVp for pediatric cases, 120–140 kVp for adults, with mAs tailored via automatic exposure control (AEC) to maintain consistent signal-to-noise ratios.

Data Reconstruction Workflow

Raw projection data undergoes filtered back-projection (FBP) or iterative reconstruction (e.g., adaptive statistical iterative reconstruction, ASiR) to convert attenuation values into cross-sectional images. FBP is computationally faster but amplifies noise in low-dose protocols; iterative methods suppress noise at the cost of processing time. Select the reconstruction kernel based on clinical needs:

1. Use a sharp kernel (e.g., “bone” or “edge-enhancing”) for skeletal or lung detail, enhancing edge definition but increasing noise.
2. Opt for a soft kernel (e.g., “standard” or “detail”) for abdominal organs, prioritizing contrast resolution.

Apply multiplanar reformatting (MPR) to generate coronal or sagittal views, ensuring voxel isotropy (equal dimensions in x, y, and z axes) to prevent stair-step artifacts. For quantitative analysis (e.g., stenosis measurement), export images in DICOM format with calibrated Hounsfield units (HU): air (-1000 HU), water (0 HU), cortical bone (+1000 HU).

Quality Assurance and Post-Processing

Review images for common artifacts and apply corrective algorithms:

• Beam hardening: Use software linearization or thicker filtration (e.g., 0.1–0.2 mm copper) to attenuate lower-energy photons.
• Metal-induced streaks: Employ dual-energy decomposition or monoenergetic extrapolation (40–140 keV) to reduce blooming from dental implants or hip prosthetics.
• Voluntary motion: Retake acquisitions if motion exceeds half the slice thickness; for unavoidable motion (e.g., pediatric patients), use motion correction algorithms like “snapshot freeze” (GE Healthcare) or “IntelliMotion” (Siemens).

Adjust window width and level (WW/WL) to enhance visibility: lung windows (WW: 1500 HU, WL: -600 HU), soft-tissue windows (WW: 400 HU, WL: 40 HU). For advanced applications (e.g., perfusion studies), reconstruct dynamic datasets with phase-bin sorting, ensuring temporal resolution matches contrast bolus kinetics (typically 0.5–2-second intervals). Archive processed datasets in PACS with lossless compression (e.g., JPEG 2000) to preserve diagnostic integrity during remote access.
