Build Your Own LED Dancing Light Circuit Step-by-Step Guide

For an effective rhythmic illumination setup, begin with a 555 timer IC configured in astable mode. This ensures consistent pulsing at adjustable intervals. Use a 1kΩ resistor between pins 7 and 6, a 10kΩ potentiometer between pin 7 and the positive rail, and a 10µF capacitor between pin 2 and ground. This combination delivers a frequency range of 0.5Hz to 10Hz, ideal for smooth transitions. Avoid electrolytic capacitors above 100µF–they introduce lag.

Amplify the output with a TIP31C transistor or equivalent. Connect the base to the timer’s output via a 220Ω resistor, the emitter to ground, and the collector to the LED array’s negative terminal. For high-power LEDs (1W+), add a heatsink to the transistor–thermal dissipation becomes critical beyond 500mA. Parallel multiple transistors for loads over 1A, maintaining a 1:1 current ratio per channel.

To expand patterns, integrate a CD4017 decade counter. Wire its clock input to the timer’s output and daisy-chain outputs to separate transistor stages. This creates sequential activation with precise timing. For complex sequences, replace the 555 with an Arduino Nano–upload custom code using millis() instead of delay() to prevent flicker. Note: Optical feedback loops (LDRs) degrade performance below 5 lux ambient light.

Power supplies require scrutiny. For 12V LED strips, use a buck converter to step down voltage; linear regulators waste energy as heat. Bridge rectifiers must handle 2x the peak current (e.g., 2A diodes for a 1A continuous load). Ground loops manifest as erratic timing–star-ground all components to a single point. Test each stage with a multimeter before full assembly: timer output should swing rail-to-rail, transistor collector voltage should drop to near-zero when active.

For wireless control, replace potentiometers with MCP4131 digital pots driven via SPI. Pair these with an ESP8266 for Wi-Fi adjustments. Ensure firmware includes debounce logic–contact bounce from mechanical inputs causes ghost sequencing. Final calibration: adjust timer capacitors while observing LED duty cycle–target 60% on-time for best visual continuity under motion.

Creating a Dynamic LED Sequence Layout

Begin with a 555 timer IC in astable mode to generate a reliable clock signal. Set the frequency between 1-5 Hz using a 10kΩ pot for R2 and a 1μF capacitor for C1. This ensures smooth transitions without visible flicker.

Key Component Selection

• Shift Register: Use a 74HC595 to expand output pins–connect the DS, SHCP, and STCP pins to the timer’s output. Add a 0.1μF decoupling capacitor near its VCC pin to suppress noise.
• Current Limiting: Pair LEDs with 220Ω resistors (or 470Ω for high-brightness variants) to prevent burnout. For RGB variants, drive each channel (R/G/B) separately via the register.
• Power: A 9V battery works for small setups, but for 10+ LEDs, switch to a 5V/2A wall adapter with a 1N4007 diode for reverse polarity protection.

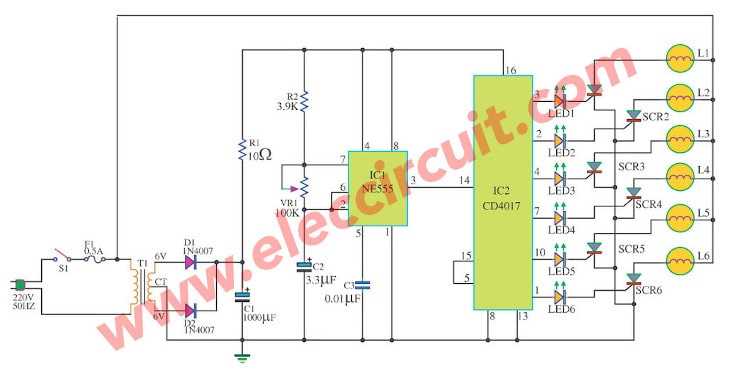

Program sequential patterns by chaining two 74HC595 registers–connect Q7′ of the first to DS of the second. Use a bidirectional pattern (e.g., left-to-right then reverse) by toggling data inputs via Arduino or manual switches. For standalone setups, replace the timer with a CD4017 decade counter: wire its clock input to the 555 timer and outputs to LED banks via transistors (e.g., 2N2222 for currents >20mA).

1. Test each LED before soldering–reverse polarity causes silent failures.
2. Twist signal wires (e.g., between timer and register) to reduce EMI from fluorescent sources.
3. Add a 10kΩ pull-down resistor on the 74HC595’s OE pin to disable outputs during power-up.
4. For battery-powered builds, use low-dropout regulators (e.g., AMS1117-5V) to extend runtime.

Key Elements for Building an Animated LED Setup

Select microcontrollers with at least 8 MHz clock speed–AVR-based ATtiny85 or ESP8266 work efficiently for pattern sequencing without overheating. Pair them with high-brightness 5mm LEDs (20mA forward current, 3.2V forward voltage) in quantities divisible by powers of two (8, 16, 32) to simplify binary addressing. Include 220-470Ω current-limiting resistors per LED channel to prevent thermal runaway; calculate values using Ohm’s Law (R = (V_source – V_LED)/I_LED). For dynamic control, use logic-level NPN transistors (2N2222 or BC547) with h_FE ≥ 100 to handle multiplexing load. A 1000μF smoothing capacitor across the power input stabilizes voltage dips during transitions.

Opt for perfboard or custom PCBs with 1oz copper traces (minimum 0.5mm width) to handle pulsed currents up to 500mA without cross-talk. Program patterns in C (AVR-GCC) or Arduino IDE, prioritizing timer-based PWM for flicker-free output. For power distribution, use a 5V linear regulator (LM7805) if input exceeds 7V; bypass capacitors (0.1μF ceramic) at regulator input/output reduce noise. Include a momentary push-button (debounced in firmware) to cycle between preloaded sequences. Test connections with a multimeter in continuity mode before applying full power to verify isolation between channels.

Step-by-Step Assembly Guide for a 5-LED Sequential Illuminator

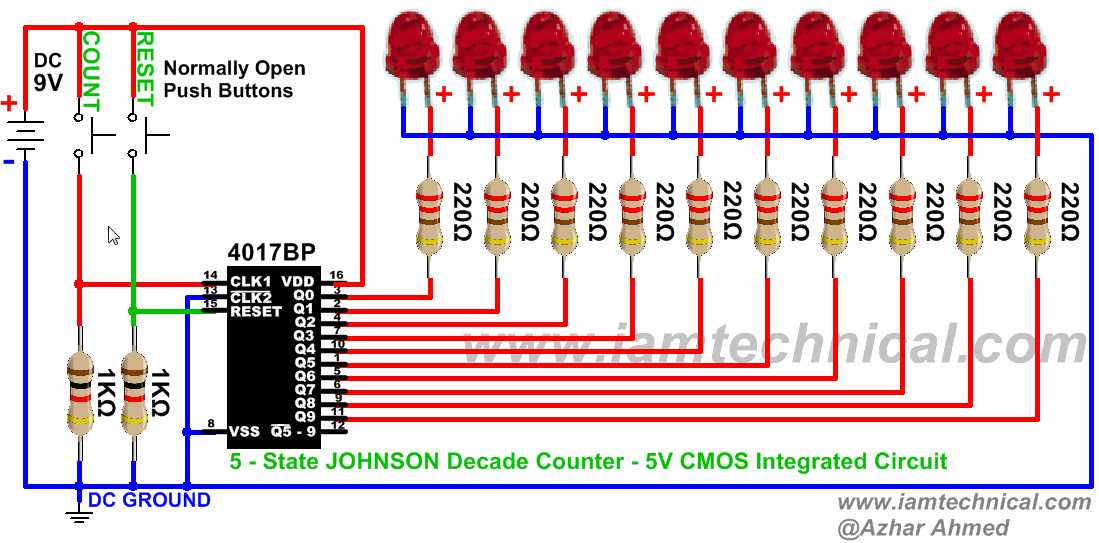

Begin by arranging components in this order: a 9V battery, a 470Ω resistor per channel, five low-power LEDs (forward voltage ~2V, current ~20mA), and a CD4017 decade counter IC. Strip 5mm of insulation from 22-gauge solid core wires, then tin each end with 0.5mm solder to prevent fraying. Mount the IC in a breadboard centered between columns, ensuring pin 1 (marked with a notch) aligns with row 1. Connect the positive battery terminal to the counter’s power pin (16) via a 10µF decoupling capacitor, negative lead facing the ground rail; solder the joint within 5 seconds to avoid heat damage.

Precise Connections for Predictable Patterns

Resistor Placement: Insert each 470Ω resistor between the counter’s output pins (Q0-Q4, pins 3, 2, 4, 7, 10) and the anode of its corresponding LED. Ground the cathodes through a single shared rail. Avoid exceeding 22mA per channel–verify current with a multimeter set to 200mA DC before finalizing connections. For timing, attach a 1µF capacitor between pin 14 (clock input) and ground, then link pin 13 (clock enable) to ground to enable progression. Test by touching the clock input to the positive rail; LEDs should advance sequentially. If flickering occurs, replace the capacitor with a 0.1µF ceramic to stabilize transitions.

Controlling Led Sequence Tempo and Behavior with a Variable Resistor

Replace the fixed resistor in the timing network with a 100kΩ potentiometer wired as a rheostat to gain real-time control over transition intervals between illuminated elements. Position the wiper between the capacitor and the base of the timing transistor to modulate the charge/discharge cycle; clockwise rotation shortens the delay, counterclockwise lengthens it. For sequences relying on 555 timers, connect the potentiometer between pins 6 (threshold) and 7 (discharge) with a 10μF capacitor to ground–this yields adjustable tempos from 0.2 Hz to 20 Hz. Verify linearity by measuring voltage at the wiper: at 50% rotation, expect ~2.5V on a 5V supply for consistent calibration.

Common Potentiometer Values and Resulting Sequence Behavior

Resistance Range (kΩ)	Cycle Duration (ms)	Visual Effect	Recommended Use Case
1k–10k	5–50	Rapid stroboscopic flicker	Fast-changing theater effects
22k–50k	100–300	Smooth scrolling progression	Ambient signage or mood illumination
100k–500k	500–3000	Slow rhythmic pulsation	Relaxation spaces or background indicators

For multi-channel arrays, use a dual-gang potentiometer to synchronize tempo changes across mirrored segments. Parallel a 1kΩ resistor with each gang to prevent erratic behavior at extreme positions where wiper contact may become intermittent. Calibrate each gang individually: rotate fully clockwise, then adjust trimmer pots on gate drivers if channels fall out of phase.

Critical Errors to Sidestep in Assembly

Mismatching component values derails performance faster than any other misstep. A 220-ohm resistor paired with a 5V supply burns out LEDs rated for 20mA–opt for 330 ohms instead. Microcontrollers like the ATtiny85 tolerate 5V, but NE555 timers require 4.5V minimum; exceeding this fries the chip. Capacitors merit attention too: 10μF electrolytics fail if polarized backward, while ceramic types (like X7R) handle reversals but distort at high frequencies. Verify datasheets before soldering–assumptions cost boards.

• Skipping continuity checks invites silent failures. Probe each trace before powering on; a single cold joint (common in hand-soldered prototypes) breaks signal flow without visual cues. Use a multimeter in diode mode: leds should read ~1.8V forward voltage, and MOSFET gates should show infinite resistance until triggered.
• Ignoring thermal limits guarantees heat death. A TO-220 transistor dissipating 1W needs a heatsink; without one, expect 60°C jumps within seconds. Thermal paste reduces contact resistance by 30%–apply sparingly to avoid shorting adjacent pads.
• Misaligned power rails corrupt timing. Placing decoupling caps farther than 10mm from ICs causes voltage droop; at 1MHz, this introduces 50ns jitter in clocked sequences. Route VCC and GND as parallel traces to minimize loop area.

Underestimating firmware quirks cripples dynamic patterns. PWM signals on shared pins (e.g., Arduino’s D3/D11) clash if libraries coexist–use hardware-specific registers instead. Delay functions (`delayMicroseconds()`) block execution, stuttering transitions; non-blocking timers (like `millis()`) prevent this. For WS2812B strips, ensure data lines have 3.3V logic or risk corrupted color data–add a 470-ohm series resistor to dampen reflections.

Mechanical stresses fracture boards over time. Flexing a prototype cracks traces under through-holes; reinforce with standoffs at solder points. Vibration-sensitive setups (e.g., mobile installations) need rubber grommets–fixed mounts concentrate forces. Enclosure choices matter: polycarbonate shields from dust but traps heat, while aluminum dissipates it but risks shorts. Test prototypes in target environments for at least 48 hours to catch intermittent faults.
