Step-by-Step DC to AC Inverter Circuit Design and Wiring Guide

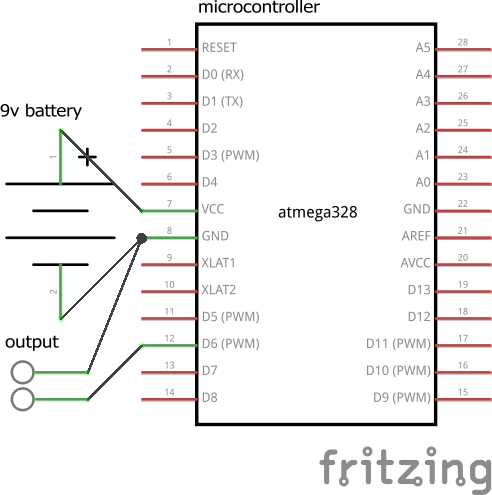

Start with a full-bridge arrangement for 12V to 230V conversion. Use four N-channel MOSFETs (IRF3205 or similar) with antiparallel diodes to handle reverse current and inductive loads. Gate drivers like IR2110 isolate high and low-side switches, ensuring clean transitions at switching frequencies between 20kHz and 50kHz. A 555 timer or dedicated PWM controller (SG3525) regulates duty cycle–keep it below 90% to prevent shoot-through.

Place a 10µF electrolytic capacitor at the DC input to stabilize voltage under load spikes. Snubber circuits (0.1µF + 47Ω series) across each MOSFET clamp voltage transients above 350V. For sine-wave output, add an LC filter: 100µH inductor and 1µF polypropylene capacitor. Test with a 100W resistive load (e.g., incandescent bulb) before connecting reactive loads like motors.

Optocouplers (e.g., PC817) isolate feedback from the output stage to the PWM controller. Calibrate the feedback loop with a voltage divider (e.g., 100kΩ + 10kΩ potentiometer) targeting 230V RMS. For protection, implement thermal shutdown using an NTC thermistor near the MOSFETs, cutting power at 85°C. Fuse the DC input at 20A for 1kW systems.

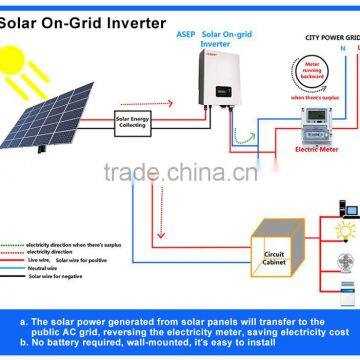

High-frequency transformers (e.g., ferrite ETD core with 20 turns primary, 200 turns secondary) transfer energy efficiently at 50kHz. Wind with Litz wire (1mm² equivalent) to minimize skin effect losses. Verify waveform purity on an oscilloscope–total harmonic distortion should stay under 5%. For grid-tied applications, add a relay (25A, 250V AC) to isolate the circuit during zero-crossing detection.

Ground all heatsinks electrically to the MOSFET sources to prevent capacitive coupling. Use star grounding for signal and power returns to avoid ground loops. Debug with a variac–start at 20V AC output and incrementally increase voltage while monitoring temperatures and waveforms. Log data for at least 30 minutes at full load to confirm stability.

Designing a Power Conversion Circuit: Core Layout Guidelines

Start with a full-bridge switching stage using four power MOSFETs (e.g., IRF3205) for bidirectional current flow. Gate drivers (IR2104) isolate control signals and handle high-side voltage shifts; place bootstrap capacitors (0.1µF ceramic) close to each driver to prevent voltage droop during switching transitions. Ensure dead-time insertion of 500ns between high/low-side pulses to avoid shoot-through currents that can exceed 30A in 48V systems.

Select input filtering capacitors based on ripple current ratings. For a 1kW unit at 24V, use two 470µF low-ESR electrolytics in parallel with a 1µF film cap to handle 120Hz ripple up to 2.5A RMS. Position these within 3cm of the switching transistors to minimize parasitic inductance; longer traces increase voltage spikes by 15-20% during load transients.

Output waveform shaping requires a two-stage LC filter. First stage: 1mH inductor (40A saturation) with 10µF polypropylene capacitor. Second stage: 50µH (5A) and 4.7µF to target 50Hz or 60Hz sine purity above 96%. Avoid single-winding inductors for multi-kW designs–use coupled pairs to reduce copper losses by 8-10%.

Pulse-width modulation controllers (SG3525) demand precise timing components. Set switching frequency between 20kHz and 50kHz using a 10kΩ resistor and 2.2nF capacitor (1% tolerance). Higher frequencies shrink component size but increase switching losses; balance with thermal heatsink calculations (1°C/W per 10W dissipation).

Protection Measures for Reliable Operation

Integrate overcurrent sensing with a shunt resistor (0.005Ω, 1%) and differential amplifier (LM358). Scale output to 0.5V/A and compare against a 3.3V reference; trigger shutdown at 110% of rated current via microcontroller interrupt. Add a 1µs blanking period to suppress noise from switching edges. Soft-start circuitry with a 10µF electrolytic delays full voltage application by 500ms to limit inrush current below 2x nominal.

Output voltage regulation uses feedback via a 100kΩ:10kΩ voltage divider and optocoupler (PC817) for isolation. Maintain divider precision better than 0.2% to meet 1% output accuracy targets; drift above 1% causes audible distortion in inductive loads. For grid-tied units, add phase-locked loop (HEF4046) to synchronize with reference waveforms within ±2° at 50Hz.

Enclosure layout separates high-power and control sections with a 3mm copper ground plane. Route gate drive traces at 90° to power paths to reduce mutual inductance–each centimeter of parallel trace adds 5nH of coupling. Verify thermal performance with infrared scans; MOSFET case temperatures above 90°C degrade lifespan exponentially (1.5% failure rate increase per °C over 85°C).

Key Components for a Basic Power Conversion Unit

Select switching transistors rated at least 30% above the peak load current to prevent thermal runaway. MOSFETs (e.g., IRFZ44N) handle up to 55V and 49A, while IGBTs (e.g., HGTG20N60A4D) suit higher voltages (600V+). Always pair with antiparallel diodes (e.g., MUR860) for inductive load protection–failure to do so risks reverse voltage spikes exceeding 200V.

Capacitor and Inductor Specifications

Component	Role	Critical Parameters
DC Bus Capacitor	Smooths input voltage ripple	Low ESR (
Output Filter Capacitor	Reduces harmonic distortion	High ripple current rating (5A+), X2 safety class
Inductor (Boost Stage)	Energy storage/transfer	Core material: ferrite (e.g., EE25), 1mH for 1kHz switching

Gate drivers (e.g., IR2110) require isolated power supplies (±15V) with 50ns–test with a 10Ω gate resistor and 1kHz PWM signals on a dual-channel scope (Ch1: gate voltage; Ch2: drain-source voltage).

For a 300W prototype, use a 20kHz PWM controller (e.g., TL494) with dead-time adjustment (~2µs) to offset phase leg crossover. Snubber circuits (RC: 10Ω + 1nF) across switches clamp voltage transients to DC. Fuse the input at 1.25× nominal current (e.g., 5A fast-blow for 4A loads) to isolate failures before PCB trace burnout.

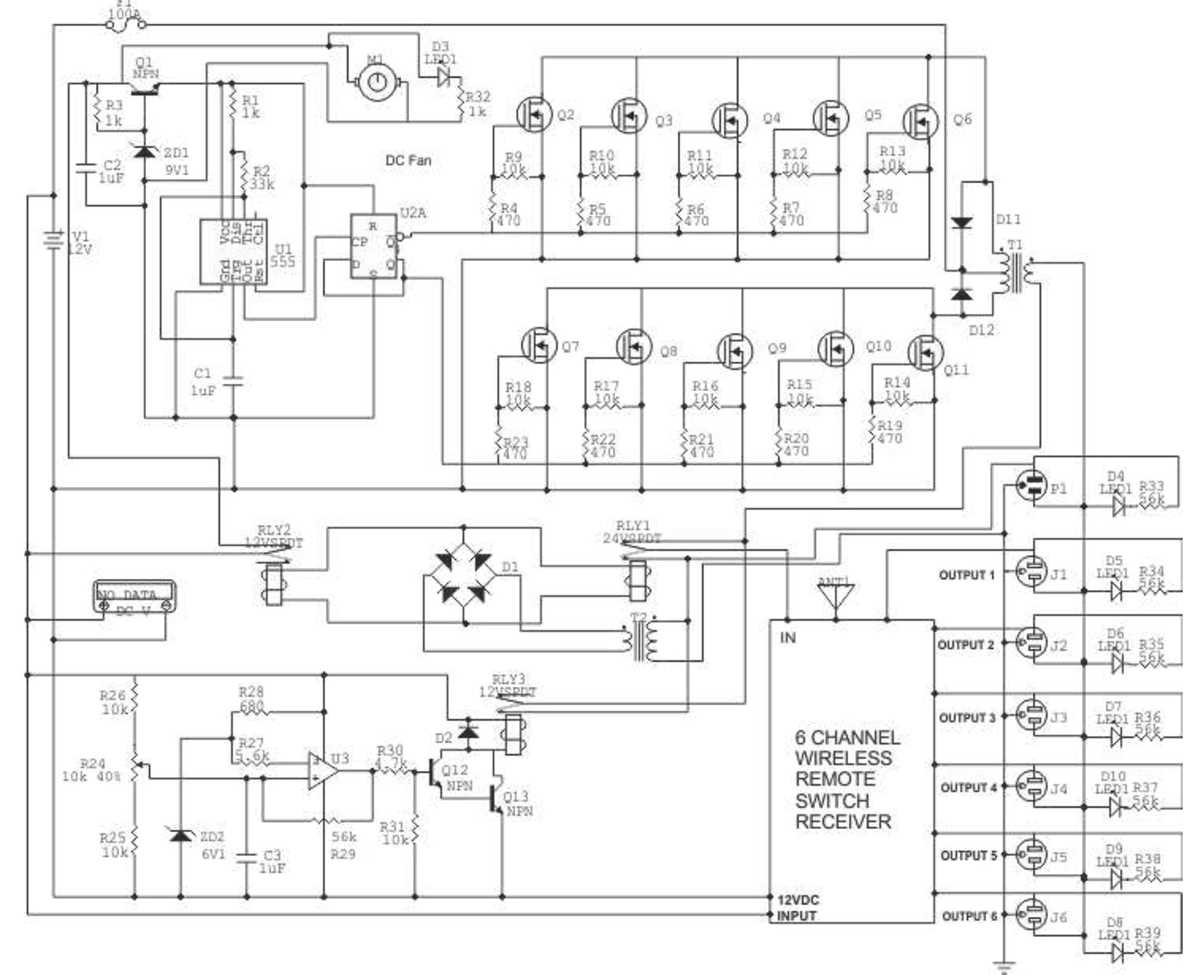

Step-by-Step Wiring of a Push-Pull Transformer Power Converter

Begin by securing a toroidal or E-core transformer with a primary center tap and dual secondary windings. Match the core material to your switching frequency–ferrite for 20–100 kHz, powdered iron for lower ranges. Wind the primary with two symmetrical coils, each handling half the input voltage; 12V input requires 6V per coil for balanced flux. Calculate wire gauge using 5A/mm² for copper, factoring in 20% derating for thermal rise. Terminate the center tap to the positive DC bus; connect each end to a MOSFET or bipolar transistor rated for twice the peak current (e.g., IRFZ44N for 50A pulses).

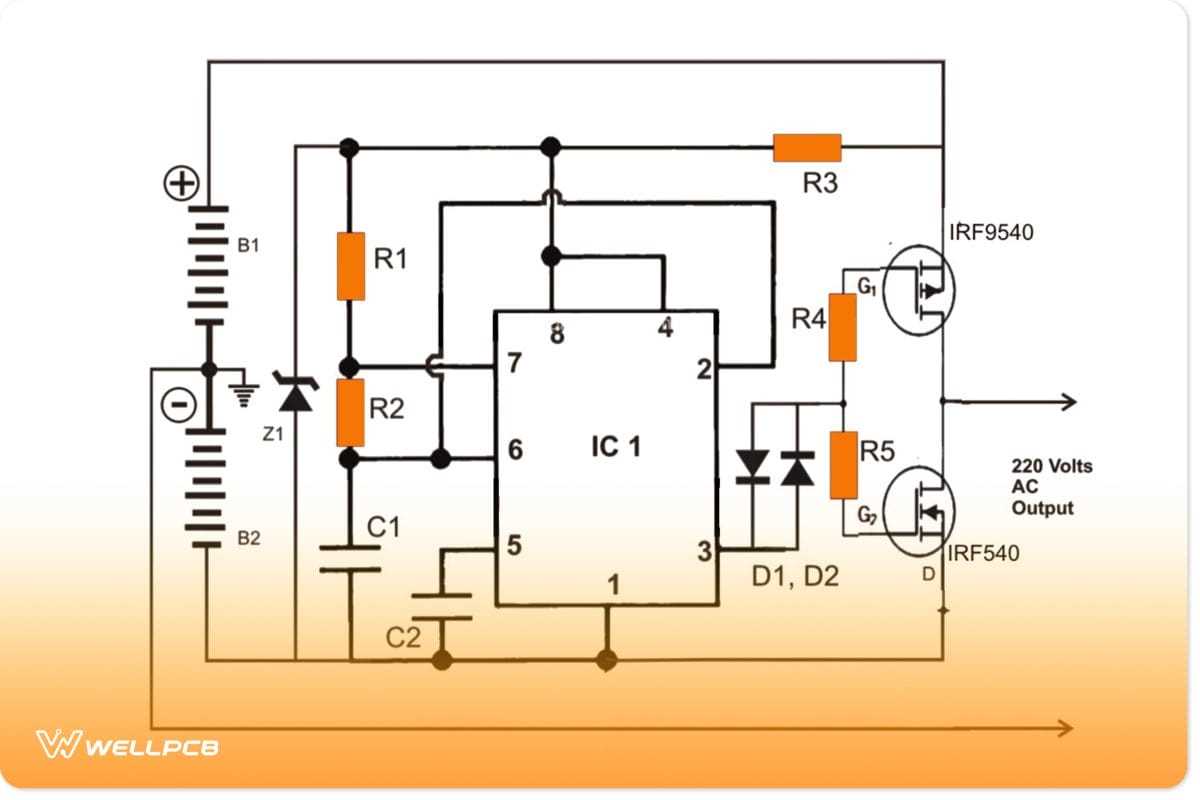

Wire the drive circuitry with a 555 timer or dedicated PWM controller (e.g., SG3525) set to 50% duty cycle, ensuring dead time to prevent shoot-through. Link the controller’s complementary outputs to MOSFET gates via 10Ω–100Ω gate resistors to dampen ringing. Insert a schottky diode (e.g., 1N5822) across each MOSFET drain-source to clamp back EMF from the transformer’s leakage inductance–failure here destroys semiconductors within microseconds. Ground the controller’s reference pin to the system ground, but keep it separate from the power ground to avoid noise coupling.

On the secondary, use a full-wave bridge rectifier with ultrafast diodes (e.g., MUR460) or a synchronous topology with Schottky MOSFETs for efficiency above 90%. Filter the output with LC components: a 100μH choke followed by a 1000μF capacitor per 1A of load current. For 230V AC output, regulate the DC bus to 325V before the H-bridge if sine-wave purity is critical; otherwise, a simple voltage doubler suffices for square-wave designs. Measure primary current with a 0.01Ω shunt resistor to implement overcurrent protection–trigger shutdown at 1.5× nominal load.

Test first with a resistive load (e.g., 100W bulb) to verify waveform symmetry. Observe gate signals on an oscilloscope: rise/fall times should be ; slower edges indicate insufficient drive current or stray inductance. Check transformer saturation by monitoring current–it should return to zero at each switching cycle. If asymmetry exceeds 10%, trim the duty cycle or rewind the primary to balance the coils. For galvanic isolation, add optocouplers (e.g., PC817) between the controller and power stage, ensuring creepage distance of 8mm for high-voltage outputs.

Finalize cooling with heatsinks sized for 5°C/W per MOSFET; thermal paste and mica washers are mandatory. Encapsulate the entire assembly in a grounded metal enclosure to contain EMI–conducted emissions can exceed FCC limits by 30dB without shielding. Label all terminals, especially the center tap and gate drive paths, to prevent catastrophic misconnections. Store undriven units with MOSFET gates shorted to ground to avoid electrostatic damage.

Choosing the Right MOSFETs or IGBTs for Switching Stages

Select N-channel MOSFETs for systems under 1 kW with switching frequencies above 50 kHz. Devices like Infineon IPW60R041C6 offer 600 V, 41 mΩ R_DS(on), and a 20 A continuous drain current, balancing conduction and switching losses. Prioritize parts with low gate charge (Q_g)–under 50 nC–to minimize driver losses and simplify gate driving circuitry. Avoid hybrids with internal diodes rated below 1.5× the nominal current unless external Schottky diodes are added.

For 1–10 kW applications, IGBTs with soft-switching characteristics excel. STGW60H65DFB from STMicro provides 650 V, 60 A, and a saturation voltage (V_CE(sat)) of 1.65 V at 125°C, reducing conduction losses in hard-switched topologies. Look for devices labeled Trench Field Stop; these minimize tail currents during turn-off, cutting switching losses by up to 30% compared to older planar designs. Ensure the junction-case thermal resistance (R_thJC) stays below 0.5°C/W for reliable heat dissipation.

Match the device’s reverse recovery charge (Q_rr) to your dead-time requirements. For example, IXYS IXFH48N60P3 specifies Q_rr = 55 nC at 10 A, allowing 250 ns dead-time in 20 kHz systems. If dead-time exceeds 500 ns, opt for parts like Vishay SiHG47N60E with Q_rr rr by 40% when operating above 100°C to account for temperature-dependent variations.

Calculate the peak drain-source voltage (V_DS(max)) using V_DS(max) = V_bus + 1.3×(V_bus × di/dt × L_stray), where L_stray includes PCB traces and package inductance. For a 400 V bus, target MOSFETs rated ≥ 650 V to accommodate 30% overshoot during turn-off. IGBTs like Infineon IKW40N120T2 (1200 V) suit higher bus voltages, but verify safe operating area (SOA) curves; devices must withstand 2× nominal current for 1 µs without latch-up.

Gate driver compatibility dictates rise/fall times. MOSFETs with C_iss pair well with isolated drivers such as TI UCC21520, achieving GE) and sink/source ≥ 2 A; Infineon 1ED020I12-F2 meets these requirements. Avoid ringing by setting R_G between 5–20 Ω–lower values reduce switching losses but may trigger oscillations with stray inductance > 20 nH.

Thermal design hinges on package selection. TO-247 MOSFETs (e.g., IXYS IXFK64N60P) handle 250 W with a heatsink, but double-sided cooling (e.g., Infineon OptiMOS™ 5 in SuperSO8) improves dissipation by 40%. For IGBT modules, Semikron SEMiX604GB12E4s integrates thermal pads and screw terminals, simplifying assembly. Always verify the manufacturer’s T_j(max)–most silicon devices tolerate 150°C, but derate to 125°C for long-term reliability, especially in ambient temperatures above 50°C.

Cost-performance balance favors CoolMOS™ C7 for DS(on) scales near-linearly with current. For > 10 kW, IGBT modules like Fuji 2MBI300XNE120-50 ($0.15/A) outperform discrete solutions by reducing parasitics. Benchmark against figure of merit (FOM) = R_DS(on) × Q_g; values PPAP (Production Part Approval Process) documentation if designing for automotive or industrial certification.
