How to Build and Understand a Step-by-Step Relay Circuit Diagram

Begin by placing the electromagnetic coil at the core of your schematic. Use a standard 9V–24V DC supply for activation–verify impedance match (typical 50Ω–200Ω) to prevent overheating. Connect the primary power line through the normally open (NO) terminal for fail-safe operation in critical loads, such as industrial motors or automated lighting. For high-current applications (>10A), use silver-alloy contacts rated for 30A+ to avoid arcing and contact welding.

Select a solid-state driver only if response time under 5 ms is required; mechanical variants remain superior for 120V AC switching due to lower leakage current. Always isolate low-voltage control (optocoupler to prevent feedback loops. Ground the coil’s common terminal directly to the power supply negative to minimize noise in sensitive analog signals.

Use freewheeling diodes (1N4007) across coils to suppress voltage spikes–failure here risks destroying microcontrollers. For latching configurations, pair two switching units with a momentary push-button; ensure the second unit’s coil releases the first via mechanical interlock or a timed delay (RC network) to prevent race conditions.

Test continuity with a multimeter before powering high loads–measure resistance at NO/NC terminals ( is optimal). Label each wire with heat-shrink tubing or color-coded markers to avoid cross-wiring during maintenance. For outdoor installations, seal connections in IP67-rated enclosures and apply dielectric grease to terminals to prevent corrosion.

Schematic Representation of Electromagnetic Switch Configurations

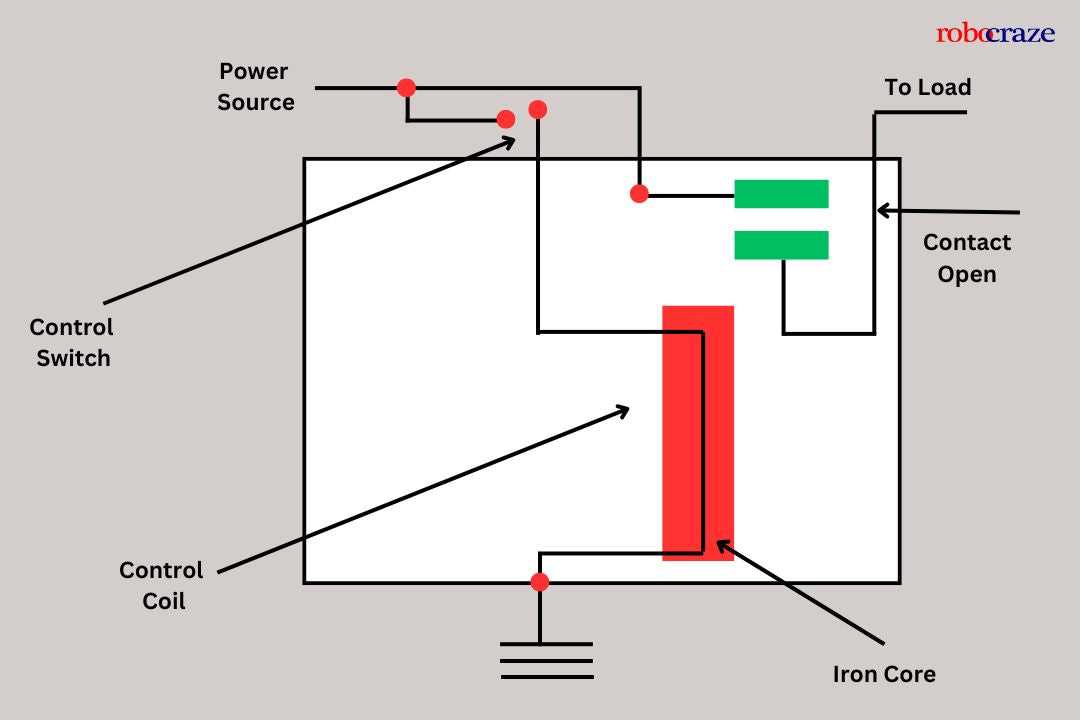

Start with a single-pole single-throw (SPST) arrangement for baseline control. Position the coil between a DC source and ground, ensuring the armature connects to a separate load path–this isolates input and output sides effectively. Use a 12V coil if driving automotive auxiliaries; for industrial motors, opt for 24V or 48V variants to reduce current draw while maintaining sufficient magnetic force. Include a flyback diode across the coil terminals, oriented cathode-to-positive to clamp inductive voltage spikes–silicon PN junctions with 1A or higher current ratings work reliably.

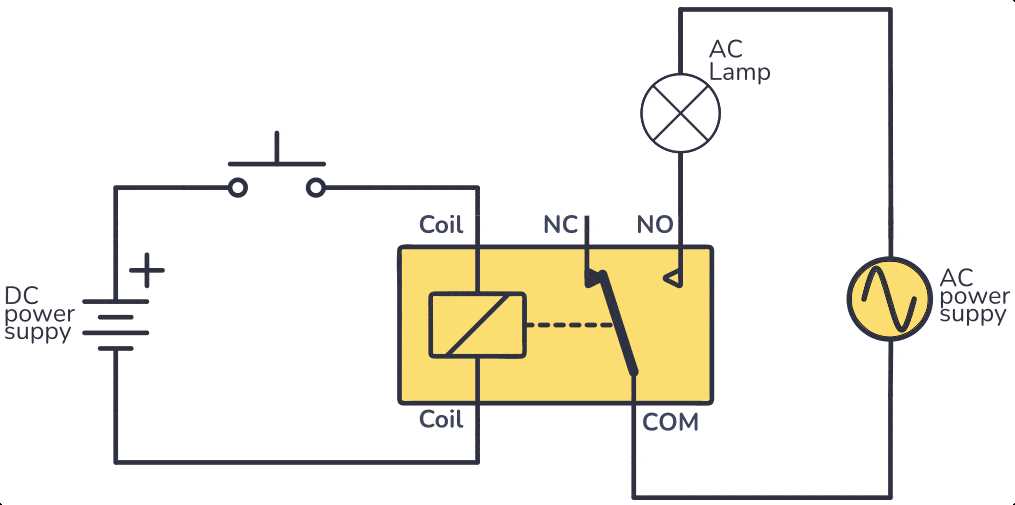

For two-way toggling, replace the SPST with a double-throw (SPDT) layout. The common terminal links to the load; normally open and closed contacts connect to separate power rails or signal lines. When the coil energizes, the armature switches from the closed to the open contact–critical for fail-safe designs. Embed a snubber network (resistor-capacitor pair) in parallel with switched circuits prone to arcing; 100Ω resistors combined with 0.1µF capacitors suppress transient noise effectively during state changes.

Stack multiple SPDT units to form a double-pole double-throw (DPDT) matrix. Each pole handles independent signal paths–ideal for reversing motor polarity or multiplexing sensor inputs. Wire coil terminals in parallel if simultaneous switching is required, but ensure the power supply can deliver combined holding currents. For AC-driven coils, incorporate a bridge rectifier followed by a smoothing capacitor to convert incoming sine waves into stable DC, preventing chatter caused by zero-crossing points.

• Select coil voltage matching the primary system voltage–mismatches reduce pulling force or risk overheating.
• Use gold-plated contacts for low-level signals below 100mA to prevent oxide buildup.
• Mount units vertically with coils oriented horizontally to avoid gravitational bias on the armature.
• Insert a thermal fuse in series with high-power contacts if continuous currents exceed 75% of the rating.

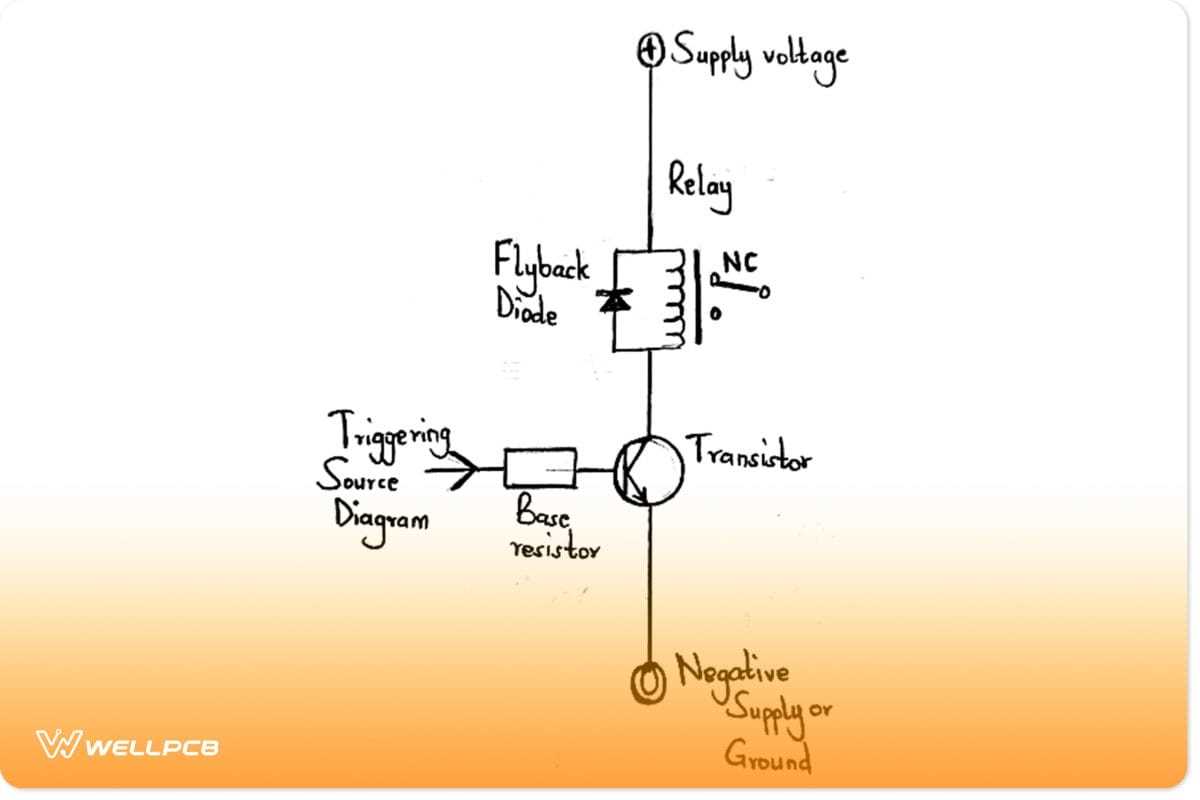

Combine solid-state components with mechanical switching for hybrid layouts. Drive the coil through an N-channel MOSFET or optocoupler, triggering from microcontroller outputs. Set gate resistors to 1kΩ for 5V logic levels; include pull-down resistors to prevent floating states during power-up. Optical isolation keeps inductive transients away from sensitive logic circuits–use 10kV-rated optocouplers for robust separation.

Sequence switching events in safety-critical paths. Start with a “make-before-break” contact pair: Energize the primary coil first, then engage the secondary through auxiliary contacts timed via RC delays. A 4.7µF capacitor charged through a 10kΩ resistor creates a 50ms delay, ensuring overlap between transitions. Test timing margins under worst-case voltage conditions–coil dropout voltages typically range from 35% to 70% of nominal ratings.

Shield high-frequency noise sources by enclosing the entire switching assembly in a grounded metal box. Route sensitive lines through twisted pairs or coaxial cables, terminating shields at a single chassis point to avoid ground loops. Filter incoming power through LC sections: 100µH inductors paired with 100µF capacitors remove conducted interference below 1MHz effectively. Position suppression components near the coil terminals rather than at the power source to intercept local transients.

1. Measure coil resistance–values below 50Ω suggest shorted turns, above 500Ω indicate open circuits.
2. Validate contact bounce duration with an oscilloscope–ideal bounce-time should stay under 5ms for digital signals.
3. Test insulation resistance between coil and contacts–minimum 100MΩ at 500V confirms dielectric integrity.
4. Ensure mounting hardware remains non-conductive if using DIN rail installations to prevent leakage paths.

How to Interpret Fundamental Switching Device Schematics

Begin by identifying the coil symbol–a rectangle with terminals marked A1 and A2, often accompanied by a dashed line indicating induced magnetic flux. This component represents the electromagnetic activator; voltage applied here creates the field necessary for operation. Note polarity if direct current is specified, though most industrial applications tolerate alternating current without strict orientation.

Locate the normally open and closed contacts–paired lines intersecting a diagonal or vertical break. The NO contact connects when energized, acting like a closed gateway, while the NC disconnects, mimicking an open path. Symbols vary slightly: IEC standards use straight lines with a diagonal slash, whereas ANSI opts for a curved break. Verify legends on schematics to confirm conventions.

Trace the auxiliary markings. A number adjacent to contacts (e.g., 13-14) indicates pin assignments on physical devices, critical for wiring accuracy. Some symbols include a timer notation (e.g., “T” adjacent to contacts) signaling delayed engagement–consult datasheets for precise delay characteristics, as timing curves differ across models.

Observe the load connections–thick lines branching from contact points signify high-current paths, while thinner lines denote control signals. Avoid assuming current ratings based on line weight alone; refer to component specifications. Contacts labeled “C” typically denote a common terminal, bridging either NO or NC based on coil state.

Decode the enclosure symbol–a dotted rectangle or circle encapsulating the coil and contacts identifies sealed or hermetic units. This detail warns of potential maintenance constraints; sealed devices resist dust but may trap heat, affecting reliability. High-altitude or explosive environments often mandate such enclosures.

Cross-reference schematics with physical layouts. A triangle beside contacts may indicate a solid-state variant, lacking moving parts but sensitive to voltage spikes. Traditional mechanical types include arc suppression features (small capacitors or diodes) near coil terminals–omit these at your peril, as arcing reduces lifespan dramatically.

Memorize variant symbols: latching types feature paired coils (set/reset), while polarized versions include an arrow denoting DC-sensitive operation. Thermal overload symbols resemble a bimetallic strip adjacent to the coil–these automatically de-energize under excessive current, preventing damage. Always verify these subtleties before energizing prototypes.

Step-by-Step Wiring for Practical Switching Control Systems

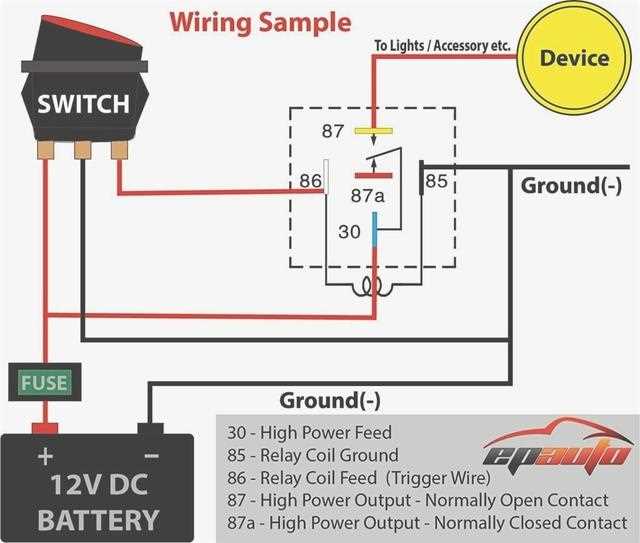

Begin by identifying the power source’s voltage and current ratings–most low-voltage setups use 12V DC, while industrial applications often rely on 24V or 120V AC. Select an electromechanical switch with contacts rated for at least 20% above the expected load to prevent overheating. For example, a 10A switching module handles a 7A motor safely, but marginal ratings risk premature failure. Strip 5mm of insulation from the control wires (22-18 AWG) and crimp spade terminals for secure connections to the coil terminals marked 85 and 86. Never exceed the coil’s voltage limit; a 12V coil burns out instantly if connected to 120V.

Connect the load to the normally open (NO) terminal pair 30 and 87 for standard operation, ensuring the current path closes only when the coil energizes. For fail-safe designs, use the normally closed (NC) pair 30 and 87a–this keeps the load powered unless the control signal activates. Test continuity with a multimeter before applying power: probe the NO/NC terminals while manually depressing the switch’s armature to verify contact alignment. Common mistakes include reversed coil polarity (irrelevant for DC coils but critical for AC) and insufficient wire gauge, leading to voltage drops. Refer to the table below for gauge recommendations based on load current:

Load Current (A)	Minimum Wire Gauge (AWG)	Typical Application
0.5–3	22–18	LED strips, sensors
3–10	18–14	Motors, solenoids
10–20	14–10	Heating elements, pumps
>20	10 or thicker	Industrial equipment

Solder all high-vibration connections, especially in automotive or machinery applications, to prevent intermittent faults. Use heat-shrink tubing to insulate joints from moisture and short circuits. For timed activation, pair the switching module with a delay timer–set the timer’s trigger to the coil’s voltage and adjust the delay via potentiometer or digital interface. Example: A 12V delay timer wired to terminal 86 with a 5-second preset will keep a sprinkler system running after the switch signal stops. Avoid daisy-chaining multiple loads from a single contact; distribute power via separate fuses for each output to isolate faults.
