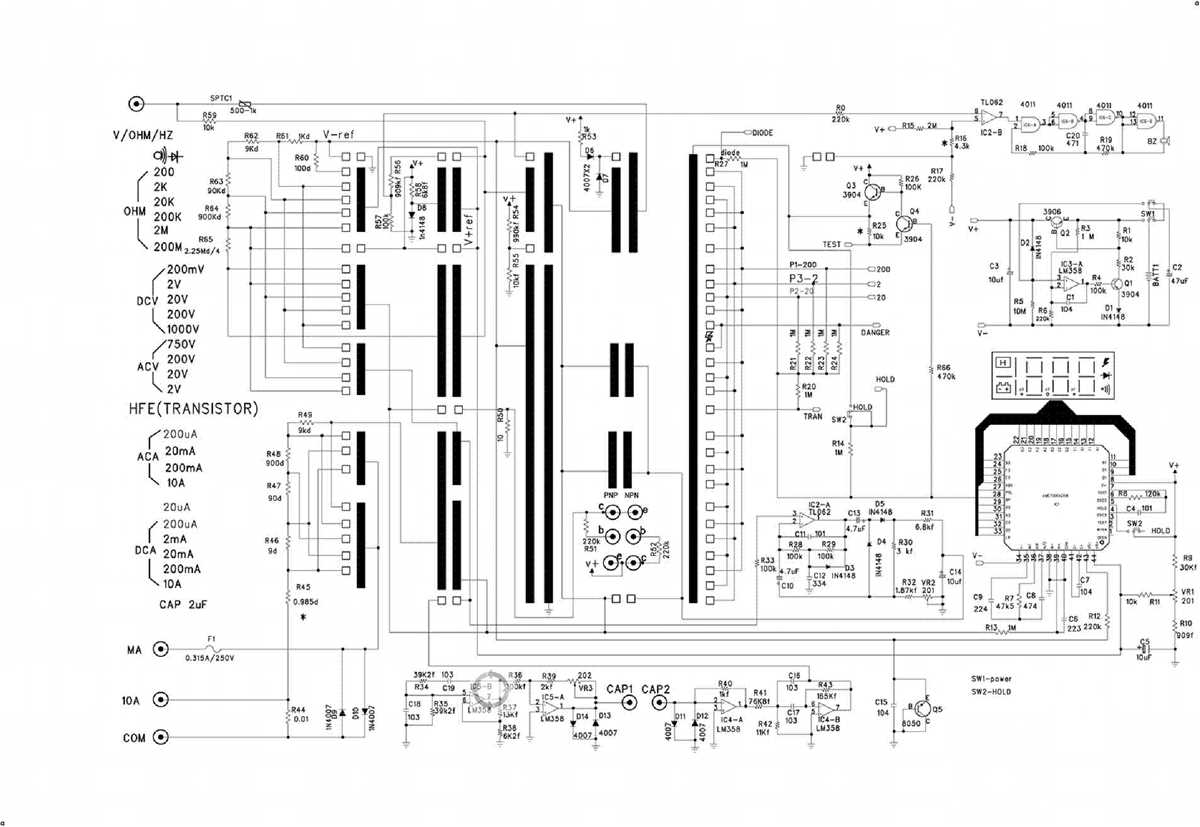

DT9205A Digital Multimeter Circuit Diagram and Component Guide
If you’re troubleshooting or modifying the DT9205A measuring instrument, begin by locating the main control IC–typically an ES51922 or similar microcontroller–on the PCB. This chip handles signal processing and display output, so verifying its pinout early prevents misalignment during testing. Direct your attention to the power supply section, where a 78L05 voltage regulator stabilizes the 5V rail. Check for excessive heat here, as failure often stems from improper input voltage or shorted capacitors (C1, C2 near the regulator).
For precision measurements, focus on the ADC input stage. The TL062 operational amplifier buffers and conditions signals before reaching the microcontroller. If readings drift or show noise, inspect the low-pass filter components (R1, C3, C4) and the range selector resistors (divider network). Replace any suspect resistors with 1% tolerance metal film types to maintain accuracy. The test probe jacks connect directly to the input protection circuit–ensure the back-to-back diodes (D1, D2) are intact to prevent damage from transient spikes.

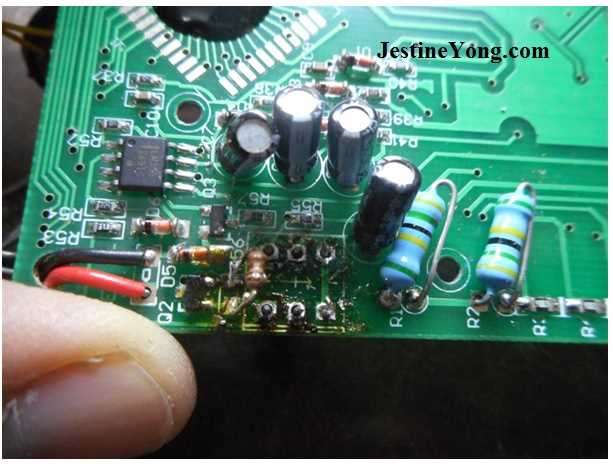

When reverse-engineering the board, prioritize the display connections. The LCD driver traces are thin and prone to corrosion; use a continuity tester to confirm connectivity from the IC to the segment contacts. For repairs, keep a hot-air rework station at 350°C to safely remove the microcontroller without lifting pads. Always cross-reference your findings with the original factory layout, as unofficial schematics may omit critical details like EMC capacitors (C5, C6 near the power switch) or thermal compensation circuits.
Understanding the DT9205A Circuit Layout
To troubleshoot or modify the DT9205A, focus first on the dual-slope analog-to-digital converter (ICL7106)–its pinout defines critical measurement ranges. Verify R1 (9MΩ) and R2 (90kΩ) on the voltage divider network; deviations beyond 1% will skew 200mV reference accuracy. Check C4 (0.1µF) near the crystal oscillator–leakage here causes erratic readings. For continuity testing, probe Q1 (S9014)’s base; a faulty transistor often mutes the buzzer despite low resistance.
Key Components and Signal Paths
Trace the current shunt resistors–R8 (0.01Ω) handles 10A, while R9 (0.1Ω) splits mA ranges; overheating here indicates overload. The rotary switch (SW2) routes signals via 24 positions–each pad must resist corrosion or readings drift. Examine D6 (1N4148) near the input jack; reverse voltage beyond 30V risks zener breakdown. For firmware adjustments, locate U2 (HM6102)’s EEPROM–its data dictates auto-ranging thresholds, though manual calibration via VR1 (10kΩ) trimpot is often sufficient.
Identifying Key Components in the DT9205A Circuit Layout
Begin by locating the dual-slope analog-to-digital converter (ICL7106 or equivalent) at the heart of the board. This 40-pin chip handles voltage sampling, integration, and display drive–its pinout dictates the placement of surrounding resistors, capacitors, and reference voltage networks. Trace pins 30–32 (common, VREF+, VREF-) to nearby precision resistors (typically 1MΩ and 100kΩ) that set measurement accuracy. Verify these values against the original design; deviations of ±1% will skew readings.
- Input protection diodes (1N4148 or similar) sit adjacent to the test leads’ entry points. Confirm their orientation: anode to ground, cathode facing the input.
- Power supply capacitors (10μF–47μF electrolytic) near the battery connector filter noise. Check for bulging or leaks–failed components here cause erratic display behavior.
- Rotary switch contacts connect to resistor dividers for range selection. Each position should link to a specific 1% tolerance resistor network. Use a continuity tester to ensure no cold solder joints exist.
The LCD driver traces radiate from the converter’s pins 19–24, typically routed to zebra strips or elastomeric connectors. Clean these interfaces with isopropyl alcohol if segments fail to illuminate uniformly. Backlight LEDs (if present) draw power directly from the 9V input via a current-limiting resistor (≈470Ω). Replace burned-out LEDs promptly; excessive voltage drop here dims readings.
Turnover resistors and capacitors define auto-ranging response times. A 100pF–1nF capacitor across the op-amp feedback loop (often TL062) smoothens transitions between scales. Adjustments to this component alter settling speed–shorter times improve response but risk overshoot. For DC measurements, a 10MΩ resistor in series with the high-impedance input guards against overload; its absence risks IC damage.
- Desolder the main IC for inspection if ghost readings persist. Clean the socket with a fiberglass pen, then reflow all connections.
- Test voltage reference stability by probing the 100kΩ divider while toggling ranges. Fluctuations above ±5mV indicate a failing 2.5V reference IC (e.g., TL431).
- Check transistor arrays (e.g., BC847) near the hFE testing circuit. These amplify small currents; mismatched pairs distort readings.
Ground planes beneath high-impedance inputs must remain uninterrupted. Scratches or poor solder mask coverage invite stray capacitance, manifesting as drift in AC measurements. Use shielded cables for loose leads to minimize interference. Replace any corroded battery terminals with nickel-plated contacts; oxidized surfaces introduce milli-ohm resistances that skew milliamp readings.
Tracing Signal Paths for Voltage and Current Measurement Modes
Begin with the voltage dividers on the front-end. Locate resistors R1 (1MΩ), R2 (100kΩ), and R3 (10kΩ) in the input stage–these form attenuation ratios of 1:11, 1:110, and 1:1100 respectively. For DC measurements, follow the path from the input jack through R1-R3 to the buffer amplifier IC1A (TL072). Verify the offset null adjustment at VR1 (20kΩ) to ensure minimal drift. AC modes bypass the DC offset circuit via C1 (100nF) before reaching IC1A, so confirm C1’s ESR remains below 1Ω to prevent phase shifts.
Examine the current shunt network next. For the 200µA–2000mA ranges, the signal routes through R4-R7 (0.1Ω–10Ω precision shunts). The 10A jack uses a separate high-power trace–locate the thick copper strand linking the jack to Q1’s collector (TIP31C) and R8 (0.01Ω manganin). Check for thermal drift here; R8’s temperature coefficient must stay under 50ppm/°C. The shunt voltage develops across these resistors, then feeds IC1B via R9 (1kΩ) for amplification. Measure the gain with a known current source–IC1B’s output should swing within ±2.5V for full-scale inputs.
Critical Node Checks
| Mode | Signal Node | Expected Voltage (FS) | Test Point |
|---|---|---|---|
| DCV 200mV | IC1A OUT | ±199.9mV | TP1 |
| DCA 200mA | IC1B IN+ | ±10mV (R7=0.5Ω) | TP2 |
| ACV 750V | C1→IC1A | 2.2V RMS (after gain) | TP3 |
| 10A | Q1 EMITTER | ±70mV (R8=0.01Ω) | TP4 |
Isolate faults in the A/D converter interface. IC2 (ICL7106) requires a stable reference–verify VR2 (2.5V) at pin 36, with ripple below 1mV pp. The signal from IC1B passes through R10 (47kΩ) and C2 (100nF) for filtering before reaching IC2’s input (pin 31). If readings fluctuate, check C2’s leakage; replace if its insulation resistance drops under 10GΩ. For AC, IC3 (TL062) rectifies the signal first–probe IC3’s output (pin 7) to confirm it tracks input peaks within ±5% of expected values (e.g., 3.1V for 2.2V RMS).
Validate the auto-ranging logic last. IC4 (CD4011) decodes range selections via analog switches IC5 (CD4066). When switching from 200mV to 2000mV, IC4 toggles IC5’s pins 5/6 to bypass R3–trace this path with a logic probe or scope. Ensure IC5’s on-resistance stays below 100Ω to avoid range errors. For current modes, IC4 also disables voltage dividers by pulling IC1A’s input low–check for accidental coupling through R11 (1MΩ), which can corrupt readings. If ranges fail to stabilize, bypass IC4 with jumpers to isolate stuck bits in the control lines.
Locating and Decoding the ADC Chip’s Function in Circuit Layouts
Start by identifying the analog-to-digital converter (ADC) on the board–typically marked as a 28-pin or 40-pin IC near the central processing area. In most portable measurement tools, this chip bears labels like ICL7106, ICL7107, or ES51922. Trace its VIN pins (often 30–32) to confirm connection points for incoming signals, usually routed from the measurement inputs through filtering capacitors (10–100nF) and scaling resistors (1–10MΩ). Verify ground references; the ADC’s COM pin should connect to a stable low-impedance node, often paired with a temperature-compensated voltage reference.
Examine the clock oscillator section–ADC chips rely on an external RC network or quartz crystal (40–100kHz) for timing. Look for a 100kΩ resistor and a 47pF capacitor between pins labeled OSC1 and OSC2. If absent, the clock may derive from an onboard microcontroller, identifiable by a direct trace linking the two components. Confirm stability: a drifting clock skews readings; replace the RC pair if frequency deviates ±5%.
Signal Path Validation
Follow the input traces backward to locate the front-end amplifier–often an op-amp like TL062 or LM358. The ADC’s internal multiplexer switches between channels (V, Ω, A), controlled via pins labeled CH0–CH3. Check for series resistors (1kΩ typical) protecting these lines; shorts here distort measurements. Use a DMM in diode mode to spot damaged ESD diodes–forward voltage should be ~0.6V. Replace if readings exceed 1V.
Decode the reference voltage pins (e.g., VREF+ and VREF-). These define the ADC’s full-scale range–typical values are 100mV for 200mV ranges, 1V for 2V ranges. Measure with a precision source; deviation indicates a faulty zener diode (commonly BZX84C) or a tired voltage divider. Recalibrate by adjusting the trimmer potentiometer (usually 1–10kΩ) if present, or replace the reference chip if drift persists beyond ±2%.
Common Failure Points
Inspect the segment driver outputs (pins 2–20, 23–25 for 7-segment displays). Weak or missing segments suggest ADC logic failure–test by injecting a known DC signal (e.g., 100mV via a bench PSU). If segments remain erratic, swap the ADC IC. Check decoupling capacitors (10µF typically) on V+ and V- supply pins; bulging or leaking caps cause noise. Replace them before re-soldering the IC.
For AC measurements, locate the RMS-to-DC converter (often AD636 or discrete transistors). The ADC processes this output as a DC equivalent. Verify connections to the rectifier stage–broken traces here cause AC readings to flatline. Use an oscilloscope to confirm a clean 100Hz–1kHz waveform post-rectification before it reaches the ADC. If distorted, recalculate gain resistors (39kΩ–200kΩ range) and replace faulty diodes (1N4148).
End diagnostics by probing the ADC’s interrupt or data pins (e.g., BUSY or DATA). If the processor fails to sync, check for cold solder joints–reflow suspect pads with fresh flux. For tools with serial interfaces (e.g., UART), trace TX/RX lines back to the ADC; noise here corrupts transmitted data. Use a logic analyzer to verify baud rates match the microcontroller’s firmware specifications. Replace the ADC only after ruling out firmware bugs via flash dump comparison.
