Guide to Designing and Understanding Home Electrical Wiring Schemes
Start by mapping the power points on graph paper. Each square should represent 10 centimeters for accuracy. Mark the main panel location first–ideally in a dry, accessible area like a utility room or garage. From there, trace pathways for cables, keeping them at least 30 centimeters from water pipes and 50 centimeters from gas lines. Use 2.5 mm² copper wires for standard sockets and 1.5 mm² for lights, ensuring compliance with local codes like IEC 60364 or NEC.
Divide the system into at least two separate loops: one for lighting and another for outlets. This prevents total blackouts if one circuit trips. For kitchens or workshops, add a dedicated 16-amp loop for high-load appliances like ovens or table saws. Label each breaker in the panel with indelible ink–mislabeling causes 12% of home electrical fires annually.
Install residual-current devices (RCDs) on all loops feeding wet areas (bathrooms, laundry) and outdoor outlets. Test RCDs monthly by pressing the “test” button–a non-functional device increases electrocution risk by 40%. For three-phase systems, balance loads within 10% across phases to avoid overheating. Use metallic conduit in exposed areas or attics; PVC suffices for in-wall runs.
Avoid common errors: never run cables diagonally (only horizontal/vertical), leave 20 centimeters of slack at each junction box for repairs, and keep neutral wires separated from grounds until the main bond. In older homes, replace knob-and-tube wiring immediately–it fails insulation tests in 95% of cases after 70 years. Document every connection with photographs before closing walls; this saves 8+ hours during future modifications.
Understanding Home Wiring Schematics
Begin by labeling every wire in your home’s power layout with color-coded tags. Use red for live conductors, blue for neutral, and green-yellow for earth. This prevents misconnections during repairs or upgrades. Store a duplicate set of labels in a waterproof sleeve near the main fuse box.
Install a 30mA residual current device (RCD) on all lighting and socket rings. This interrupts power in under 40 milliseconds, reducing shock risk. Test RCDs monthly using the built-in test button–failure to trip indicates replacement is needed.
Map each ring final sub-main separately. Sketch live, neutral, and earth paths in parallel, ensuring no branch exceeds 20A. Calculate total load by summing all connected appliances–overloads cause nuisance tripping or insulation breakdown.
Use 2.5mm² cross-sectional area cable for sockets and 1.5mm² for lights. Thicker cables minimize voltage drop over distances above 20 meters. Measure actual voltage at the furthest outlet–any drop below 230V suggests undersized conductors.
Mount consumer units with clear access to hinged covers. Space breakers at least 10mm apart to prevent heat buildup. Label each miniature circuit breaker (MCB) with its corresponding room and appliance, including amperage ratings (e.g., “Kitchen – 32A – Oven”).
Avoid daisy-chaining sockets. Dedicate a separate spur for high-wattage appliances like electric ovens or water heaters. Run 4mm² cable directly from the fuse box to prevent overheating at connections.
Ground all metallic components, including conduit, trunking, and switch plates. Use crimp lugs for earth bonds, not twist-and-tape joints. Verify continuity with a multimeter–readings above 0.5 ohms require re-termination.
Shield schematics behind transparent perspex in the fuse box. Update sketches immediately after modifications and archive previous versions. Include emergency shutdown procedures on the inside cover, such as turning off the main switch before working on any section.
Core Elements of a Residential Wiring Blueprint
Install a main service panel with a minimum 100-amp capacity for modern households; upgrade to 200 amps if running high-power appliances like HVAC systems or electric vehicles. Position it in a dry, accessible location–ideally a garage, basement, or utility room–with 30 inches of clearance in front for safety. Use copper bus bars instead of aluminum to reduce corrosion risks over time. Label each breaker clearly with indelible ink, including amperage ratings (e.g., “15A Kitchen Lights,” “50A Range”). Avoid overloading a single breaker; distribute loads so no circuit exceeds 80% of its rated capacity under continuous use (e.g., a 20A breaker should carry ≤16A).
Run 12 AWG copper wire for 15-20 amp branch lines and 10 AWG for 30 amp circuits, such as those powering ovens or dryers. For conduit use, select schedule 40 PVC (indoor) or galvanized steel (outdoor/exposed) with a minimum ½-inch diameter for 2-3 wires; increase to ¾-inch for 4+ conductors. Bury underground feeder lines at 24-inch depth if unprotected or 18 inches under rigid conduit. Use arc-fault circuit interrupters (AFCIs) on all bedroom and living area outlets, and ground-fault circuit interrupters (GFCIs) within 6 feet of water sources (sinks, showers). Replace any 2-prong outlets with tamper-resistant 3-prong variants in living spaces, even if grounding isn’t retrofitted.
Structured wiring hubs should include Cat6 cables for data, RG6 coaxial for satellite/TV, and 14 AWG low-voltage wire for doorbells or smart-home sensors. Bundle these separately from 120V lines using plastic staples spaced ≤4.5 feet apart to prevent signal interference. Isolate networking components in a fire-rated enclosure if near combustible materials. Mount surge protectors at the panel and key appliances (fridge, TV, router) with ≥1000 joules rating per device. For smart switches, ensure neutral wires are accessible–half of pre-1980s homes lack them–or use no-neutral alternatives like Lutron Caséta.
Grounding rods must be 8-foot copper-clad steel driven ≥6 feet deep, connected to the panel via #6 AWG bare copper wire (uninsulated). Test resistance yearly with a multimeter; ≤25 ohms is acceptable, but subpanel with a 4-wire feeder (two hot, one neutral, one ground) to avoid ground loops. Use weatherproof junction boxes for outdoor fixtures, sealing entries with duct seal compound to block moisture. Avoid back-to-back outlet installations on opposite sides of a stud–stagger them by 8 inches to meet NEC receptacle spacing rules.
Label the shut-off valve for incoming water near the main panel and train household members on its location. Keep a non-contact voltage tester and insulated flashlight within 10 feet of the panel. Replace any knob-and-tube wiring (common in pre-1950s homes) or aluminum wiring (1960s–70s) immediately–both are fire hazards. For generators, use an interlock kit (not a backfeed cord) and size it based on starting watts (not running watts) of essential loads (e.g., fridge = 2200W start, 700W run). Store a printed one-line schematic of the entire system inside the panel door, including wire gauges, breaker types, and amperages.
Step-by-Step Guide to Installing a Simple Home Lighting Setup
Before starting, switch off the mains power at the fuse box to eliminate shock risks. Label the breaker if unclear–use a voltage tester to confirm no current flows to exposed wires.
Gather these components for a single-switch configuration:
- 14-gauge copper wire (black, white, green/bare)
- Single-pole switch (15A rating)
- Light fixture with 60W-max bulb
- Wire nuts (size appropriate for wire gauge)
- Cable clamps for junction boxes
Run a non-metallic sheathed cable from the power source to the switch location. Strip 6–8 inches of outer insulation at both ends, leaving ½ inch of conductor insulation. Route the cable through the switch box’s knockouts, securing it with a clamp to prevent strain.
Connect the switch by joining the black (live) wire to the brass terminal and the white (neutral) wire to the silver terminal. Twist the green/bare wire (ground) to the switch’s grounding screw. Ensure no exposed copper extends beyond the wire nut–wrap electrical tape around spliced connections for extra insulation.
From the switch, continue the cable to the fixture box. Join matching wires: black to black, white to white, ground to ground. For multiple fixtures on one switch, create a series by daisy-chaining wires–strip ½ inch of insulation at each splice point before twisting.
Mount the fixture securely, ensuring no weight rests on wire connections. Attach the bulb, then restore power. Test by flipping the switch–if the light flickers or fails, recheck wire nuts for loose strands or poor contact. Use a non-contact voltage pen to verify live wires aren’t touching grounded metal.

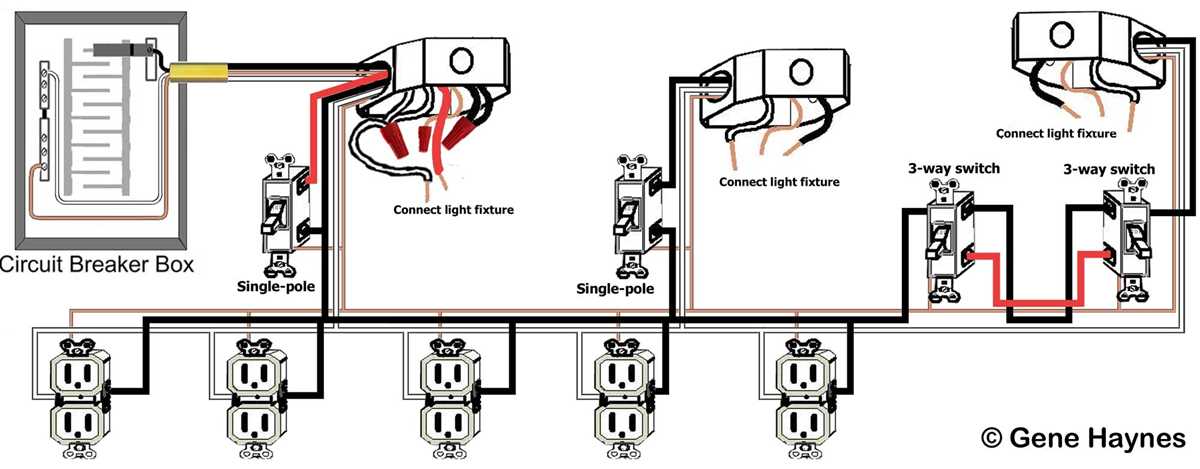

For a two-way switching setup (e.g., hallway with switches at both ends), replace the single-pole switch with three-way switches. Run a 14/3 cable between switches, containing an additional red wire. Connect:
- Black wires to dark-colored common terminals
- Red and white wires to brass-colored traveler terminals
- Ground wires to respective screws
Avoid mixing traveler wires–mark them with colored tape if labels are unclear.
Seal all boxes with appropriate covers after testing. For outdoor or damp locations, use weatherproof covers and silicone-filled wire nuts. Always consult local building codes–some regions require GFCI protection for lamps near sinks or in garages.
Matching Power Sockets to High-Demand Devices
Locate dedicated lines for heavy-load equipment like ovens or washers by tracing wires from the breaker panel. These lines terminate in isolated receptacles, often marked with 20A or 30A ratings on the faceplate. Verify using a non-contact tester: insert the probe into each slot; a steady LED glow confirms live wiring. For 240V appliances, ensure the socket has four holes arranged in a rectangular pattern–never connect to standard 120V outlets, even if adapters exist.
Small appliances–blenders, toasters–should share a single branch run, but never exceed eight plugs per 15A line. Group kitchen counter outlets on one breaker; spread basement and garage receptacles across separate feeds to prevent overload. Label each breaker with the room or device serviced, noting wattage limits: 1,800W for 15A circuits, 2,400W for 20A. Use 12-gauge wire for all 20A branches, regardless of distance from the box.
Ground fault protection is mandatory for outlets near water sources: bathrooms, laundry rooms, outdoor spaces. Test GFCI receptacles monthly–press the “Test” button; the outlet must trip instantly. If not, replace the device immediately. For non-GFCI areas, install arc-fault breakers to detect loose connections before they spark. Avoid back-stab connections; side-clamp terminals hold wires more securely under vibration.
Extension cords are temporary fixes–permanent solutions require proper box installation. When cutting openings for new sockets, use a drywall saw, not a knife, to prevent uneven edges. Secure cables with NM clamp connectors; tighten until the wire barely moves when tugged, but avoid crushing the insulation. Connect black wires to brass screws, whites to silver, bare copper to green grounding posts. Torque all terminal screws to 12–14 in-lbs to prevent loosening over time.
