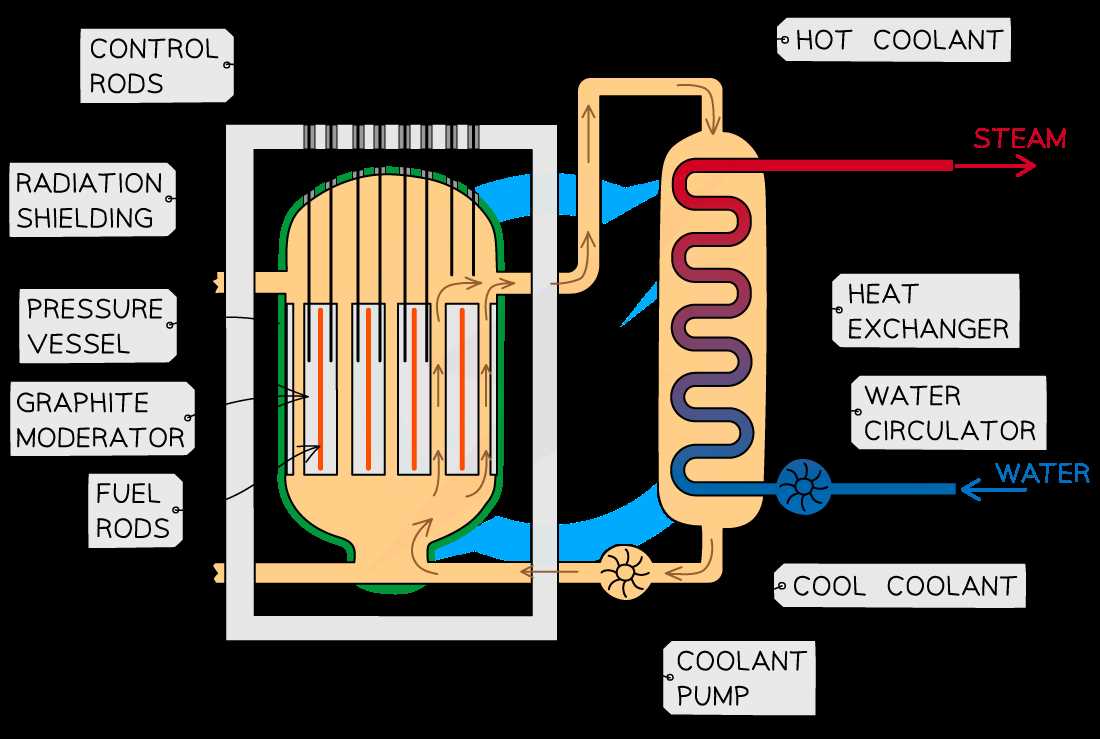

Step-by-Step Guide to Drawing a Clear Nuclear Reactor Schematic with Labels
To construct a functional visual representation of a fission-based energy system, focus on isolating its core structural and operational components. Begin with the fuel assembly–typically uranium-235 or plutonium-239 arranged in cylindrical rods. These rods must be grouped in a matrix, often hexagonal or rectangular, to optimize neutron flux and thermal conductivity. Include control rods–usually cadmium, boron, or hafnium–positioned between the fuel elements to modulate reaction rates. Clearly differentiate these components using distinct shading or hatching, as their interplay determines system stability.
The moderator, commonly water (light or heavy), graphite, or beryllium, surrounds the fuel rods to slow emitted neutrons, enhancing fission probability. Indicate its placement and material properties, as moderator choice directly affects thermal efficiency and safety margins. Adjacent to this, depict the coolant loop–pressurized water, liquid metal (sodium), or gas (helium)–circulating through the core to transfer heat. Distinguish primary and secondary circuits if applicable, emphasizing pressure boundaries and flow direction with directional arrows.
Integrate radiation shielding–layers of concrete, lead, or water–around the reactor vessel to contain gamma and neutron emissions. Mark the pressure vessel, a thick-walled steel enclosure designed to withstand extreme temperatures and pressures (e.g., 300°C and 15 MPa for pressurized water systems). Highlight structural reinforcements and weld points, as these dictate operational lifespan and accident resistance. Finally, annotate safety systems: emergency core cooling, containment structures, and venting mechanisms, specifying their redundancy levels (typically 2-3 independent channels).
For clarity, adopt a standardized notation system: solid lines for mechanical boundaries, dashed lines for fluid paths, and dotted lines for electrical or control linkages. Use consistent units (millimeters for dimensions, MPa for pressure) and include a legend detailing material properties (thermal conductivity, melting points) and operational parameters (neutron flux, temperature ranges). If simulating a specific design–such as a pressurized water, boiling water, or fast breeder variant–tailor annotations to reflect its unique thermal-hydraulic or neutronics characteristics.
Guidelines for Creating an Accurate Pressurized Water Plant Illustration
Begin with a clear vertical layout dividing primary and secondary coolant loops–position the pressure vessel centrally as the focal point. Use distinct colors to differentiate flow paths: red for heated coolant exiting the core, blue for cooled return, and green for steam/cold water cycles. Ensure proportions reflect real-world scaling: the core should occupy ~40% of the vessel’s height, with control rods extending at least 1.5× its length above.
Label critical components quantitatively. For the core, specify enrichments: 3–5% U-235 for fuel rods, 90% for control rods (boron carbide or Ag-In-Cd). Steam generators require tubing dimensions: 15–20 mm diameter Inconel tubes with 1,500–2,000 tubes per unit. Note thermal outputs: typical PWRs generate 3,400 MW thermal, converting to 1,100 MW electrical at 32–34% efficiency.
Incorporate safety systems precisely. Show pressure relief valves discharging to the containment spray ring (located 5–7 meters above the vessel) with a 6.9 MPa activation threshold. Depict emergency core cooling injectors–two independent sets–with boronated water reservoirs (2,200 ppm boron concentration) connected via 30 cm diameter pipes. Separate primary and secondary shutdown mechanisms: control rods (0.6-second insertion) and liquid poison tanks (20-second delay).
| Component | Material | Operating Conditions |
|---|---|---|
| Fuel cladding | Zircaloy-4 | 390°C, |
| Pressure vessel | SA508 Grade 3 steel | 320°C, 15.5 MPa |
| Steam generator tubing | Inconel 690 | 320°C (primary), 275°C (secondary) |
| Containment liner | Carbon steel (30 mm) | 1 bar, 50°C ambient |
Represent flow rates with arrows scaled to velocity: primary loop at 17,000 kg/s (4.5 m/s in hot leg), secondary at 4,000 kg/s steam. Indicate heat transfer zones–core (ΔT=35°C), steam generator (ΔT=25°C)–using color gradients. For radiation shielding, show concentric layers: 2.4 m water annulus, 1.2 m concrete biological shield (density: 2,300 kg/m³).
Annotating Dynamic Processes
Delineate thermohydraulic interactions with bidirectional annotations. Near the pressurizer (volume: 40–50 m³), note: “7 MPa nominal pressure maintained by electric heaters (1,500 kW) and spray nozzles (ΔT=50°C cooling).” For the turbine cycle, include entropy values: steam enters at 6.2 MPa, 280°C (enthalpy: 2,780 kJ/kg), exits at 7 kPa, 39°C (1,500 kJ/kg). Include a 0.5 cm² legend box with symbols for isolation valves (ball type), check valves (swing type), and pumps (centrifugal, 6,000 rpm).
Error-Prone Areas to Verify
Avoid oversimplifying the secondary loop–show both high- and low-pressure turbines with moisture separators (removing 10% wetness at 9.5 MPa). Depict condenser hotwell (pressure: 7 kPa absolute) with cooling water inlet/outlet ΔT limited to 12°C. Cross-check containment penetrations: 20–30 cm diameter pipes for electrical feeds, 1.5 m diameter for equipment hatches (leak-rate: 0.1% volume/day at design pressure). For digital models, confirm grid resolution: minimum 300 DPI for A3-size renderings, or 1,500 pixels per meter.
Secure regulatory compliance by including reference markings for ASME BPVC Section III (vessel), IEEE 323 (electrical components), and ASTM C788 for shielding concretes. Add a scale bar (e.g., “1 cm = 1.5 m”) and north arrow if spatial orientation matters for auxiliary buildings (fuel storage, diesel generators). Include a data box listing design life (60 years), peak burnup (45–60 MWd/kgU), and refueling interval (18–24 months).
Key Elements for the Power Plant Core Illustration
Begin with the fuel assemblies, arranging uranium-235 or plutonium-239 rods in a precise grid to sustain controlled fission. Space the rods at intervals of 15–20 cm to optimize neutron moderation while preventing excessive heat buildup. Include control rods–typically cadmium, boron, or hafnium–positioned vertically between fuel elements; these absorb excess neutrons to regulate the chain reaction. For thermal plants, prioritize a moderator (graphite, heavy water, or light water) encasing the fuel to slow neutrons to thermal velocities, enhancing fission efficiency.
Integrate a primary coolant loop–pressurized water, liquid sodium, or helium–to transfer heat from the core to a secondary circuit. The heat exchanger (steam generator) must separate radioactive and non-radioactive fluids without mixing. Position the pressure vessel as the outer shell, constructed from thick steel (15–20 cm) to contain extreme temperatures (300–1000°C) and pressures (7–15 MPa). Add a reflector (beryllium or stainless steel) around the core to redirect escaping neutrons back into the reaction zone, improving fuel utilization by up to 30%.
Shielding layers demand concrete (1.5–2.5 m thick) and lead/steel composites to block gamma radiation and neutron leakage. Include instrumentation tubes (in-core thermocouples, neutron flux detectors) for real-time monitoring. For safety, embed emergency shutdown mechanisms–scram systems deploying control rods within 2 seconds of abnormal readings. For molten salt designs, incorporate a freeze plug (solidified salt) that melts during overheating, draining fuel into a subcritical storage tank.
Select Appropriate Tools for Crafting Precise Technical Illustrations
Begin with vector-based applications like Inkscape or Adobe Illustrator to ensure scalability without resolution loss. These platforms handle intricate layouts involving power generation cycles, cooling loops, or control mechanisms with pixel-perfect accuracy. Inkscape offers open-source flexibility, while Illustrator provides advanced proprietary features for professional workflows.
For those requiring rapid visualization without steep learning curves, Lucidchart or Draw.io deliver browser-based solutions optimized for engineering layouts. Lucidchart supports real-time collaboration, enabling team synchronization when finalizing component arrangements. Draw.io integrates seamlessly with cloud storage services, simplifying version control for iterative revisions.
AutoCAD remains indispensable for spatial precision in technical layouts involving structural integrity or thermal management systems. Its drafting tools excel in dimensioning, layer management, and compliance with industry standards such as IEEE or ASME. Use templates pre-configured for mechanical or process schematics to accelerate design phases.
Specialized Tools for Domain-Specific Requirements
Visio excels in depicting flow-based representations, allowing standardized stencil libraries for valves, pumps, or electrical symbols. Customize shapes to reflect specific regulatory markings or proprietary hardware details. Pair it with PlantUML for generating diagrams from code-based definitions, streamlining consistency across documentation.
When working with thermal-hydraulic simulations, OpenModelica or COMSOL Multiphysics can generate companion visualizations alongside computational models. These tools translate numerical data into annotated flow paths or temperature gradients, bridging the gap between simulation and technical communication.
For schematic-like representations requiring hierarchical decomposition, yEd or Microsoft Whiteboard offer structured diagramming with automated layout algorithms. These reduce manual alignment tasks, particularly useful when illustrating subsystems like reactor cores, heat exchangers, or emergency cooling circuits.
Optimize Workflow with Automation and Integration
Leverage LaTeX packages like TikZ or PGFPlots for procedurally generated diagrams embedded directly in academic or technical reports. These eliminate conversion steps between design and publication formats, ensuring consistency in typography and scaling. Script generating tools like Python’s Matplotlib or Graphviz for automated node-based layouts when depicting complex interactions between subsystems.
Prioritize platforms supporting STEP or DXF exports for interoperability with CAD/CAM pipelines. Tools like FreeCAD provide open-source alternatives for converting 3D models into orthographic projections, useful for illustrating containment vessels or piping networks with spatial context.
