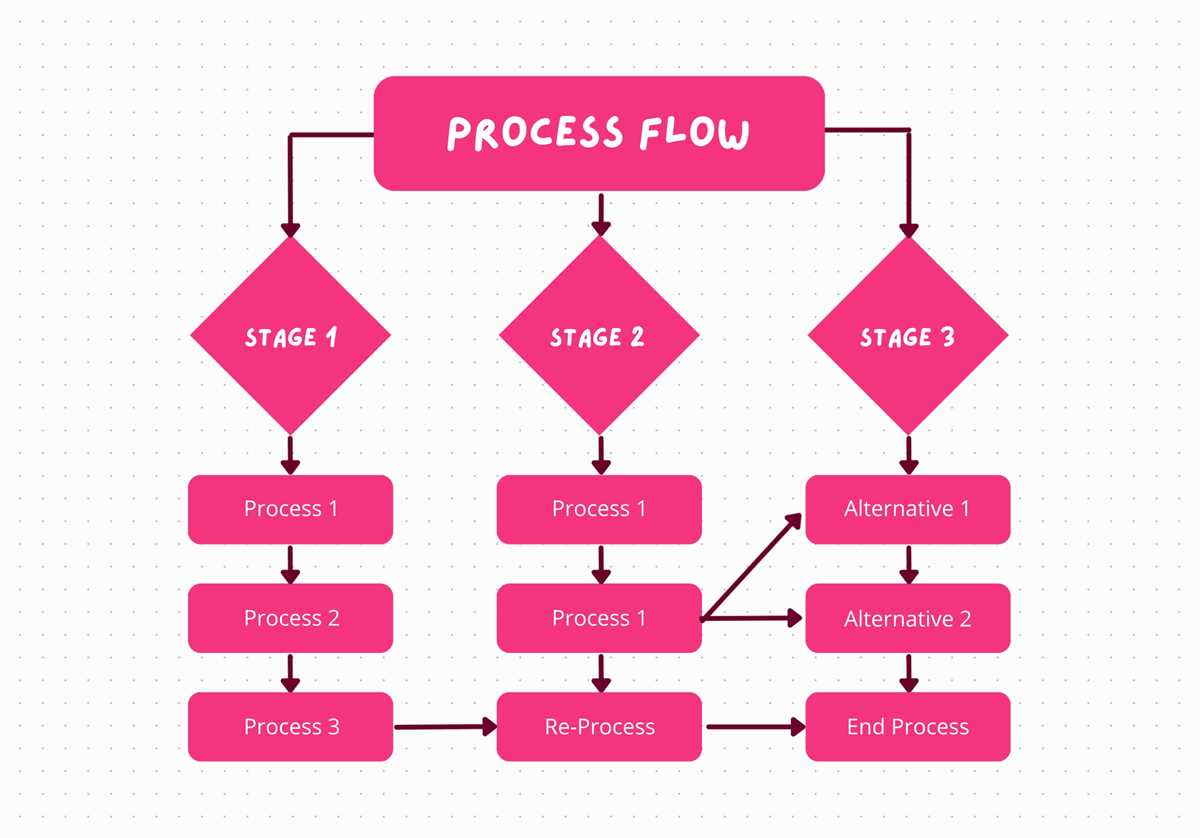

Step-by-Step Guide to Creating a Methology Schematic Diagram
Begin with a single, precise question driving the entire representation. Identify the core objective–whether validating hypotheses, tracing data flows, or mapping computational steps–then strip all secondary elements. Every symbol placed must serve this question directly, eliminating even tangential details that distract attention from the primary progression.
Adopt a consistent orientation throughout: left-to-right for linear sequences, top-down for hierarchical decisions. Resist circular arrangements unless recursion is expressly required; loops introduce cognitive friction that undermines immediate comprehension. Label origins and terminators–start/end points–explicitly, using solid rectangular boundaries to separate internal mechanics from external interfaces.
Select three to five symbols maximum to convey all behaviors. A rectangle for discrete actions, an arrow for directional transitions, a parallelogram for inputs/outputs, and a diamond solely for decisive branches. Additional shapes dilute clarity; complexity migrates into detailed labels rather than expanded iconography.
Place numeric identifiers beside every component, correlating each with a concise legend positioned beneath the illustration. Labels describe exact transformations, not mere variables–for example, “Extract feature X via PCA” rather than “Data Preprocessing.” Color fulfills strictly functional roles: uniform fill for similar stages, accent borders signaling critical junctions or failures.
Validate the model by tracing every possible path once complete. Confirm no branch terminates abruptly, every loop returns to a previously visited state, and every output maps cleanly to a subsequent step. Redraw twice–first to correct structural errors, second to refine visual balance–until each element occupies deliberate spatial coordinates, enhancing scanability without clutter.
Export in scalable vector format at 300+ PPI resolution, ensuring seamless scaling from display screens to printed documentation. Embed a machine-readable metadata tag encoding the chosen orientation, symbol key, and color codes if automating downstream parsing tasks.
Visualizing Research Workflows: A Structured Approach
Begin with a central node representing the core objective–place it at the horizontal midpoint, 30% from the top. Branch outward symmetrically into three primary domains: data acquisition, processing protocols, and analysis frameworks. Label each branch with a distinct color: #2E86C1 for raw inputs, #E74C3C for transformation steps, and #27AE60 for interpretive outputs. Ensure branch angles diverge at 45° to prevent visual clutter while maintaining logical separation.
Hierarchical Layering for Clarity
Assign sub-branches to each primary domain using a tiered structure–no more than four levels deep–to avoid cognitive overload. For data acquisition, subdivide into source types (experimental, observational) and collection methods (automated, manual), using dashed lines for hypothetical or conditional steps. Processing protocols demand sequential nodes: validation→cleaning→normalization→feature extraction, connected with directional arrows (0.25em stroke width). Place numerical annotations (e.g., “Step 2: Noise Reduction”) at 45° angles to the parent branch, offset by 2em for readability.
Reserve the bottom 20% of the layout for a consolidated outcome axis, synthesizing results from all domains. Use trapezoidal shapes to merge pathways, with the widest face representing final deliverables (e.g., “Published Model” or “Regulatory Submission”). Include a legend in the bottom right corner (12pt Arial) mapping colors to functions, but limit symbols to rectangles (raw data), circles (intermediate steps), and triangles (endpoints). Avoid decorative elements–every component must serve dual roles: informational and navigational.
Export the visualization in SVG format at 300 DPI, ensuring text remains editable rather than rasterized. Embed metadata directly into the file: {{author: [Your Name]}}, {{version: 1.0}}, and {{license: CC-BY-4.0}}. For collaborative workflows, implement cross-references by appending unique identifiers (e.g., “DA-03” for the third data acquisition node) to each labeled element–these allow programmatic validation of pathway completeness without manual review.
Choosing Optimal Instruments for Circuit Visualization
Prioritize KiCad for open-source projects requiring extensive component libraries and seamless PCB transition. Its cross-platform compatibility (Windows, macOS, Linux) and built-in SPICE simulation eliminate licensing barriers while maintaining industrial-grade precision. For teams collaborating on complex designs, KiCad’s hierarchical sheets and array tools reduce redundant manual edits by automating repetitive connections. Paid alternatives like Altium Designer justify their cost only when regulatory compliance (e.g., IPC-2581) or advanced scripting (via Python) becomes mandatory–otherwise, KiCad’s native capabilities suffice for 90% of use cases.
| Tool | Best Use Case | Key Limitation |
|---|---|---|
| KiCad | Open-source, large libraries, PCB-ready | Steeper learning curve for advanced features |
| Eagle | Hobbyist projects, modular designs | Restrictive free tier, proprietary format |
| Diagram.net | Conceptual layouts, rapid prototyping | No native component symbol management |
| Proteus | Embedded system testing with VSM | High resource consumption, costly |
Adopt Eagle for modular or Arduino-centric work where Fritzing-style simplicity aligns with project scope, but note its restricted netlist export in the free version. Diagram.net excels for brainstorming sessions due to drag-and-drop速度, yet lacks schematic-specific tools like ERC checks–compensate by exporting to KiCad for validation. Avoid Proteus unless hardware-in-loop simulation is critical; its visual environment prioritizes microcontroller behavior analysis over clean blueprint generation.
Core Elements and Procedural Phases in Process Visualization
Begin by isolating three primary layers: input integration, transformation logic, and output delivery. Each layer must operate independently yet remain tightly coupled through data contracts. Input integration covers raw data ingestion, requiring validation rules that reject corrupted or inconsistent formats before processing. For high-throughput systems, implement batch partitioning with a rolling window of 5-10 seconds to prevent bottlenecks.
- Validation gates: Apply schema enforcement with strict typing (e.g., Apache Avro) at ingestion.
- Transformation triggers: Use event-driven queues (e.g., Kafka) to decouple processing stages.
- State management: Persist intermediate results in columnar storage (e.g., Parquet) for query efficiency.
Transformation logic splits into parallel pipelines, each handling distinct operations without cross-contamination. Define clear interfaces between pipeline segments using protocol buffers or OpenAPI specifications. For numerical operations, enforce float64 precision thresholds; financial calculations demand fixed-point arithmetic (e.g., Scala’s `BigDecimal` with scale=18). Include fault-tolerant retries with exponential backoff, but cap at 3 attempts to avoid cascading failures.
Output delivery must satisfy both human-readable and machine-consumable formats. Generate JSON for APIs, CSV for analytics tools, and binary-encoded payloads (e.g., Protobuf) for internal microservices. Add checksum verification (SHA-256) to each output to guarantee end-to-end data integrity. Version all output schemas–append a `
- Partition workflows by function rather than toolset; e.g., separate ETL pipelines for images vs. tabular data.
- Document every decision point with executable pseudo-code; avoid narrative-only descriptions.
- Enforce timeouts: 30 seconds for synchronous tasks, 5 minutes for asynchronous tasks.
Integrate monitoring probes at every stage–latency, error rates, and throughput metrics must feed into a centralized dashboard (e.g., Grafana). Alert on deviations exceeding 2 standard deviations from the rolling 24-hour mean, but suppress noise from transient spikes. Store logs in compressed Parquet buckets, partitioned by date and hour, with retention policies aligned to compliance requirements (e.g., GDPR mandates 30-day retention for PII logs).
Building Cohesive Linkages Between Structural Components
Begin by mapping dependencies as directed graphs where nodes represent discrete elements, and edges denote unilateral or bilateral relationships. Assign weighted connections to reflect priority–high-value links (weight ≥ 0.8) should directly influence downstream processes, while low-impact ties (≤ 0.3) act as fallback pathways. Tools like Mermaid.js or PlantUML generate runtime visualizations from YAML-based configs, eliminating manual repositioning.
Validating Logical Consistency
Implement dependency matrices using adjacency lists to detect cyclic conflicts before execution. For each pair (A→B), verify no reciprocal loop exists unless explicitly permitted, such as cache invalidation scenarios. Automated checks via Python’s NetworkX library flag inconsistencies with O(n) complexity, outperforming manual reviews. Scripts should log discrepancies in JSON format for traceability.
Normalize interactions by categorizing them into three tiers: obligatory (non-negotiable), conditional (context-sensitive), and optional (performance-optimized). Obligatory links–like payment processing depending on user authentication–must fail gracefully with transaction rollbacks. Conditional ones adapt based on runtime states (e.g., feature flags), while optional paths optimize under peak loads, rerouting via CDN edges.
Dynamic Reconfiguration Protocols
Design connections to support hot-plugging by implementing listener-pattern interfaces. Subscribers register callbacks for state changes (e.g., database schema updates), ensuring near-zero downtime during reconfiguration. RabbitMQ or Kafka topics handle event propagation; partition keys distribute load evenly. Payloads include versioned metadata to prevent deserialization errors during schema evolution.
Leverage topological sorting to sequence interdependent tasks. Kahn’s algorithm processes nodes with zero in-degree first, prioritizing bootstrapping elements like configuration loaders. For parallel execution, divide tasks into subtasks matching CPU cores (N) minus two to avoid thrashing. Use Redis sorted sets to track progress, with atomic ZADD operations preventing race conditions.
Finalize linkages by encoding interaction rules in machine-readable contracts (OpenAPI/Swagger specs). Deploy canary versions to 5% of traffic, monitoring latency spikes via Prometheus histograms. Aggregate metrics with 99th-percentile thresholds to identify outliers–sudden deviations (>200ms) trigger auto-scale events. Store validated linkages in Git-tracked Dockerfiles, enabling reproducible deployments.
