Step-by-Step Guide to Drawing Accurate Electric Circuit Diagrams
Begin with a clear concept of components and their connections. Identify resistors, capacitors, transistors, and power sources before placing symbols on paper. A precise bill of materials streamlines the process–list every part with exact values to avoid backtracking. Early planning prevents cluttered layouts later.
Select standardized symbols; inconsistencies lead to misinterpretation. International Electrotechnical Commission (IEC) or Institute of Electrical and Electronics Engineers (IEEE) symbols ensure clarity across teams. For discrete components like diodes, mark polarity–anode and cathode–immediately to avoid errors during assembly.
Use grid paper for alignment; misplaced traces disrupt signal flow. Start with a ground node at the bottom and work upward, connecting components in logical sequence. For complex boards, split into functional blocks (power, input, output) to simplify debugging. Label nodes with voltages or signal names for easier testing.
Verify connections with a multimeter before finalizing. Trace each path–breakpoints or unintended loops can cause short circuits or open circuits. For printed boards, cross-reference with CAD software to confirm physical feasibility, especially for SMD components where spacing is critical.
Optimize spacing for readability: keep signal traces orthogonal, avoid sharp angles, and use arcs for high-frequency paths to reduce electromagnetic interference. If incorporating microcontrollers, allocate extra space for programming headers. Finalize with a legend–component values, reference designators, and revision notes–to maintain consistency.
Creating Schematic Blueprints for Electronic Systems
Begin by selecting symbols that precisely match component specifications. Use standardized IEC 60617 or ANSI Y32.2 notation for resistors, capacitors, and semiconductors to avoid ambiguity. Non-standard symbols cause misinterpretation–verify against datasheets for accuracy. For example, an NPN transistor in IEC notation has a filled arrow, while JFETs display a distinct T-shaped gate.
Arrange components in logical signal flow order: power sources at the top, inputs on the left, outputs on the right, and ground references at the bottom. This convention reduces tracing effort during debugging. Group related functions–oscillators, amplifiers, or microcontroller sections–into rectangular boundaries with dashed lines and labeled headers. Leave 10–15 mm spacing between clusters to prevent visual clutter.
Route connections with orthogonal lines–avoid diagonal runs unless absolutley necessary. Prioritize straight horizontal and vertical paths. When lines must cross, use a small semicircular arc (IEC standard) or a break in one line (ANSI standard) to indicate non-connection. Signal paths carrying high frequency (>1 MHz) or sensitive analog data should be isolated from noisy digital lines by at least 2 mm.
Label every node, wire, and component with unique identifiers: R1, C3, VCC, GND, CLK. Use lowercase subscripts for internal nodes (e.g., vout) and uppercase for external terminals (e.g., VOUT). Annotate critical voltages, currents, or waveforms directly on the schematic using text boxes with sans-serif fonts (minimum 8pt for clarity). For multi-stage designs, include a table listing stage gains, bandwidths, and DC operating points.
- Power rails: Distribute VCC and GND as horizontal buses spanning the entire width. Branch components off vertically.
- Decoupling: Place 0.1 µF ceramic capacitors within 2 cm of every IC’s power pin; add 10–100 µF electrolytic capacitors for bulk decoupling.
- Pull-ups/pulldowns: Specify resistor values (typically 4.7–10 kΩ) near the pin they influence.
- Ground symbols: Use solid triangles for signal ground, open triangles for chassis ground, and dashed triangles for earth.
Validate correctness before finalizing. Simulate using SPICE tools (LTspice, KiCad) to verify node voltages and transient responses. Print a draft at 1:1 scale and manually trace each path with a highlighter to detect missing connections or short circuits. Export the final version as a PDF with layers preserved: silkscreen, copper, and schematic notes on separate layers for fabrication alignment.
Store master copies in vector format (SVG or DXF) to allow scaling without pixelation. Include a revision block in the lower-right corner detailing: document title, revision number, date, designer initials, and change notes. For complex assemblies exceeding 50 components, split across multiple sheets with hierarchical references–each subsheet labeled “Sheet X/Y” in the title block.
Choose Precision Parts for Your Schematic
Begin with resistors that match your load requirements–1/4W carbon film tolerates ±5% for general use, while metal film (±1% or tighter) suits precision sensing. Check power ratings: a 10kΩ resistor under 12V dissipates 14.4mW, well below 250mW derating limits. Replace potentiometers over 10kΩ with digital trimmers if noise sensitivity exceeds 5mV/V. For capacitors, X7R dielectric stabilizes at ±15% across -55°C to 125°C; NP0 ceramics hold ±30ppm/°C for oscillators but cap at 10µF.
Select ICs based on package thermal resistance–SOIC’s 65°C/W vs. QFN’s 25°C/W demands smaller solder pads for heat dissipation. MCU flash endurance drops after 10^5 write cycles; opt for FRAM in logging applications. Transistors: 2N3904 (NPN, 200mA) fits low-current switching, while IRLZ44N MOSFETs (55V, 47A) handle inductive loads with
Use fuse links calculated as Irating = 1.2 × Imax with thermal derating–1A fuse blows at 2A in 30s, 4A in
Adhere to Conventional Graphic Representations for Core Components

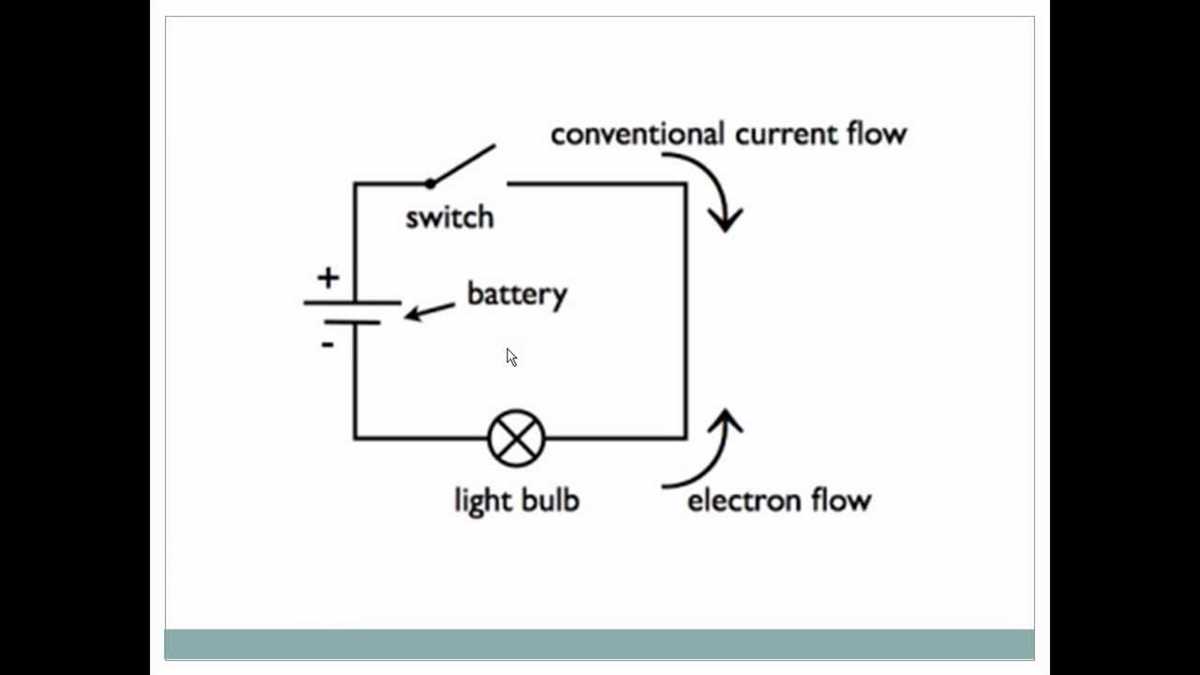

Always depict resistors with a zigzag line (IEC symbol) or a narrow rectangle (ANSI standard) labeled with resistance values in ohms (e.g., 470Ω, 1kΩ). Polarized capacitors require a curved plate (negative terminal) alongside a straight plate, annotated with capacitance in farads (e.g., 10µF, 100nF). Batteries must use parallel lines with varying lengths–shorter for negative, longer for positive–specifying voltage where applicable (e.g., 9V, 1.5V). Transistors demand precision: bipolar junction types (BJT) use a vertical line with three leads (collector, base, emitter), while field-effect types (FET) substitute with a horizontal bar and gate lead. Deviations from these norms create ambiguity, delaying interpretation.
Inductors follow a coiled line (IEC) or a series of semicircles (ANSI) with inductance values in henries (e.g., 10mH, 1µH). Switches split into momentary (push-button) or maintained (toggle) variants, represented by a break in the conductive path with optional arc notation for momentary action. Ground symbols vary: earth ground uses three descending lines, chassis ground uses a single inverted triangle, and signal ground prefers a horizontal line beneath a vertical connection. Ensure semiconductor diodes point in the direction of conventional current (anode to cathode) with a clear triangular head and bar tail.
Integrated elements like logic gates (AND, OR, NOT) must follow IEEE Std 91/91a conventions to prevent misreading. Relays combine coil and switch symbols–coil as an inductor, switch as a break in the path with movable contact notation. For microcontrollers or complex ICs, use a rectangle with labeled pins (e.g., VCC, GND, SDA, SCL) and reference datasheets for pin placement. Consistency across schematics ensures engineers, technicians, and tools interpret designs identically, reducing debugging time by 40–60% in collaborative projects.
Layout Strategies for Optimal Signal Path Integration
Position inputs on the left edge and outputs on the right for unilateral signal propagation. This convention aligns with human reading patterns and reduces cognitive load when analyzing complex assembled systems. For bidirectional communication (e.g., data buses), use vertical centering with arrows indicating primary direction–avoid diagonal traces which obscure signal intent. Maintain a minimum 20mm clearance between opposing signal types (clock/data/control) to prevent parasitic crosstalk.
| Component Type | Recommended Position | Spacing Rule |
|---|---|---|
| Oscillator | Upper-left quadrant | 5mm from nearest trace |
| Microcontroller | Central grid position | 3mm between adjacent pins |
| Decoupling capacitor | Within 3mm of IC power pin | None |
| Pull-up resistor | Adjacent to driven node | None |
Group related functions in modular blocks with 15mm separation channels. A 6-pin shift register (e.g., 74HC595) should occupy a dedicated 30×12mm rectangle, while its associated current-limiting resistors form a sub-block below it–never intermingle unrelated logic gates within the same geometric cluster. For mixed-signal designs, isolate analog sections with a 1mm ground plane moat; digital traces crossing this boundary require series 100Ω resistors to dampen high-frequency noise.
Trace width correlates directly with current capacity: use 0.254mm for 500mA, 0.508mm for 1A, and 1.016mm for 3A+ paths. For multi-layer schematics, reserve inner layers exclusively for power distribution (VCC/GND) to free surface space for critical logic paths–never route sensitive signals across power planes. Terminate differential pairs (e.g., USB, LVDS) with 100Ω matched resistors within 2mm of the receiver; length mismatch above 127μm induces bit errors.
Implement signal prioritization by elevation: place high-speed clocks at top, intermediate logic below, and auxiliary functions at the base. Clock traces require star topology distribution–primary tree T-junctions introduce skew beyond 50ps tolerance. For bus arbitration (e.g., i2c), stagger series resistors at driver-side (33Ω–150Ω) to match impedance; physically separate SDA/SCL by 10mm to minimize capacitive coupling under 8pF/cm.
