Schematic Comparison of TIG and MIG Welding Process Diagrams

Begin by isolating the power source at the origin of your circuit layout. For Gas Tungsten Arc (GTA) setups, position a high-frequency starter unit between the transformer and the torch electrode–this eliminates the need for direct workpiece contact, reducing contamination risks. Use a constant-current output source (typically DCEN) rated between 150–500 amperes, with a 2–5% slope to stabilize arc dynamics during pulsed modes. Include a foot pedal or fingertip remote for precise heat control when joining thin materials like 0.5mm stainless or aluminum alloys. Shielding gas flow–usually argon at 10–20 CFH–must enter the torch through a back-capped collet body to prevent turbulence that distorts bead formation.

Contrast this with Gas Metal Arc (GMA) systems where wire feed speed drives energy delivery. Replace the high-frequency starter with a contact tip that transfers current directly to an 0.8–1.6mm consumable electrode, fed at 200–600 IPM via a motorized drive roll mechanism regulated by a voltage-sensing circuit. The source should provide constant voltage (20–35V), adjusted within a 2–7% droop to compensate for arc length fluctuations when using mixed gases (75% argon/25% CO₂) at 25–45 CFH. For short-circuit transfer, integrate a choke coil with inductance values between 100–300 μH–this suppresses spatter during droplet detachment without increasing heat input beyond 1.2 kJ/mm. Position a gas diffuser no more than 50mm from the nozzle exit to maintain laminar flow over the weld pool.

Layer your representation with essential safety interlocks. A water-cooling loop–using deionized fluid circulated at 1–3 GPM–must bypass the GTA torch head if temperatures exceed 60°C; this prevents electrode erosion during prolonged duty cycles. In GMA configurations, wire feed interruption triggers an immediate gas pre-flow cutoff within 0.5 seconds–this avoids porosity from air entrapment in incomplete joints. Label each conductor’s gauge (12–14 AWG for torch leads, 8–10 AWG for ground clamps) and color-code polarity (green/yellow for ground, red for positive, blue for negative) according to AWS A5.1 guidelines. Include a remote amperage adjustment capacitor for GTA pulse waveforms–this allows frequency tuning between 0.5–20 Hz to match material thickness without recalibrating the entire circuit.

Validate your layout by cross-referencing arc stability zones. GTA processes require a tungsten electrode sharpened to a 20–30° included angle for 1.6mm materials; steeper angles produce erratic arcs in pulsed transfers. Verify shielding gas coverage sphere radius–minimum 1.5× the weld pool width–to prevent oxidation during interrupted passes. For GMA transfer modes, confirm that voltage drops by no more than 0.5V per 100mm of cable length; excessive resistance distorts spray transfer into globular droplets, compromising penetration in thick plate applications above 6mm.

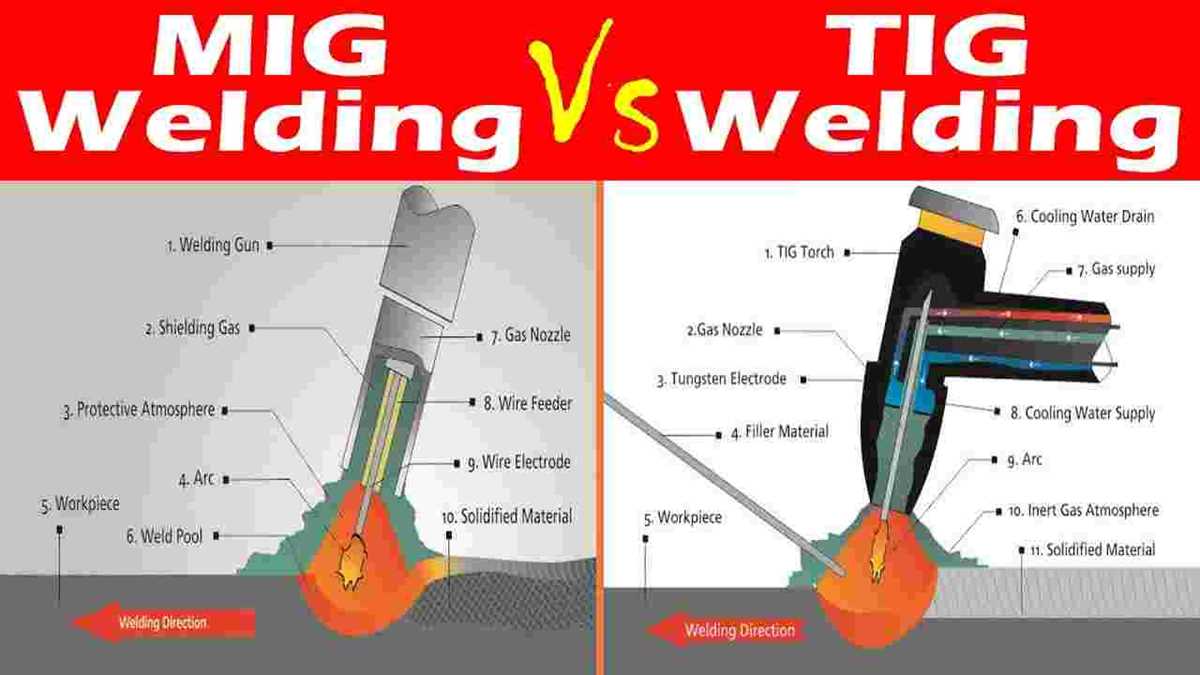

Visual Representation of Gas Tungsten Arc and Gas Metal Arc Processes

Start by illustrating the core components of each joining method using distinct lines for gas flow, electrical paths, and filler material delivery. For the tungsten-based technique, show a non-consumable electrode at 30° to 45° angle relative to the workpiece, connected to a high-frequency generator. Position the shielding gas nozzle 10-15 mm from the workpiece surface, ensuring argon or helium exits in a laminar flow pattern at 8-12 L/min.

• Separate power cables into direct current (DC) for steel and alternating current (AC) for aluminum alloys, marking polarity with clear symbols alongside voltage ranges (12-25V DCEN or AC)
• Depict foot pedal or torch-mounted amperage control with a dashed line to emphasize variable output adaptation during operation
• Include a cable management indication to prevent obstructions near the work area, typically requiring 3-5 meters of clearance

The consumable wire feed system demands precise depiction: draw a wire spool (standard diameters 0.8–1.6 mm) feeding through rollers at 2–18 meters per minute, synchronized with trigger activation. Integrate a wire liner extending through the gun body, terminating 10–20 mm from the contact tip for optimal arc stability when pairing with CO₂ or argon-rich mixtures at 15–25 L/min.

Highlight critical safety measures through dedicated symbols: illustrate ground clamp placement within 30 cm of the weld zone, gas cylinder securement using chains rated for 2.5× working pressure, and adequate ventilation marked by directional arrows accounting for 0.3 m³/min airflow per 1 kW welding power. Emphasize protective equipment positioning, showing a welding helmet with auto-darkening lens covering UV/IR 10–13 shade range, flame-resistant gloves extending past the wrist, and leather aprons protecting against spatter up to 1,000°C.

1. Detail nozzle selection variance: ceramic cups for manual operations versus water-cooled models for robotic applications exceeding 250 amps
2. Include post-flow gas timing – maintain shielding for 5–15 seconds after arc termination to prevent oxidation, adjusting duration based on material thickness
3. Mark joint preparation specifics: 60°–70° bevel angles for V-grooves with 2–3 mm root gaps when working with pieces thicker than 6 mm

Use standardized symbols per AWS A2.4-98: crosshatched rectangles for transformers, circles with internal crosses for gas cylinders, and zigzag lines for resistors simulating arc resistance. Annotate travel direction with arrows showing push or pull techniques (10°–15° drag for GMA, 5°–20° leading angle for GTA), while differentiating between pulsed and continuous modes through varied line weights – dashed indicating pulsed transfers at 30–300 pulses/sec for precision heat input control.

Critical Elements for Gas Tungsten Arc Fusion Illustrations

Label the power source precisely, specifying whether it’s an AC/DC inverter or transformer-based unit. Include voltage ranges (e.g., 10–35V for DC, 8–25V for AC) and amperage output capabilities (typically 5–300A). Mark polarity settings–DCEN (straight) for most metals, DCEP (reverse) for aluminum–and note wave balancing adjustments if applicable.

Depict the torch assembly in detail: collet, collet body, back cap, tungsten electrode, and gas lens if used. Specify electrode types–thoriated (EWTh-2), ceriated (EWCe-2), lanthanated (EWLa-1.5)–with diameter options (0.5–6.4mm). Show the nozzle size (commonly 4–12mm) and material (alumina or fused quartz). Indicate the gas flow path from the regulator through the torch to the weld zone.

Outline shielding gas delivery: flowmeter placement between cylinder and torch, hose connections (typically 5/8″ ID), and purge valve location if back-purging is required. Specify gas types (argon, helium, argon-helium blends) with ideal flow rates (10–30 CFH) based on metal thickness and joint configuration. Include a gas pre-flow timer setting (0.5–2 seconds) and post-flow duration (5–20 seconds).

Illustrate the foot pedal or fingertip remote control for amperage adjustment, showing its connection to the power source. Include a side view of torch angle relative to workpiece (15–30° push angle for most applications) with standoff distance (1.5–3mm). Mark filler metal feed direction if used, noting compatible rod types (ER70S-6 steel, ER4043 aluminum) and diameters (0.8–3.2mm).

Show workpiece grounding with proper clamp placement away from the weld area to prevent arc instability. Include a water cooling system if relevant–circulation hoses, pump, heat exchanger–with flow rate requirements (1–3 GPM). Note torch cooling methods (air-cooled for ). Identify safety components: emergency stop, overcurrent protection, gas solenoid valve.

Add workpiece preparation markings: bevel angles (30–45° for V-grooves), root openings (0–3mm), and surface cleaning methods (chemical etching, mechanical grinding). Include backing bar dimensions if used, specifying material (copper, stainless steel, ceramic) and groove design. Differentiate between autogenous and filler-added techniques in your notation.

Incorporate cross-sectional views of joint types: butt, lap, T-fillet, corner. Label weld bead terminology–face, root, toe, throat, leg length–with dimensional tolerances for different thicknesses (1–12mm). Specify heat input calculations (Joules/mm) and travel speeds (50–300 mm/min) adjusted for material properties.

Clarify ambient conditions affecting performance: wind speed limits (5 mph max), humidity effects, preheat temperatures (100–300°C for high-carbon steels). Include voltage drop calculations for long torch leads (3–5% loss per 50 feet) and recommend conductor sizes (4–2 AWG). Mark critical inspection points–penetration depth, porosity checks, undercut limits–aligned with AWS D17.1 standards.

Step-by-Step Layout for Gas Metal Arc Process Visual Guide

Begin by positioning the power source at the left edge of the layout, ensuring direct visibility of voltage and wire feed controls. Label the input terminals with precise amperage ranges–typically 20–500A for industrial-grade units–matching the machine’s specifications. Include a ground cable extending from the power unit to the workpiece, marked with a clear polarity symbol (DCEP for most ferrous applications).

Next, place the wire feeder above or adjacent to the power source, connecting it via a primary cable that carries both current and consumable. Indicate the drive rolls, noting whether they require knurled (for flux-cored wires) or smooth (for solid wires) surfaces. Add a spool holder behind the feeder, specifying the wire diameter (e.g., 0.023″, 0.030″, 0.035″, or 0.045″) and material (carbon steel, stainless, or aluminum).

Torch Assembly and Shielding Gas Integration

Extend a semi-flexible conduit from the wire feeder to the handheld gun, showing the liner’s path for uninterrupted wire delivery. Attach the contact tip at the gun’s nozzle, selecting the orifice diameter 0.5–1 mm larger than the wire size for optimal electrical transfer. Illustrate the gas diffuser internally, emphasizing its role in distributing shielding gas uniformly. Connect the gas hose from a regulator-mounted cylinder, labeling gas types (argon/CO₂ mixes for steel, pure argon for aluminum) and flow rates (20–30 CFH for most applications).

Avoid overlapping lines between electrical and gas pathways; route the gas hose separately to prevent kinks. Include a check valve near the regulator to block reverse gas flow, critical for preventing porosity. Mark the nozzle’s angle–typically 10–15° drag for short-circuit transfer or 5–10° push for spray transfer–based on the chosen metal transfer mode.

Workpiece and Ancillary Components

Position the metal base horizontally, with a 10–12 mm gap between the nozzle and surface during operation. Sketch clamps or fixtures securing the workpiece, noting their copper or brass composition to avoid current diversion. Add a secondary ground return path if welding non-ferrous materials, ensuring dual-path grounding for stable arc initiation.

Include peripheral elements such as a wire cutter (either handheld or integrated into the gun) and a spare contact tip storage slot on the feeder. Highlight safety components: a nozzle dip solution reservoir for anti-spatter coating and a post-flow timer on the regulator (set to 5–10 seconds to protect the weld pool after arc termination).

For pulsed-current setups, depict the waveform control module between the power source and torch, annotating key parameters: peak current (200–400A), background current (50–100A), and pulses per second (100–300 PPS). Use color-coding–red for electrical, blue for gas, yellow for consumable pathways–to distinguish system segments.

Verify all connections terminate clearly: power to torch, gas to nozzle, wire to workpiece. Cross-reference symbols against ISO 2553 or AWS A2.4 standards to ensure industry compliance. Limit text density, prioritizing visual cues (arrows, dashed lines for hidden components) over lengthy labels.

• Wire feed speed: Adjust based on material–150–350 IPM for steel, 400–800 IPM for aluminum.
• Voltage: Correlate with wire diameter: 16–18V for 0.030″ solid wire, 22–26V for 0.045″.
• Travel speed: Maintain 10–20 IPM for fillet welds, 30–50 IPM for groove welds.
• Gas coverage: Extend 1–2 inches beyond nozzle tip for adequate protection.
