DIY Circuit Guide for Adjusting Drill Speed Step by Step

For variable torque applications under 1 kW, a pulse-width modulation (PWM) driver with a 555 timer IC and a 60-amp MOSFET (IRFZ44N) delivers consistent performance. Set the potentiometer between 5 kΩ and 50 kΩ to fine-tune output–values below 1 kΩ risk overheating, while ranges above 100 kΩ introduce instability. A 10 µF smoothing capacitor on the DC bus eliminates voltage spikes; anything smaller than 4.7 µF permits audible whine in brushless motors.

Use a 1N4007 flyback diode across the motor terminals to clamp inductive kickback–omitting it guarantees MOSFET failure within minutes. For tools exceeding 1.5 kW, swap the MOSFET for an IGBT (e.g., IXGH40N60) and add a heatsink with thermal paste rated for 5 W/cm². Aluminum heatsinks under 30 cm² are insufficient; opt for finned designs with forced airflow at 200 LFM for continuous duty.

Bench-test the assembly with a resistive load (5 Ω, 100 W) before connecting a motor–unexpected oscillations often indicate grounding loops. Isolate the power section by star-grounding the controller, driver, and load; shared ground paths corrupt signal integrity at PWM frequencies above 20 kHz. If noise persists, replace the 555 timer with a dedicated PWM chip (TL494) for cleaner edge transitions.

For safety, fuse the input at 125% of maximum current draw–e.g., a 15 A fuse for a 12 A load. Low-voltage DC feeds (12–48 V) tolerate simpler wiring, but verify MOSFET drain-source breakdown voltage exceeds supply voltage by 30%. AC mains-fed designs require an isolated gate driver (e.g., HCPL-3120) to prevent lethal ground faults; skip this step only with battery-powered setups.

Adjustable Power Regulator for Rotary Tools

Begin by selecting a PWM-based IC like the TL494 or NE555 for precise modulation. These components offer a 0-100% duty cycle range, allowing fine-grained adjustment of the motor’s rotational force without significant torque loss. Wire the IC’s output to a MOSFET (IRFZ44N) or IGBT, depending on the tool’s power demand–use IGBTs for loads exceeding 500W.

Incorporate a flyback diode (1N4007) across the motor terminals to suppress voltage spikes generated during commutation. For smoother operation, add a low-ESR capacitor (100μF, 50V) in parallel with the diode to filter high-frequency noise. Avoid ceramic capacitors here; they lack the bulk capacitance needed to handle inductive loads.

Use a 10K potentiometer as the user input, wired to the IC’s feedback pin to vary the pulse width. Calibrate the potentiometer’s range by measuring the output voltage with a multimeter–adjust the feedback resistor (e.g., 100K) if the rotation stalls at low settings. For higher precision, replace the potentiometer with a rotary encoder paired with a microcontroller like the ATtiny85.

Heat dissipation is critical. Mount the MOSFET on a heatsink (aluminum, 20°C/W or better) and apply thermal paste. For continuous operation at 3A+ currents, consider a small fan or forced-air cooling. Overheating reduces efficiency and risks permanent damage to semiconductor components.

For dual-direction control, integrate an H-bridge configuration (L298N) with four MOSFETs. This allows reversal of the motor’s spin without manual rewiring. Ensure the H-bridge’s logic pins are isolated from the power side using optocouplers (PC817) to prevent ground loops.

Test the assembly with a bench power supply before connecting the tool. Start at 50% modulation and observe the motor’s response. Abnormal vibrations or whining indicate incorrect PWM frequency–adjust the timing resistor (e.g., 10K) or capacitor (e.g., 1nF) on the IC. Aim for a frequency between 1-20 kHz; lower values improve torque but increase audible noise.

Enclose the regulator in a non-conductive case (polycarbonate) with ventilation slots. Label all inputs/outputs clearly, especially the AC/DC isolation warnings. For portability, use a 9-24V power input with a buck converter (LM2596) to supply the control circuitry. Store spare fuses (10A, fast-blow) nearby–short circuits can destroy the MOSFET in milliseconds.

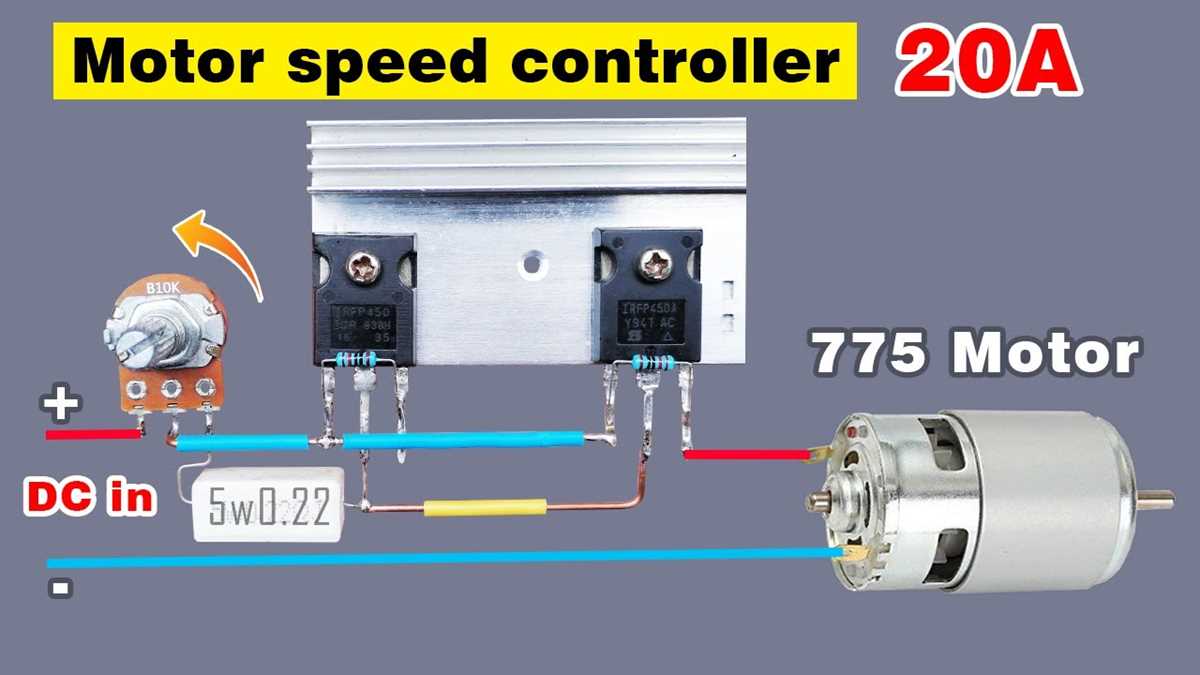

Key Components for a PWM-Based Tool Rotation Modulator

Begin with a power MOSFET like the IRF540N–its 33A current handling and 100V breakdown suit handheld rotary tools. Pair it with a gate driver IC (e.g., TC4427) to ensure crisp switching under 1A peak gate current; edge delays degrade efficiency by up to 12% at 20kHz. Add a freewheeling diode–Schottky types (STPS20L15D) cut reverse recovery losses to 5ns, versus 30ns for ultrafast silicon diodes.

Regulation Feedback Loop Essentials

Component	Type	Critical Parameter	Typical Value
Potentiometer	Cermet	Linearity error	<1%
Comparator	LM311	Response time	200ns
PWM IC	TL494	Dead-time	500ns adjustable

Isolate feedback traces–capacitive coupling from the switching node can inject 300mV spikes into the regulation loop. Use a 1µF X7R ceramic capacitor within 10mm of the MOSFET source pin to snub voltage transients; larger distances raise EMI by 6dB per 20mm. For noise-sensitive setups, substitute the comparator with an optocoupler (e.g., HCPL-3120) splitting the high voltage and low voltage ground planes; without isolation expect 15mV ripple on the reference voltage.

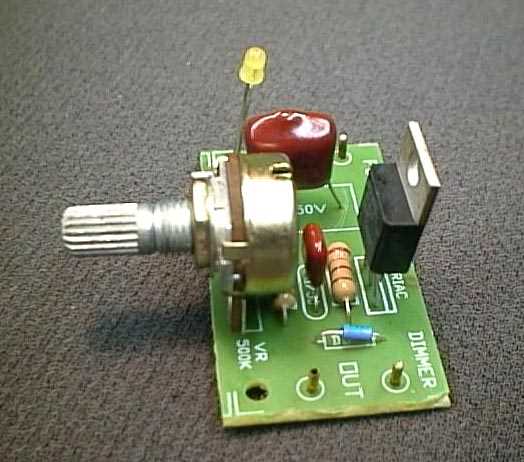

Step-by-Step Assembly of a Triac-Based Power Regulator for Rotary Tools

Begin by securing a BT136-600E triac or equivalent (e.g., MAC97A8) on a heat sink. Ensure thermal paste is applied between the semiconductor and the sink to prevent overheating. Mount the assembly vertically to improve airflow if the tool operates for extended periods.

Wire the input live wire (230V AC or applicable mains voltage) to a 10A fuse, then to one terminal of an on/off switch. Connect the second switch terminal to a 270KΩ potentiometer (linear taper) via a 470nF X2-rated capacitor for noise suppression. The potentiometer’s wiper leg routes to the triac’s gate through a 39Ω resistor. This configuration ensures smooth modulation below 90% while preventing flicker near zero crossings.

• Neutral: Directly link the neutral wire to the triac’s MT1 terminal.
• Load output: Attach the tool’s motor leads to the triac’s MT2 terminal.
• Safety:
  1. Enclose all high-voltage connections in a flame-retardant ABS box (minimum 5kV dielectric strength).
  2. Use silicone-insulated 18AWG wire for all mains connections.
  3. Add a 1N4007 diode in reverse across the triac (MT2 to MT1) to clamp inductive kickback from the motor.

For calibration, set the potentiometer to mid-position, then adjust the 39Ω gate resistor in ±5Ω increments if the tool stutters at low settings. Test hysteresis by toggling the switch ten times–consistent start-up confirms stable gate triggering. If erratic behavior persists, swap the X2 capacitor for a 1µF polyester type; this filters transient spikes common in universal motors.

Finalize the build by verifying insulation resistance (>1MΩ) with a megohmmeter between all conductive parts and the enclosure. Operate the tool at 50% power for 10 minutes–surface temperatures should remain UV-resistant label.

Calculating Resistor and Capacitor Values for Stable Rotational Velocity Regulation

For pulse-width modulation (PWM)-based motor governance, begin with a fixed resistor-capacitor (RC) timing pair yielding a 100Hz–1kHz oscillation range. A 10kΩ resistor paired with a 100nF capacitor achieves ~159Hz, ideal for 12V DC motors with 3,000–10,000 RPM targets. Adjust resistance upward (e.g., 47kΩ) for slower base frequencies when finer torque modulation is required. Use precision metal-film resistors (1% tolerance) to minimize drift under thermal variance; ceramic capacitors (X7R dielectric) ensure consistent timing across 20°C–85°C operating conditions.

• For 5,000 RPM nominal loads, target 300–500Hz timing frequency to balance responsiveness and filtering.
• Calculate RC time constant (τ = R × C) then apply f = 1/(2.2 × τ) for reliable periodic signal derivation.
• Add a 10nF snubber capacitor across motor terminals to suppress voltage spikes exceeding 2× rated supply.

Verify calculations with an oscilloscope: rise/fall times should remain below 5% of the total period to prevent duty-cycle distortion. Increase capacitance incrementally (e.g., 220nF, 470nF) if excessive jitter appears during no-load or stalled scenarios. For brushless variants, multiply base frequency by pole pair count (typically 2–4), then apply this value to the RC network formula to maintain synchronization.

Diagnosing Faults in Homemade Power Tool Regulators

Check for inconsistent motor response by measuring voltage at the gate of the power transistor under load. A drop below 0.7V relative to the emitter suggests a failing driver stage or miscalibrated potentiometer. Replace any 1N4007 diodes showing reverse leakage current above 10µA, as they compromise PWM accuracy. Verify solder joints on the triac or MOSFET with a magnifying glass–hairline fractures often cause intermittent shutdowns.

If the motor runs at full throttle regardless of knob position, test the feedback loop. Disconnect the timing capacitor (typically 1µF–10µF) and observe if the behavior persists. A shorted capacitor will keep the oscillator locked in high-frequency mode. For analog designs, confirm the Zener diode stabilizes at its rated voltage–overheating here distorts reference levels, leading to erratic modulation.

Overheating Components

Inspect heat sinks on the main switching element. A temperature rise above 60°C within 30 seconds of operation indicates insufficient thermal paste or undersized dissipation. For TO-220 packages, bond the tab to a minimum 20cm² aluminum plate; smaller heatsinks fail under continuous duty cycles. Replace electrolytic capacitors swollen or leaking–bulging cases reduce capacitance by 30% and introduce ripple current spikes measurable with an oscilloscope probe.

When encountering a “soft start” that abruptly cuts off, examine the inrush current limiter. A thermistor with resistance below 5Ω at room temperature has degraded and will no longer suppress transient spikes. For digital PWM boards, reflash the microcontroller if the duty cycle remains fixed–corrupted firmware often locks modulation at 50%. Use a logic analyzer to confirm pulse widths match the expected 1kHz–20kHz range.

Humming or buzzing noises from the tool housing point to insufficient smoothing. Add a 470µF–2200µF low-ESR capacitor across the DC bus; smaller values create audible 100Hz–120Hz ripple. For transformerless designs, ensure snubber networks (typically 10Ω + 100nF) are present across switching elements–missing these causes RF interference detectable on nearby AM radios.

Intermittent Operation

Probe the PCB with a non-contact voltage tester while operating. Arcing near connections suggests oxidized terminals–clean with iso-propyl alcohol and apply conductive grease. If the device works inconsistently in humid conditions, coat the board with conformal silicone–moisture bridges narrow tracks, creating resistive paths below 1kΩ. Replace carbon potentiometers if rotation noise exceeds 5% of the signal; degraded wipers introduce dead zones in regulation.
