How to Wire a Dryer Outlet Step-by-Step Guide with Diagram
Always verify the circuit breaker rating matches the appliance’s power requirements before connecting any high-voltage device. For standard residential models, a 30-amp dual-pole breaker paired with 10-gauge copper wire is the minimum safe configuration. Larger or commercial-grade units may demand 50 amps and 6-gauge wire, while some newer compact models operate safely on a 20-amp circuit with 12-gauge wire. Confirm the specific voltage–most North American systems use 240V, but older homes or certain regions may still rely on 208V or 120V setups.

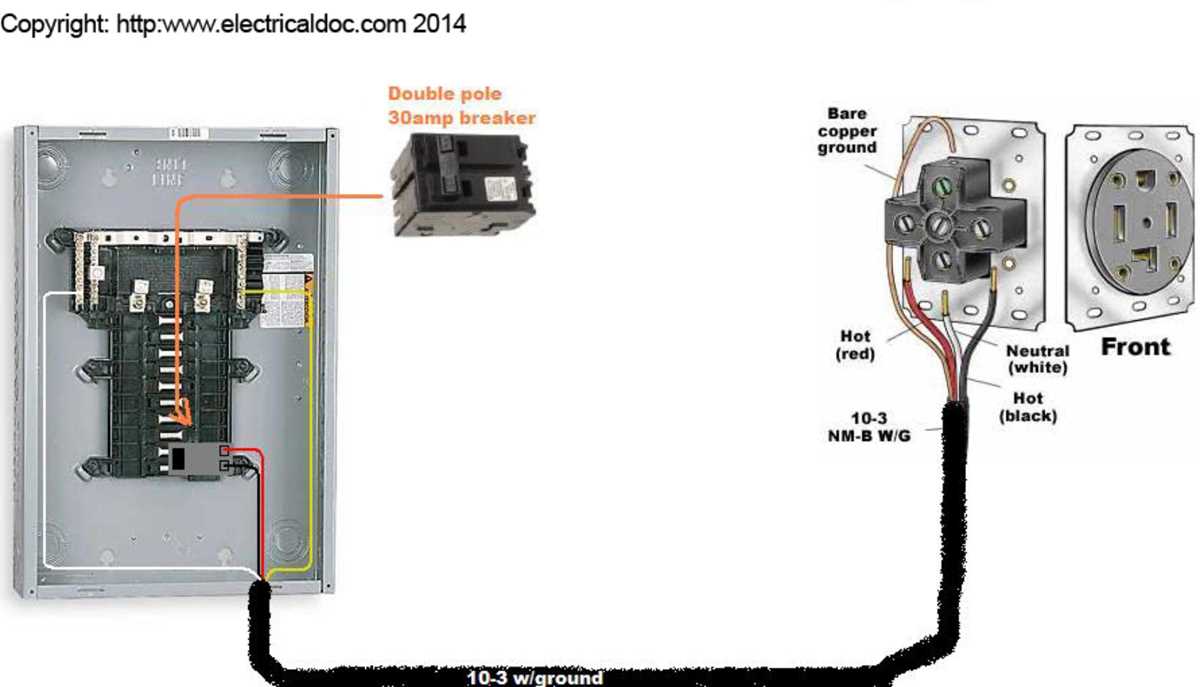

Begin by shutting off power at the main panel and testing the terminals with a non-contact voltage tester to rule out live current. Strip ½ inch of insulation from each wire end, ensuring no stray copper strands remain exposed. Connect the black (hot) wire to the brass screw, the red (hot) wire to the second brass screw, and the white (neutral) wire to the silver screw. If present, the bare or green grounding wire must be secured to the green grounding screw. Twist the wires clockwise around the screw terminals and tighten to 20 inch-pounds of torque–loose connections generate heat and pose a fire risk.
For split-phase systems, the neutral wire carries return current, but in true 240V-only configurations, it may act solely as a ground. Older installations sometimes omit neutral, substituting a jumper between neutral and ground–this violates modern electrical codes (NEC 250.140) and requires correction. Use a clamp-style ammeter to measure current draw after installation; consistent readings above 80% of the breaker rating indicate potential overload.
Flexible armored cable (AC) or rigid conduit (EMT) protects the wires from physical damage, especially in basements or garages where impact risks exist. Secure cables every 4.5 feet and within 12 inches of any box or termination point. When retrofitting an existing setup, inspect the receptacle box depth–minimum 2-inch depth is required to accommodate thick wire bundles without compression. For aluminum wiring (common in homes built 1965–1973), apply anti-oxidant paste to all terminals and use CO/ALR-rated devices to prevent oxidation.
After finalizing connections, re-energize the circuit and verify proper operation on the appliance’s highest heat setting for five minutes. Monitor for unusual odors, buzzing, or flickering lights–these signal immediate disconnection and professional inspection. Store the manufacturer’s connection schematic inside the appliance’s access panel for future reference, noting wire colors and any custom modifications.
Connecting a Clothes Drying Appliance: Electrical Setup Guide
Before installing a power receptacle for a tumble-heating unit, verify the circuit breaker’s ampacity matches the appliance’s requirements–typically 30 amperes for residential models. Use 10-gauge copper wire for 30A setups, ensuring all conductors are rated for 600 volts or higher. A four-conductor cable (two hot wires, one neutral, one ground) is mandatory for 240-volt installations in structures built after 1996 to comply with NEC Article 250.
Identify the terminal block configuration on the back of the unit: L-shaped (30A) or straight (50A) slots differentiate voltage and amperage ratings. For a 30A plug configuration, connect the red and black wires to the brass terminals, white to the chrome terminal, and green or bare copper to the grounding screw. Torque each connection to 15-20 lb-in to prevent arcing, using a calibrated screwdriver.
Common Connector Types and Voltage Ratings
| Connector Type | Voltage | Amperage | Wire Gauge (Copper) | NEMA Config |
|---|---|---|---|---|
| Three-prong (obsolete) | 240V | 30A | 10 AWG | 10-30 |
| Four-prong | 240V | 30A | 10 AWG | 14-30 |
| Four-prong (high-power) | 240V | 50A | 6 AWG | 14-50 |
For older three-slot receptacles, consult a licensed electrician to upgrade to a four-slot model–retrofitting ground straps or bootlegging neutrals violates safety codes. When replacing a damaged plug, stagger the cut end of each wire by ¼ inch to prevent short circuits during installation. Always cap unused conductors with wire nuts if modifying an existing setup.
Label the circuit breaker clearly with the connected load’s location (e.g., “Laundry – Heating Drum”) and test continuity using a multimeter before energizing. Set the meter to 200 ohms and probe the hot terminals against neutral and ground–readings should approach zero ohms for continuity and infinite resistance when probed between hot and ground. If variances exceed 0.5 ohms, recheck connections for loose strands or oxidation.
Varieties of Appliance Receptacles and Power Specifications
Install 30-amp, NEMA 14-30 receptacles for standard high-capacity appliances–these require 240V with a neutral and ground, delivering 30A per leg. For older configurations, the NEMA 10-30 (240V, 30A) lacks a ground but remains common in pre-1996 installations; replace it immediately due to safety risks. Commercial or heavy-duty models may demand 50-amp, NEMA 14-50 receptacles (240V, 50A), often found in garages or workshops for robust equipment. Verify the appliance’s nameplate: mismatch risks overheating, failure, or fire. Use 10 AWG copper wire for 30A circuits and 6 AWG for 50A; never substitute aluminum without derating.
Single-phase setups predominate in residential use, but check for split-phase (120V/240V) or dedicated 208V lines in multifamily or commercial spaces–these necessitate NEMA 6-20 or 6-30 receptacles. Confirm local codes: some regions mandate GFCI protection for laundry areas, while others prohibit shared neutrals. Label all circuits clearly; misidentification during maintenance causes accidental overload. Test voltage with a multimeter before connecting any appliance: 220–240V readings confirm proper installation, while 110–120V signals wiring errors demanding correction.
Installing a Three-Slot Power Connection: A Practical Walkthrough
Shut off the circuit breaker supplying the 240-volt line before handling any terminals. Verify absence of voltage using a non-contact tester held near each conductor–failure to confirm this risks severe electrical shock. For standard 30-amp setups, ensure the cable consists of one green or bare grounding wire, one white neutral, and two hot wires (typically black and red, sometimes both black). Strip ¾ inch of insulation from each conductor, exposing clean copper for secure termination.
- Remove the cover plate from the receptacle box to access mounting screws.
- Thread the cable through the knockout opening, leaving six inches of slack inside the box for connections.
- Secure the cable with a clamp or bushing to prevent strain on terminals.
Connect the wires in precise order: hook the bare or green grounding wire to the green screw, usually marked with either a grounding symbol or the letter G. Attach the white neutral to the silver-colored screw at the center slot. Terminate the black and red hot conductors to the brass screws on opposite sides–polarity does not matter for these two, but consistency avoids confusion during future inspections. Tighten each screw to 18–20 in-lbs torque using an insulated screwdriver; overtightening can strip threads or crack the receptacle housing.
After securing all connections, fold wires neatly into the box, ensuring no bare copper is exposed outside the terminal screws. Reattach the cover plate with the original screws. Finally, restore power at the breaker and test the receptacle with a multimeter:
- Set to 250V AC mode.
- Touch probes to the brass screws–should read ~240V.
- Check neutral to ground–should measure 0V.
- Verify grounding integrity by connecting one probe to a grounded surface and the other to the green screw–reading should match line voltage.
If readings deviate, revisit connections immediately.
Installing a 4-Slot Appliance Connection Safely
Shut off power at the circuit breaker before touching any electrical components. Use a non-contact voltage tester to confirm the current is fully disabled–probing each terminal individually to ensure no residual charge remains. A single missed verification risks severe injury.
Select wiring rated for 30 amperes with insulation capable of withstanding 90°C temperatures. Copper conductors sized at 10 AWG are mandatory for standard installations, while aluminum requires 8 AWG due to higher resistance. Verify local electrical codes, as some jurisdictions mandate conduit for exposed runs over two meters.
Strip exactly 19mm of insulation from each conductor end using a precision wire stripper–excessive removal weakens structural integrity, while insufficient exposure prevents proper terminal engagement. Twist stranded cores clockwise lightly to prevent fraying before securing under terminal screws.
Attach the neutral (white) conductor to the center terminal, grounding (bare/green) to the dedicated slot directly below, and both hot (black/red) wires to the outer slots. Tighten each screw to 14-16 lb-in using a torque screwdriver–over-torquing deforms terminals, while under-tightening risks loose connections causing arcing.
Final Inspection Protocol
Reattach the cover plate only after verifying:
- No stray conductor strands extend beyond terminals
- All screws sit flush without rotational play
- The grounding screw on the device housing makes direct contact with the metal box
- No insulation is pinched between wire and terminal
Failure in any point demands immediate correction.
Restore power and test functionality with a multimeter: 240 volts across the two hot slots, 120 volts from each hot to neutral, and zero volts between neutral and ground. Record readings for future reference–deviations indicate wiring errors or circuit deficiencies requiring attention.
Secure the faceplate with tamper-resistant screws if accessible to children or in high-traffic areas. Label the circuit breaker clearly with indelible ink, stating “Clothes Appliance” and the installation date–this prevents accidental activation during maintenance.
Recheck connections annually for oxidation, especially in humid climates. Symptoms like intermittent operation, discoloration at terminal points, or a faint burning odor signal imminent failure–address these immediately rather than postponing until the next use cycle.
