Complete Guide to Wiring Dual Alternators in Off-Road and Marine Systems

For high-demand electrical systems–especially in marine, heavy-duty trucking, or off-grid applications–installing a secondary charging source with balanced load distribution prevents voltage sag and extends battery life. Start by isolating the primary and secondary units with individual voltage regulators to avoid feedback loops. Use a 12-gauge or thicker wire for connections between the two units to handle current surges without overheating. A bidirectional diode isolator rated at least 200 amps ensures each generator operates independently while allowing seamless power sharing.

Grounding both units to a single chassis point is critical to eliminate ground loops. For engines above 300 horsepower, a battery equalizer maintains charge balance between multiple banks, preventing sulfation in lead-acid setups. Label all cables with heat-shrink identifiers to simplify troubleshooting, and test the system under load with a clamp meter–current should split evenly (±10%) between the two sources at full demand.

In dual-voltage systems (12V/24V), use a voltage-sensing relay to prioritize the higher-voltage output during cranking. For alternators exceeding 150 amps, install a thermal breaker near each unit to protect against stalled-rotor damage. Avoid common pitfalls like shared excitation circuits; instead, wire each rotor separately to its respective ignition feed for precise control.

For mobile installations, secure all wiring with vibration-resistant mounts (e.g., Adel clamps) and route cables away from sharp edges or moving parts. Verify regulator compatibility–some OEM setups default to aggressive charging profiles, which can overcharge lithium batteries. A shunt-based monitoring gauge (e.g., Victron BMV-712) provides real-time data on load sharing and battery health.

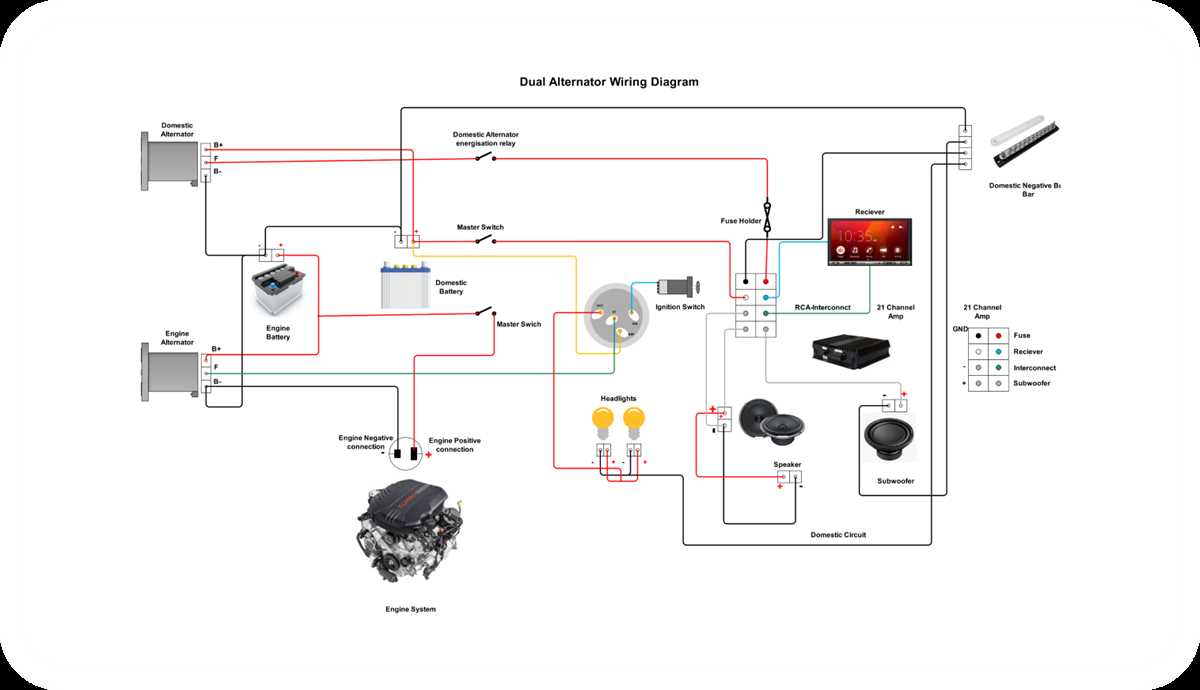

Configuring Parallel Power Generators: A Practical Schematic

Begin by isolating the positive terminals of both generators–connect each to a dedicated heavy-duty relay with a minimum 100-amp rating. Use 4 AWG cable for these links to prevent voltage drop under load; anything thinner risks overheating. Ground both units to the same chassis point using 2 AWG cable, ensuring zero resistance between grounding locations–any divergence here causes stray currents that degrade efficiency. Install a voltmeter across the battery bank to monitor output; if readings exceed 14.8V under normal conditions, adjust the regulator settings or check for loose connections.

Avoid paralleling the excitation circuits–instead, trigger each regulator independently to prevent feedback loops that destabilize output. For installations where one unit serves as primary and the other as backup, wire the secondary through a momentary switch so it engages only when load exceeds 70% of the primary’s capacity. Use a 150-amp fuse on each positive line to isolate faults without cutting power entirely. If modifying a stock setup, remove factory-installed suppressors; they introduce unnecessary resistance in high-demand scenarios.

Test the setup under simulated load: apply a 60-amp draw and verify voltage remains between 13.8V and 14.4V at idle. If readings fluctuate, check diode integrity–replace any with forward voltage above 0.7V. For marine or off-road applications, encase all connections in heat-shrink tubing with adhesive lining to prevent corrosion from moisture ingress. Label every wire at both ends to streamline troubleshooting.

Primary Elements for a Paired Electrical Generation System

Start with two high-output generators rated for identical voltages–typically 12V or 24V–to ensure balanced load distribution. Select units with matched amperage ratings (e.g., 150A each) to prevent differences in charging cycles that can lead to premature wear. Avoid mismatched models, as discrepancies in output may cause one unit to compensate excessively, reducing efficiency.

Heavy-duty cables are non-negotiable. For 12V systems, use 2/0 AWG copper wire for main power leads, while 24V setups can drop to 1/0 AWG without sacrificing performance. Ground cables should equal the positive leads in gauge to prevent voltage drop, especially in installations exceeding 10 feet from the battery bank. Tinned copper wire resists corrosion better than standard copper, a critical factor in marine or off-road environments.

• Battery isolator: A diode-based or solid-state isolator separates the charging circuits, preventing backfeed between generators. Choose a 200A model to handle peak loads without overheating.
• Voltage regulator: Each generator must have its own adjustable regulator. External regulators offer finer control over output, allowing tweaks for temperature compensation or equalization modes.
• Fuse block: Install an ANL fuse (sized to 150% of the highest generator’s output) within 7 inches of the battery terminal to protect against short circuits.

Balmar, Mechman, and Powermaster produce generators optimized for tandem operation. Balmar’s MC-624 regulators synchronize output between units, while Powermaster’s dual-post models simplify mounting in cramped engine bays. Mechman’s high-amp stators reduce heat buildup–a common failure point in sustained high-load scenarios like auxiliary power supplies or winching rigs.

Mounting hardware must accommodate vibration. Use vibration-dampening pads between generator brackets and the engine block, and secure all connections with stainless steel bolts and Nylock nuts. Avoid mounting both units on the same side of the engine; instead, stagger them to balance weight distribution and improve airflow. In diesel setups, ensure generators are positioned away from turbochargers to prevent heat soaking.

1. Remote monitoring: Install a dual-gauge dashboard panel displaying individual amperage draw, voltage, and temperature for each unit. Blue Sea Systems’ panel integrates with most regulators, providing real-time data to prevent overloading.
2. Starter relay: A dedicated 40A relay isolates the secondary generator’s starter circuit, preventing accidental engagement during primary engine cranking.
3. Cooling upgrades: Auxiliary fans or ducting direct airflow toward the rear bearings–critical in vehicles idling for extended periods, such as RVs or overland rigs.

Battery selection directly impacts system longevity. Lithium iron phosphate (LiFePO4) batteries handle rapid charge/discharge cycles better than AGM but require a compatible charger. For AGM setups, opt for a battery with a 100Ah+ capacity to absorb fluctuations in generator output without sulfation. Parallel connections must use identical battery types and ages to prevent imbalance.

Failure Prevention Measures

Tension belts to 1/2 inch deflection under thumb pressure–loose belts slip, generating heat that glazes pulleys and burns generator bearings. Check alignment every 50 operating hours; misaligned pulleys accelerate bearing wear. Grease external regulators annually with dielectric grease to prevent moisture ingress. Replace brushes at the manufacturer’s recommended interval, typically every 1,000 hours, or sooner if amperage output drops by 10%.

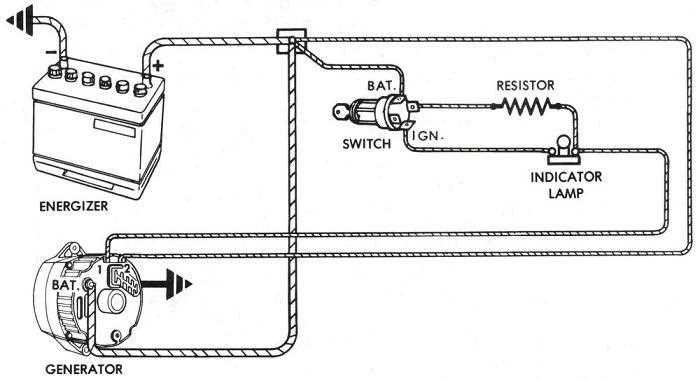

Step-by-Step Electrical Hookup for Twin Power Generators and Storage Cells

Connect the primary generator’s positive terminal directly to the battery’s positive post using 4 AWG copper cable or thicker, ensuring the path is no longer than 3 feet to minimize voltage drop. Use tin-plated crimp terminals and hydraulic crimping tools rated for 200+ amps to secure connections; soldering is not recommended for high-current applications due to heat degradation risks. The negative terminal of the first unit should link to the vehicle’s chassis or a dedicated ground busbar, not the battery’s negative post, to avoid ground loops.

For the secondary power source, install an isolator or combiner between both generators’ outputs to prevent backfeeding. A 200-amp automatic relay or diode-based separator (e.g., Sure Power 1314) ensures balanced charging without interference. Route cables away from moving parts, exhaust manifolds, or sharp edges, securing them every 12 inches with adhesive-lined clamps to prevent chafing. Label each cable at both ends with heat-shrink tubing markers (e.g., “A1+” and “A2-“) for troubleshooting.

Voltage Sensing and Regulation Setup

Attach a dedicated sense wire (18 AWG minimum) from the battery’s positive terminal to the voltage regulator’s sense port on each power source. This compensates for voltage losses in long cable runs, typically maintaining regulation within ±0.1V. If regulators lack external sensing, use a 1-watt 50-ohm resistor in parallel with the main positive lead to mimic a stable reference. Verify regulator settings with a multimeter: target 14.2V for flooded lead-acid cells, 14.5V for AGM, or 14.8V for lithium under load.

Ground the secondary power source separately from the primary to distribute current flow. Use a 0-gauge braided strap or solid copper bar (minimum 4 sq. in. cross-section) bolted to the chassis with star washers for corrosion resistance. Avoid relying on engine blocks or transmissions for grounding; paint, gaskets, or powder coating create high-resistance paths that can cause erratic performance. Test ground integrity with a megohmmeter: resistance should not exceed 0.1 ohms.

Install a 150-amp circuit breaker or fusible link no more than 7 inches from each battery terminal to protect against short circuits. For lithium storage, add a 120-amp battery management system (BMS) to prevent overcharging; most AGM and flooded cells tolerate higher currents without additional protection. Route all positive cables through a common junction block (e.g., Blue Sea 5025) to simplify maintenance; secure connections with serrated washers to prevent loosening from vibration.

Before finalizing, load-test each generator with a carbon pile tester set to 80% of its rated output (e.g., 160 amps for a 200-amp unit). Monitor voltage drop across connections: values above 0.3V indicate poor conductivity, requiring retightening or cleaning of terminals. For dual-battery systems, use a battery separator like the Victron Cyrix to prioritize starting power while ensuring auxiliary cells remain charged. Recheck torque specs every 1,000 miles or 50 operating hours–corrosion or thermal cycling can weaken connections over time.
