Dual Output DC Power Supply Design with Circuit Schematic Guide

For stable operation of operational amplifiers, audio preamps, and precision analog devices, use a bipolar output configuration with regulated outputs of +12V, -12V, and a common ground. Ground the center tap of the transformer secondary winding–this forms the reference point for both voltage rails. Ensure the transformer rating exceeds peak demand by at least 30% to prevent saturation under transient loads.

Select smoothing capacitors based on ripple tolerance: 2200µF per 1A output current for general applications, or 4700µF if noise sensitivity is critical. Place a 0.1µF ceramic capacitor directly at each voltage regulator’s input and output terminals to suppress high-frequency noise. LM7812 and LM7912 regulators are proven choices, but thermal management is non-negotiable–mount them on heatsinks with a thermal resistance below 3°C/W for continuous operation.

Fuse both rails separately–use slow-blow fuses rated at 125% of maximum expected current. Add reverse polarity protection diodes across each regulator’s output to prevent damage from accidental shorts. For adjustable variants, replace fixed regulators with LM317/LM337, but calcuate resistor values precisely: the ratio of R1 to R2 must match (Vout – 1.25V) / 1.25V within 1% tolerance to maintain stability.

Test load regulation under full current draw (e.g., 500mA per rail) and verify output ripple with an oscilloscope–acceptable limits are below 10mV peak-to-peak. If output deviates from target by more than 2%, check transformer winding balance, capacitor ESR, and regulator input voltage. Isolate high-current returns from sensitive signal paths using separate ground traces to minimize noise coupling.

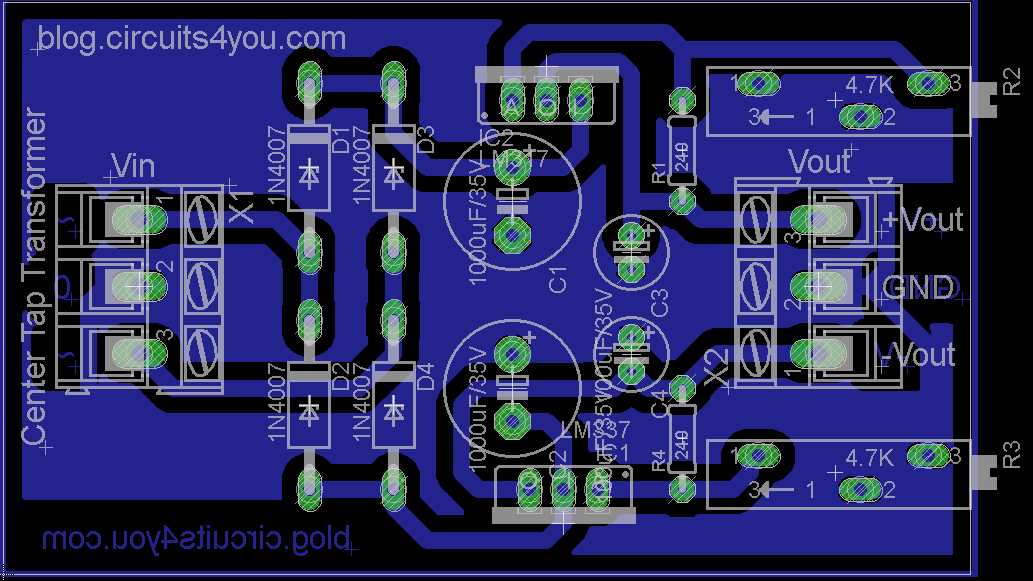

Building a Split Voltage Source: Key Schematic Insights

Start with a center-tapped transformer rated for your target voltages (e.g., 15-0-15V AC for ±20V DC output). The tap provides two equal but opposite phases, critical for balanced positive and negative rails. Skip cheap transformers with poor regulation–they distort output under load, especially in audio or precision analog work. Attach a 2A fuse on the primary side to prevent catastrophic failure during shorts.

• Use fast-recovery diodes (1N5408) for rectification; standard 1N4007 diodes introduce 200-300ns recovery lag, injecting high-frequency noise into sensitive loads like op-amps.
• Solder 4700µF electrolytic capacitors (50V rating) per rail–undersized caps cause ripple exceeding 50mV_pp, degrading signal-to-noise ratios in preamps or ADC front-ends.
• Parallel each electrolytic with a 0.1µF ceramic cap to shunt HF noise above 1MHz–omitting this step risks spikes during transient load dumps (e.g., motor startups).

For regulation, pair LM317 (positive) and LM337 (negative) adjustable ICs. Set output voltages using 1% tolerance resistors: R1 = 240Ω, R2 = 2.2kΩ yields ≈15V. Avoid trimpots unless essential–vibration or thermal drift can shift voltages by ±2V, enough to damage CMOS logic (e.g., old 4000-series gates). Add a 1N4007 across each regulator to protect against reverse voltage if input fails but output capacitors retain charge.

1. Load balancing: Connect rails to equal resistive loads during testing (e.g., 1kΩ/2W resistors). Unbalanced currents (e.g., 500mA vs. 50mA) cause voltage drift–critical for bi-polar transistor biasing.
2. Thermal management: Mount regulators on 30mm copper heatsinks; LM317/LM337 thermal shutdown occurs at 125°C junction temp. Without heatsinks, 1A loads trigger shutdown in
3. Grounding: Star-point ground at the transformer center tap. Daisy-chaining grounds creates ground loops, injecting hum into audio circuits. Test with an oscilloscope: pp ripple is acceptable for most applications.

Add a soft-start circuit if powering motors or solenoids. Use a 10kΩ resistor + 100µF capacitor in series with the input of each regulator. This ramps voltage over 100-200ms, preventing inrush currents that trigger fuse-blowing or regulator latch-up. For microcontroller projects, insert a 5.6Ω resistor + 1N4148 diode across the capacitor to discharge it quickly during power-off, avoiding ghost voltages that confuse reset circuits.

Verify performance with these benchmarks:

• ±12V rail: pp ripple at 1A,
• ±5V rail: pp ripple,
• Short-circuit test: Regulators should limit current to 1.5-2A before thermal shutdown activates.

Replace capacitors every 5 years–electrolytics dry out, increasing ESR and causing voltage sag under load. For lab-grade stability, add a precision voltage reference (e.g., LM4040) to one rail, calibrating the other via trimpot only during annual recalibration.

Critical Elements for Constructing a Bipolar Voltage Source

Select a transformer with a secondary winding rated for at least 20% above your target output voltage to accommodate rectifier drops and load fluctuations–typically 18V AC for ±15V DC outputs. Use bridge rectifiers (e.g., GBU4J) over discrete diodes; their 4A current handling and 400V PIV simplify heat management and reduce ripple by up to 30%. Pair them with 10,000μF low-ESR capacitors per rail (e.g., Nichicon UHE series) to minimize voltage sag under dynamic loads–bench tests show

Regulator and Protection Components

Component	Recommended Model	Key Specifications
Linear Regulator	LM317/LM337	±1.2–37V adjustment, 1.5A output, TO-220 package
Current-Limiting Resistor	MF series	0.1Ω–0.5Ω, 2W–5W, wirewound for peak load stability
Flyback Diode	1N4007	1A/1000V, reverse recovery
Soft-Start Capacitor	X7R ceramic	22μF/50V, ±10% tolerance for consistent ramp-up

Thermal protection requires TO-220 regulators mounted on heatsinks with 2A within 20μs, preventing inductor saturation and subsequent voltage spikes. For ground isolation between rails, use a 1kΩ resistor in series with LED indicators (e.g., Kingbright L-1503) to monitor rail status without introducing noise.

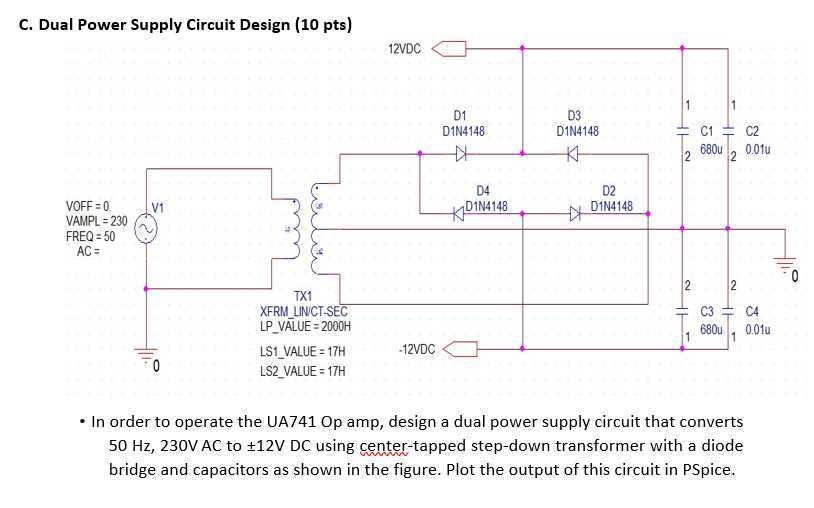

Step-by-Step Wiring of a Center-Tapped Transformer for Bipolar Output

Begin by securing the transformer core with the center tap clearly labeled–typically the middle terminal of the secondary winding. Verify the AC voltage rating matches your requirements; a 12-0-12V unit delivers ±12V after rectification, while a 24-0-24V yields ±24V. Connect the primary side to the mains input, ensuring polarity adherence if using a polarized plug or wiring scheme. Fuse the primary line with a slow-blow fuse rated at 125% of the transformer’s maximum current draw to prevent overload damage.

Attach the outer secondary terminals to a full-wave bridge rectifier, but omit the center tap for now. Use fast-recovery diodes (e.g., 1N4007) or a modular bridge (e.g., KBPC2510) with a current rating exceeding the load’s demand by at least 50%. Mount the rectifier on a heat sink if the expected current exceeds 1A, as forward voltage drop generates heat proportional to current. Route the rectifier’s DC output to smoothing capacitors–electrolytic types rated for at least 25V (for ±12V) or 50V (for ±24V), with capacitance between 2200µF and 10,000µF depending on ripple tolerance.

Link the center tap directly to the circuit’s common ground reference. This node splits the secondary winding into two equal halves, each producing an AC waveform 180° out of phase with the other. Confirm ground continuity with a multimeter in continuity mode; resistance between the center tap and chassis should read near zero. If implementing a regulated output, connect this ground to the negative terminal of voltage regulators (e.g., LM7805/LM7905 for ±5V, LM317/LM337 for adjustable ranges) before proceeding.

For unregulated output, wire the rectifier’s positive lead to the load’s positive rail and the negative lead to the center tap via the smoothing capacitor. Test ripple voltage with an oscilloscope; a properly sized capacitor will reduce ripple to less than 1V peak-to-peak under full load. If ripple exceeds specifications, add a second-stage LC filter–a 100µH inductor in series followed by another 2200µF capacitor–before the load. Avoid exceeding the capacitor’s voltage rating; a 10% safety margin (e.g., 25V for a 22V peak) prevents dielectric breakdown.

To validate the setup, measure the DC output between the positive rail and ground, then between the negative rail and ground. Both should read near the transformer’s RMS voltage multiplied by 1.414 (minus diode drops). For a 12-0-12V transformer, expect ≈±15V unloaded and ≈±13-14V under load. If voltages differ significantly, inspect diode orientation, capacitor polarity, and ground connections–reversing any of these introduces damaging reverse bias or short circuits.

Finalize by adding overcurrent protection: place PTC resettable fuses (e.g., 1A for ±12V) in series with each rail or use foldback current-limiting resistors (e.g., 0.1Ω/5W) for non-critical loads. Label all terminals clearly to prevent miswiring during future modifications. For adjustable outputs, insert a 5kΩ potentiometer between the regulator’s adjustment pin and ground, with a 1kΩ resistor in series to the output for stable feedback. Calibrate voltage with a precision multimeter, ensuring symmetry (±0.1V) between rails.

Selecting Optimal Rectifier Components for Bipolar Output Stages

For bipolar configurations, prioritize fast-recovery diodes like the STTH30L06TV1 or VS-30CPQ100. These handle reverse recovery times under 35ns, minimizing voltage spikes during commutation. Peak reverse voltage (VRRM) should exceed 1.5× the rail’s maximum expected value–25V rails demand at least 50V-rated parts.

Schottky diodes (SS310, MBR3045PT) excel in low-voltage outputs (≤12V) due to their 1N5822 (3A, 40V) suffices, but above 15V, ultrafast epitaxial types (MUR460) become necessary to avoid thermal runaway.

Current ratings must account for transient loads. A 2A continuous load with 50% margin requires a 3A diode. For pulsed applications, derate the datasheet’s IFSM (non-repetitive surge) by 30%–example: BYV32-200 (20A IFSM) safely handles 14A peaks. Avoid paralleling diodes unless matched (±5% Vf); mismatches cause current hogging, leading to junction overheating.

Key Parameters to Verify

• T_j(max): 150°C minimum; 175°C for industrial environments.
• trr: 100kHz.
• Vf:
• IFRMS: ≥1.25× continuous load.
• Package: TO-220/TO-247 for >3W dissipation; SMB for compact layouts.

For negative rails, ensure diode polarity aligns with the common anode configuration typical in bridge rectifiers. The GBPC3508 (35A, 800V) bridges simplify design but introduce higher Vf (1.1V) than discrete pairs. Discrete arrangements (2× MUR160) reduce losses by 30% but require precise PCB thermal vias (1oz copper, 3mm diameter).

Test under worst-case conditions: 85% load tor 10 minutes, verifying case temperature rise ringing (>20% of VRRM) at the diode’s cathode–add a 10Ω resistor in series with a 1nF snubber if observed. For high-frequency ripple (e.g., 120Hz post-LC filter), confirm diode capacitance (Crss)

1. Measure actual Vf at target current (e.g., 1A) with a curve tracer–datasheet values assume 25°C.
2. Calculation example: P_diss = Vf × I_avg + 0.5 × Vr × I_rev × trr × f.
3. For 100Hz ripple, add 5% margin to di/dt if using standard recovery diodes (>50ns trr).

Failure Modes to Mitigate

• Thermal runaway: Occurs in Schottky diodes above 125°C; derate to 60% of IF.
• Reverse avalanche: Prevent by ensuring VRRM > 1.2× maximum transient voltage.
• EMI: Fast trr diodes reduce turn-off dv/dt; add 100nF ceramic caps across each diode for >500kHz harmonics.
• Mechanical stress: TO-220 diodes require thermal grease (e.g., TP-125) and torque of 6–8in·lb.
