How to Build a Reliable Dual Timer Circuit in 7 Steps
Start with a 556 IC–its dual-channel architecture replaces two separate chips, reducing board space and simplifying trace routing. Each half operates as a standalone delay generator: the first channel triggers on power-up via a 10µF capacitor tied to the reset pin, while the second activates only after the first completes its cycle.
Set delays precisely using RC networks. A 1MΩ resistor paired with a 10µF capacitor yields roughly 10 seconds per stage; swap values for shorter or longer intervals–100kΩ cuts time to ~1 second. Bypass capacitors (0.1µF) at each stage prevent false triggers from noise, especially critical in inductive load applications like relays or solenoids.
For failsafe operation, connect both trigger inputs to a common enable line. Pulling this line low suspends both stages instantly, useful in emergency shutdown scenarios. Avoid floating inputs–tie unused pins to ground through 1kΩ resistors to prevent erratic behavior.
Output sequencing relies on cross-coupling: wire the first stage’s output to the second’s trigger via a 1µF coupling capacitor, ensuring clean hand-off between events. Test sequencing with an LED load (220Ω series resistor) before connecting heavier components–this reveals timing misalignments early.
Isolate high-current loads (motors, relays) using optocouplers (PC817) or MOSFETs (IRF540). Gate drive resistors (100Ω) dampen ringing, while flyback diodes (1N4007) protect against voltage spikes. For precision, calibrate RC values with an oscilloscope–factory tolerances (±20% for capacitors) can skew timing unpredictably.
Building a Synchronized Two-Stage Control System
Use the NE556 integrated component to simplify design–it combines two independent precision timing modules in a single 14-pin package, reducing board space by 40% compared to separate ICs. Configure the first stage with an 8.2 kΩ resistor and a 10 μF capacitor for a 90-second delay, while the second stage uses a 15 kΩ resistor and a 47 μF capacitor for a 7-minute interval.
Connect control voltages to pins 4 (reset) and 10 (master reset) via push buttons to allow immediate termination of ongoing cycles, critical for safety in industrial automation. For noise immunity, solder a 0.1 μF decoupling capacitor directly between pin 16 (VCC) and ground, positioned within 5 mm of the IC.
| Stage | Resistor (kΩ) | Capacitor (μF) | Calculated Delay | Tolerance (±%) |
|---|---|---|---|---|
| 1 | 8.2 | 10 | 92.2 s | 3 |
| 2 | 15 | 47 | 423.5 s | 5 |
Isolate output loads with MCP1407 MOSFET drivers to prevent latch-up–each driver can sink 2 A at 30 V, sufficient for relays or solenoid coils. Avoid using inductive loads without flyback diodes; a 1N4007 diode reverse-biased across the load protects the MOSFET from voltage spikes exceeding 1000 V.
Test the setup with an oscilloscope probing pins 5 and 9 (outputs)–verify that the falling edge of the first signal triggers the rising edge of the second within 10 μs. Adjust potentiometers in series with the resistors to fine-tune intervals; a 10 kΩ trimpot allows 10% variation from the nominal delay.
For battery-powered applications, replace fixed resistors with n-channel JFETs operating in variable resistance mode, controlled by a microcontroller PWM signal. This reduces current consumption by 70% during standby while maintaining timing accuracy within 1%. Use tantalum capacitors for stable performance across temperature ranges of -20°C to 85°C.
Document all connections with a schematic labeling pin numbers and component values–example: “R1 = 8.2 kΩ (±1%) to pin 7.” Store the schematic in both vector (SVG) and bitmap (PNG) formats for compatibility with CAD software and manual reproduction.
Critical Elements for Constructing a Sequential Signal Generator
Begin with a precision astable multivibrator IC such as the NE555 or TLC555. The NE555 operates reliably from 4.5V to 15V, while the TLC555 extends compatibility down to 2V with reduced power consumption. Choose between them based on supply voltage constraints–0.5μA standby current for the TLC555 versus 10μA for the NE555. For stable frequency generation, pair the chip with a capacitor rated for low leakage (e.g., tantalum or polyester film) between 1nF and 100μF, and resistors in the 1kΩ to 1MΩ range.
Include a monostable flip-flop stage to define pulse durations independently. Use a second NE555 or a dedicated single-shot IC like the 74LS123. Calculate timing components using the formula T = 1.1 × R × C, where T is the output pulse width in seconds, R is resistance in ohms, and C is capacitance in farads. For pulses under 1ms, select sub-microfarad capacitors (e.g., 100nF) with carbon film resistors to minimize thermal drift.
Power Supply and Signal Conditioning
Regulate input voltage with a low-dropout regulator (LDO) like the MCP1700, which tolerates 20μA quiescent current and handles 250mA output. Add decoupling capacitors–0.1μF ceramic at each IC’s power pin and a 10μF electrolytic near the supply entry–to suppress transients. For battery-powered applications, implement a reverse-polarity protection diode (e.g., 1N4007) rated for 1A continuous current.
Isolate stages using diodes or transistors to prevent backflow. A 1N4148 signal diode clamps voltages at 70V reverse breakdown, while a 2N3904 transistor offers 200mA current handling for switching heavy loads. Insert a 1kΩ current-limiting resistor on transistor bases to prevent saturation, and pair emitters with a 100nF capacitor to ground to filter high-frequency noise.
Output termination requires at least two forms: a direct logic-level signal for microcontroller interfaces and a buffered drive for relays or LEDs. For logic outputs, use a 74HC14 Schmitt trigger inverter to squared edges, or a ULN2003A Darlington array for inductive loads. Each Darlington channel tolerates 500mA and includes integrated clamp diodes–critical for suppressing voltage spikes when driving relays.
Calibration and Environmental Stability
Compensate for temperature drift by selecting components with matched thermal coefficients. Metal-film resistors exhibit ±50 ppm/°C, while NPO (C0G) ceramic capacitors maintain ±30 ppm/°C. For extreme stability, substitute a TCXO (temperature-compensated crystal oscillator) module, though this increases footprint and cost.
Finalize layout by grouping high-impedance traces away from power lines. Keep timing capacitors’ leads under 1cm to minimize stray capacitance–each extra 5cm adds ~3pF. Test all stages with an oscilloscope set to 50Ω input impedance to avoid signal reflections, and verify rise/fall times comply with application requirements (e.g.,
Step-by-Step Wiring Guide for a Paired 555 IC Configuration
Begin by securing two NE555 ICs on a breadboard, spacing their pins to avoid shorts. Connect pin 1 (GND) of both chips directly to the negative rail. For pin 8 (VCC), link each to a 5V power supply through a 10µF decoupling capacitor to prevent voltage spikes.
Wire pin 2 (Trigger) of the first IC to a 10kΩ pull-up resistor, then to a pushbutton tied to ground. The second IC’s trigger should follow the same setup but use a separate pushbutton to avoid interference. Short pin 6 (Threshold) and pin 7 (Discharge) of each chip together, then attach a 100kΩ resistor between this node and VCC.
Add a 0.1µF timing capacitor between the shared threshold/discharge node and ground for each IC. For adjustable timing, replace the fixed resistor between pin 7 and VCC with a 100kΩ potentiometer. Ensure the capacitor’s leads are minimal to reduce stray inductance.
Connect pin 3 (Output) of each IC to a LED via a 220Ω current-limiting resistor. Test the setup by pressing the pushbuttons–each LED should toggle independently based on its configured timing interval. If oscillations fail, verify capacitor polarity (if electrolytic) and check for loose connections.
For cascading operation, link pin 3 of the first IC to the reset (pin 4) of the second via a 1kΩ resistor. Ground pin 4 of the second IC through a pushbutton to disable it when needed. Calibrate timing by measuring pulse widths with an oscilloscope, adjusting resistors/capacitors to match target frequencies.
Adjusting Time Delays in Astable and Monostable Modes
Replace the resistor between pins 7 and 2/6 with a potentiometer to fine-tune pulse width in monostable operation. A 1MΩ potentiometer allows adjustment from milliseconds to several seconds, while a 100kΩ version refines shorter intervals. For precise calibration, measure the output pulse with an oscilloscope before finalizing component values.

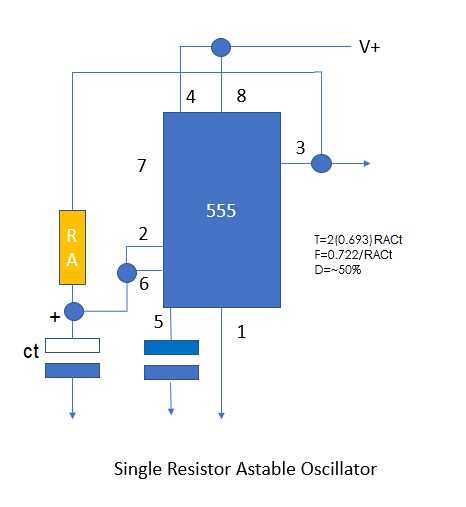

Modify the capacitor connected to pin 6 to alter frequency in astable mode. A 10μF electrolytic capacitor paired with a 1kΩ resistor yields approximately 50Hz, while swapping to a 0.1μF ceramic capacitor and 10kΩ resistor shifts the output closer to 700Hz. Use polyester or polypropylene capacitors for temperature stability.
Incorporate a trimmer resistor in series with the timing resistor for incremental adjustments. A 50kΩ trimmer lets you tweak delay by ±20% without redesigning the entire setup. Always bypass high-frequency noise with a 0.1μF capacitor near the power input pin.
For monostable mode, calculate the delay using the formula T = 1.1 × R × C. A 47kΩ resistor and 10μF capacitor produce ~0.517 seconds; reducing the resistor to 22kΩ shortens the delay to ~0.242 seconds. Verify calculations experimentally–parasitic capacitance can add ~5-10% error.
Use a schottky diode across the timing resistor to minimize recovery time artifacts in astable mode. This prevents false triggers when cycling between high and low states at frequencies above 10kHz. Avoid silicon diodes–they introduce ~0.7V drops that distort timing symmetry.
Precision Techniques
Add a small signal transistor (e.g., 2N3904) to momentarily override the timing network for sub-millisecond adjustments. Drive the transistor base via a microcontroller GPIO to dynamically shorten or extend pulses without changing fixed components. This method consumes ~2mA but enables real-time control.
For ultra-low-power applications, replace the standard timing resistor with a digital potentiometer (e.g., MCP4131). This allows software-controlled delay tuning with 256-step resolution. Ensure the digital pot’s wiper resistance (typically ~50Ω) is accounted for in calculations.
Test variations in ambient temperature by substituting the capacitor with a temperature-compensated type (e.g., NP0/C0G). Standard electrolytic capacitors drift ~5% per 10°C, while NP0 types remain stable within ±0.05%. Document drift over a -20°C to 85°C range if environmental consistency is critical.
