Building and Understanding Dynamic Microphone Circuit Schematics

Start with an impedance-matched transformer if signal amplification is critical. A 1:10 step-up ratio balances noise and gain for most condenser preamps, but verify the primary impedance against the cartridge’s output–typically 150–600 ohms. Avoid cheap laminations; core saturation distorts transient response below 50 Hz. Use a toroidal design for stray field suppression unless size constraints demand E-I laminates, where flux leakage becomes a compromise.

Place a shielded twisted pair between the capsule and preamp input. Ground the shield at a single point–either the capsule chassis or preamp ground–to prevent ground loops. If hum persists, add a ferrite bead on the signal line after the transformer. Keep leads short (under 15 cm) to minimize capacitive loading, which dulls high-frequency detail above 10 kHz. Test with a known square wave; ringing indicates unmatched impedance.

For phantom-powered interfaces, insert a blocking capacitor (4.7 µF polyester or film) in series with each signal line to protect the coil from DC offset. Bypass with a 100 nF ceramic to ground at the preamp side to shunt radio-frequency interference. Omit phantom power entirely for standalone applications; an external DC supply (9–12 V) through a dropping resistor (1–2.2 kΩ) avoids coupling capacitors’ phase shifts.

Solder connections directly to the capsule terminals–no plugs. Vibration-induced microphonics worsen with loose contacts. Strain-relieve cables with silicone grommets where they exit the housing. Test transient response with bursts above 130 dB SPL; audible distortion at low levels signals fatigued coil suspension or misaligned magnet gap.

In high-noise environments, substitute a discrete FET buffer (J112 or BF245) after the transformer instead of an op-amp. Input impedance drops to 1 MΩ but noise floor improves by 3–6 dB. Mount the buffer inside the capsule housing if cable runs exceed 3 meters; otherwise, place it within 10 cm of the preamp input to prevent r-f rectification.

Building a Robust Voice Capture Assembly

Begin with an impedance-balanced preamplifier stage using a low-noise operational amplifier like the NE5532 or OPA2134. Configure the input with a 1:10 step-up transformer (e.g., Lundahl LL1538) for optimal noise rejection and signal integrity. The transformer’s primary should connect directly to the transducer’s output, while the secondary feeds the op-amp’s non-inverting input. Use a 10 kΩ resistor in series with the inverting input for stability, bypassed with a 100 nF polypropylene capacitor to filter high-frequency noise. Supply rails should be decoupled with 10 µF tantalum capacitors near the IC pins.

Power consumption and thermal stability dictate component selection. For portable implementations, prioritize the TLE2027 op-amp, which draws 1.2 mA per channel at ±15 V while maintaining 2.5 nV/√Hz noise density. Pair it with a 9 V alkaline battery regulated to ±5 V via TPS65131 for consistent performance down to 6 V input. Avoid linear regulators below 40 dB PSRR–switching regulators like the LT3480 introduce audible artifacts unless shielded with a ferrite bead (e.g., Murata BLM21PG221SN1) and a 10 µF X7R capacitor bank on both input and output sides.

Stage	Component	Specification	Tolerance
Input Transformer	Lundahl LL1538	1:10 ratio, 20 Hz–20 kHz	±0.1 dB
Op-Amp	OPA2134	8 nV/√Hz, 20 MHz GBW	±0.5 mV offset
Decoupling	Nichicon UHE	47 µF, 35 V	±20%
Output Coupling	Wima MKP4	2.2 µF, 100 V	±5%

Ground topology separates analog and digital paths. Route the transducer’s ground return through a star point at the preamplifier’s power ground, avoiding shared traces with digital logic or LED currents. In high-interference environments (e.g., near switching power supplies), add a 10 Ω resistor in series with the analog ground and a Schottky diode (BAT54) to the chassis ground for ESD protection. Output coupling capacitors should be polyester or polypropylene types–avoid ceramic, as their microphonic properties induce low-frequency distortion under vibration.

For phantom-powered designs, omit the step-up transformer and replace it with a differential amplifier configuration. Use a THAT1510 or INA163 instrumentation amplifier, which includes integrated 6.8 kΩ resistors for 48 V compatibility. The differential input rejects common-mode noise, but add 100 Ω resistors in series with each input to limit inrush current during hot-plugging. Test for latch-up by cycling phantom power 100 times while monitoring DC offset–it should not exceed ±5 mV. For extended low-frequency response, increase coupling capacitors to 10 µF and ensure the amplifier’s input bias current is below 1 µA to prevent voltage buildup across the transducer’s coil.

Key Elements of a Voice Coil Transducer System

Begin with a high-quality neodymium magnet–it generates a stronger magnetic field than ferrite or alnico, reducing signal distortion at high sound pressure levels. The magnet’s diameter should match the coil’s travel range; undersized magnets cause non-linear response, oversized increase mass unnecessarily. Pair magnets with precision-machined pole pieces; any air gap misalignment under 0.2 mm introduces phase cancellations above 8 kHz.

Use a thin-gauge copper or aluminum wire for the moving coil–28 to 42 AWG depending on impedance needs. Copper offers lower resistance (0.5–2 Ω per meter) but weighs more; aluminum reduces mass but raises impedance (0.8–3.5 Ω/m). Wind the coil evenly with 100–400 turns; fewer turns lower sensitivity, more turns increase inductance, rolling off high frequencies.

Select a diaphragm made from Mylar, Kapton, or titanium–each affects transient response differently. Mylar (12–25 µm) balances stiffness and sensitivity; Kapton (7.5 µm) improves high-frequency extension but risks tearing at SPL >130 dB. Titanium (5 µm) reduces mass for better detail but raises cost and fragility. Shape the diaphragm as a shallow dome or ribbon; deeper domes extend low-end response but risk self-resonance at 5–7 kHz.

Attach the voice coil to the diaphragm via a compliant suspension–spider and surround. The spider (typically cotton or polyester) controls coil centering; stiffness affects low-frequency roll-off. The surround (foam, rubber, or corrugated Mylar) seals the assembly and defines compliance; rigid surrounds reduce feedback susceptibility but dampen high frequencies.

Connect the coil leads directly to a transformer-input preamp–avoid capacitors in the signal path. A step-up transformer with a 1:10 turn ratio boosts signal level while impedance-matching to 600 Ω. Without it, cable capacitance (>100 pF/m) attenuates frequencies above 10 kHz linearly. Ground shielded cable at one end only to prevent ground loops.

Incorporate a Zobel network (RC series) across the coil to flatten impedance peaks–typical values: 1 nF capacitor + 10 Ω resistor. This compensates for inductive reactance above 1 kHz, preventing midrange honk. For high-pass filtering, add a capacitor in series with the primary winding; 0.1 µF cuts below 80 Hz, reducing plosives and handling noise.

Avoid solder joints on coil leads–use crimped or welded connections to prevent shorts under heat. Test for thermal drift by heating the transducer to 60°C; neodymium magnets retain 98% flux, but coil resistance drops 0.4% per °C, requiring amp with >3 dB headroom to compensate.

Position the transducer’s capsule near the source but outside the turbulent boundary layer (1–3 cm from lips) to minimize proximity effect boost below 300 Hz. For bidirectional polar patterns, align two capsules back-to-back with matched windings–phase alignment within 5° prevents cancellation above 2 kHz.

Step-by-Step Wiring for a Basic Voice Coil Audio Device

Begin by selecting a balanced XLR connector for optimal signal integrity. Pin 1 connects to the cable shield, grounding noise interference. Pins 2 and 3 carry the audio signal–invert polarity if phase issues arise, though this rarely occurs in passive devices. Use shielded twisted pair wire (24 AWG or thicker) to minimize electromagnetic interference from nearby power lines or RF sources.

Attach the male XLR to the coil element’s output terminals. Most moving-coil transducers split the signal across two terminals–identify them by resistance (typically 150–600 ohms). Solder wires directly to the lugs, avoiding excessive heat to prevent diaphragm warping or magnet demagnetization. To verify continuity, use a multimeter: a reading of 0.2–0.5V AC with light tapping confirms proper connection.

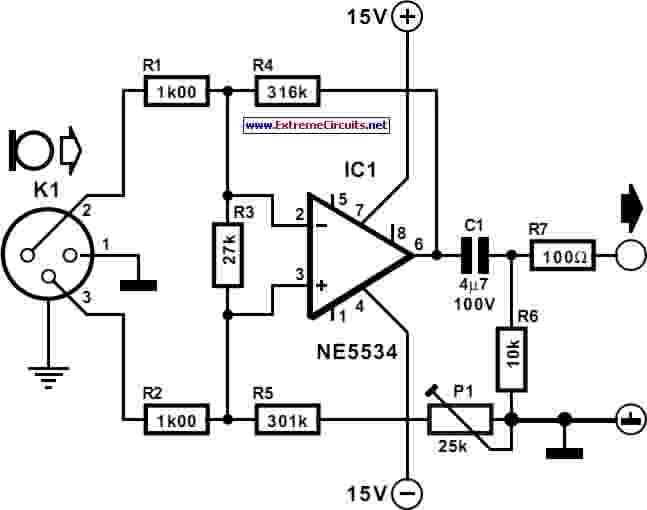

For preamplification, pair the coil with a low-noise op-amp (e.g., NE5532, OPA1642) or a dedicated audio IC like the SSM2019. Configure the input stage with a 1k–5k ohm resistor in series to improve impedance matching. Bypass capacitors (0.1µF ceramic + 10µF electrolytic) across the op-amp’s power rails filter high-frequency noise–place them within 2mm of the IC to ensure stability.

A phantom power circuit (if required) must include a 6.8k ohm resistor between +48V and each signal line (XLR pins 2/3). Insert 47µF decoupling capacitors before the resistor to block DC while passing audio. Never apply phantom power to an unbalanced setup–this will destroy the coil’s windings. Test with a dummy load (600 ohm, 1/2W resistor) before connecting to active equipment.

Ground loops introduce hum–isolate the shield at one end only (preferably at the mixer/input device). If hum persists, use a ground lift adapter or a transformer (e.g., 1:1 audio isolation) between the coil and preamp. For portable setups, a battery-powered preamp (9V, alkaline) eliminates AC-related interference entirely. Ensure all solder joints are mechanically secure; wire strain can cause intermittent failures under vibration.

Troubleshooting Signal Path Errors

If audio is faint or distorted, first check cable termination–cold solder joints or reversed polarity are common culprits. Verify the coil’s DC resistance: values below 100 ohms suggest shorted windings, while infinite resistance indicates an open circuit. Replace damaged cables or connectors immediately; impedance mismatches degrade frequency response.

For power-line noise (50/60Hz hum), route wiring away from transformers and switch-mode power supplies. Ferrite cores on the cable reduce RF pickup. If using unbalanced connections (1/4” TS), keep cable lengths under 6 meters to avoid high-frequency roll-off. Always terminate unused inputs with a dummy plug to prevent oscillations in high-gain stages.
