Complete E Bike Throttle Wiring Guide With Step by Step Diagram

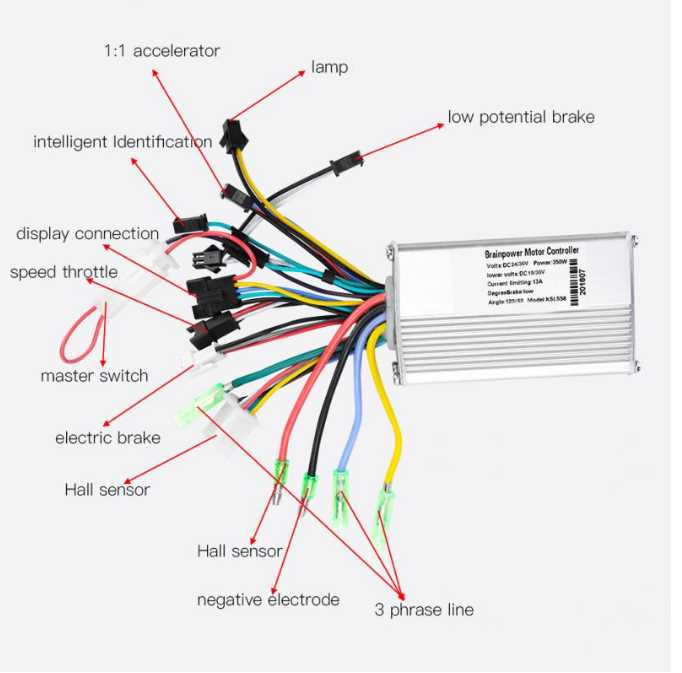

e bike throttle wiring diagram

Start by identifying the three core components in any motorized cycle power system: the accelerator mechanism, battery pack, and motor controller unit. Use a multimeter set to 20V DC to verify input voltage at the controller’s power terminals–expect 36V, 48V, or 52V depending on your battery configuration. If readings deviate by more than 1.5V, check battery connectors for corrosion or loose crimps before proceeding.

Connect the speed signal lead (typically a red or yellow wire) from the hand-operated device directly to the controller’s corresponding input. Avoid common mistakes like routing this wire alongside high-current lines (battery or phase connections), as electromagnetic interference can cause erratic acceleration. Instead, twist the signal wire with a ground return (black or green) at a rate of 6–8 twists per inch to minimize noise.

Install a 10A fuse within 6 inches of the battery’s positive terminal for overcurrent protection. For 48V systems, use a 250V rated suppressor diode (such as 1N4007) across the controller’s main power input to absorb voltage spikes from regenerative braking. If integrating a pedal-assist sensor, ensure its signal wire (often blue) is isolated from the speed control circuit–cross-wiring can trigger unintended activation.

Test the setup in a controlled environment by gradually applying the hand control while monitoring current draw with an inline ammeter. For 500W motors, expect peak loads of 12–15A; readings above 20A indicate incorrect controller programming or insufficient battery capacity. Verify that the controller’s LED status codes match manufacturer specs–blinking patterns often indicate specific faults (e.g., three blinks = throttle overvoltage).

Solder all connections using 60/40 rosin-core solder and heat-shrink tubing for long-term reliability. Crimped terminals may work temporarily but are prone to vibration-induced failure on off-road cycles. For systems exceeding 750W, consider adding a secondary ground plane–connect the controller’s ground and motor casing to the frame using 10AWG wire to reduce stray voltage interference.

Connecting Electric Cycle Accelerator Controls: Key Steps

Begin by identifying the controller’s 3-pin connector labeled “Hall,” “e-thumb,” or “5V.” Match these to the grip module’s color-coded leads: red for power (5V), black for ground, and green (or blue/white) for signal. Verify voltage between red and black with a multimeter–it should read 4.8–5.2V. If absent, check the controller’s fuse or internal regulator first, as damage here often disrupts entire pedal-assist systems.

For twist-style regulators, splice the leads directly if the connector doesn’t match the controller. Use heat-shrink tubing on each joint, then solder for reliability–crimp connectors corrode over time. Test functionality by slowly rotating the grip: the signal wire should output 1–4V proportional to movement. Deviations suggest a faulty grip, while sudden voltage spikes may point to interference from poorly shielded cables near the motor or battery.

Common issues and fixes:

  • No response: Confirm 5V supply; replace regulator if voltage is correct but no signal.
  • Intermittent operation: Re-route cables away from high-current paths (e.g., motor phase wires). Use ferrite chokes if rerouting isn’t possible.
  • Full-speed without input: Short circuit in signal wire–inspect for exposed conductors near frame mounts.
  • Delayed engagement: Capacitor degradation in controller; replace with 470μF 16V low-ESR unit.

For systems with cadence sensors, ensure the accelerator’s signal wire runs parallel but not bundled with sensor cables. Cross-talk induces false engagement at high speeds. Finalize installation by securing all leads with zip ties every 15cm, avoiding sharp edges or moving parts. Tape exposed terminals with electrical tape as a secondary safeguard–vibration loosens even soldered joints over time.

Matching Control Mechanisms to Your Electric Cycle Powerplant

Begin by verifying the voltage and signal specifications of your drive unit–most hub motors (250W–1000W) accept 1–4V analog hall-effect controls, while mid-drive systems (500W–1500W) often require 0.8–3.6V PWM inputs. Check the motor controller’s documentation for exact ranges: a 36V system typically expects a 1.0–4.2V output, whereas a 48V setup may need 1.5–4.5V. Voltage mismatches beyond ±0.3V can cause erratic acceleration or overheating, so measure the output of your existing lever before swapping.

Opt for a contactless magnetic lever if your environment involves frequent exposure to moisture or dirt–these resist corrosion and require no physical wear surfaces. For torque-sensing pedals, ensure the lever’s signal mimics a pedal assist sensor (PAS) output; many Bosch and Yamaha mid-drives use a 5V square wave that many aftermarket levers can replicate with a simple resistor divider. Avoid half-twist grips on direct-drive hubs: their gradual engagement curve can overload the controller during sudden starts.

Physical Form Factors and Ergonomics

Measure the handlebar diameter and grip length–standard 22.2mm bars fit most twist or trigger models, but BMX-style 25.4mm bars may need adapters. Right-side triggers should have a throw of 10–15° for precise modulation, while full-twist variants should rotate no more than 90° to prevent strain. Check cable exit angles: downward-facing sockets prevent water ingress, while upward exits ease routing but risk snagging on branches.

For retrofitting, prioritize plug-and-play compatibility. Shimano EP8 and Specialized MasterMind units use proprietary 6-pin Molex connectors that won’t pair with generic 3-pin hall-effect levers. If rewiring is unavoidable, note wire color codes: red (Vcc), black (ground), green/yellow (signal). Use a multimeter to confirm continuity before soldering–interrupted circuits can trigger error codes on displays like the Bafang DPC-18.

Step-by-Step Guide to Connecting a Hall Sensor Control Unit

Begin by confirming the sensor’s voltage range matches your electric propulsion system. Most Hall effect devices operate at 1–4V, but verify the specifications for your model–mismatches can damage components. Locate the three output wires: signal (typically green or yellow), power (red), and ground (black). Use a multimeter set to DC voltage to test the signal wire while rotating the grip; readings should smoothly increase from near 0V to the system’s reference voltage.

Required Tools and Precautions

  • Crimping tool or soldering iron with 60/40 rosin-core solder
  • Heat-shrink tubing (3mm diameter) or electrical tape
  • 18–22 AWG silicone-insulated wires
  • 3.5mm female connectors (for controller compatibility)
  • Non-contact voltage tester

Disconnect the battery before handling any live circuits. Expose 5mm of wire on both the sensor and controller ends, twist strands tightly, then crimp or solder for a secure bond. Slide heat-shrink tubing over the joint and apply heat evenly–avoid overheating adjacent insulation. For controllers with pre-installed connectors, align pins carefully; reversed connections risk frying the controller’s logic board.

Final Integration Steps

  1. Attach the power wire to the controller’s 5V or 3.3V output (check controller manual).
  2. Connect the ground wire to the controller’s common ground terminal.
  3. Route the signal wire to the designated input port (often labeled “SIG” or “HALL”).
  4. Secure all connections with zip ties, ensuring no strain on wires near moving parts.
  5. Reconnect the battery, power on the system, and twist the grip–verify a linear response using the multimeter. If erratic, recheck solder joints and pin alignment.

For systems with regenerative braking, the signal wire may require a pull-up resistor (1–10kΩ) to the 5V line to stabilize the output. Always consult the controller’s datasheet–some models integrate this internally. Complete the setup by waterproofing exposed joints with dielectric grease or conformal coating.

Preventing and Diagnosing Electrical Connection Errors

Loose crimp connectors rank among the most frequent issues in power delivery systems. Always verify each terminal’s tensile strength after crimping–pull with 5–7 kg of force to confirm mechanical integrity. Use a multimeter set to continuity mode to check for intermittent breaks; probe directly across each crimped joint rather than assuming conductivity through the adjacent conductor. Replace connectors exhibiting resistance above 0.1 Ω immediately–even minor voltage drops accumulate under sustained load, leading to component overheating or premature controller failure.

Component-Specific Fault Isolation

Symptom Likely Root Cause Diagnostic Action
Intermittent motor engagement Loose or oxidized signal lead between handlebar controller and drive unit Inspect weatherproof connectors with 10x magnification; clean contacts with 99% isopropyl alcohol and fine-grit fiberglass pen; reseat connector with dielectric grease
Sudden dropout under load Undersized gauge in main power loop Measure voltage drop across main cables under peak load (expect ≤0.3 V loss); upgrade to 12 AWG for 30 A circuits, 10 AWG for 50 A
Erratic behavior at temperature extremes Cold solder joint or incompatible solder alloy Reheat joints with 63/37 Sn-Pb solder; use rosin flux core to prevent oxidation; thermal-cycle assembled boards between -10 °C and 60 °C for 48 hours

Ground loops often manifest as unexplained current draw. Route all return paths to a single star point on the frame; never daisy-chain returns between components. Measure potential difference between separate ground terminals–any reading above 20 mV indicates circulating currents. Isolate the offending circuit and introduce a 10 µF ceramic capacitor across noisy nodes to suppress high-frequency interference.
