Step-by-Step Guide to Wiring an Earth Leakage Circuit Breaker Correctly

Install a neutral wire to the left terminal of the device and the phase conductor to the right, ensuring the clamp marks align with the manufacturer’s guide. Failure to follow this sequence risks false tripping or ineffectual fault detection. Use a multimeter set to 230V AC to verify input voltage before securing connections; deviations beyond ±10V indicate potential upstream faults.

Ground the metallic enclosure of the apparatus to a dedicated earthing rod buried at least 2.4 meters deep, using 16mm² copper cable for optimal conductivity. Tighten terminal screws to 2.5 Nm torque–over-torquing damages threads, while under-torquing causes arcing. Label each conductor with PVC sleeves marked “L,” “N,” and “E” to prevent misidentification during maintenance.

Test the installation with a push-button mechanism three times in succession; the device must trip within 300ms to comply with IEC 61008-1 standards. If tripping exceeds this threshold, recheck the neutral bond integrity–loose bonds create nuisance trips. For three-phase systems, distribute loads evenly across R, Y, B phases to avoid imbalance, which skews residual current detection.

Place the device downstream of the main switch but upstream of sub-circuits to isolate faults at the panel level. Use double-pole MCBs for dual protection, as single-pole variants leave the neutral live during faults. Inspect the entire run for insulation resistance–minimum 1MΩ at 500V DC–before energizing; lower values signal compromised cabling.

Installation Guide for Residual Current Device Schematics

Connect the live conductor first to the input terminal of the protective switch, ensuring the wire gauge matches the device’s rated current (e.g., 10A for 1.5mm² copper). Most models label this terminal “L” or “Phase”; verify against the manufacturer’s datasheet. For dual-pole units, the neutral input must attach to the corresponding “N” terminal–failure to do so voids ground fault detection. Use a torque screwdriver to secure fastenings to the specified Nm value (typically 1.2–2.0Nm for residential installations) to prevent loose connections.

Route the neutral output through the device’s sensing coil, even in single-pole configurations. Bypass this step only for dedicated RCDs designed to omit neutral monitoring–these are rare outside industrial three-phase systems. For sub-circuit protection, wire downstream MCBs or fuses in series, never parallel, to maintain coordinated tripping. A 30mA sensitivity unit should trip within 30–100ms at 5× rated residual current (IΔn), per IEC 61008; test this using a calibrated clamp meter during commissioning.

Load-Side Grounding Requirements

Terminate the protective conductor (PE) directly to the enclosure’s grounding busbar, avoiding splices between the device and earth electrode. For TT earthing systems, ensure the electrode resistance remains below 100Ω (or 50Ω in lightning-prone zones). In TN-C-S setups, bond the neutral busbar to PE at the main service panel but isolate it downstream of the fault current interrupter–cross-bonding here creates nuisance tripping. Use green/yellow striped 4mm² cable for PE runs in conduit; larger conductors (6mm²) are required for circuits exceeding 20A.

Label each protected branch with the RCD’s sensitivity (e.g., “30mA”) at both the panel and outlet ends. This prevents misdiagnosis during fault tracing. For mixed loads (e.g., refrigerators + outlets), prioritize dedicated lines for inductive equipment to reduce inrush-induced false trips. When integrating surge protectors downstream, select units with

Validate the entire chain annually using a loop impedance tester: measure loop resistance (Zs) from the farthest protected outlet to the panel, ensuring Zs × IΔn 8mA leakage to ground or inconsistent trip thresholds. Note: Two-pole 120V models require a jumper between phase outputs if protecting a single hot conductor, unlike 240V variants which need both phases wired independently.

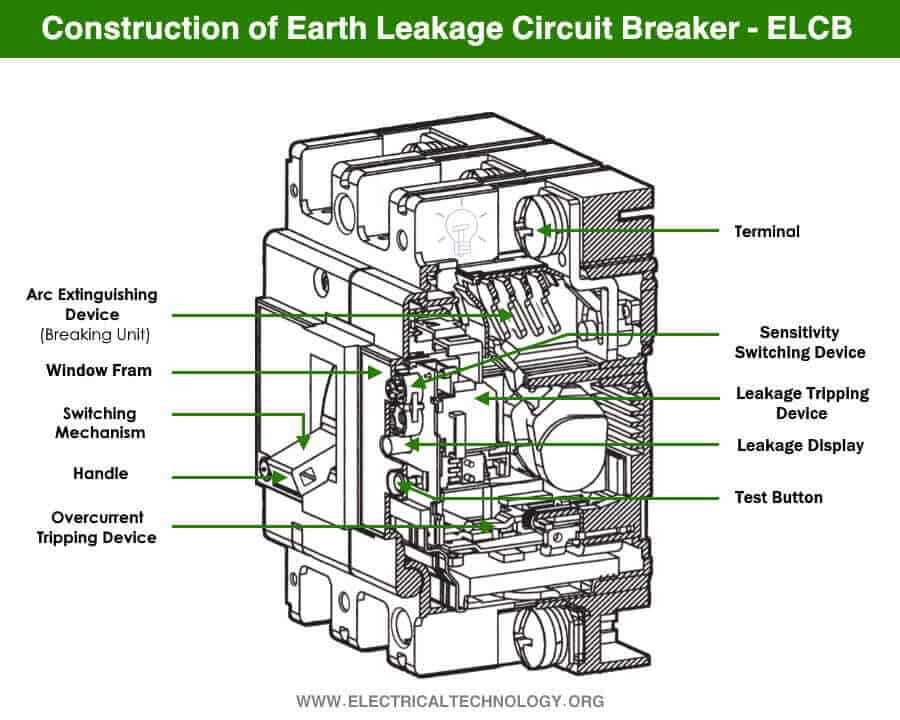

Key Components and Symbols in a Residual Current Device Schematic

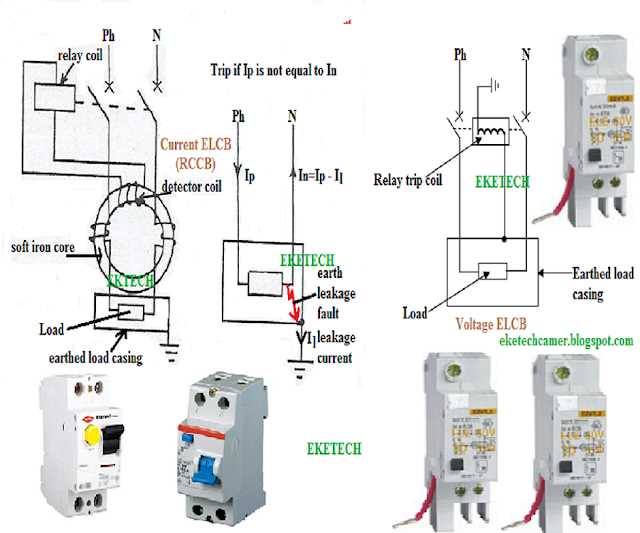

Begin by locating the differential transformer core, represented as a toroidal coil symbol–a circular shape with two intersecting lines. This element detects imbalances between live and neutral conductors, triggering the tripping mechanism when current exceeds 30 mA (standard for personnel protection). Ensure the core is drawn with precise proportions; inaccuracies may mislead during installation.

Identify the trip coil, depicted as a rectangle with a diagonal line or a small solenoid symbol adjacent to the transformer. This component converts electrical imbalance into mechanical action, disconnecting the supply contacts. Verify its placement relative to the test button–misalignment can prevent proper activation during faults.

Observe the test pushbutton symbol: a small rectangle with a “T” or dashed line indicating a momentary switch. This feature simulates fault conditions to validate device functionality. Connect it in series with a 15 kΩ resistor (standard value) to limit current during testing–omitting this risks damaging internal components.

Note the main switching contacts, shown as two parallel lines with a gap (open) or touching (closed). These interrupt the current path during faults. Label them clearly–confusing live and neutral contacts can lead to reverse polarity, nullifying protection. IEC 60617 standards recommend using distinct line styles for each conductor.

The neutral link symbol appears as a short horizontal bar connecting the neutral conductor to the device’s internal path. Verify its presence in single-phase systems; absent or loose links cause nuisance tripping. In three-phase variants, this may split into a busbar representation.

Examine the overload relay symbol–a bimetallic strip or heater coil drawn as a zigzag line within a rectangle. While not primary to RCD operation, it provides backup protection. Position it downstream of the transformer to avoid interference with delicate fault detection.

Use standardized symbols for auxiliaries: a dashed circle for the mechanical latch, a wavy line for the arc chute, and a dotted rectangle for the enclosure. Non-standard representations complicate troubleshooting for technicians. Refer to IEC 60417-2 DB for exact graphical conventions.

Annotate each symbol with precise current ratings (e.g., “16 A,” “30 mA”) and phase markings (“L1,” “N”). Color-code conductors per regional codes–blue for neutral, brown/black for live–to prevent miswiring that could bypass safety mechanisms entirely.

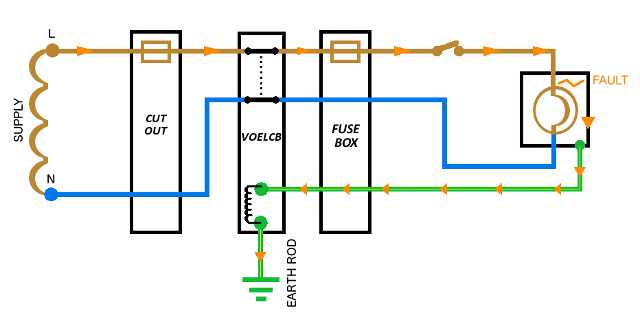

Step-by-Step Guide to Connecting Active, Return, and Ground Conductors

Turn off the main power supply at the distribution board before handling any terminals. Verify absence of voltage using a multimeter–test between the active terminal and the grounding bar. A reading above 50V AC demands immediate troubleshooting of the upstream supply.

Identify the input side of the protective device: connect the active conductor (typically brown or red) to the marked “L” terminal and the return conductor (blue or black) to the “N” terminal. Secure connections with a torque screwdriver–overtightening damages threads; undertightening causes arcing. For 16mm² copper conductors, apply 2.5Nm torque.

Attach the grounding conductor (yellow-green) to the dedicated ground bus, ensuring continuity to the main earthing electrode. Use crimp lugs for conductors larger than 10mm² to prevent strand breakage. If the system includes metal enclosures, bond them to the ground bus with a minimum 4mm² copper wire, avoiding sharp bends to reduce impedance.

On the output side, replicate the input connections–active to “L,” return to “N,” and ground to the bus. For dual-pole devices in split-phase systems, connect the second active conductor to the adjacent “L2” terminal, maintaining polarity consistency to prevent nuisance tripping. Always label each conductor at both ends for future identification.

Re-energize the system and test the protective device using its integrated test button–it should trip within 30ms at 30mA residual current. If it fails, inspect for miswired terminals or damaged insulation. For final validation, use a loop impedance tester to confirm the ground path resistance remains below 1Ω.

Resolving Faulty Residual Current Device Connections

Check polarity at terminals before energizing the system. Reverse line-neutral swaps trigger false trips despite balanced loads. Use a multimeter in continuity mode: probe L to grounding conductor should show infinite resistance, neutral to ground ≤1Ω. Verify with a dedicated polarity tester if available.

Excessive cable length degrades performance. For 2.5mm² copper, maintain runs under 50m between the protection unit and furthest outlet. Longer distances demand larger conductors–10mm² for 100m–to prevent voltage drop and nuisance tripping. Refer to the table below for conductor sizing:

Distance (m)	Conductor (mm²)
≤30	2.5
31–50	4
51–100	10
>100	16+ (or parallel runs)

Inadvertent bonding of neutral and grounding buses downstream causes current imbalance. Disconnect all neutral-ground links; measure with a loop impedance tester–expected values: ≤0.5Ω for 16A circuits, ≤2Ω for 32A. Replace corroded terminals if readings exceed thresholds.

Shared neutral paths across multiple phases create phantom currents. Dedicate neutral conductors for each phase; never daisy-chain. For three-phase setups, use a 4-pole device with separate neutrals or install individual two-pole units per phase. Label all conductors at the distribution board to prevent misrouting.

Moisture ingress in junction boxes corrupts sensor accuracy. Seal entries with IP68-rated glands and apply dielectric grease on terminals. For outdoor installations, use weatherproof enclosures and silicone-filled splice connectors. Replace any cable with cracked insulation–visible damage warrants full rerouting.

Incorrect sensitivity settings misalign protection thresholds. 30mA devices suit personnel safety; 100mA+ thresholds are for equipment protection. Calibrate using a test button and clamp meter–tripping should occur within 200ms at rated fault current. Refit units failing tolerance checks (±20%).

Aggregated high-frequency noise from inverters or dimmers induces nuisance trips. Insert a 10nF X-capacitor across line-neutral at the noise source or upgrade to devices with 1kHz filtering. For persistent issues, relocate sensitive electronics to dedicated circuits with surge arresters.

Diagnostic Flow for Persistent Issues

Isolate segments methodically: disconnect all downstream loads, then reconnect one branch at a time. Measure residual current with a clamp meter–steady >6mA indicates a fault. Swap the device if no load current stabilizes; internal faults account for 8% of cases. Document each step in a log to exclude overlooked variables.
