Step-by-Step Ecobee Thermostat Wiring Guide for Quick Installation
Begin by shutting off power at the circuit breaker. Even a brief surge can damage components or create hazardous conditions. Use a non-contact voltage tester on both the control panel and the HVAC unit to confirm the system is de-energized. Label every wire with adhesive tape before disconnecting the old device; record their positions for reference.
Check the voltage rating on your climate unit’s control board. Most residential systems operate at 24V AC, but older or high-efficiency models may differ. If the manual specifies Rc and Rh terminals, bridge them unless the unit has separate cooling and heating transformers. Omitting this step can lead to erratic operation or failure to engage.
Ground the new device properly. Use the C-wire for continuous power–modern units require it for Wi-Fi connectivity and advanced functions. If the system lacks a dedicated common wire, options include a power extender kit (PEK) or repurposing the G wire (fan control) at the expense of manual fan operation. Verify compatibility with your HVAC’s age and model before proceeding.
Match each wire to the correct terminal: R (power), W (heat), Y (cool), G (fan), and C (common). For dual-fuel systems, additional wires (e.g., O/B for reversing valve) must align with the manufacturer’s specifications. Miswiring can trigger short cycles or damage the compressor. Use a multimeter to confirm continuity between terminals and the HVAC board before restoring power.
Reattach the faceplate and restore power. Observe the display for error codes–E28 indicates a wiring fault, while E40 signals a missing or improperly connected common wire. If the system fails to respond, reboot by removing and reinserting the device’s internal battery. For persistent issues, consult the troubleshooting section or contact technical support with your HVAC model and wire configuration details.
Smart Climate Control: Step-by-Step Connection Instructions
Begin by labeling each wire with color-coded stickers before disconnecting the old device–this prevents misplacement and ensures accurate reconnection. Match the R (power), C (common), W (heat), Y (cooling), and G (fan) terminals precisely, even if your system lacks a C-wire; consider a power extender kit for models requiring continuous power.
For heat pump configurations, identify the O/B terminal–set it to O for cooling-only heat pumps or B for systems that reverse valve operation in heating mode. Verify compatibility by checking if your outdoor unit operates on 24V or line-voltage signals; mismatches here cause erratic behavior or system damage.
Use the included PEK (Power Extender Kit) if your setup lacks a C-wire–connect the green wire to G, white to W, yellow to Y, and blue to C at the HVAC control board. For multi-stage equipment, enable the appropriate settings in the device’s menu to activate auxiliary or emergency heat as needed.
Test each function manually after installation: cooling, heating, and fan-only modes. Monitor temperature differentials for 24 hours–expect a 3-5°F variance from setpoint; wider gaps indicate incorrect wiring or sensor calibration issues.
Install wall plates flush to the surface to prevent air gaps, which skew humidity readings. For zoned systems, assign each controller a unique identifier and group them via the companion app to avoid conflicts during simultaneous adjustments.
Store the original manual’s QR code on your phone for quick access to terminal diagrams if troubleshooting becomes necessary. Keep wire lengths under 50 feet to minimize voltage drop–longer runs require gauge adjustments or intermediate relays.

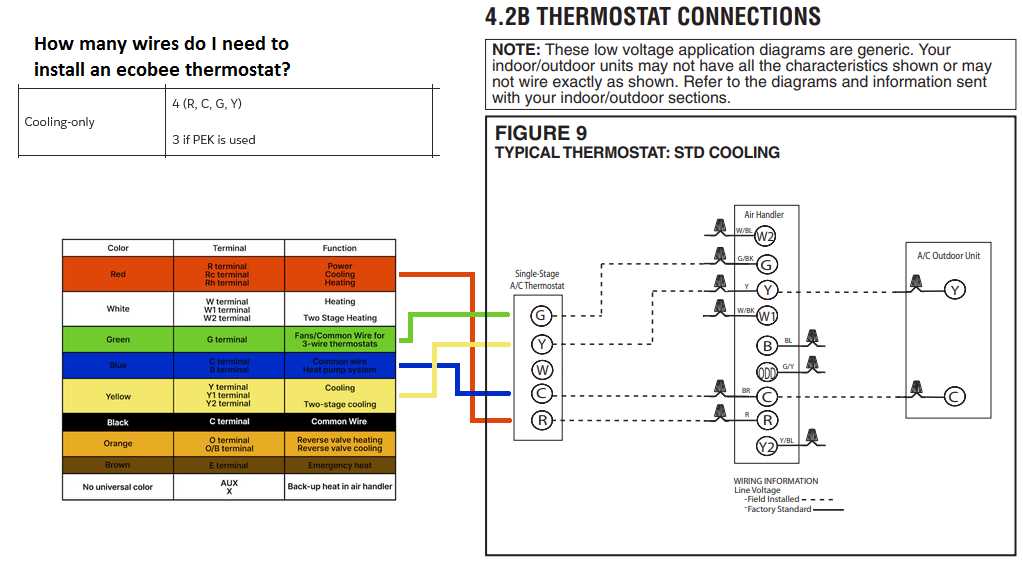

Matching Your Climate Control Device to Proper Circuit Layouts
Verify your HVAC system’s voltage classification first–low-voltage (24V) setups support direct integration with smart climate regulators, while high-voltage configurations need isolating relays or dedicated adapters. Confirm compatibility via control unit labeling or documentation, as mismatched connections risk system damage.

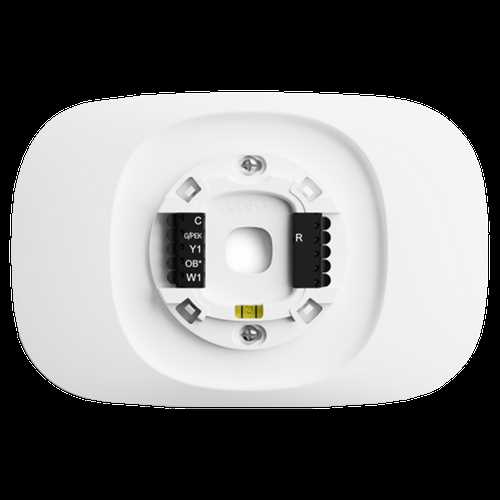

Identify terminals on the backplate of your device: common (C), heating (W or W1/W2), cooling (Y or Y1/Y2), and fan (G). Additional circuits like auxiliary heat (W3) or emergency heat (E) may require jumper adjustments if absent in older HVAC models. Cross-reference with your system’s control board to avoid miswiring.
For dual-fuel systems (heat pump + furnace), prioritize the O/B terminal to manage reversing valves–this dictates whether the valve energizes in cooling (O) or heating (B) mode. Incorrect settings cause operational conflicts, evidenced by erratic cycling or failure to switch between modes. Consult your heat pump’s manual for O/B default configurations.
Multi-stage systems demand precise pairing of terminals to corresponding stages: W1/YS1 for first-stage heating/cooling, W2/Y2 for second-stage. Third-stage circuits (W3/Y3) are less common but critical for variable-speed units. Use a voltage meter to confirm each stage’s activation before finalizing connections.
| HVAC Type | Required Terminals | Jumper Adjustments |
|---|---|---|
| Single-stage heat/cool | R, C, W, Y, G | None |
| Heat pump (dual-fuel) | R, C, W, Y, G, O/B | O/B configured per valve type |
| Multi-stage furnace | R, C, W1, W2, G | W1–W2 jumper if single-stage |
| Variable-speed blower | R, C, G (separate circuit) | Verify blower relay compatibility |
Power sources labeled Rc and Rh indicate separate heating/cooling transformers–connect both to Rc for universal compatibility unless system documentation specifies otherwise. Omitting Rh may cause incomplete power delivery, manifesting as inconsistent performance or error codes. Always label wires during disconnection to prevent mix-ups.
Humidifiers, dehumidifiers, and ventilators integrate via HUM, DEHUM, or VENT terminals, but these require dedicated circuits from the HVAC system. Verify accessory devices operate at 24V; direct wiring to high-voltage lines will destroy the climate regulator’s board. Third-party power supplies are incompatible unless explicitly designed for smart HVAC integration.
Test all configurations under active power before securing the control unit. Monitor for error messages, unusual noises, or failure to engage–these indicate miswiring or incompatible jumper settings. For zoned systems, ensure each zone controller matches the main unit’s capabilities; mismatched zone boards cause communication errors and uneven temperature regulation.
Step-by-Step Guide to Labeling Existing Climate Control System Cables
Power off the HVAC unit at the breaker before touching any exposed connectors. Use a non-contact voltage tester to confirm no current remains in the cables–this prevents accidental shorts or shocks.
Remove the faceplate of the existing control panel to expose the terminal block. Most systems use a screw-based mechanism; turn counterclockwise until the plate loosens. Set the plate aside on a clean, static-free surface.
- Take a clear photograph of the current cable arrangement. Ensure labels on the terminal block (e.g., R, C, W, Y, G) are legible. This reference will verify connections later.
- Detach each cable one at a time, starting from the rightmost terminal. Label both the cable end *and* the terminal slot with matching sticky notes or a fine-tip marker. Avoid using tape on fragile insulation.
- For systems with bundled cables (common in multi-stage units), separate strands carefully. Note twisting patterns–these often indicate paired functions, like heating/cooling stages.
If labels are missing or faded, cross-reference against a standard HVAC terminal chart:
- R/RC/RH: 24V power supply (separate sources for heating/cooling if dual transformers exist).
- C: Common ground (required for smart controls; absent in older systems).
- W/W2: Heat relay (single-stage/multi-stage).
- Y/Y2: Cool compressor (single-stage/multi-stage).
- G: Fan relay.
- O/B: Reversing valve (heat pump systems; polarity matters).
For cables without obvious markings, use a multimeter in continuity mode. Touch one probe to a known reference (e.g., R to C) and the other to the unlabeled strand. A zero reading confirms a closed circuit–match this to terminal functions above.
After labeling, bundle cables with twist ties, grouping by function (power, heat, cool, fan). Leave 4–6 inches of slack near terminals to allow reattachment without tension. For added clarity, coil unused cables–mark them “SPARE” to avoid confusion during installation.
Reattach the faceplate temporarily to secure cables. Power the HVAC unit back on and observe the control panel’s display. If error codes appear (e.g., “No Power” or “Open Circuit”), recheck the labeled connections–mismatches often trigger these alerts. Correct errors before proceeding to the new control setup.
Integrating Smart Climate Controls with Various Heating and Cooling Setups
For gas furnaces, identify the Rc (power), W (heat), and G (fan) terminals on your control board. Connect the corresponding wires from the new device to these terminals, ensuring the C (common) wire links to a 24V power source, such as the transformer or furnace control board. Verify polarity if using a dual-heat system–some setups require separate W1 and W2 connections for staged heating. Use a multimeter to confirm 24V between R and C before finalizing connections; a reading below 18V indicates insufficient power, requiring an auxiliary transformer.
Electric systems demand precise load handling. Locate the sequencer or relay board–most units have labeled terminals for heat (often marked H1, H2) and fan (G or F). Connect the control wires directly to these, bypassing any onboard relays if the heating load exceeds 5A. For systems with emergency heat, wire the E terminal to the backup heating element, ensuring it only activates when primary heat fails or outdoor temperatures drop below 35°F (2°C). Use 18-gauge wire for all connections under 20 feet; switch to 16-gauge for longer runs to prevent voltage drop.
Heat Pump Configurations
Match the O/B terminal to the reversing valve signal–O for cooling activation (common in Rheem, Trane), B for heating (Carrier, Lennox). If unsure, test with a temporary jumper: energize O/B and check if the outdoor unit cycles into cooling mode. For auxiliary heat, wire the W2/AUX terminal to the electric heating strips, setting the device’s threshold to engage auxiliary heat only when the heat pump’s efficiency drops below 60% (typically under 40°F/4°C). Ensure the Y terminal connects to the compressor contactor; failure here disables cooling entirely.
Variable-speed heat pumps require additional wiring for communicating systems. Connect the G terminal to the blower motor’s control wire (often labeled COM or VS) instead of the standard fan relay. If the system supports dehumidification, wire the DH terminal to the dehumidifier relay or humidistat, programming a 2°F deadband to prevent conflicts with cooling cycles. For geothermal setups, confirm the E terminal links to the desuperheater pump if used for domestic hot water–this is critical to avoid compressor damage from excessive head pressure.
For hybrid (dual-fuel) systems, wire the W1 terminal to the gas furnace and Y to the heat pump compressor. Set the system’s switchover point based on outdoor reset curves–typically 30-35°F (-1 to 2°C) for optimal efficiency. If the furnace lacks a C terminal, tap into the transformer’s secondary side or install an isolation relay to power the smart device. Always label wires with their terminal designations; hybrid systems fail unpredictably when miswired, risking compressor short-cycling or furnace lockouts.
Final checks: measure resistance across each wire (expected: 1MΩ if insulated). Energize the system and monitor for error codes–E38 (low power) or E40 (sensor failure) often trace back to incorrect C-wire routing or loose terminals. For zoned systems, wire each zone’s control panel in parallel, ensuring the master unit controls the outdoor compressor via Y while slave units manage dampers via G and W terminals. Isolate unused wires with wire nuts; never leave them exposed or bundled into terminal blocks.
