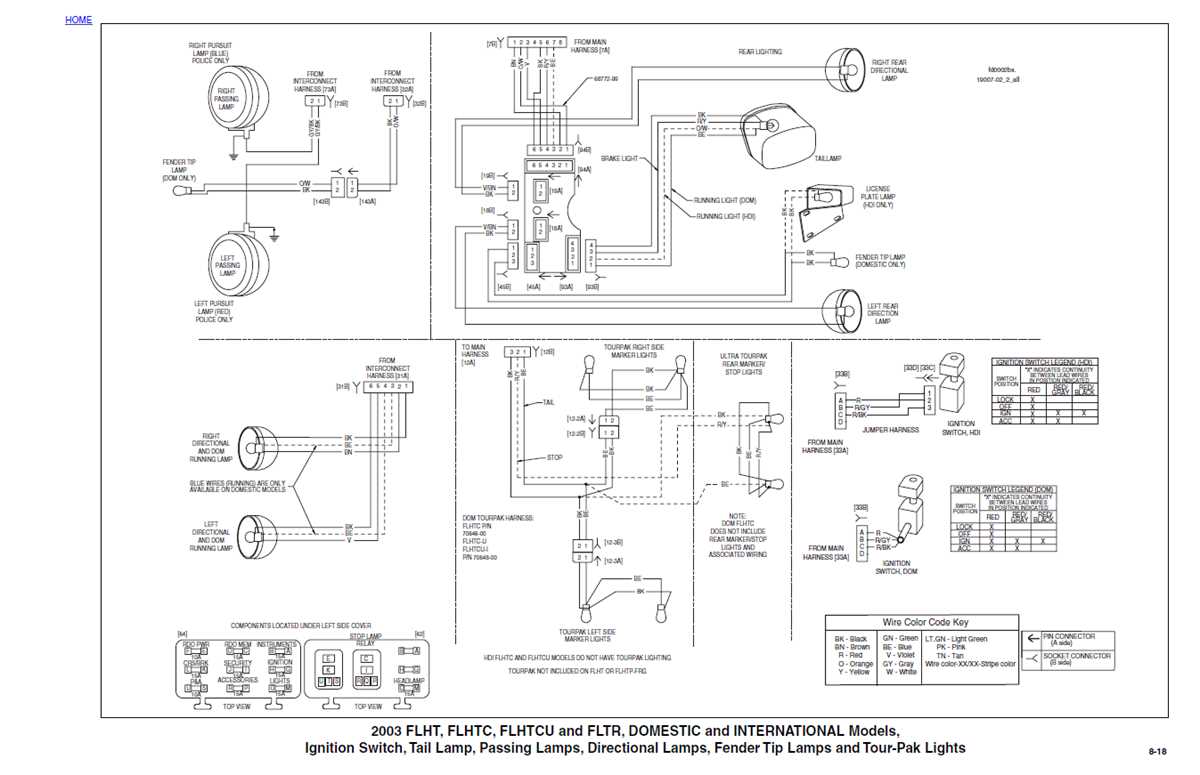

Simplified Harley Electra Glide Wiring Diagrams for Easy Troubleshooting
Begin with the main fuse block positioned near the battery–trace the red 12-gauge cable first. This feed splits directly to the ignition switch and must be verified before proceeding. Factory schematics often depict this as a solid line; discrepancies here cause intermittent power failures.
Locate the turn signal module within the fairing assembly. Its connectors are color-coded: purple for left, light blue for right, and both grounded via black/yellow striped wires. Cross-referencing these with aftermarket relays prevents erratic flashing or complete signal loss. Avoid splicing universal flasher units without resistance matching, as stock coils demand specific voltage draw.
Check the stator output leads–three yellow wires–against a multimeter reading of 0.5V AC at idle. Voltage spikes beyond 20V AC at 3,000 RPM indicate insulation breakdown in the alternator windings. Replace the component in pairs, as partial failure stresses the remaining coils.
Grounding points under the seat frame must be scraped clean of paint and corrosion. Use dielectric grease on all terminal connections, especially at the rear light cluster where vibration loosens crimped joints. Star washers and nylon locking nuts reduce oxidation better than standard split rings.
Label every detached connector with masking tape–factory connectors use unique latch mechanisms to prevent misalignment. The accessory port beneath the dash draws directly from the headlight circuit; exceeding 120W total load trips the Zener diode protector.
Understanding Motorbike Electrical Schematics Without Overcomplication
Start with the main fuse block–typically a 30-amp blade fuse near the battery. Trace its red output wire directly to the ignition switch; this is your power source for all primary circuits. Label each connection point with masking tape or a fine-tip marker before disconnecting anything to avoid misplacement during reassembly. Most touring models from the late ’90s onward use a color-coded system (e.g., violet stripes for lighting, yellow for turn signals) that remains consistent across production years, so cross-reference factory service manuals for exact hues if original labels fade.
Solder all splices instead of relying on crimp connectors, especially in high-vibration areas like handlebars and rear fender mounts. Use heat-shrink tubing with adhesive lining to seal joints against moisture–standard vinyl tubing fails within months under seasonal temperature swings. For solenoid relays under the seat, verify coil resistance with a multimeter (should read 80-120 ohms); lower readings indicate internal shorting requiring replacement rather than repair. Replace OEM bullet connectors with Deutsch DT series plugs if intermittent power loss occurs after riding in heavy rain.
Focus on three critical subsystems: charging (stator/regulator), lighting (headlight, brake pedal switch), and ignition (coil, ECM). Test stator output at 3,000 RPM–minimum 30V AC across all three yellow wires with engine warming up; anything below 25V suggests stator degradation. Check ECM ground integrity by measuring voltage drop from its mounting bolt to battery negative (should be
Keep a detailed schematic sketch on graph paper, updating it as modifications progress. Note wire gauge changes–factory schematics often omit upsized 12AWG runs in charging circuits, leading to voltage sag under heavy accessory loads. Test every circuit under load before final assembly using a 12V test light clipped to frame ground; false positives vanish when components activate simultaneously (e.g., heated grips plus brake light). Store original harness sections in Ziploc bags labeled with removal date–OX plastic insulation cracks at fold points after 15+ years, and localized repair beats full harness replacement costing $800+.
Finding the Main Cable Assembly on Your Touring Cruiser
Begin by removing the left side fairing panel. Two Torx T25 screws secure it near the lower edge–store them in a magnetic tray to avoid loss. Behind this panel, you’ll expose the battery tray and a cluster of multi-colored leads bundled in a corrugated sleeve. The primary harness runs vertically along the frame rail, identifiable by its thicker gauge and black convoluted tubing.
Trace the bundle from the battery terminal downward. The first major junction appears approximately 15 centimeters below the starter relay, where a rectangular connector (part #74652-98A) splits off smaller branches. This junction is typically locked with a red latch–press the release tab before attempting disconnection. If corrosion is present, clean terminals with a wire brush and dielectric grease before reassembly.
| Connector Type | Location | Pin Count | Common Issues |
|---|---|---|---|
| ECU Link (24-pin) | Right of battery, behind airbox | 24 | Oxidized pins, intermittent ABS faults |
| Main Inline Fuse Block | Adjacent to voltage regulator | N/A | Melted sockets, loose blade fuses |
| Ignition Module Plug | Under seat, forward of fuel pump | 6 | Corroded terminals, no-start conditions |
For models released after 2008, locate the grey-labeled “Power Distribution Module” (PDM) mounted beneath the seat. The primary harness connects via a 32-way connector–check for heat damage or brittle insulation near the rear cylinder area, a frequent failure point during voltage surges. Use a non-contact voltage tester to verify live circuits before handling bare wires.
On pre-2007 variants, the harness splits near the rear fender into left and right sub-harnesses. The right branch services the tail light assembly; look for a white-striped ground wire that bolts to the frame. If continuity tests reveal resistance above 0.5 ohms, remove the bolt, sand the contact area to bare metal, and apply anti-seize compound before reattaching.
Inspect the harness routing along the backbone tube. Rubber grommets should be intact where the bundle passes through frame openings–replace any cracked or missing grommets immediately to prevent chafing. Secure zip-ties should be spaced no more than 10 centimeters apart; loose harness sections near the swingarm pivot are prone to vibration damage.
When troubleshooting dim headlights or flickering gauges, focus on the 8mm orange wire feeding the main headlight relay. This wire runs contiguous from the handlebar switchgear to the headlamp bucket–check for pinched sections near the fork tubes or brittle insulation near the bulb socket. A multimeter set to 20V DC should read approximately 12.6 volts at the relay trigger terminal when the ignition is on.
For late-model bikes with CAN bus systems, access the data link connector (DLC) hidden behind the left side cover. This 6-pin connector (part #70800029) interfaces with diagnostic tools–ensure terminals are free of debris and properly aligned. If error codes persist after resetting, trace the CAN-H (green/yellow) and CAN-L (green/white) wires back to the instrument cluster harness for breaks or shorts.
Step-by-Step Guide to Interpreting Core Frame Electrical Schematics
Locate the main power distribution point on the schematic–usually marked by a thick, red or yellow line branching into multiple circuits. Trace this line upward to identify the battery terminal connection, then follow its path through the ignition switch, fuse block, and any relays. Each junction should be labeled with a color code (e.g., BK for black, R for red) and a wire gauge number in parentheses, such as (12) or (18). Cross-reference these markers with your bike’s actual harness to verify connections before proceeding.
Decoding Symbols and Terminal Designations
Start with ground symbols–a horizontal line with three downward slashes (⏚)–clustered near the frame. These are critical; confirm their physical attachment points first, as loose grounds cause intermittent failures. Next, identify connectors: a vertical line splitting into multiple branches represents a multi-pin plug, often annotated with pin numbers (e.g., C101-5). Arrows indicate direction of current flow; follow them sequentially to map each circuit’s path. Note voltage drops at components like resistors (Ω) or diodes (|▷|), ensuring they align with expected values (typically 12.6V at battery, 13.8–14.5V at alternator).
Verify circuit continuity with a multimeter set to ohms (200Ω range). Probe between the start and end points of each colored wire on the diagram while the system is off. Resistance should read
Identifying Common Connectors and Wire Codes in Motorcycle Electrical Blueprints
Begin by locating the main fuse block–typically a gray or black rectangular module near the battery. Pinouts here follow a standardized color-coding system: red (primary power, 12V+), black (ground), yellow (lighting circuits), and orange (ignition feeds). Deviations exist for aftermarket setups, but factory schematics prioritize these hues for rapid troubleshooting. Use a multimeter on DC voltage mode to verify continuity; probe the male spade terminals while referencing the legend printed on the fuse block’s underside.
Critical Harness Connectors
- Deutsch DT 2-pin (weatherproof): Found on sensors (TPS, MAP) and auxiliary lights. Male pins are gold-plated; female sockets have silicone seals. Match wire gauge: 18-20 AWG for sensor leads, 14-16 AWG for lighting.
- AMP Super Seal 6-way: Handles handlebar controls and turn signals. Pin assignment is clockwise, starting at 1 o’clock (red/brown = hazard switch). Verify with a continuity tester before reconnecting.
- Metri-Pack 150 Series: Robust 3mm pitch connectors for charging and starter circuits. Color bands on terminals indicate function: red stripe = voltage input, blue stripe = output. Always align keyed slots to prevent misfires.
When dealing with harness splits behind the instrument cluster, note these color-code exceptions: violet striped wires (VIO/WHT) denote speedometer pulses, while solid pink (PNK) carries fuel sender signals. For 5-speed models, a brown/white tracer (BRN/WHT) routes to the neutral switch–faults here often mimic gear engagement issues. Strip 3mm of insulation when splicing, twist clockwise, and solder with 60/40 rosin-core; crimp connectors introduce resistance under vibration. Label all joints with heat-shrink tubing pre-printed with the original wire code.
