Understanding Electric Vehicle Circuit Layouts with Practical Schematics

Start with the traction battery pack–specify a 400V nominal system for efficiency in vehicles under 2,500 kg. Use 18650 lithium-ion cells in a 96s3p configuration (355.2V peak) to balance energy density and thermal stability. Label each module with real-time voltage, temperature, and current sensors (e.g., Hall-effect ACS758 for 100A+ measurements).

Route high-current paths via 50 mm² copper cables, insulated with XLPE for 60°C+ operating temperatures. Isolate the inverter’s IGBTs using a dedicated DC-link capacitor (≥1,000 µF) to suppress voltage spikes during regen braking. Ground the chassis at a single point near the motor to minimize EMI–use a 25 mm² braided strap for

Integrate a 12V auxiliary circuit with a DC-DC converter (isolated, 2 kW) to power the control unit. Opt for a CAN FD bus (500 kbps) for communication between the BMS, VCU, and charger. Add a fusible link (300A) in series with the main battery positive terminal–this cuts power within 10 ms during a short circuit.

Test the layout with a 60 kW load (e.g., dyno or resistive bank) before finalizing the PCB traces. Validate insulation resistance (>500 MΩ at 1 kV) and perform a hipot test (2,000V DC for 1 minute) on all high-voltage connectors. Store schematics in Gerber/XLSX format with explicit net labels (e.g., HV+, HV–, PRE, CHG_CTRL) to simplify debugging.

Key Components in a Modern EV Wiring Blueprint

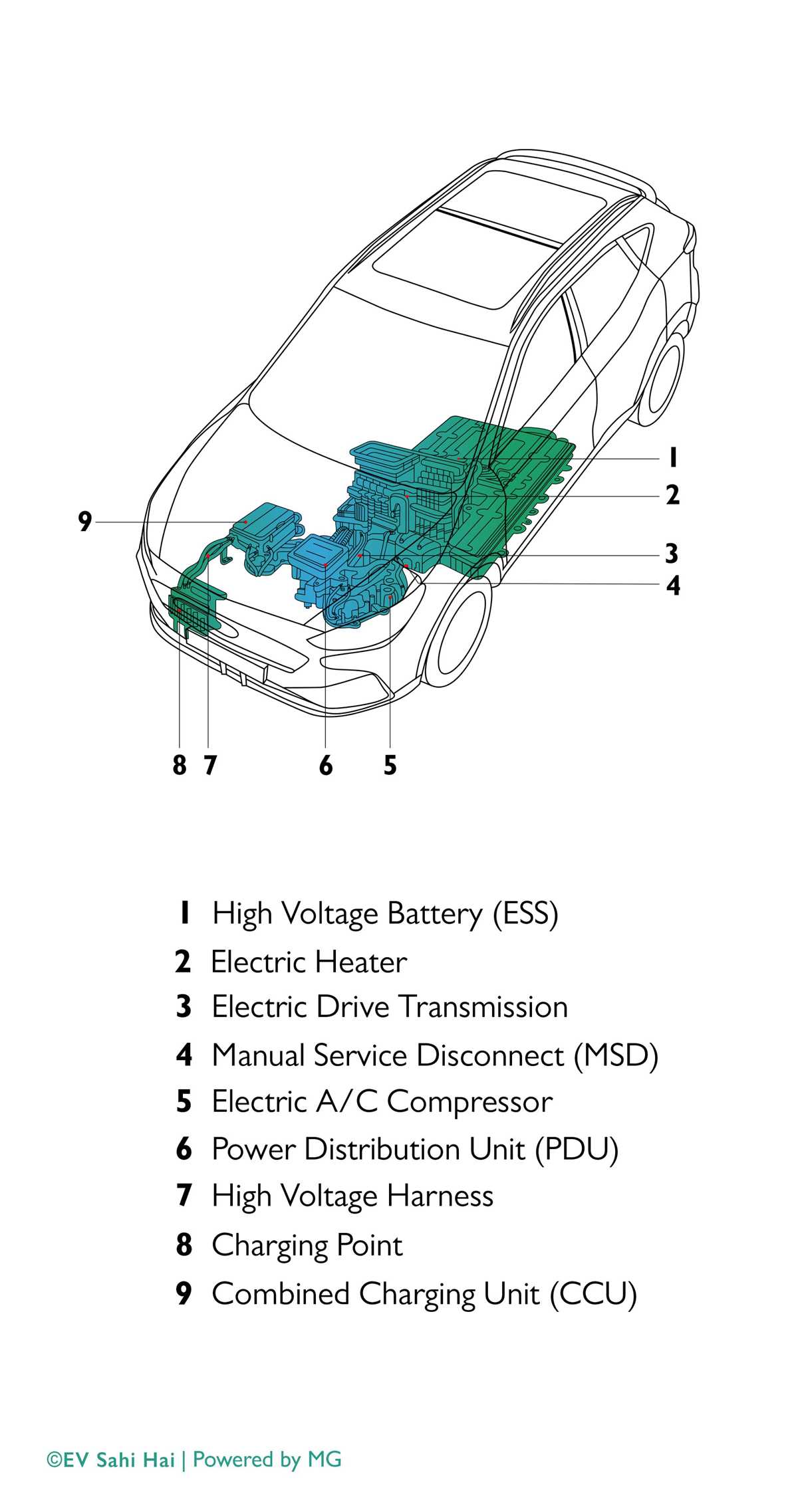

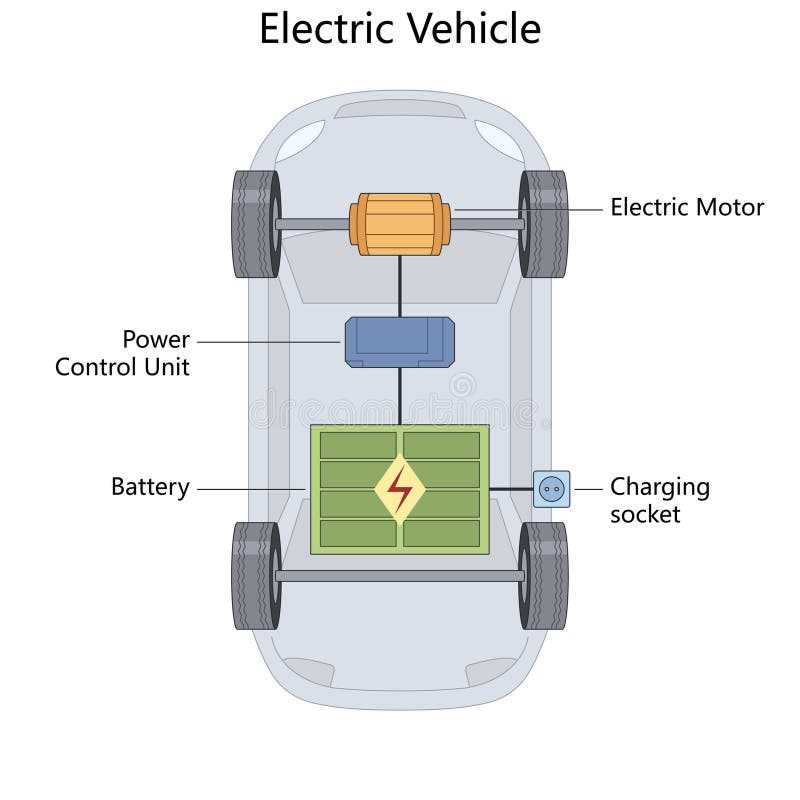

Begin with the traction battery pack–place it along the vehicle’s floorpan to optimize weight distribution and lower the center of gravity. Use a 400–800V architecture (e.g., Tesla’s 4680 cells or BYD’s Blade) for reduced resistive losses and faster charging. Integrate a liquid-cooling loop directly into the battery casing, ensuring temperature sensors every 20 cm to prevent thermal runaway. Position the high-voltage busbars (copper, 5mm thick) on the battery’s outer edge to simplify service access; label each connection with QR codes linking to torque specs in the technical manual.

Route the inverter’s power cables–three-phase, 70 mm²–via the shortest path to the motor, bypassing the cabin’s HVAC ducts to minimize interference. Use shielded cables with a 200°C-rated silicone jacket for the 50A auxiliary circuits, grounding them to a dedicated chassis point near the rear subframe. The DC-DC converter (e.g., Vicor’s 12V/100A) should sit directly beneath the main battery, reducing cable length and voltage drop. For the onboard charger, select a 11 kW unit (e.g., BorgWarner’s CCM) with active power factor correction; mount it near the front crumple zone for easier crash protection and serviceability.

Install fuse blocks–Class T for 200A main circuits, ATO/ATC for 30A branches–adjacent to each high-current node, with redundant fuse holders for fail-safe redundancy. The battery management system (BMS) should sample voltage at each module (16 cells per module) and relay data via CAN FD at 5 Mbps; isolate the BMS with an optically coupled 3.3V tie-line to prevent ground loops. Label every cable with heat-shrink tubing: red for HV, blue for LV, green/yellow for safety ground. Use a laser-etched stainless steel plaque on the battery casing to list max discharge (e.g., 3C) and charge rates (e.g., 1.5C), along with emergency disconnect procedures.

Key Components in an EV Wiring Layout

Begin with a 48V–900V traction battery pack, ensuring isolation grades meet ISO 6469 standards. Use contactors rated for at least 125% of peak system current–common values are 300A–500A for passenger models, 800A–1200A for commercial variants. Specify fuses immediately downstream of the contactors; slow-blow ceramic types prevent nuisance trips without compromising safety margins.

Position the on-board charger (OBC) within 1.2 m of the battery to minimize high-voltage cable length. Copper conductors of 35 mm²–70 mm² cross-section are typical for 400 VDC rails; aluminum is discouraged due to thermal expansion mismatches. Integrate an interlock loop–typically a 12 VDC micro-switch chain–that cuts high-voltage paths if any service panel is opened.

Motor and Inverter Specifications

Component	Voltage Range	Current (RMS)	Cable Gauge (Cu)	Temperature Rating
PMSM	300–800 VDC	250–450 A	50–95 mm²	125 °C XLPE
Inverter (IGBT)	400–900 VDC	300–600 A	70–120 mm²	150 °C silicone
DC-DC (HV→LV)	400–800 VDC	100–200 A	25–50 mm²	105 °C PVC

Shield all high-voltage harnesses with braided tinned-copper sleeves; 85% coverage reduces EMI emissions below EN 55011 Class B limits. Ground the shield at a single chassis point–usually the inverter case–to prevent ground loops. Low-voltage circuits (12 V, 48 V) must run in separate conduits; physical separation of at least 15 mm minimizes capacitive coupling.

Include a pre-charge relay and resistor (typically 50 Ω–200 Ω, 50 W) to limit inrush to less than 300% of nominal battery current. Place the current sensor–Hall-effect or shunt–directly on the negative battery busbar; 100 mV/150 A signals demand twisted-pair wiring to the VCU with less than 0.5 Ω loop resistance. Use crimped lugs certified to UL 486A-B; soldered connections risk cold joints under vibration.

Auxiliary Systems Checklist

Thermal management pumps and heaters demand separate 48 VDC rails; specify e-fuses resetable within 5 ms to protect against overload. 12 VDC circuits for lights, infotainment, and BMS should derive from a buck converter, not linear regulators, to keep efficiency above 92%. Label every termination with adhesive heat-shrink sleeves showing voltage, current, and function code; standardize labels to SAE J1772 color codes for rapid troubleshooting.

Mount the BMS master unit within 0.5 m of the battery cells; CAN FD requires 120 Ω termination resistors at both ends of the bus. Daisy-chain slave modules with maximum 4 m spacing to avoid signal reflections; use CAT6a STP cables for reliable data rates up to 2 Mbps. Store configuration files–including torque maps and regenerative braking curves–in non-volatile memory backed by a supercapacitor; retention must exceed 72 hours after main battery disconnect.

How to Read High-Voltage Circuit Symbols in EV Blueprints

Begin by identifying the main power source–typically a lithium-ion battery pack represented by a large rectangle with parallel vertical lines or a “+” and “–” terminal symbol. These markings often include voltage ratings (e.g., 400V, 800V) near the symbol. Trace the thick red or bold black lines from the battery to the inverter; these indicate high-current paths requiring insulated cables.

Inverters use a triangle with an arrow or wavy lines inside to denote AC conversion. Look for:

• Three-phase outputs (three wavy lines grouped together).
• DC link capacitors (two parallel lines, sometimes curved).
• IGBTs (insulated-gate bipolar transistors) shown as a combination of a diode and transistor symbol.

Check for protective elements like fuses (a rectangle with a zigzag line) or contactors (two intersecting lines) directly in series with high-voltage lines.

High-voltage cables are distinguished by orange coloring and thicker lines than 12V/24V auxiliaries. Shielded cables add concentric circles around the conductor symbol. Always verify isolation points–optocouplers or relays separating high and low-power sections–to prevent cross-circuit failures.

Motors appear as a circle with three coiled windings (for three-phase) or a “M” inside. Permanent magnet variants include a second circle with a diagonal line. Regenerative braking symbols mirror inverter symbols but with arrows pointing toward the battery, indicating energy recovery.

Safety-critical symbols include:

1. Pyro fuses (a flame icon inside a rectangle).
2. HVIL (high-voltage interlock loop) as a dashed line connecting plugs and connectors.
3. Ground fault detectors (a resistor with a triangle and “GF” label).

Cross-reference symbols with the legend; misreading a precautionary disconnect as a functional block risks catastrophic shorts.

Step-by-Step Battery Pack Connection Layout

Begin by arranging lithium-ion cells in a 6S4P configuration (6 series, 4 parallel) to achieve a 22.2V nominal output with a capacity of ~40Ah. Use nickel strips (0.2mm thickness, 10mm width) for spot-welding connections–avoid soldering to prevent thermal damage to cell internals. Pre-cut strips to 20mm for series links and 80mm for parallel bridges, ensuring clearance for insulation sleeves.

• Isolate the first cell group (negative terminal) with a 3M 467MP adhesive tape, extending 15mm beyond the weld point.
• Connect the negative terminal of Cell 1 to the positive of Cell 2 via a nickel strip, maintaining a 5mm gap between strip edges and cell casings.
• Repeat for all 6 series links, verifying voltage increments of 3.7V ±0.1V per step with a multimeter (Fluke 17B recommended).
• For parallel groups, align strips.flush against cell faces, applying 200N pressure during welding to prevent cold joints.

Install a 10A fuse (Littlefuse 3216FF) between the positive terminal of the final series cell and the output busbar, housed in a laser-cut acrylic carrier (3mm thickness). Terminate the negative busbar to a 16mm² tinned copper lug, crimped with an AMP 90780-1 tool (minimum 60kg pull-strength). Add a 10kΩ balancing resistor (Vishay TNPW0603) across each series pair, soldered directly to the nickel strips with Sn63Pb37 solder. Encase the entire assembly in a flame-retardant PET sleeve (UL94 V-0 rated), heat-shrunk at 120°C for 30 seconds per segment.
