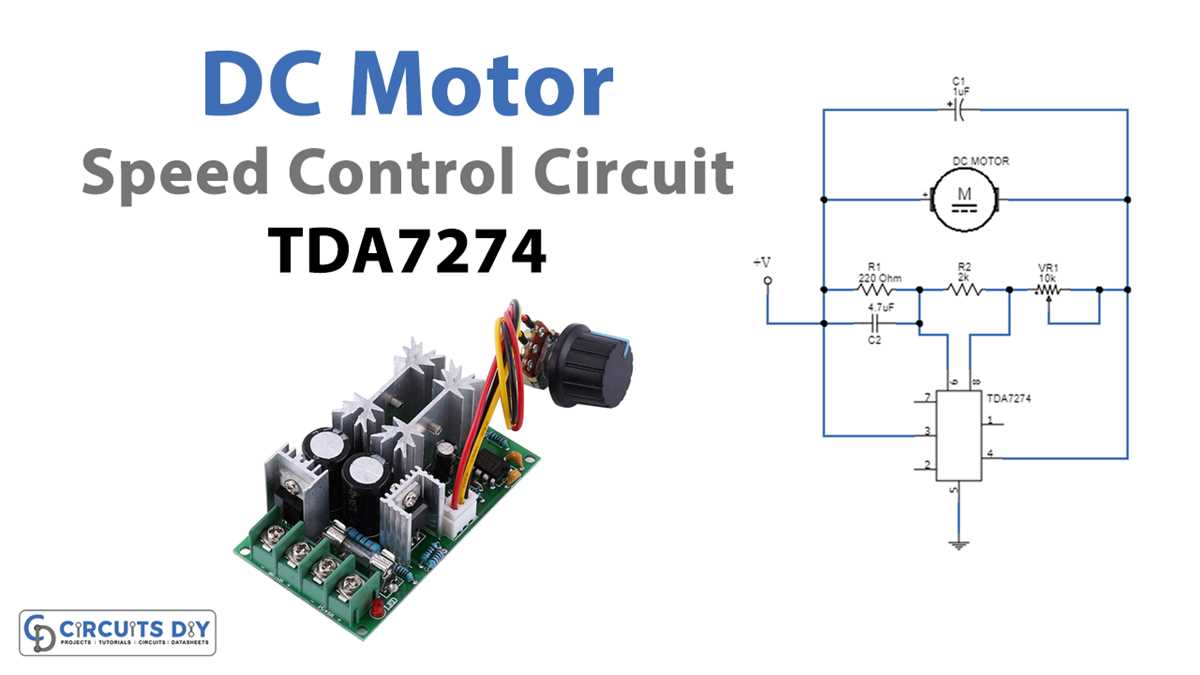

Practical Schematics for Managing Electric Motor Speed and Direction

Start with a half-bridge configuration for single-phase actuators–it requires only two switching elements and cuts component count by 40% compared to full bridges. Use IRF540N MOSFETs or IGBT modules rated at 600V/50A for inductive loads to prevent shoot-through during dead-time intervals. Set dead-time between 2–5 microseconds via dedicated gate drivers like the DRV8305 or UCC21520, depending on the switching frequency (typically 10–50 kHz for brushless setups).

For three-phase systems, deploy space vector modulation (SVM) over sinusoidal PWM–it extends linear voltage range by 15% and reduces current ripple. Generate switching sequences directly from a microcontroller (e.g., STM32G4 or dsPIC33CK) with built-in PWM peripherals; avoid bit-banging to maintain timing accuracy within ±20 nanoseconds. Embed current sensors (ACS712 or TLI4970) on the low-side phase legs and feed readings back to the ADC at 100 kHz for real-time torque control.

Isolate feedback loops using digital isolators (ISO7720) or isolated amplifiers (AMC1311)–opt for differential signaling over single-ended to reject common-mode noise up to 50 kV/μs. Power gate drivers from a 15V regulated auxiliary supply; derive it from the main DC bus via a flyback converter (LT3758) or isolated buck (MAX17498) to ensure stable gate voltage even during transient brownouts.

Place snubber networks (0.1 μF + 27 Ω series) across each switching device to clamp voltage spikes–critical for 48V or 80V systems where stray inductance exceeds 10 nH. Route high-current traces on a 4-layer PCB with 2 oz copper; separate power ground from signal ground and stitch them at a single star point beneath the microcontroller’s analog ground pin.

Validate the schematic in LTspice first–model the load as a 1 mH inductance with 5 Ω resistance to simulate worst-case back-EMF conditions. After board assembly, perform double-pulse testing on one leg: drive the lower device off while toggling the upper device with a 10 μs on-pulse, then measure the drain-source voltage decay time–it should settle within 500 ns to confirm dead-time efficacy and snubber performance.

Schematics for Managing Induction Machinery: Key Layouts and Best Practices

Always begin with a clearly labeled power source section, separating high-voltage inputs (400V–690V three-phase) from logic-level signals. Use dedicated terminals for incoming lines–L1, L2, L3 for supply, PE for grounding–marked in bold on the schematic to prevent miswiring. For direct-on-line starters, connect the overload relay immediately downstream of the contactor, not upstream, to ensure thermal protection before the coil energizes. Specify relay trip class (e.g., Class 10 for standard applications, Class 20 for heavy loads) next to its symbol to avoid mismatches that cause nuisance tripping.

For reversing setups, implement mechanical and electrical interlocks between forward (F) and reverse (R) contactors. Place auxiliary NC contacts of F in series with R’s coil, and vice versa, plus a mechanical interlock bar if using non-solid-state relays. Never rely solely on pushbutton interlocks–physical separation of contactor coils prevents phase-to-phase short circuits, which can exceed 10 kA in industrial settings. Include a braking resistor in regenerative braking circuits, sized at 1.5× the motor’s rated power for dynamic braking, with a kilowatt rating printed beside it on the diagram.

Common Pitfalls in Wiring Representations

• Omitting neutral conductor in single-phase branch circuits–even if not used, mark it to avoid confusion during troubleshooting.
• Ignoring cable derating factors–note ambient temperature (default 40°C) and bundling corrections directly on the wiring schedule.
• Using generic symbols for VFDs–differentiate between PWM, vector, and servo drives with manufacturer-specific icons (e.g., Siemens SINAMICS G120 vs. ABB ACS880).
• Neglecting soft-start timings–label ramp-up (2–10 s typical) and ramp-down (1–5 s) intervals near the corresponding potentiometer.

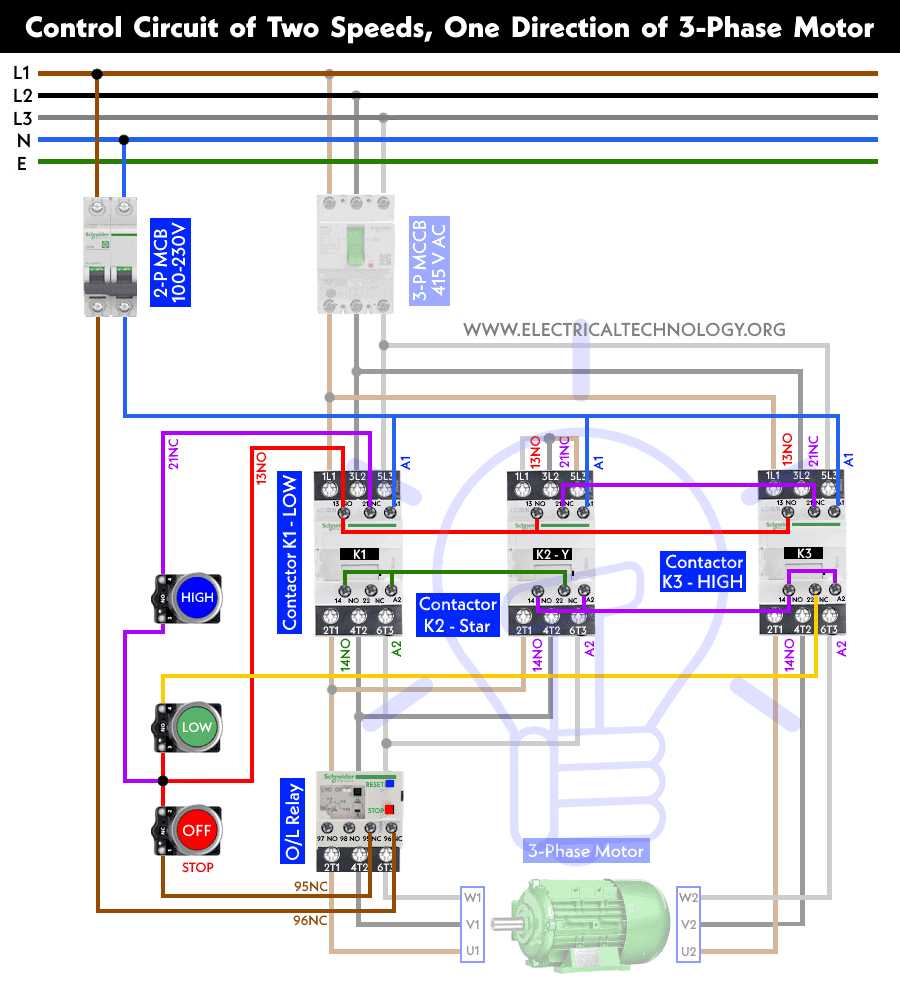

For multi-speed machinery, use Dahlander or pole-changing arrangements with clear speed ratios (e.g., 1500/3000 rpm). Draw separate branches for Δ and YY connections, with color-coded jumpers (red for Δ, blue for YY) to simplify shop-floor assembly. In PLC-integrated setups, isolate low-voltage DC (24V) circuits from AC lines using optocouplers or relays with at least 2.5 kV isolation, and label channel allocation (e.g., Q0.0 = Start, Q0.1 = Stop) on the ladder logic excerpt included alongside the schematic.

Include surge protection on all control lines–MOVs for 230V AC, TVS diodes for 24V DC–positioned within 50 mm of the coil or input terminal. Specify varistor voltage (e.g., 275V AC for 230V lines) and clamping current (e.g., 40 kA) next to each device. For remote monitoring, add Modbus or Profibus node addresses (e.g., Slave ID 3) in hexadecimal near the communication port, with baud rate (19.2 kbps typical) and parity (even/odd/none) settings.

Documentation Standards for Long-Term Maintenance

1. Add a wiring schedule listing every conductor: gauge (e.g., 2.5 mm² for power, 0.75 mm² for signals), color code (IEC/BN: brown, BK: black), and termination points (e.g., “K1:A1 → S1:L”).
2. Insert a legend with real-world torque curves for reference–compare locked-rotor, breakdown, and rated torque at 50 Hz and 60 Hz.
3. Attach a bill of materials with exact part numbers (e.g., Schneider LC1D12M7 contactor, ABB TA25DU overload relay) and manufacturer lead times for critical spares.
4. Annotate environmental ratings–IP54 for splash-proof enclosures, IP66 for washdown areas–and derate components by 1% per °C above 40°C ambient.

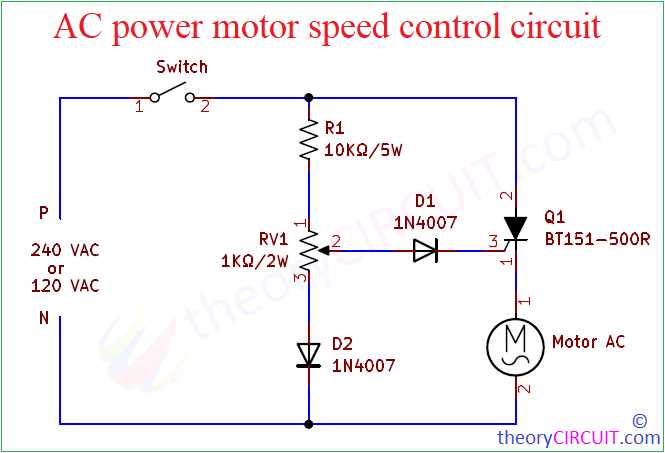

Key Elements of Single-Phase AC Drive Wiring Layouts

Begin by installing a magnetic starter with a contactor rated for the machine’s full-load current, ensuring its coil voltage matches the supply (commonly 120VAC or 240VAC). Include overload relays with trip classes between 10 and 30 for standard duty cycles–adjust coil heaters to 115% of the motor’s nameplate amperage to prevent nuisance tripping. Wire auxiliary contacts in series with start switches to maintain holding circuits, avoiding reliance on momentary pushbuttons alone. For 230V configurations, split the supply across two hot legs; use a neutral only for control power if necessary, never for the main windings.

Capacitors determine torque and efficiency–select start caps (typically 50-300 µF) for high-inertia loads like compressors, switching them out via a centrifugal switch or current-sensitive relay operating at ~75-80% of full speed. Run caps (usually 5-50 µF) stay in-circuit continuously, improving power factor by 0.90–0.95 lagging; mismatch here increases winding heat. For reversible setups, add a double-pole double-throw switch to swap main winding polarity–never reverse direction while running, as locked-rotor currents exceed 600% of rated.

Protection and Sensing Devices

Fuse the branch circuit at 250% of the motor’s rated current for Type 2 coordination, using time-delay fuses sized no larger than 30A for 1HP units. Install thermal cutouts under the winding insulation, calibrated to trip at 125°C for wet-wound machines or 150°C for dry-types. Avoid thermal overloads alone in dusty environments–supplement with differential current sensors (60-100mA threshold) to catch phase imbalance before arc faults develop. Ground the frame via a 8AWG conductor bonded to an earth rod with ≤25Ω resistance, ensuring starters and enclosures share a single grounding path.

For variable-speed applications, replace centrifugal switches with solid-state relays triggered at 8-10V from a tachometer feedback loop. Use 600V-rated THHN wire for internal connections, doubling gauge for runs exceeding 50ft to limit voltage drop to

Wiring a Start-Stop Push Button System for Three-Phase Power Units

Connect the main contactor coil to a 24V AC or DC supply via the normally open (NO) contact of the start push button. Install a holding contact (auxiliary NO contact of the main contactor) in parallel with the start button to maintain the coil energized after release. Use a 95 mm² copper wire for the main power lines (L1, L2, L3) and 2.5 mm² for auxiliary circuits, ensuring all terminals are torque-secured to manufacturer specs (e.g., 2.5 Nm for M5 screws, 4.5 Nm for M6).

• Place the stop push button (NC contact) in series with the start button to break the coil circuit instantly.
• Add a thermal overload relay (e.g., Schneider TeSys LR2D) calibrated to 1.1–1.2× nominal current; wire its NC contact in series with the stop button.
• For multiple control points, daisy-chain additional start/stop pairs in parallel (start) and series (stop).
• Include a mushroom-head emergency stop (NC) in series with all other stop devices.
• Earth all metallic enclosures using 10 mm² green/yellow wire bonded to the motor frame.

Test the setup with a multimeter: measure 0Ω across the start button contacts when pressed, infinity when released, and verify the holding contact closes within 50 ms of activation. For motors above 15 kW, use a soft starter or VFD to limit inrush current to 300% of FLC (full-load current). Document wire colors per local standards (e.g., IEC: L1=black, L2=red, L3=gray; AU: active=brown, neutral=blue) to prevent miswiring.

Integrating Overcurrent Safeguards in Drive Systems

Begin with a bimetallic strip relay rated at 110–120% of the machine’s full-load current for continuous-duty applications. Position the device directly in series with the power feed–downstream of contactors, upstream of windings. Typical tripping curves follow these thresholds: 3× rated current triggers in 2–5 seconds, 6× in 0.5–1.5 seconds. Calibrate test currents using a 0–20 A bench supply; adjust the screw until the relay opens at ±3 % of target value.

Component Sizing Reference

Frame Size (kW)	Relay Current (A)	Trip Class	Reset Type
0.37–1.1	2.5–4.8	10	Manual
1.5–3.7	5–9	10A	Auto
5.5–11	12–23	20	Auto
15–30	26–55	30	Manual

Add a varistor across relay contacts to clamp transients exceeding 4× the steady-state voltage; 250 V devices suffice for 230 VAC lines. For machines subject to frequent starts (e.g., conveyors), substitute the strip relay with a solid-state modular unit offering adjustable time-current curves. Wire the auxiliary contact in series with the main coil feed–once tripped, it keeps the coil de-energized until manual acknowledgement. Keep leads between relay and winding ≤1.5 m to avoid voltage drop; use 2.5 mm² cable for currents >10 A.
