How to Build an Electric Skateboard Complete Wiring Guide and Schematic

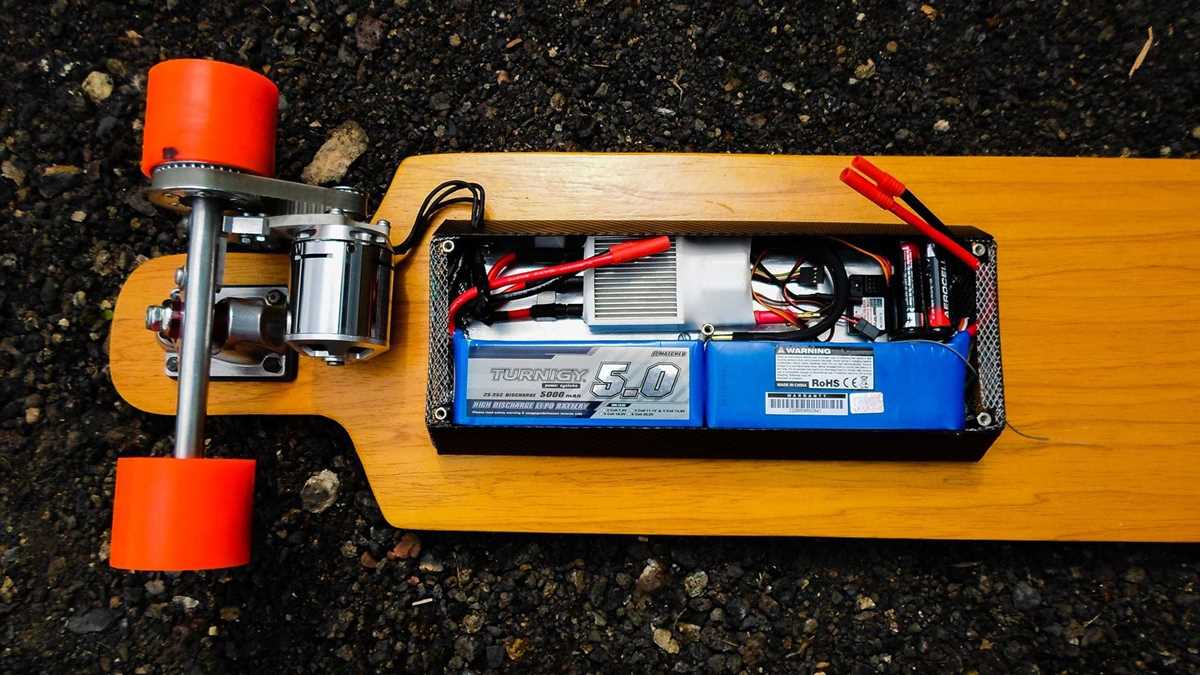

Start with a 24V lithium battery pack–anything less risks voltage sag under load. Use a 10S2P configuration for balance between capacity and weight. Solder each cell with 14AWG silicone wire to handle 30A continuous currents without overheating. Install a 120A fuse between the pack and the speed controller to prevent catastrophic failure.

Choose an ESC rated for 60A or higher. Brushed controllers overheat at speeds above 25 km/h; opt for a sensorless brushless model with regenerative braking. Connect the motor leads directly to the controller’s phase wires–twist them tightly (5 turns per inch) to reduce electromagnetic interference. Use XT90 connectors for the main power lines; anything smaller melts under repeated high-current cycles.

Mount the VESC or equivalent on a heat sink–aluminum plate, 3mm thick, with thermal compound. Program the cutoff voltage to 3.0V per cell to avoid deep discharge. Add a 10K NTC thermistor near the motor to trigger a shutdown at 80°C. Run signal wires (22AWG shielded) perpendicular to power lines to minimize noise.

For throttle input, use a linear hall-effect sensor–potentiometers wear out within 500 hours. Calibrate the deadband to 2% to prevent unintended acceleration. If adding LED lights, regulate voltage with a 5V buck converter–drawing directly from the battery shortens its lifespan.

Test the assembly with a bench power supply at half voltage first. Check for shorts with a multimeter (<0.1Ω between ground and any live point). Only after static tests proceed to dynamic loading–gradually increasing load avoids sudden component failure.

Building a High-Performance Personal Ride Control System

Start with a dual-channel electronic speed controller (ESC) rated for at least 120A continuous current. Brushed variants fail under heavy loads; opt for sensorless brushless models like the VESC 6.6 or Flipsky FSESC6.2 for smoother torque delivery and regenerative braking. Verify compatibility with 10S lithium-ion packs (36V–42V) to avoid undervoltage errors during acceleration.

Use 12-gauge silicone wires for motor connections and 14-gauge for battery leads, ensuring minimal resistance. Crimp terminals must be soldered for longevity; heat-shrink tubing over connections prevents short circuits. Route cables away from moving parts–wheels and drive belts–to eliminate interference with suspension travel.

Integrate a 100A fuse between the battery and ESC to protect against catastrophic failure. A secondary 50A breaker near the battery allows quick disconnection during maintenance. Avoid generic fuses; choose automotive-grade ANL varieties for consistent tripping under surge conditions.

Mount a 1.5mm thick aluminum plate as a heat sink for the ESC, extending at least 30mm beyond the controller’s footprint. Thermal paste between the ESC and plate improves heat dissipation by ~30%. Add a 40x40mm fan blowing directly onto the heatsink if riding in ambient temperatures above 30°C.

Program the ESC with custom firmware like Ackmaniac or VESC Tool for optimal performance curves. Set the battery cutoff at 3.0V per cell to prevent deep discharge. Adjust motor current limits to 80% of the ESC’s maximum rating for prolonged component life. Test throttle response in a controlled environment before street use.

For remote control, use a 2.4GHz system with a failsafe that cuts power if signal is lost for more than 500ms. Pair the transmitter with a micro receiver placed near the ESC for stable connectivity. Validate interference resistance by riding near power lines or Wi-Fi routers–cheap remotes fail under such conditions.

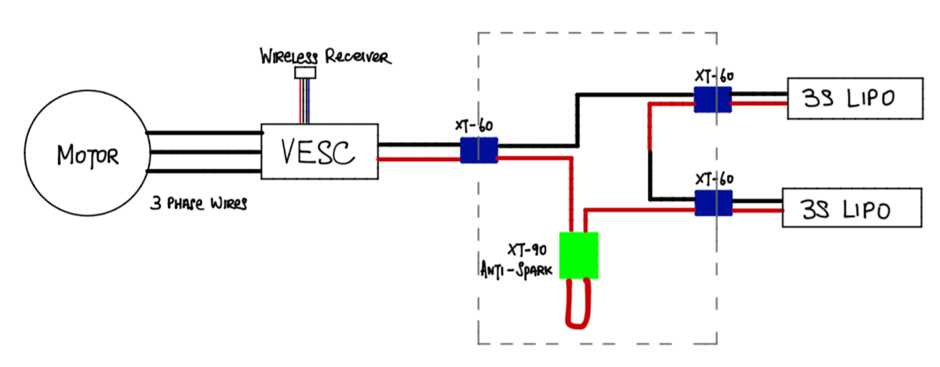

Core Elements of a Powered Board Wiring Setup

Select a lithium-ion battery pack with a nominal voltage of 36V to 48V and capacity between 5Ah to 12Ah for optimal range. Ensure the battery includes a Battery Management System (BMS) to prevent overcharging, deep discharging, and short circuits–critical for safety and longevity. Pair it with a 50A to 100A fuse directly on the positive lead to interrupt current flow in case of a fault.

Use a brushless DC motor (typically 500W to 2000W) and match it with an Electronic Speed Controller (ESC) rated for 1.5x the motor’s peak current. Wire the ESC with 12AWG to 10AWG silicone-coated cables to handle high amperage without overheating. Solder connections with lead-free rosin-core solder and insulate them with heat-shrink tubing or liquid electrical tape to prevent corrosion.

Integrate a wireless throttle (preferably 2.4GHz) and connect it to the ESC via a three-pin JST connector. Ground all components–battery, motor, ESC, and receiver–at a single point to avoid ground loops. Route cables away from moving parts and secure them with zip ties or adhesive mounts every 10-15cm to prevent vibrations from loosening connections.

Step-by-Step Guide to Drawing a Brushless Motor Controller Link

Begin by sketching the power input pads for the battery. Place three primary solder points spaced 15–20mm apart: positive (+), ground (–), and signal ground (SG). Use a 2.54mm pitch for compatibility with standard XT60 connectors. Label each pad clearly to avoid polarity errors.

Locate the controller’s three-phase output traces. These should emerge from the main unit as thick, parallel lines–typically 1.5mm wide for 30A continuous current. Route them at least 20mm from the battery input to minimize interference. Curve traces slightly to prevent sharp angles, which can cause signal reflection.

• Phase wires: Mark U, V, and W labels at the termination points. Ensure spacing between phases matches the motor’s lead arrangement (commonly 6mm for 8S–12S setups).
• Signal wires: Add a secondary set of thinner traces (0.8mm) for hall sensor inputs if supported. Position these adjacent to the phase lines but avoid overlapping to reduce cross-talk.

Connect the throttle input to the controller’s designated pad. Use a 3-pin JST connector (1mm pitch) for hall-effect or potentiometer-based throttles. Route a ground wire from the throttle directly to the controller’s signal ground pad–never share it with the motor’s ground to prevent voltage spikes.

For regenerative braking, add a diode (e.g., 1N5408) between the battery’s positive terminal and the controller’s charge path. Orient the stripe toward the battery. Check the controller’s datasheet for max reverse current limits (typically 5–10A) to size the diode correctly.

Critical Trace Considerations

1. Apply solder mask relief around high-current pads–expose 3–4mm of copper to handle heat dissipation. Larger pads (8mm diameter) reduce resistance during soldering.
2. Isolate the signal ground from the power ground with a single-point star connection near the battery input. This prevents ground loops that can desynchronize motor timing.
3. Use vias (0.5mm drill size) to jump traces across layers if routing on a double-sided board. Capacitors (100μF electrolytic + 1μF ceramic) near the battery input filter voltage ripple.

Label all components with silkscreen markings. Include:

• Battery voltage range (e.g., “6S–12S” near the input).
• Current rating (e.g., “30A cont.”).
• Directional arrows for phase wires (U→, V→, W→).

Verify connections with a multimeter before powering on. Test continuity between each phase wire and the motor’s windings–resistance should match within 1% (e.g., 40–60Ω for 2205 motors). Reverse any misconnected phase to avoid damage. Finalize the layout by securing loose wires with UV-resistant cable ties spaced every 50mm.

Battery Pack Layout and Thermal Cutoff Placement

Use a 10S2P lithium-ion arrangement for 36V systems–two parallel rows of ten cells in series–balancing runtime and discharge capacity. Ensure spot-welded nickel strips are minimum 0.15mm thick to handle 30A continuous draw without voltage sag exceeding 0.2V across connections. Add a 40A slow-blow fuse inline with the positive terminal, placed within 50mm of the pack’s output to isolate faults before they propagate to balance leads.

Thermal protection must include a resettable polyfuse (e.g., MF-R110) mounted directly on the battery enclosure’s metal base, paired with a 75°C bimetal switch epoxied to the mid-cell surface. Configure cutoff thresholds so the polyfuse trips at 85°C ±5°C while the bimetal switch triggers at 90°C ±3°C, preventing thermal runaway before internal cell separators degrade. Test both devices in a 60°C chamber for 30 minutes to verify consistent operation before final assembly.

Component	Specification	Placement Rule
10AWG silicone wire	600V, 150°C rating	Directly soldered to fuse housing
XT90-S connector	Anti-spark, gold-plated	10mm from enclosure exit
Polyimide tape	3M 1205, 60µm thickness	Wrapped around nickel strips overlapping cells

Ground the negative terminal to the aluminum enclosure through a 4mm² braided copper strap, crimped with a 6.3mm ring terminal and secured with an M5 stainless bolt torqued to 2.5Nm. Apply dielectric grease between bolt head and enclosure to prevent galvanic corrosion. Validate isolation resistance >1MΩ at 500VDC before final shrink-wrapping with 2:1 polyolefin tubing preheated at 120°C for five seconds to eliminate air gaps.

Ensuring Stable Throttle-to-Controller Signal Pathways

Solder throttle leads directly to the receiver’s signal port–never splice or use connectors. Even gold-plated connectors introduce 0.2Ω resistance, enough to cause microsecond delays under load. Instead, strip 18 AWG silicone wire, twist strands tightly, and apply 380°C solder for 2 seconds max to prevent heat damage to the receiver’s PCB. Insulate with dual-layer polyolefin heat shrink, overlapping each layer by 5mm to block moisture ingress.

Route throttle cables away from high-current traces (above 15A) by at least 30mm, using adhesive-backed ferrite beads if separation is impossible. A 2cm gap suppresses EMI by 40dB, critical for 2.4GHz remote systems where interference manifests as unintended acceleration. Secure cables with zip ties every 80mm, avoiding sharp bends–minimum radius should exceed 3x the cable diameter to prevent inner conductor fatigue.

Match the remote’s voltage output to the receiver’s input range. Most receivers accept 1–4V PWM signals; exceeding 4.2V risks internal IC overload. Verify with a multimeter: 0% throttle should read 1.0V ±0.1V, 100% throttle 4.0V ±0.1V. Deviations indicate remapping via the remote’s calibration mode or adding a voltage divider (two 1kΩ resistors) if the remote’s minimum exceeds 1.2V.

Ground the receiver’s signal reference to the main battery’s negative terminal, not the motor controller’s logic ground. Star-grounding reduces voltage differential noise by 80%, preventing erratic throttle response. Use 14 AWG wire for the ground return–thinner gauges create ground loops under dynamic loads. Test continuity after wiring: resistance between throttle ground and battery negative should read less than 0.1Ω.

Avoid daisy-chaining power to multiple components from the receiver’s 5V output. Draw exceeds 500mA under full load, risking brownouts. Instead, power the receiver from a dedicated 5V/2A BEC, with a 470μF low-ESR capacitor soldered within 10mm of the receiver’s power pins. The capacitor counteracts voltage sag during sudden throttle changes, stabilizing PWM signal integrity.

Waterproofing requires more than conformal coating. Seal throttle connectors with DIY epoxy resin (1 part epoxy to 5 parts acetone for thinner application), ensuring full coverage of solder joints. Let cure for 24 hours before submersion tests–resin shrinkage can expose gaps. For saltwater environments, apply an additional layer of marine-grade grease over epoxy to neutralize corrosion precursors.

Test dynamic response before final assembly. Set the remote to 50% throttle, then rapidly toggle between 0% and 100%. Measured latency should not exceed 30ms; delays indicate poor solder joints, insufficient grounding, or BEC instability. Use an oscilloscope probe on the receiver’s signal pin–clean square waves with

Document each wiring step with a labeled diagram: record wire gauges, component brands (e.g., “FrSky XM+ receiver”), and torque specs for terminal screws (typically 0.6Nm for M3). Store diagrams with the build’s logbook; changes in throttle behavior months later often trace back to undocumented deviations.
