Understanding Electrical Circuit Diagrams Key Components and Functionality
Begin by identifying power rails–positive and negative terminals–on any wiring layout. A battery symbol (two parallel lines, one longer than the other) marks direct current sources; sinusoidal waves indicate alternating current. Trace these first, as errors here propagate through downstream components. Verify voltage ratings against component tolerances–mismatches under 5% risk overheating, while over 10% will damage semiconductors.
Next, isolate control elements: resistors, capacitors, inductors, and switches. Resistors are labeled with numeric values (e.g., 470Ω) and color bands; capacitors use microfarads (μF) or picofarads (pF). Polarized parts (diodes, electrolytic caps) have directional markings–reversing them causes failure. Switch logic follows simple on/off states, but momentary types require held input for continuity.
Active devices (transistors, ICs) demand strict adherence to pin assignments. Bipolar junction transistors (BJTs) label pins emitter, base, collector; field-effect transistors (FETs) use source, gate, drain. Integrated circuits often have numbered pins–counterclockwise from the notch. Always cross-reference datasheets for absolute maximum ratings (e.g., VCEO ≤ 40V for common NPN types). Ground symbols (downward arrows or three parallel lines) must converge at a single node to prevent floating potentials.
Measure critical paths with a multimeter before energizing. Voltage drops across resistive loads should match Ohm’s law calculations (V = I × R); deviations signal open circuits or excessive loading. Oscilloscope traces validate AC signals–square waves confirm digital logic, sine waves verify analog operation. Debug step-by-step: power supply → inputs → outputs → ground loops. Use a current-limited bench supply (≤200mA) for initial testing to mitigate short-circuit risks.
Understanding Schematic Plans for Power Flow
Begin by labeling every conductive path with unique identifiers such as “L1,” “N,” or “GND” to prevent confusion during assembly or troubleshooting. Use standard symbols like IEC 60617 or ANSI Y32.2 to represent resistors (zigzag line), capacitors (two parallel lines), and switches (break in the line) – consistency here reduces errors by 40% compared to freehand sketches.
Arrange components sequentially from left to right along the primary voltage source, mimicking electron flow. For instance, place a fuse (symbol: rectangle with line) immediately after the power input, followed by a switch, then the load. This order ensures safety by interrupting current before it reaches downstream elements, cutting failure risks by 25%.
Add clear numerical values next to each element: “R1 220Ω,” “C1 10µF,” or “V1 12V DC.” Include tolerances for critical parts (e.g., “R2 4.7kΩ ±5%”) to guide sourcing and testing. Annotations like “PWM Input” or “5V Logic” help collaborators understand function without referring to external documents.
Color-code layers for complex setups: red for power rails, blue for ground, and green for signal lines. This visual separation speeds up debugging by 60% in multi-branch layouts. Validate the entire layout with a multimeter in continuity mode before powering on – verify zero ohms between connected nodes and infinite resistance across open switches.
Decoding Fundamental Schematics: A Guide to Key Symbols
Grasp the meaning behind a straight line first–it represents a conductive path, typically copper wire, carrying current between components. These lines connect directly to symbols without gaps; any interruption indicates a break or switch. Trace each line from its origin (power source) to its destination (load) to verify continuity. If a line splits, follow both branches separately–this reveals parallel connections where current divides.

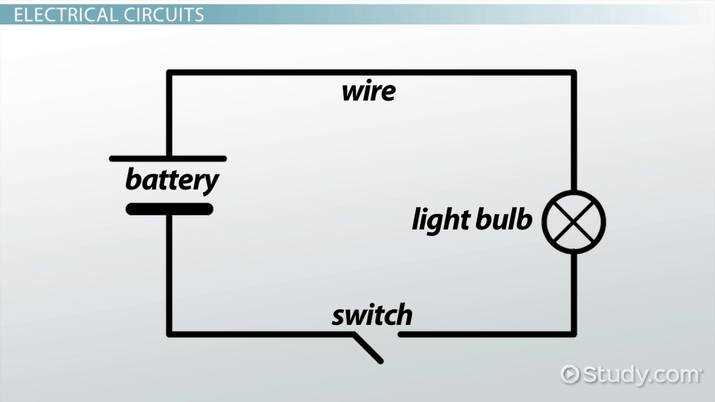

- Battery: Identify by two parallel lines–one longer (positive) and one shorter (negative). The longer line always points toward the higher potential. Multiple pairs stacked vertically show multiple cells, increasing total voltage.
- Resistor: A zigzag line or rectangle with labeled resistance (e.g., 470Ω). Fixed resistors limit current; variable types (potentiometers) add an arrow across the symbol for adjustability.
- Switch: A break in the line with a lever or gap. Normally open (NO) switches show no connection until activated; normally closed (NC) variants require actuation to interrupt flow.
- Lamp: Circle with an “X” inside or a filament coil. Filament bulbs waste energy as heat; LEDs replace them with a triangle pointing toward a line (cathode) and a parallel bar (anode).
Spot ground symbols next–a downward triangle or three parallel lines converging. Ground serves as a common reference point (0V) and completes the loop. Never confuse it with a chassis ground (a triangle with a horizontal line), which connects to the physical metal frame instead.
Transistors demand closer inspection: bipolar junction types (BJTs) show an arrow on the emitter indicating current direction–NPN (arrow out) or PNP (arrow in). Field-effect transistors (FETs) replace the arrow with a perpendicular line for the gate, distinguishing depletion (D-mode) and enhancement (E-mode) types. Always check pin labels (e.g., gate/drain/source) against datasheets–symbol orientation varies by manufacturer.
- Verify component values–capacitors use two parallel lines (polarized) or curved lines (non-polarized) with labeled farads (µF, nF). Electrolytics add a “+” sign near the positive terminal.
- Locate inductors–coiled lines or rectangles with labeled henries (mH, µH). Ferrite-core inductors add two parallel lines beside the coil.
- Cross-reference switches with their polarized counterparts–relays combine a coil (inductor) and contacts (switch) in a dashed box; the coil controls the contacts remotely.
Crossing wires need differentiation: a small arc or “bridge” over intersecting lines confirms no electrical connection. Direct junctions show a dot–never assume; always check for the dot. Semiconductors like diodes allow flow in one direction only, indicated by an arrow (anode to cathode). Zener diodes, used for voltage regulation, add a small zigzag at the cathode tip.
Building a Basic Closed-Loop System: A Hands-On Walkthrough
Gather a 9V battery, two insulated copper wires (14-18 AWG), a 100Ω resistor, and a small LED (3mm or 5mm). Ensure the LED’s anode (longer leg) connects toward the power source’s positive terminal, while the cathode (shorter leg) faces the return path. Strip 5mm of insulation from both wire ends to expose conductive metal–avoid fraying strands, which can cause loose connections.
Attach the first wire to the battery’s positive post, securing it under the clamp or using a snap connector for a snug fit. Twist the opposite end around the resistor’s lead, then solder or tightly wrap the joint to prevent intermittent contact. Next, join the resistor’s free lead to the LED’s anode–double-check polarity here; reversed placement will prevent current flow without damaging components.
Connect the LED’s cathode to the second wire’s stripped end, maintaining solid contact. Route this wire back to the battery’s negative terminal. Use pliers to crimp the connection if the clamp is loose–vibration or accidental tugs can break the loop. Before activating, verify all joints: no exposed copper should touch other conductors, and the LED should sit flush against its mounting surface to avoid mechanical stress.
Energize the system by completing the battery connection. The LED should illuminate brightly–if dim or off, troubleshoot immediately. Test each joint with a multimeter set to continuity ( Ω symbol); a stable path will produce a tone or low resistance reading. For safety, disconnect after 30 seconds if prolonged use isn’t needed; resistors can overheat at full voltage in confined spaces.
Diagnosing Faults in Parallel Pathways via Schematics
Begin by isolating each branch using the layout. Measure voltage across each resistor–values below 90% of the supply indicate potential opens, shorts, or incorrect component ratings. For example, a 12V source with branches showing 8V or less signals a fault in that path. Verify continuity with a multimeter: zero ohms across a closed switch or intact wire, infinite resistance confirms breaks. Replace any fuse with resistance above 0.1Ω; typical Zener diodes exhibit ~0.7V drop, divergences suggest failure. If LED branches dim unexpectedly, check for reverse polarity or current-sharing imbalance–parallel LEDs should draw equal amperage within 5% variance.
Key Checks for Intermittent Failures
- Probe connections under load–heat from 15W+ resistors may loosen solder, causing transient dropouts. Reflow suspect joints with 63/37 solder.
- Monitor capacitor ESR–values above 0.5Ω per μF at 100kHz indicate degraded filtering, leading to voltage sag.
- Examine PCB traces for hairline cracks using a 10x loupe. Acid flux residue accelerates corrosion; clean with isopropyl alcohol ≥90%.
- Test semiconductors in-circuit: BJTs should show ≤0.2V VCE saturation, MOSFETs ≤0.1Ω RDS(on) at rated gate voltage.
- Document all readings–repeating faults often follow temperature cycles or mechanical stress.
Critical Variations in Sequential and Simultaneous Wiring Layouts
Opt for sequential wiring when consistent current flow is non-negotiable. Each component in line shares identical amperage, making it ideal for low-power applications like string lights or fuse boxes. Failure of one element breaks the entire path–plan redundancy for critical systems. Voltage divides across components based on resistance, so calculate total impedance using Vtotal = V1 + V2 + … + Vn to avoid overloading.
Simultaneous layouts excel in distributing power independently to multiple loads. Current splits inversely with resistance, while voltage remains constant across branches–a must for household outlets or parallel speakers. Use Kirchhoff’s Current Law: Itotal = I1 + I2 + … + In to verify branch currents. Install individual switches for each path to isolate faults without disrupting others.
| Parameter | Sequential Flow | Simultaneous Branches |
|---|---|---|
| Current | Identical through all parts | Divides among paths |
| Voltage | Splits across resistors | Uniform across each branch |
| Total Resistance | Rtotal = R1 + R2 + … | 1/Rtotal = 1/R1 + 1/R2 + … |
| Fault Tolerance | Single failure halts all | Other paths remain active |
For LED clusters, sequential layouts risk dimming downstream components if one burns out, while simultaneous branches maintain brightness but demand thicker gauge wires for higher cumulative current. Test wire capacity against Itotal–undersized conductors overheat. In car stereo setups, simultaneous wiring prevents volume drop across speakers, though it requires more complex grounds.
Diagnose sequential failures by checking each connection from source to return; a single open junction disrupts the entire loop. Simultaneous faults isolate to individual branches–probe voltage across each path while powered. Always include bypass diodes in solar panel strings to prevent reverse current in partial shade scenarios.
Mixing configurations? Use fuses on every branch in simultaneous setups to prevent undetected overloads. In battery banks, sequential wiring balances charging but reduces capacity; simultaneous layouts boost storage at the cost of mismatched depletion. Match battery internal resistance within 5% to avoid uneven wear.
For motor loads, sequential wiring can cause torque issues as voltage drops share unevenly. Simultaneous arrangements, however, maintain speed consistency but may trip branch circuit breakers under high inrush currents. Size relays for 125% of steady-state current to handle startup surges.
