Step-by-Step Guide to Wiring an Electric Hoist with Diagrams

Start by identifying the power source’s voltage–typically 230V or 460V for industrial units–and match it to the motor’s specs. A mismatch risks overheating or, worse, irreversible coil damage. Use a multimeter to verify live and neutral lines before attaching wires; label each conductor with heat-resistant sleeves to prevent misconnections during reassembly.

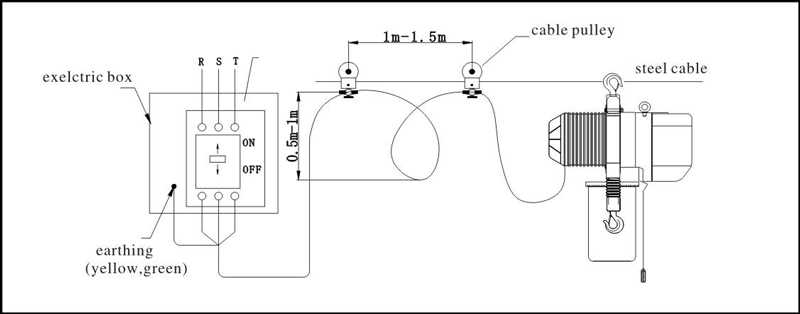

Route cables through strain relief clamps to prevent fraying under load. Secure the ground wire to the frame with a crimped lug–never solder alone, as vibrations can shear soft connections. For three-phase setups, wire the motor in a delta configuration if the nameplate specifies 230V, or star (wye) for 400V systems. Cross-check phase rotation with a phase sequencer; reversing two leads can cause the mechanism to run backward and damage gears.

Install a thermal overload relay rated 110–125% of the motor’s FLC (full-load current). Mount it within 12 inches of the starter to ensure quick response to overheating. Capacitors, if present in single-phase circuits, require discharge resistors (500Ω, 5W) to bleed stored energy when powered off; bypassing this risks shocks during maintenance.

Run control circuits through a mushroom-stop emergency button wired in series. Test it under load before operation–press and verify the motor halts immediately. For remote operation, use 22-gauge shielded cable to reduce noise interference that can trigger false starts. Mark all terminals with indelible ink: L1/L2/L3 for power, T1/T2/T3 for motor leads, and A1/A2 for the coil on relays.

Insulate splices with double layers of self-fusing silicone tape, overlapping by at least 50%. Avoid electrical tape for high-amperage sections; it degrades under heat. After securing all connections, apply a 500V megohmmeter test between conductors and ground. Readings below 10MΩ indicate moisture or insulation failure–dry components with low-wattage heat or replace compromised wiring.

Guide to Setting Up a Lifting Mechanism Circuit Schematic

Begin by mapping power source connections directly to the motor terminals. Use 4-core flexible cable (e.g., H07RN-F) for primary circuits rated at 400V three-phase with a 2.5mm² cross-section for currents up to 20A. Ground the motor chassis via a dedicated PE conductor no smaller than 1.5mm², terminating at the distribution board’s earth busbar.

Install a dual-contact auxiliary relay (e.g., Siemens 3RH2111) between the limit switches and motor starter. Wire the relay coil across the 24V AC control circuit, ensuring both NO and NC contacts are utilized–NO for overtravel safety lockout, NC for emergency stop integration. Test relay switching with a multimeter before energizing the main circuit.

Fit thermal overload protection (TOPs) in series with the motor windings. Select TOPs matching 120% of the motor’s FLC (e.g., for a 7.5 kW motor with 15A FLC, use ABB TA25DU18). Adjust the dial to the exact current value; inaccurate settings risk false trips during normal operation or failure to protect under overload conditions.

Control Panel Component Layout

Mount the starter, TOPs, and relay inside a NEMA 4X enclosure with DIN rail spacing. Keep phase conductors separated by at least 10mm to prevent arcing. Label each terminal clearly–L1, L2, L3 for mains; U, V, W for motor; 13/14 for auxiliary–using self-laminating tags resistant to 80°C. Route control wiring through grommeted knockouts to maintain IP65 ingress protection.

Connect push-buttons via screened cable (e.g., Belden 9452) with the screen grounded at a single point to suppress induced noise. Use a 10kΩ resistor across the emergency stop button contacts to prevent floating voltages from triggering unintended halts. Verify push-button functionality by simulating button presses with the main breaker off–correct wiring shows continuity changes on a multimeter.

Integrate a soft starter (e.g., Schneider ATS01N2) for motors above 5kW to reduce inrush currents. Configure ramp-up time to 5–8 seconds; faster ramps risk mechanical stress on gears, slower ramps waste energy. Set current limit to 300% of FLC; higher values may damage windings during start-up surges.

Finalize the schematic by adding surge protection (e.g., Phoenix Valvetrab) across motor windings, rated for 275V phase-to-phase. Ground the surge device’s reference point to the enclosure’s PE bar within 200mm of the motor. Perform insulation resistance tests with a 500V megger–values below 1MΩ indicate compromised conductors requiring replacement before commissioning.

Critical Parts of a Lifting Device Circuit Blueprint

Ensure the power source connects via a dedicated breaker with ampacity matching the motor’s peak load. Industrial variants typically demand 230V or 460V three-phase supply, while compact units may operate on 115V single-phase. Verify voltage tolerance – most motors withstand ±10% deviation without performance loss or premature wear.

Motor and Control Circuit Separation

Isolate high-current paths from low-voltage circuits using separate conduits. Motor leads (often T1-T3) carry heavy amps, while push-button stations and limit switches rely on 24V control signals. Cross-mixing risks interference, false triggers, or even component failure. Label every conductor at termination points: motor phases distinct from ground and neutral.

Integrate thermal overload relays between the contactor and motor. These act as primary safeguards, interrupting current flow if temperatures exceed Class 10 or Class 20 trip curves (adjust based on duty cycle). Auxiliary contacts should feed into the control loop, preventing restart attempts until manual reset.

Emergency stop circuits must latch, requiring a physical reset to re-enable operation. Design the stop button with normally closed contacts wired in series – any break halts the entire system instantly, regardless of other inputs. Include a pilot lamp to signal fault status.

Brake coils (where applicable) warrant their own fuse-rated circuit. DC-operated brakes often demand precise timing (0.5–1.5 seconds release/engage), adjustable via time-delay relays. Misalignment here results in jerking, uneven load control, or brake burnout within hours of operation.

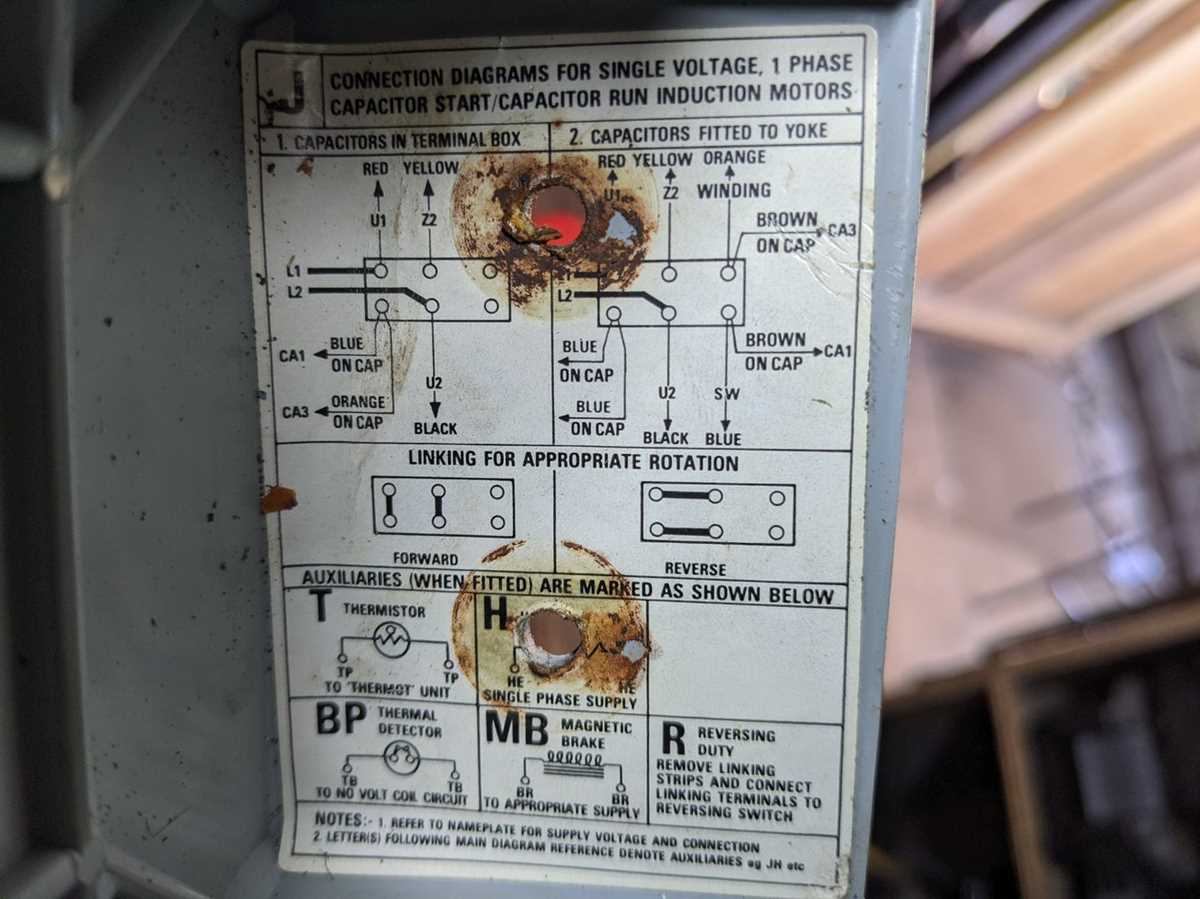

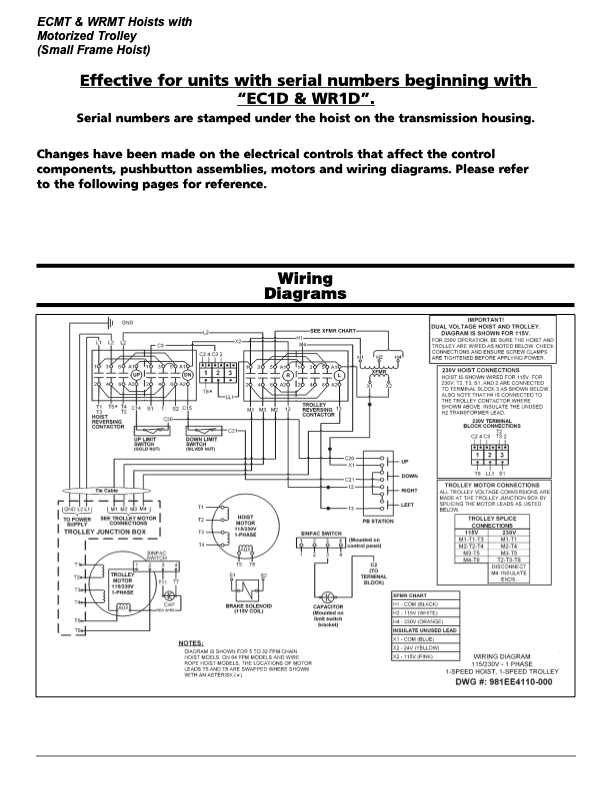

Step-by-Step Connection Guide for Single-Phase Lifting Device Motors

Begin by identifying the motor’s terminal block–typically labeled U, V, W for phase input, with additional points for start/run capacitors if required. For dual-voltage models (e.g., 115V/230V), confirm the correct voltage setting by bridging designated terminals; consult the nameplate for jumper positions. Use 14 AWG copper conductors for 115V circuits and 16 AWG for 230V, ensuring stranded wire for flexibility in moving assemblies. Ground the motor frame directly to the power source’s earth terminal using green or bare wire, never relying on conduit alone for grounding paths.

• Connect the main power leads to the motor’s line terminals, ensuring polarity matches the phase rotation required–reverse two leads to change direction.
• Attach the capacitor (if present) between the designated start and run terminals, observing microfarad (µF) ratings–common values range from 20–100µF for standard 1/4–2 HP units.
• Verify all connections with a multimeter: check for continuity between phases and test insulation resistance (minimum 1MΩ) to detect shorts or leakage.
• Energize the system in short bursts (2–3 seconds) to confirm rotation before full operation–listen for unusual noises indicating miswiring or bearing issues.

Diagnosing Frequent Issues in Lifting Mechanism Circuits

Check for loose connections at terminal blocks–vibration from operation often loosens screws in load-bearing equipment. Use a torque wrench to tighten to manufacturer specs: typically 1.5 Nm for control circuit terminals, 2.5 Nm for motor leads. Loose terminals create resistance, leading to overheating or intermittent failures.

Inspect insulation damage on flexible cables, especially near stress points like cable drums or guide pulleys. Replace any cable showing cracks, fraying, or exposed conductors. Shiny copper strands indicate fatigue and imminent failure. For 400V systems, ensure PVC insulation thickness remains above 1mm; below this threshold, risk of short circuits increases substantially.

Verify phase rotation on three-phase motors before energizing–reversed phases cause motors to rotate backward, potentially damaging mechanical components. Use a phase rotation meter at the motor terminals; swap any two input leads if rotation is incorrect. Remember that reversing contactors may not engage if phase sequence is wrong, regardless of control signals.

Measure voltage drop across contactor coils during activation. If voltage drops below 85% of nominal (e.g., 195V for a 230V coil), the contactor may chatter or fail to latch. Common causes include undersized conductors or corroded control circuit fuses. Replace fuses rated for at least 125% of the circuit’s continuous load.

Test emergency stop circuits by simulating activation–press the E-stop button and confirm all power paths open within 200ms. If delay exceeds this, check for welded relay contacts or degraded spring tension in the switch mechanism. Clean contacts with 400-grit sandpaper if oxidation is present, but avoid lubricants that attract dust.

Symptom	Likely Cause	Corrective Action
Motor runs but fails to lift	Overload relay tripped	Reset relay, check for mechanical obstructions; if problem persists, measure motor current with clamp meter
Control panel lights flicker	Neutral disconnect or loose ground wire	Inspect main power distribution busbar; re-terminate ground conductor to chassis with star washer
Remote pendant unresponsive	Broken strain relief on pendant cable	Replace cable assembly; ensure pendant button contacts have at least 0.5mm travel distance

Calibrate limit switch travel using a calibrated depth gauge. Upper limit switches should engage when the hook block reaches 100mm below the drum flange; lower limits must trip before the hook block contacts the base frame. Misaligned switches often cause abrupt stops or failure to stop, risking structural damage.

Monitor capacitor health in single-phase motor circuits–bulging or leaking capacitors reduce starting torque by up to 40%. Replace capacitors with identical microfarad and voltage ratings; a 25μF/450V capacitor should never be substituted with a 30μF/400V unit. For motors above 2HP, use a clamp meter to verify start winding current doesn’t exceed run winding current by more than 20%.
