Practical Guide to Creating Electrical Ladder Diagrams and Schematics

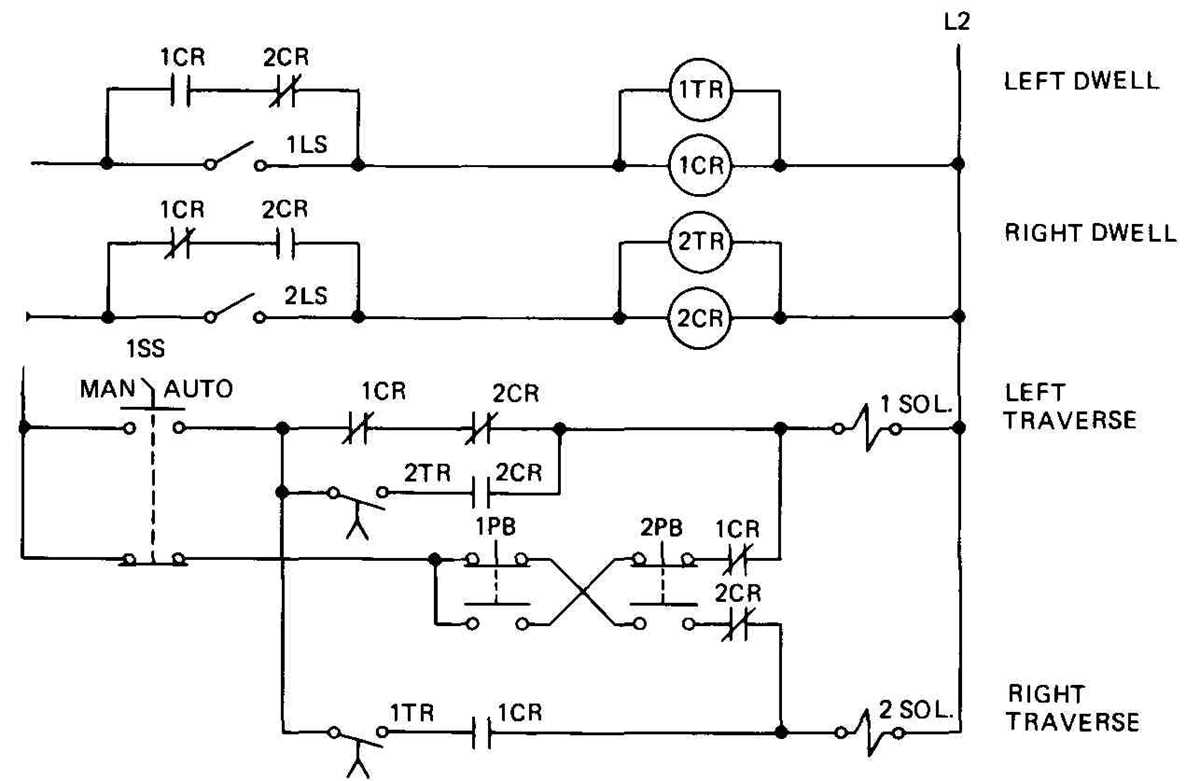

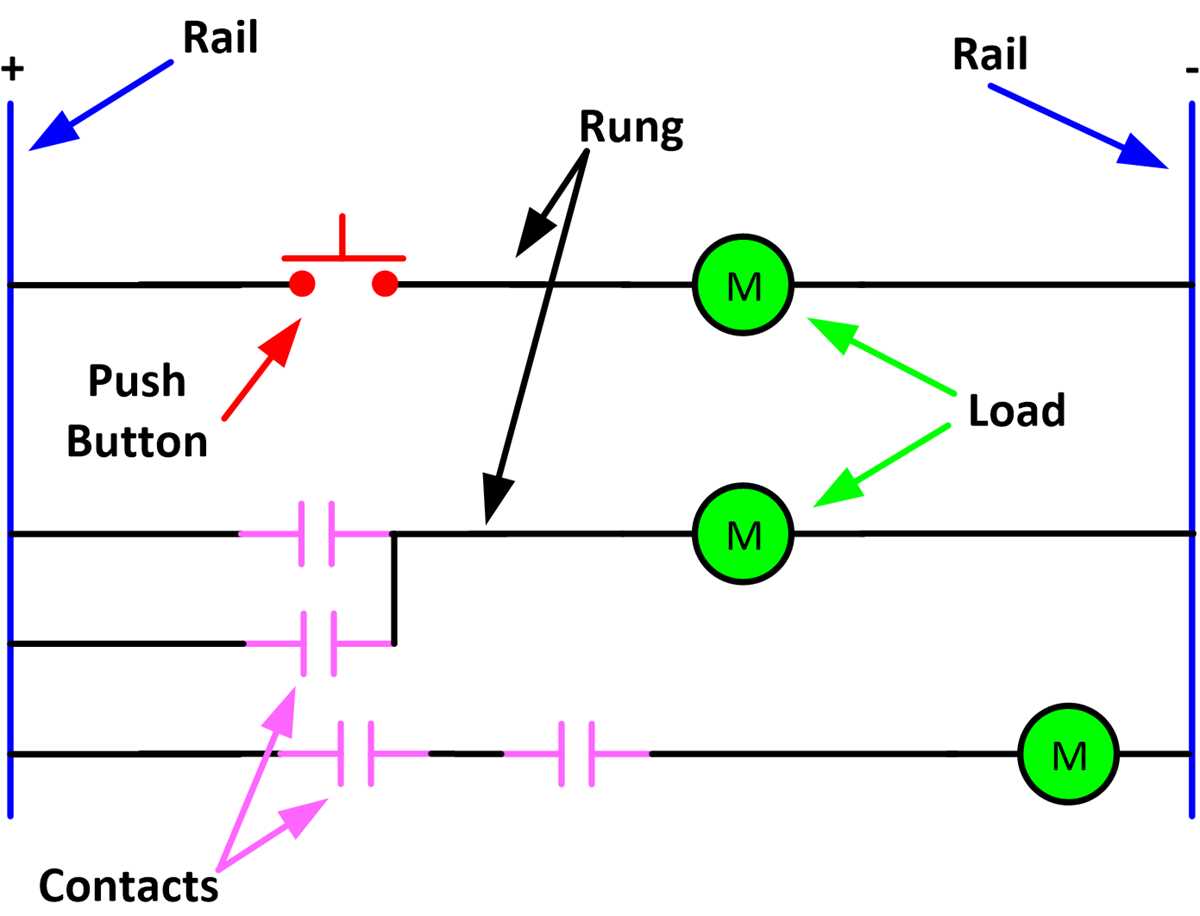

Start with the IEC 60617 or ANSI/ISA-5.1 notation–these standards eliminate ambiguity in relay logic representations. Use horizontal rungs for sequences, vertical rails for power lines, and explicitly label coil numbers next to each contact (e.g., K1 for a relay, S2 for a switch). Avoid cramming multiple operations into a single rung; split complex logic into sequential steps to simplify troubleshooting.

Prioritize readability over compactness. Assign each device a unique identifier and group related components together–motor starters near their overloads, pushbuttons adjacent to their indicator lamps. Color-code critical paths: red for emergency stops, green for normal operation circuits, and blue for control power. This reduces error tracking time by up to 40% during commissioning.

Validate every branch with a dry run before energizing. Simulate inputs using a multimeter or PLC programming software–check for unintended parallel paths and open circuits under fault conditions. Document all wire gauges, terminal numbers, and voltage levels directly on the diagram to avoid misconnections. Keep revision logs at the bottom of each sheet, noting changes with dates and approvals.

For analog controls, use separate layers to distinguish between PLC outputs and hardwired signals. Mark scaling factors (e.g., 0-10V → 4-20mA) near sensors and actuators to prevent calibration errors. Include fuse ratings and breaker curves in marginalia to ensure coordination during short-circuit events.

Adopt modular design: isolate safety circuits (E-stop, guarding) from operational logic. Use dual-channel architecture for critical functions and verify feedback signals on all contactors within 20 milliseconds of actuation. Store native files in DXF or PDF/A format alongside backups in cloud repositories with encrypted access.

Mastering Control Circuit Blueprints: Key Practices for Precision

Label every rung with a unique identifier–use alphanumeric tags like R1-CR5 (rung 1, control relay 5)–and include a concise function descriptor, such as Motor Start or Emergency Stop, adjacent to each coil and contact. Standardize symbol orientation: place normally open (NO) contacts to the left of coils and normally closed (NC) contacts to the right to minimize misinterpretation. For complex circuits, split horizontal sequences into logical sub-sections, separating power rails with dashed lines labeled A1-A2 or L1-L2 to indicate distinct voltage zones. Document wire colors (e.g., BK for black, RD for red) directly on wiring paths to streamline troubleshooting.

Adopt IEC 60617 or NFPA 79 conventions for consistency: IEC uses rectangles for coils and ││ for NO contacts, while NFPA employs circles and parentheses. Never mix standards on a single diagram–choose one and apply it rigidly across all pages. Limit rungs to 7-10 components per horizontal segment; exceed this and split into a new sub-circuit with a reference arrow (→ Continuation on Sheet 3). Annotate critical timers or counters with their preset values (e.g., T1: 5s) and specify if delays are transient (ON-delay) or retentive (accumulating). Use separate pages for safety circuits, labeling them Sheet S1-Sx to prioritize diagnostics.

For PLC-based systems, superimpose a logical truth table (e.g., CR1 = LS2 ∧ PB1) above each rung and cross-reference I/O addresses like %I0.0 or %Q2.3. Include a 1:1 scale legend in the top-right corner showing unit measurements (e.g., 1 square = 100mm) for precise field wiring. Audit diagrams against the physical panel: verify every component’s tag number aligns with the schematic and highlight discrepancies in bold red. Archive revisions with a changelog–list date, author, and modification reasoning (e.g., “2024-05-15: Added NC contact R4-K1 per Issue #42”)–to maintain a traceable history.

How to Interpret Contact Symbols and Their Real-World Functions in Control Logic

Begin by identifying normally open (NO) and normally closed (NC) symbols–these dictate machine behavior under resting conditions. A NO contact, depicted as two parallel lines, remains disconnected until energized, meaning no current flows when inactive. In practice, this symbol appears in pushbuttons activating motors or solenoids only when pressed. Conversely, an NC contact, shown as parallel lines with a diagonal slash, conducts current by default and breaks the circuit when activated. Use this for emergency stops or safety interlocks requiring fail-safe operation: if power fails, the circuit opens, halting equipment immediately.

Analyze the symbol’s adjacent labels to determine its physical counterpart. A “CR1” next to an NO contact likely represents a control relay coil, while “LS2” might denote a limit switch monitoring position. Cross-reference these with the legend or component list to avoid misinterpretation. For instance, a NO labeled “PB1” could be a start button, while an NC labeled “OL” might be an overload relay protecting a motor. Follow the wiring path from left to right–power flows through contacts sequentially, with each symbol controlling whether the downstream device (e.g., motor starter, pilot light) receives voltage.

Common Symbols and Their Operational Roles

• NO Contact (||): Used for momentary actions like start buttons or sensors that should close only under specific conditions (e.g., temperature or pressure exceeding thresholds). Example: A float switch closing to activate a pump when liquid reaches a set level.
• NC Contact (|/|): Critical for safety circuits where interruption must trigger an immediate response. Example: A thermal overload relay holding power until overheating occurs, then breaking the circuit to prevent damage.
• Coil (─( )─): Represents a load device (relay, motor starter) that energizes when all preceding contacts are closed. Example: A relay coil activating a horn if both a motion sensor (NO) and time delay (NC) are satisfied.

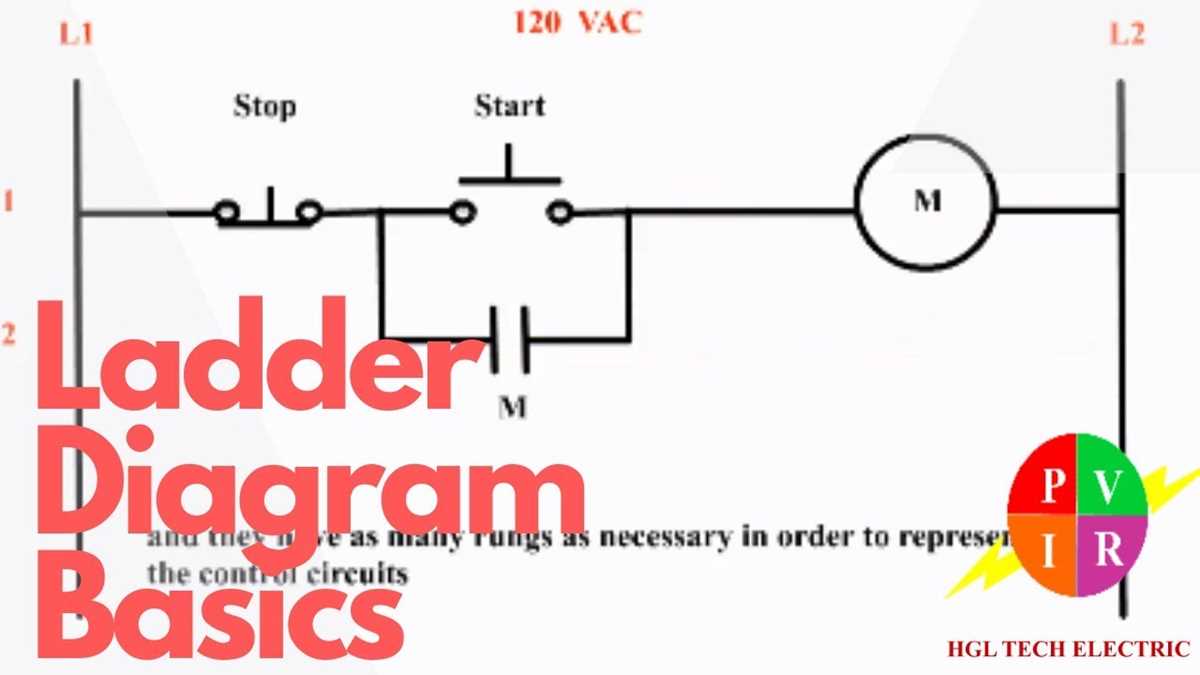

• Seal-in Circuit: A NO contact placed parallel to a start button to maintain power after the button is released. Without this, releasing the button would de-energize the coil. Verify this configuration in sequences requiring sustained operation, like conveyor belt startups.

Trace branches feeding multiple contacts to understand logical AND/OR functions. If two NO contacts appear in series (─||─||─), both must close (“AND” logic) for the coil to energize–typical for dual conditions like a start button plus a safety gate switch. Parallel contacts (─||─
─||─) represent “OR” logic, where either can close to activate the coil, seen in redundant safety circuits (e.g., multiple emergency stops). Misinterpreting these leads to erratic system behavior or bypassed safety checks. Always simulate the circuit mentally: power enters from the left rail, traverses contacts, and exits through the coil to the right rail. Breakpoints like NC contacts must be accounted for as “open circuits” when active.

Converting Relay Logic to PLC Wiring Blueprints: A Definitive Walkthrough

Begin by isolating each relay coil and its corresponding contacts. Number every coil–not sequentially–but based on its function and location in the existing wiring blueprint. For instance, a coil labeled “CR1” controlling a motor starter should retain “CR1” in the PLC wiring representation. Map each normally open (NO) and normally closed (NC) contact directly beneath or adjacent to its corresponding coil symbol. Use horizontal lines to depict power rails and short vertical lines to represent branches. Avoid crossing lines; if unavoidable, use a dot to indicate intentional junctions, not accidental overlaps.

Core Translation Rules

Relay Element	PLC Representation	Key Adjustments
Relay Coil	Output instruction (e.g., O:0/0)	Assign memory addresses sequentially, grouping related functions.
NO Contact	Examine-On instruction (XIC)	Use bit-level addressing; verify scan order matches relay priority.
NC Contact	Examine-Off instruction (XIO)	Invert logic only if safety circuits demand fail-safe operation.
Time Delay Relay	Timer instruction (TON/TOF)	Preset values in milliseconds; match relay delay specifications exactly.

Replace physical pushbuttons and limit switches with discrete input instructions. Assign each input a unique address–typically starting at I:1/0–grouping high-priority signals like emergency stops first. Ensure NC pushbuttons transition to XIO instructions to preserve fail-safe behavior. For multi-contact relays with multiple poles, split contacts into separate branches, stacking them vertically if space allows. Label every instruction with both the original relay designation and the new PLC address for cross-reference.

Compile contact sequences into parallel paths where relays share common branches. Convert series branches into nested rungs, maintaining logical flow from left (power rail) to right (output). For complex interlocks, use internal bits (e.g., B3:0/1) to simplify rungs without altering functionality. Test each segment in simulation mode before committing to hardware. Document every change in a revision table noting coil substitutions and contact inversions to facilitate troubleshooting.

Validate final blueprints against the original relay wiring list. Strip redundant branches–common in relay schematics–for streamlined PLC execution. Separate power and control circuits, ensuring PLC outputs drive relays or contactors with adequate current ratings. Insert surge suppression components directly at output terminals if inductive loads exceed PLC capabilities. Save two versions: one annotated with relay references for legacy understanding, another with pure PLC nomenclature for future edits.
