Step-by-Step Guide to Designing and Connecting Electrical Switchboard Circuits

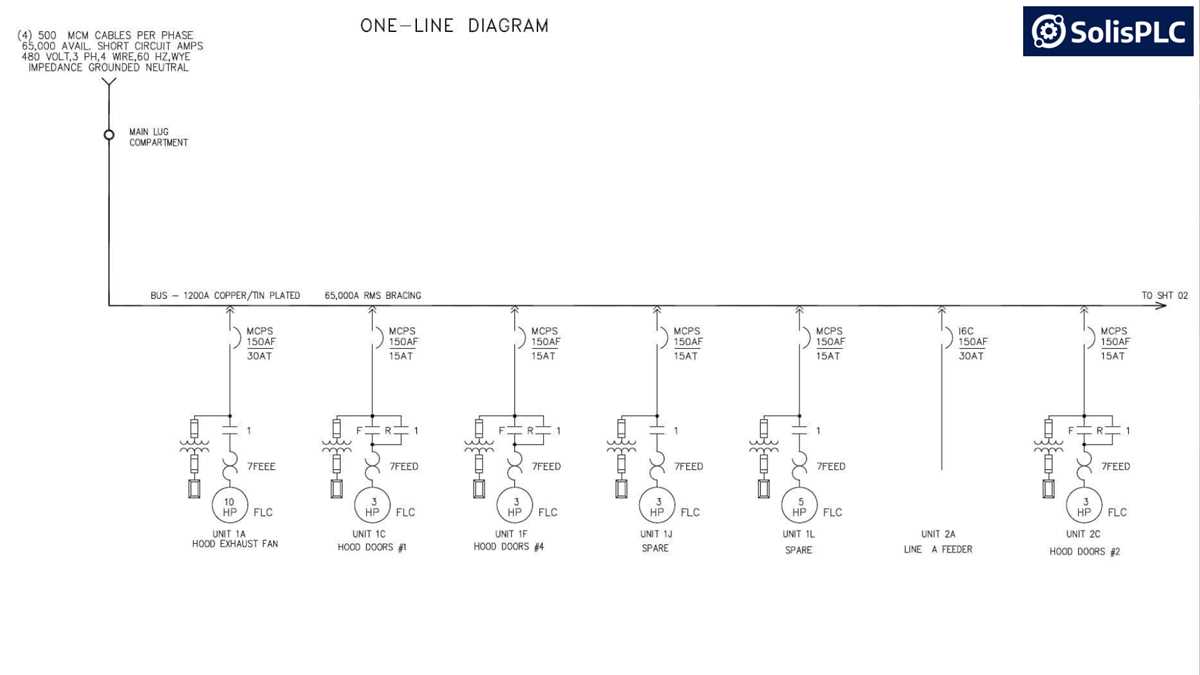

Begin by isolating the main power feed–typically a three-phase conductor rated for 400V or 480V–and verify its connection points match the panel’s busbar capacity. Use 25mm² copper cables for primary distribution branches if the load exceeds 63A; anything below can safely use 16mm². Label each input with permanent, heat-resistant tags (polyimide preferred) specifying cable type (e.g., “L1,” “L2,” “L3,” “N,” “PE”) to prevent misrouting during maintenance or upgrades.

For auxiliary circuits–relays, contactors, or PLC interfaces–route 1.5mm² or 2.5mm² conductors in dedicated cable trays or conduits. Maintain a 30mm separation between high-voltage and low-voltage pathways to minimize interference. Use crimp ferrules on all stranded conductors to eliminate loose strands, ensuring compliance with IEC 60364-5-52 for secure terminations. Grounding must follow a star topology, with all PE conductors converging at a single, bonded earth bar rated for the panel’s maximum fault current.

When integrating protective devices (MCBs, RCDs, or fuses), assign each a unique identifier linked to a legend placed inside the panel door. For example, “Q1: 32A Type C MCB–Feeder to Compressor.” Include derating factors if ambient temperatures exceed 40°C (reduce MCB rating by 20% for 50°C environments). Use DIN rail mountings to standardize spacing–25mm between devices–to simplify future expansions.

For digital monitoring or SCADA integration, use screened twisted-pair cables (e.g., Cat5e or better) with foil shielding connected to a dedicated grounding terminal. Terminate shields at one end only to prevent ground loops. Test all pathways with a 500V insulation resistance meter; readings below 1MΩ indicate moisture or damaged insulation requiring immediate rework.

Mastering Control Panel Circuit Layouts

Label every conductor path with heat-resistant, self-laminating tags before terminating connections–standardize IDs to match schematic references (e.g., L1, N, PE) and include terminal block numbers (TB1-4). Use 2.5 mm² Cu for feeder lines rated under 20A, upgrading to 6 mm² for inductive loads like contactor coils to prevent voltage drop.

Segregate high-power and low-signal pathways by routing them in separate DIN-rail-mounted trunking; keep AC mains (230V) at least 50mm from data cables (Modbus, Ethernet) to avoid EMI interference. Bond all metallic enclosures to the grounding busbar with tinned copper braid (minimum 16 mm² cross-section) and install surge arrestors (Type 2, 275V) at the main input.

Mount miniature circuit breakers (MCBs) with C-curve characteristics for general loads, substituting with D-curve for motors; specify RCBOs (30mA) for human-accessible outlets. Position overload relays (Class 10) after contactors, sized to 120% of motor FLC–calibrate trip curves using the relay’s dial settings according to IEC 60947-4-1.

Test continuity between neutral and ground at the distribution block with a 500V megohmmeter; resistance must exceed 1MΩ. Verify torque settings on terminal screws (e.g., 2.5 Nm for M5) using a calibrated torque screwdriver to prevent loosening under thermal cycling. Store spare fuses in a labeled drawer pre-loaded with matched ratings (gG/gL 6A, 10A, 16A).

Document deviations from the reference schematic in red on a laminated overlay fixed to the panel door, noting wire color substitutes (e.g., blue ≠ neutral in local codes) and custom terminal assignments for third-party sensors like PT100 modules. Photograph each layer progression during assembly for troubleshooting reference.

Best Practices for Marking Circuit Identifiers in Control Panel Schematics

Use alphanumeric codes aligned with industry standards–ANSI/NFPA 79 for machinery panels or IEC 61439 for distribution systems–assigning each conductor a unique tag like M1-L1 for motor 1 phase 1 or L3-N for lighting circuit 3 neutral. Avoid generic labels such as “wire 1” or “circuit A,” which fail to convey function or hierarchy during troubleshooting.

• Motor branches: [Device][Phase] (e.g., P3-T for pump 3 thermistor)
• Distribution feeders: [Panel][Breaker][Pole] (e.g., DB4-Q2-L for main board 4, breaker 2, left pole)
• Control loops: [Function][Number][Type] (e.g., ESTOP-1-NO for emergency stop relay 1 normally open)

Place identifiers adjacent to connection endpoints–terminal blocks, contactor coils, or breaker terminals–using 3.5 mm uppercase text for visibility. Group related tags under dashed outlines or shaded areas for logical separation, such as “HVAC” for climate systems or “SEC” for security devices. Include polarity or voltage markings if not evident from context (24VDC+ or ~230V-L).

Tools and Materials for Precision Marking

Employ polyester labels (minimum 12 mm width) printed via thermal transfer for UV and solvent resistance, or use embossed tags on copper crimp sleeves for field-terminated conductors. For schematics, vector-based CAD software (AutoCAD Electrical, EPLAN) auto-generates consistent tags from BOM databases; export to PDF with layer visibility toggled for construction versus maintenance views.

1. Verify tag alignment on components before energizing: mismatch between CB5-L2 on the print and CB4-L2 on the actual breaker risks tripping wrong circuits.
2. Cross-reference tags in three locations: schematic, door-mounted directory, and component labels (e.g., breaker handle stickers).
3. Use QR codes linking to datasheets for critical spares–scan RES-4-UPS for resistor specs instead of manual lookup.

Adopt a hierarchical naming convention for multi-level assemblies. Primary panels might prefix subpanels (MAIN-FDR1 for feeder 1), while subpanels add suffixes (FDR1-LDB2 for local distribution box 2). Reserve X for future expansions (e.g., SPARE-X1) and TEMP for provisional circuits, updated post-commissioning. Document revisions in a border note: REV 02: ADDED UPS-3.

For hazardous locations, append zone classifications (PUMP-EX-ZONE2-L) and intrinsic safety markings (IS: Ui=32V, Ci=0nF) alongside tags. Separate safety circuits (emergency stops, fire suppression) with red borders on the print and red wire sleeves in the field; label both normally open and normally closed states (EMS-RELAY1-NC/NO).

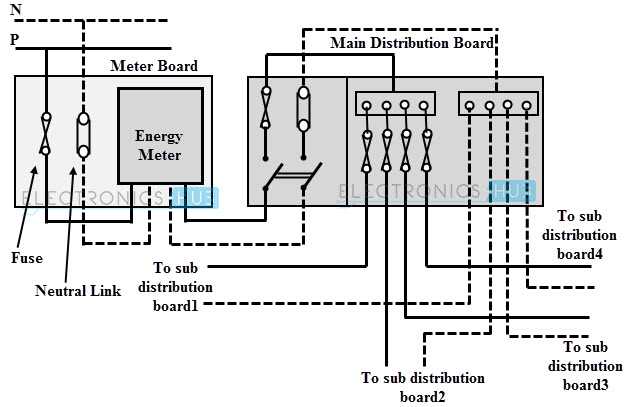

Creating a Single-Phase Control Panel Schematic: A Practical Approach

Begin with a clear outline of the panel’s layout on graph paper or digital drafting software, ensuring a 1:1 scale for components. Measure the physical dimensions of the enclosure and mark mounting points for circuit breakers, relays, and terminal blocks. Use standardized symbols: circles for lamps, rectangles for fuses, and zigzag lines for resistive loads. Label each symbol immediately–uniquely assigned identifiers like “L1,” “CB3,” or “TB5” prevent confusion during installation.

Connect the main power source (230V, 50Hz) to the primary disconnect switch first. From here, draw lines to each branch circuit, adhering to IEC 60364-5-52 for conductor sizing: 2.5mm² for 16A circuits, 4mm² for 25A, and 6mm² for 32A. Include a 30mA residual-current device (RCD) immediately after the disconnect to protect all downstream circuits. Indicate neutral (blue) and earth (green/yellow) conductors alongside live (brown) lines, ensuring no crossovers unless at a junction box.

Key Components and Their Placement

Component	Recommended Position	Spacing (mm)
Main breaker	Top-left corner	50 (from top edge)
RCD	Below main breaker	25 (between devices)
Terminal strips	Right side, vertical	15 (between rows)
Branch circuit breakers	Below RCD, horizontal	10 (between units)

For load distribution, group circuits by function: lighting on one rail, outlets on another, and motor controls separately. Use solid lines for permanent connections and dashed lines for optional or future expansions. Specify wire types in a legend–e.g., “THHN 6mm²” for internal panel wiring and “XLPE 10mm²” for external feeds. Include a surge protection device (SPD) rated for 275V across each phase-neutral bond if transient voltages exceed 1.5kV.

Verify the schematic against the as-built system by tracing each path manually. Check for unbroken loops, orphaned symbols, and incorrect polarities. Add a title block with project name, revision date, and scale (e.g., “1:10”). Convert the final draft into a PDF or DXF format, exporting layers separately for electricians (wiring), inspectors (approvals), and maintenance teams (maintenance notes).

Common Pitfalls to Avoid

• Omitting voltage drop calculations: For 16A circuits, limit runs to 40m with 2.5mm² conductors.
• Ignoring clearance requirements: Maintain 20mm air gap between live parts per IEC 60947-1.
• Mixing AC and DC symbols: Use respective standards (BS 3939 for AC, IEEE 315 for DC).
• Skipping wire numbering: Each wire must match terminal labels on both ends.
• Overloading neutral: Dedicate a separate busbar if harmonic loads exceed 30% of total current.

Critical Errors in Three-Phase Power Panel Assembly

Mixing phase sequences during installation disrupts motor rotation and damages connected machinery. Label L1, L2, L3 meticulously on both incoming supply and distribution lines–verify with a phase rotation meter before energizing. Skipping this step causes irreversible equipment failure, especially in pumps, compressors, and conveyor systems. Use color-coded sleeves (brown, black, grey) or permanent markers to prevent confusion.

Improper Torque Values Compromise Safety

Loose terminal connections overheat and arc, while overtightened bolts crack busbars. Follow manufacturer torque specs–typically 12–15 Nm for M8 terminals, 20–25 Nm for M10. Use a calibrated torque wrench; hand-tightening risks thermal expansion gaps. Check torque annually, as vibration loosens connections over time. Ignoring torque specs voids warranty coverage and violates IEC 61439 standards.

Avoid undersized neutral conductors in balanced loads. Even with near-perfect phase symmetry, harmonic distortions from VFDs and nonlinear loads demand a full-sized neutral–same cross-section as phases. A collapsed neutral returns more than 200% of phase current under fault conditions, melting insulation and triggering fires. Specify conductors with at least 1.5x nominal rating for circuits serving data centers or LED lighting.

• Neglecting short-circuit current ratings (SCCR) leads to catastrophic failure. Install current-limiting breakers matched to busbar SCCR–common 25 kA panels won’t survive a 50 kA fault. Calculate prospective fault current using source impedance, conductor lengths, and transformer impedance. Oversize busbars if needed; replacements exceed $15,000 per incident.
• Grounding rods buried too close to foundation rebar create stray voltage gradients. Space electrodes at least 3 m from structures and 5 m apart. Use copper-clad steel rods (min. 250 mm²) driven 2.4 m deep; shallow rods corrode within 5 years. Test soil resistivity–clay soils require additional electrodes at half-normal spacing.
• Overlooking IP rating limitations exposes components to dust and moisture. Install gasketed doors, cable glands rated IP66+, and breathers for temperature swings. Condensation inside unsealed enclosures corrodes terminals within months, especially in coastal or industrial zones.

Relying solely on breaker labels without megger testing misses insulation degradation. Test cables at 1000 V DC for 1 min–readings below 1 MΩ indicate imminent failure. Replace cables showing partial discharge; re-terminate if resistance fluctuates during testing. Log test dates; IEEE 43 mandates retesting every 3 years for medium-voltage installations.
